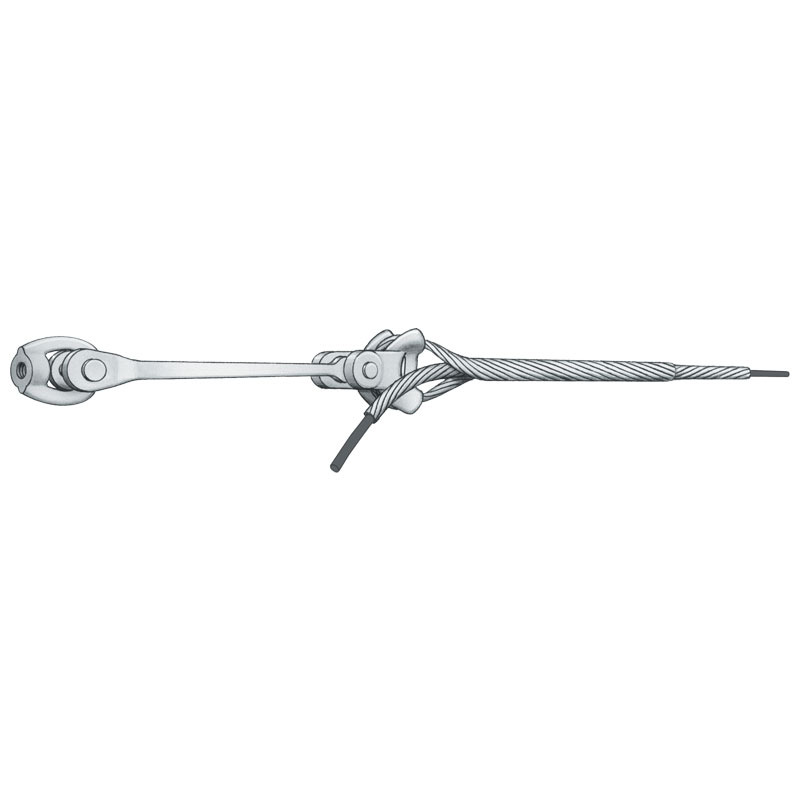

Terminal de cable formado para el cable ADSS.
de002252e39640519d4a8c663f67be99
1 AFLglobal.com 1 (800) 235-3423 © 2002, AFL, all rights reserved. PP-3-00013, Revision 11, 6.25.2025 Speci cations are subject to change without notice. 1 Fiber Optic Cable Accessories Limited Tension Formed Wire Dead End for ADSS Cable Item Description Material 1 Reinforcing Rods (SRR) Galvanized Steel 2 Formed Wire Dead-End Galvanized Steel 3 Thimble Clevis Aluminum 4 Extension Link Aluminum 5 5/8 Eye Nut Aluminum 3 4 2 1 ALL DIELECTRIC SELF SUPPORTING CABLE 5 LENGTH "L" Features • Components strength—6,500 lbs. • Maximum initial tension—up to 1,000 lbs. • Maximum loaded tension—up to 2,500 lbs. • Dead end component may be reused once during initial installation • Contact AFL for track-resistant ADSS application • BABA compliant AFL No. Cable OD (in.) Length "L" (in.) Color Code ADESE380/400C 0.380 - 0.400 48 Red ADESE400/424C 0.400 - 0.424 48 Black ADESE425/451C 0.425 - 0.451 48 Yellow ADESE452/481C 0.452 - 0.481 48 Green ADESE482/510C 0.482 - 0.510 48 Orange ADESE511/542C 0.511 - 0.542 48 Blue ADESE543/577C 0.543 - 0.577 48 White ADESE578/613C 0.578 - 0.613 48 Red ADESE614/651C 0.614 - 0.651 48 Black ADESE652/692C 0.652 - 0.692 48 Yellow ADESE693/737C 0.693 -0.737 48 Green ADESE738/784C 0.738 - 0.784 48 Orange ADESE785/834C 0.785 - 0.834 48 Blue ADESE835/889C 0.835 - 0.889 48 White ADESE890/945C 0.890 - 0.945 48 Red ADESE946/1007C 0.946 - 1.007 48 Black ADESE1008/1073C 1.008 - 1.073 60 Yellow ADESE1074/1140C 1.074 - 1.140 60 Green ADESE1141/1212C 1.141 - 1.212 60 Orange ADESE1213/1288C 1.213 - 1.288 60 Blue Ordering Information * Drawing above is representative * For BABA-compliant part number, add "-BABA" to end of part number. BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
2 AFLglobal.com 1 (800) 235-3423 © 2002, AFL, all rights reserved. PP-3-00029, Revision 10, 6.25.2025 Speci cations are subject to change without notice. 2 Fiber Optic Cable Accessories Medium Tension Formed Wire Dead End for ADSS Cable Item Description Material 1 Reinforcing Rods (SRR) Galvanized Steel 2 Formed Wire Dead-End Galvanized Steel 3 Thimble Clevis Aluminum 4 Extension Link Aluminum 5 5/8 Eye Nut Aluminum ALL DIELECTRIC SELF SUPPORTING CABLE 1 2 5 LENGTH "L" 3 4 Features • Component strength—6,500 lbs. • Maximum initial tension—up to 2,000 lbs. • Maximum loaded tension—up to 4,000 lbs. • Dead end component may be reused once during initial installation • Contact AFL for track-resistant ADSS application • BABA compliant AFL No. Cable OD (in.) Length "L" (in.) Color Code ADEME482/510C .482-.510 72 Orange ADEME511/542C .511-.542 73 Blue ADEME543/577C .543-.577 74 White ADEME578/613C .578-.613 78 Red ADEME614/651C .614-.651 80 Black ADEME652/692C .652-.692 80 Yellow ADEME693/737C .693-.737 82 Green ADEME738/784C .738-.784 88 Orange ADEME785/834C .785-.834 92 Blue ADEME835/889C .835-.889 94 White ADEME890/945C .890-.945 96 Red ADEME946/1007C .946-1.007 98 Black ADEME1008/1073C 1.008-1.073 102 Purple ADEME1074/1140C 1.074-1.140 102 Pink ADEME1141/1212C 1.141-1.212 104 Brown ADEME1213/1288C 1.213-1.288 107 Orange Ordering Information * Drawing above is representative * For BABA-compliant part number, add "-BABA" to end of part number. BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
3 AFLglobal.com 1 (800) 235-3423 © 2002, AFL, all rights reserved. PP-3-00605, Revision 11, 3.18.2025 Speci cations are subject to change without notice. 3 Fiber Optic Cable Accessories Semi-High Tension Formed Wire Dead End for ADSS Cable Item Description Material 1 Reinforcing Rods (SRR) Galvanized Steel 2 Formed Wire Dead-End Galvanized Steel 3 Thimble Clevis Galvanized Steel 4 Extension Link Galvanized Steel 5 5/8 Eye Nut Galvanized Steel 2 1 ALL DIELECTRIC SELF SUPPORTING CABLE 3 4 5 Features • Components strength—15,000 lbs. • Maximum initial tension—up to 4,000 lbs. • Maximum loaded tension—up to 7,500 lbs. • Dead end component may be reused once during initial installation • Contact AFL for Length Information and track-resistant ADSS application • Lengths range from 100" to 134" AFL No. Cable OD (in.) Length "L" (in.) Color Code ADELE482/510C .482-.510 98 Orange ADELE511/542C .511-.542 98 Blue ADELE543/577C .543-.577 100 White ADELE578/613C .578-.613 104 Red ADELE614/651C .614-.651 106 Black ADELE652/692C .652-.692 106 Yellow ADELE693/737C .693-.737 108 Green ADELE738/784C .738-.784 113 Orange ADELE785/834C .785-.834 118 Blue ADELE835/889C .835-.889 119 White ADELE890/945C .890-.945 121 Red ADELE946/1007C .946-1.007 123 Black ADELE1008/1073C 1.008-1.073 126 Purple ADELE1074/1140C 1.074-1.140 127 Pink ADELE1141/1212C 1.141-1.212 129 Brown ADELE1213/1288C 1.213-1.288 133 Orange Ordering Information * Drawing above is representative LENGTH "L"
Aplicaciones:
- Sólo para uso con cables ADSS con cubierta de polietileno
- Para cambios de línea o de ángulo de elevación superiores a 30 grados
