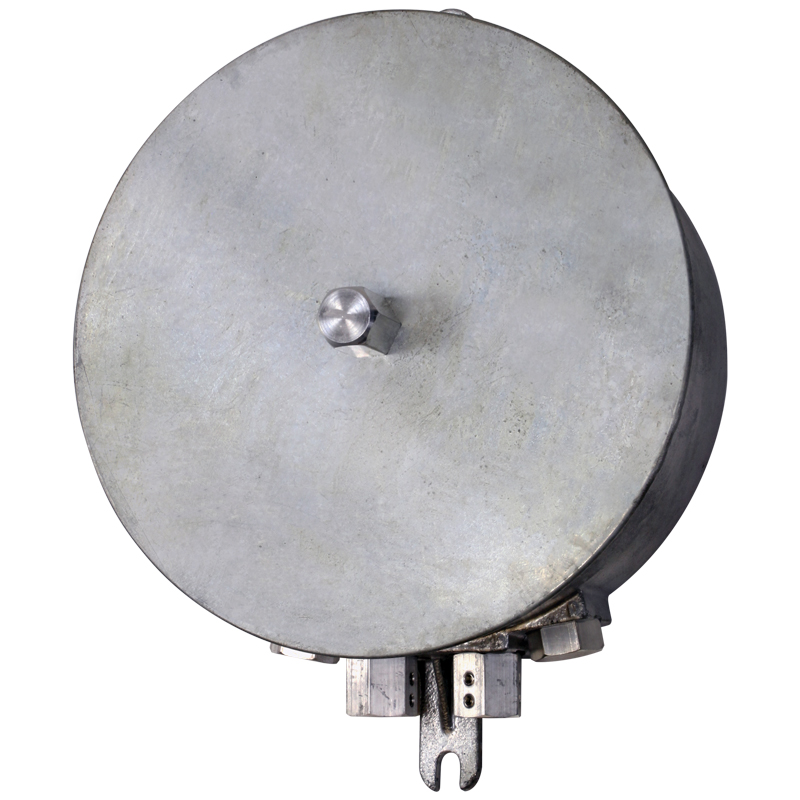

La caja de empalme SB01 de AFL proporciona protección contra todo tipo de elementos. De la intemperie a las balas, la construcción de hierro y acero no requiere ningún revestimiento protector adicional. Equipada con cuatro puertos de cable enchufados (2 de aluminio y 2 de plástico) para cables autoportantes totalmente dieléctricos (ADSS) o cables ópticos de tierra (OPGW), la caja de empalme puede premontarse en una estructura antes de completar la fase de empalme.
e990f6cb2c5c415792cae837c8a72223,de002252e39640519d4a8c663f67be99
1 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 2002, AFL, all rights reserved. PP-3-00054, Revision 10, 11.23.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued SB01 Splice Enclosure AFL’s splice enclosure provides protection from all types of elements. From weather to bullets, the iron and steel construction requires no additional protective covering. Furnished with four plugged cable ports (2 aluminum and 2 plastic) for either All-Dielectric Self-Supporting (ADSS) or Optical Ground Wire (OPGW) cables, the splice enclosure can be pre-mounted to a structure before completion of the splicing phase. With an internal capacity to store approximately 25 feet of buffer tube, the closure is more cost- effective, eliminating the need for an external coil storage bracket (with exception to stainless steel tube optical ground wire designs). The 72-fiber circular fiber tray, constructed of high impact- resistant Lexan ® , enables management of up to 144 fibers. The tray’s black base and clear lid enable easy accessibility. Ideal for electric utilities and optical cable installers, the splice enclosure is versatile and cost- effective for new and existing installations. Features • Up to 144-fiber splice capacity, depending on cable design • Customizable kit with no special re-entry kits required • Splice tray constructed of high impact-resistant Lexan ® • Manufactured of iron and steel; bullet-resistant • Pre-mountable enabling easy re-entry and access • Unique new gasket with top-center radius eliminates the need for RTV sealant • New C11508-1 gasket can be retrofitted to existing splice closures Ordering Instructions – Step 1 DESCRIPTION AFL NO. Splice Enclosure including one splice tray for 12 single fused fiber capacity, sealant, organizer tray for additional trays. SB01 Splice Enclosure including one splice tray for 72 single fused fiber capacity. Protection sleeves not included. SB01-72 Splice Enclosure including two splice trays for 72 single fused fiber capacity, a total of 144 splices. Protection sleeves not included. SB01-144 Cable connector kits required to complete installation are sold separately. Refer to "Ordering Instructions" Steps 2 and 3 on the following pages to complete your order. Ordering Instructions – Step 2 CONNECTOR KIT APPLICATION SLCK, SCK, APCK Optical Ground Wire BCK All-Dielectric Self-Supporting (ADSS) Fiber Optic Cable Loose Tube Fiber Optic Cable Refer to page on connector kits for AFL number set-up. SB01 with 12 splice capacity tray SB01 with 72 splice capacity tray SB01 Top view of new SB01 gasket (AFL No. C11508-1)
© 2002, AFL, all rights reserved. PP-3-00054, Revision 10, 11.23.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Fiber Optic Cable Hardware Fiber Optic Cable Hardware continued 14.56" COVER DIAMETER (370 MM) SPLICE BOX COVER SPANNER NUT 5.25" (133 MM) 17.88" (454 MM) .5" LAG SCREW OR BOLT (SUPPLIED BY CUSTOMER) SPLICE BOX LID GASKET SPANNER NUT OR HEX NUT O-RING WITH RTV 108 OR SELF-SEALING WASHER GASKET LID SB01 Splice Enclosure (cont.) Dimensions Specifications PARAMETER VALUE Maximum Tray Capacity (depending on tray type) 4 ST1 Trays or 2 ST72 Trays Maximum Fiber Count (depending on tray type) 48 with ST1; 144 with (2) ST72 Weight 52 lbs. (23.57 kg) Diameter 14.56 in. (370 mm) Height (with cover) 5.25 in (133.35 mm) Mounting Distance (hole to hole) 17.88 in (454.15 mm) NOTE: Banding and steel tower adapters are available in lieu of bolts. Old Gasket Design New Gasket Design (AFL No. C11508-1)
3 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 2002, AFL, all rights reserved. PP-3-00054, Revision 10, 11.23.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Connector Kits for Opti-Guard and SB01 Splice Enclosures—OPGW Cable Optical Ground Wire Connector Kit OPGW Connector Kit Cable Type SLCK = Slotted Core SCK = MiniCore, HexaCore or PentaCore APCK = CentraCore, AlumaCore Ordering Example: For 0.571" diameter SX-67/49/571, which has a layer 1 total diameter of 0.358", the AFL number is SCKB569/583. ZZZZ Y XXX/XXX Connector Kit: Optical Ground Wire Inner Layer Range Code in Decimal Inches (see Table 1) Cable Diameter Range Code in Decimal Inches (see Table 2) Table 2 – Cable Diameter Range Codes RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 225/240 0.225 0.240 241/255 0.241 0.255 256/271 0.256 0.271 272/286 0.272 0.286 287/302 0.287 0.302 303/318 0.303 0.318 319/333 0.319 0.333 334/349 0.334 0.349 350/365 0.350 0.365 366/380 0.366 0.380 381/396 0.381 0.396 397/412 0.397 0.412 413/427 0.413 0.427 428/443 0.428 0.443 444/459 0.444 0.459 460/474 0.460 0.474 475/490 0.475 0.490 RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 491/506 0.491 0.506 507/521 0.507 0.521 522/537 0.522 0.537 538/553 0.538 0.553 554/568 0.554 0.568 569/583 0.569 0.583 584/599 0.584 0.599 600/615 0.600 0.615 616/630 0.616 0.630 631/646 0.631 0.646 647/662 0.647 0.662 663/677 0.663 0.677 678/693 0.678 0.693 694/708 0.694 0.708 709/727 0.709 0.727 728/740 0.728 0.740 Table 1 – Inner Layer Range Codes RANGE CODE SLOTTED CORE DIAMETER MINICORE, HEXACORE OR PENTACORE LAYER 1 DIAMETER C ENTRACORE OR ALUMACORE PIPE DIAMETER A 0.185 - 0.227 0.000 - 0.230 0.185 - 0.227 B 0.228 - 0.264 0.231 - 0.500 0.228 - 0.264 C 0.265 - 0.300 0.501 - 0.636 0.265 - 0.300 D 0.301 - 0.374 — 0.301 - 0.374 E 0.375 - 0.479 — 0.375 - 0.479 F 0.480 - 0.550 — 0.480 - 0.550 G 0.551 - 0.630 — 0.551 - 0.630 H 0.631 - 0.700 — 0.631 - 0.700
© 2002, AFL, all rights reserved. PP-3-00054, Revision 10, 11.23.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 4 Fiber Optic Cable Hardware Fiber Optic Cable Hardware continued Armored Loose Tube Connector Kit All-Dielectric Self-Supporting Connector Kit Connector Kits for Opti-Guard and SB01 Splice Enclosures— Black Jacket Cable Black Jacket Cable Connector Kit Ordering Example: For 0.528" diameter ADSS, the AFL number is BCK522/537. BCK Connector Kit: All-Dielectric Self-Supporting Fiber Optic Cable Range Code in Decimal Inches (see Table 1 below) Table 1 RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 225/240 0.225 0.240 241/255 0.241 0.255 256/271 0.256 0.271 272/286 0.272 0.286 287/302 0.287 0.302 303/318 0.303 0.318 319/333 0.319 0.333 334/349 0.334 0.349 350/365 0.350 0.365 366/380 0.366 0.380 381/396 0.381 0.396 397/412 0.397 0.412 413/427 0.413 0.427 428/443 0.428 0.443 444/459 0.444 0.459 460/474 0.460 0.474 475/490 0.475 0.490 RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 491/506 0.491 0.506 507/521 0.507 0.521 522/537 0.522 0.537 538/553 0.538 0.553 554/568 0.554 0.568 569/583 0.569 0.583 584/599 0.584 0.599 600/615 0.600 0.615 616/630 0.616 0.630 631/646 0.631 0.646 647/662 0.647 0.662 663/677 0.663 0.677 678/693 0.678 0.693 694/708 0.694 0.708 709/727 0.709 0.727 728/740 0.728 0.740 F Blank = No Additional Connector Assembly Required F = 1 " Flex Conduit Connector Required Ordering Example: For 0.510" armored loose tube (duct) cable with flexible conduit and armor ground connections, the AFL number is BCK507/521B. Connector Kit: Loose Tube Fiber Optic Cable Black Jacket Cable Connector Kit BCK XXX/XXX Range Code in Decimal Inches (see Table 1 below) B Options Blank = No Additional Connector Assembly Required F = 1" Flexible Conduit Connector Required A = Armor Ground Assembly Required B = Armor Ground Assembly and 1" Flexible Conduit Connector Required XXX/XXX
5 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 2002, AFL, all rights reserved. PP-3-00054, Revision 10, 11.23.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Ordering Instructions – Step 3 The SB01 includes accessories that allow for up to 12 fiber splices. Additional components shown below may be ordered when more than 12 splices are required. SB01 Splice Enclosures Accessories Splice Tray TT1 Transition Tray Ordering Information MODEL AFL NO. SB01 Splice Tray ST1 Features • 12 single-fused fiber splice capacity • Includes 13 splice protection sleeves Ordering Information MODEL AFL NO. SB01 Transition Tray TT1 Features • 48 fiber capacity • Used in conjunction with SB01 Furcation Kit • Not required for ST1-72 tray • Not required with AlumaCore OPGW designs The SB01 Splice Tray organizes and protects the fiber splices. 72 Fiber Splice Tray Ordering Information MODEL AFL NO. 72 Fiber Splice Tray ST1-72 Features • 72 single-fused fiber splice capacity • Protection sleeves sold separately The 72 Fiber Splice Tray is used to organize and protect up to 72 single fused fibers in the SB01 splice enclosure. The SB01 Transition Tray is used to divide fibers into groups for routing into splice trays. To be used for OPGW cables containing stainless steel tubes. SB01 Furcation Kit Ordering Information MODEL AFL NO. SB01 Furcation Kit SB01FK Features • Contains tubing to protect and guide fibers inside the splice enclosure • Includes cable ties to secure buffer tubes to the splice tray The SB01 Furcation Kit includes the materials required to properly divide fibers into groups inside the SB01 splice enclosure.
Características:
- Capacidad de empalme de hasta 144 fibras, dependiendo del diseño del cable
- Kit personalizable sin necesidad de kits de reentrada especiales
- Bandeja de empalme construida en Lexan de alta resistencia a los impactos®
- Fabricada en hierro y acero; resistente a las balas
- Premontable, lo que permite un fácil reingreso y acceso
