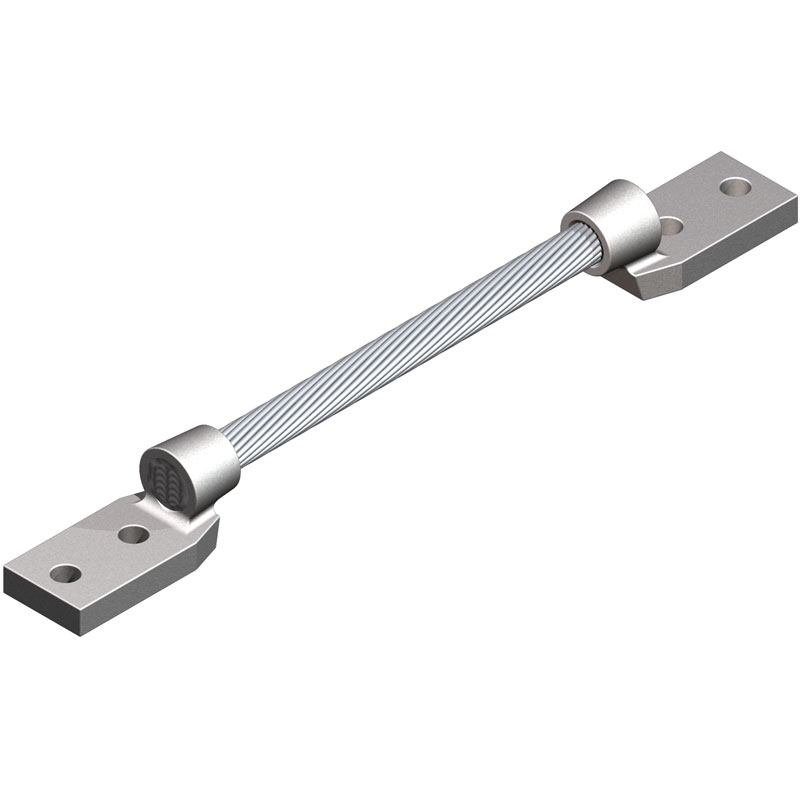

Los conectores de terminales de aluminio están diseñados para ser soldados al cable de aluminio. Las almohadillas se ajustan a las normas NEMA.
3973c3309c1c4f8fb011f100d22695ce
420 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00179, Revision 1, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 420 TYPE 34300 Tube To Flat Material Aluminum Alloy Ordering Information Catalog Number SPS Dimensions in Inches Nominal Weight in lbs A B C D 34308E 3 7.62 4.12 2.62 1.75 5.20 34309E 3 1/2 8.19 4.69 2.94 2.00 5.90 34310E 4 8.44 5.19 3.25 2.25 6.20 34312E 5 9.00 6.38 3.44 2.75 8.30 34313E 6 9.50 7.56 4.25 3.25 9.50 Double terminal is designed to connect to aluminum or copper pads. ∅ 9/16 1 3/4 C A C 1 1/8 4 D B AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
421 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00528, Revision 8, 1.9.2025 Specifications are subject to change without notice. 421 230 kV Aluminum Welded WP2C-N-AA WP2CA-N-45-AA Material Aluminum Alloy Notes 1. Add "U" for undrilled. Ex: WP2C35-2NU-AA 2. Add "F" for finished on both sides 3. For a 30° add suffix'-30', for a 45° add suffix'-45', and for a 90° add suffix '-90'. You must also add an 'A' after WP2C. 4. For a 350 MCM cable, with a 4 hole pad finished on both sides, with a 45° angle use WP2CA35-4NF-45-AA. TYPE WP2C-N-AA, WP2CA-N-30-AA, WP2CA-N-45-AA, WP2CA-N-90-AA Welded Terminal to Two Cables WP2C-N-AA FIG. 1 X WP2CA-N-45-AA WP2CA-N-90-AA X F FIG. 2 T L FIG. 3 ∅ 9/16 ∅ 9/16 1 3/4 1 3/4 1 3/4 1 3/4 A B 6 1 1/4 C C A WP2CA-N-30-AA 1 3/4 1 3/4 X C ∅ 9/16 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
422 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00528, Revision 8, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 422 Ordering Information Catalog Number FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C F L T X WP2C35-2N-AA 1 336.4 (19), 350 (19,37,61) 300 (26/7) 1 5/8 1 1/4 3 1 1/4 4 1/2 3/8 5/8 WP2C35-4N-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 3 1 1/4 3 1 1/4 4 1/2 3/8 5/8 WP2C35-4N4-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 4 1 1/4 4 1 1/4 5 1/2 3/8 1 1/8 WP2C40-2N-AA 1 397.5 (19), 350 (19,37,61) 336.4 (18/1,26/7,30/7) 1 5/8 1 1/4 3 1 1/4 4 1/2 3/8 5/8 WP2C40-4N-AA 2 397.5 (19), 400 (19,37) 336.4 (18/1,26/7,30/7) 3 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C48-2N-AA 1 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/18) 1 5/8 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C48-4N-AA 2 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/18) 3 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C55-2N-AA 1 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 1 5/8 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C55-4N-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 3 1 1/4 3 1 3/8 4 1/2 3/8 5/8 WP2C55-4N4-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 4 1 1/4 4 1 3/8 5 1/2 3/8 1 1/8 WP2C65-2N-AA 1 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 1 5/8 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C65-4N-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C65-4N4-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C71-2N-AA 1 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 1 5/8 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C71-4N-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C71-4N4-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C80-2N-AA 1 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (27/4) 1 3/4 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C80-4N-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (27/4) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C80-4N4-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (27/4) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C90-2N-AA 1 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 36/1,45/7,24/7,54/7) 2 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C90-4N-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 36/1,45/7,24/7,54/7) 3 1 1/2 3 1 5/8 4 3/4 1/2 5/8 WP2C90-4N4-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 36/1,45/7,24/7,54/7) 4 1 1/2 4 1 5/8 5 3/4 1/2 1 1/8 WP2C95-2N-AA 1 900 (37,61), 954 (37,61) 795 (30/19), 874.5 (54/7), 900 (45/7,54/7) 2 1 3/4 3 1 5/8 5 1/2 5/8 WP2C95-4N-AA 2 900 (37,61), 954 (37,61) 795 (30/19), 874.5 (54/7), 900 (45/7,54/7) 3 1 3/4 3 1 5/8 5 1/2 5/8 WP2C95-4N4-AA 2 900 (37,61), 954 (37,61) 795 (30/19), 874.5 (54/7), 900 (45/7,54/7) 4 1 3/4 4 1 5/8 6 11/16 1 1/8 TYPE WP2C-N-AA, WP2CA-N-30-AA, WP2CA-N-45-AA, WP2CA-N-90-AA continued
423 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00528, Revision 8, 1.9.2025 Specifications are subject to change without notice. 423 230 kV Aluminum Welded TYPE WP2C-N-AA, WP2CA-N-30-AA, WP2CA-N-45-AA, WP2CA-N-90-AA Ordering Information Catalog Number FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C F L T X WP2C103-2N-AA 1 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954,36/1,45/7,54/7) 2 1 3/4 3 1 3/4 5 1/2 5/8 WP2C103-4N-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954,36/1,45/7,54/7) 3 1 3/4 3 1 3/4 5 1/2 5/8 WP2C103-4N4-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954,36/1,45/7,54/7) 4 1 3/4 4 1 7/8 6 1/2 1 1/8 WP2C111-2N-AA 1 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 2 1/2 1 3/4 3 1 7/8 5 1/2 5/8 WP2C111-4N-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 3 1 3/4 3 1 7/8 5 1/2 5/8 WP2C111-4N4-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 4 1 3/4 4 1 5/8 6 11/16 1 1/8 WP2C127R-4N-AA 2 1272MCM ROPELAY NA 3 2 3 2 1/4 5 1/2 3/4 5/8 WP2C127R-4N4-AA 2 1272MCM ROPELAY NA 4 2 4 2 1/4 6 1/4 3/4 1 1/8 WP2C135-2N-AA 1 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 2 1/2 2 3 2 1/4 5 1/4 5/8 5/8 WP2C135-4N-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 3 2 3 2 1/4 5 1/4 5/8 5/8 WP2C135-4N4-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 4 2 4 2 1/4 6 1/4 5/8 1 1/8 WP2C151-2N-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 3 2 3 2 1/4 5 1/4 3/4 5/8 WP2C151-4N-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 3 2 3 2 1/4 5 3/4 3/4 5/8 WP2C151-4N4-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 4 2 4 2 1/4 6 1/4 3/4 1 1/8 WP2C151-6N4-AA 3 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 6 2 4 2 1/4 6 1/4 3/4 1 1/8 WP2C170-2N-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 3 2 3 2 1/4 5 1/4 3/4 5/8 WP2C170-4N-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 3 2 1/4 3 1/2 2 1/4 6 3/4 5/8 WP2C170-4N4-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 4 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C170-6N4-AA 3 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7,54/19) 6 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C190-4N-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 3 2 1/4 3 2 1/4 5 1/2 3/4 5/8 WP2C190-4N4-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 4 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C190-6NA-AA 3 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 6 2 1/4 4 2 1/4 6 1/2 3/4 1 1/8 WP2C225-4N-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 3 2 1/4 3 2 1/2 5 1/2 3/4 5/8 WP2C225-4N4-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 4 2 1/4 4 2 1/2 6 1/2 3/4 1 1/8 WP2C225-6N4-AA 3 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 6 2 1/4 4 2 1/2 6 1/2 3/4 1 1/8 WP2C250-4N-AA 2 2500 (91,127,169) 2156 (84/19) 3 2 1/4 3 2 3/4 5 1/2 3/4 5/8 WP2C250-4N4-AA 2 2500 (91,127,169) 2156 (84/19) 4 2 1/4 4 2 3/4 6 1/2 3/4 1 1/8 WP2C250-6N4-AA 3 2500 (91,127,169) 2156 (84/19) 6 2 1/4 4 2 3/4 6 1/2 3/4 1 1/8 WP2C300-4N-AA 2 2750 (91), 3000 (127,169) 2870 ACSR 3 2 1/4 3 2 3/4 5 1/2 7/8 5/8 WP2C300-4N4-AA 2 2750 (91), 3000 (127,169) 2870 ACSR 4 2 1/4 4 2 3/4 6 1/2 7/8 1 1/8
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 1 WPCA-N-90-AA WPC-N-AA TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Offset Welded Terminal to Cable Material Aluminum Alloy Notes • Add "U" for undrilled • Add "F" for finished on both sides • For a 3", 4-hole NEMA pad at 45° angle to 450 MCM cable, order: WPCA48-4N-45-AA • For a 3", 4-hole NEMA pad at 90° angle finished on both sides to 450 MCM cable, order: WPCA48-4NF-90-AA continued WPC-N-AA A A T L B A 1 3/4 X C WPCA-N-45-AA WPCA-N-90-AA FIG. 3 FIG. 2 ∅ 9/16 1 3/4 1 3/4 X WPCA-N-30-AA FIG. 1 1 3/4 1 3/4 C 1 3/4 X ∅ 9/16 ∅ 9/16 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
2 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 2 230 kV Aluminum Welded TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Ordering Information Catalog No. FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C T L X WPC10-2N-AA 1 1/0 (7,19) 1 (6/1), 1/0 (6/1) 1 1/4 3/4 3 5/16 4 5/8 WPC10-4N-AA 2 1/0 (7,19) 1 (6/1), 1/0 (6/1) 3 3/4 3 5/16 4 5/8 WPC13-2N-AA 1 2/0 (7,19,37) 2/0, (6/1) 1 1/4 3/4 3 5/16 4 5/8 WPC17-2N-AA 1 3/0 (7,19,37) 101.8 (12/7), 3/0 (6/1) 1 1/4 3/4 3 5/16 4 5/8 WPC21-2N-AA 1 4/0 (7,19,37), 246.9 (7) 134.6 (12/7), 4/0 (6/1) 1 3/4 1 3 3/8 4 1/4 5/8 WPC21-4N-AA 2 4/0 (7,19,37), 246.9 (7) 134.6 (12/7), 4/0 (6/1) 3 1 3 5/16 4 1/4 5/8 WPC21-4N4-AA 2 4/0 (7,19,37), 246.9 (7) 134.6 (12/7), 4/0 (6/1) 4 1 4 5/16 5 1/4 1 1/8 WPC31-2N-AA 1 250 (7,19,97,61)266.8 (7,19), 300 (19,37,61), 312.8 (19) 159 (12/7), 226.8 (19/1,26/7) 1 3/4 1 3 3/8 4 1/4 5/8 WPC31-4N-AA 2 250 (7,19,97,61)266.8 (7,19), 300 (19,37,61), 312.8 (19) 159 (12/7), 226.8 (19/1,26/7) 3 1 3 3/8 4 1/4 5/8 WPC31-4N4-AA 2 250 (7,19,97,61)266.8 (7,19), 300 (19,37,61), 312.8 (19) 159 (12/7), 226.8 (19/1,26/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC35-2N-AA 1 336.4 (19), 350 (19,37,61) 300 (26/7) 1 3/4 1 3 3/8 4 1/4 5/8 WPC35-4N-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 3 1 3 3/8 4 1/4 5/8 WPC35-4N4-AA 2 336.4 (19), 350 (19,37,61) 300 (26/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC40-2N-AA 1 397.5 (19), 400 (37,61) 336.4 (18/1,26/7,30/7) 1 3/4 1 1/4 3 3/8 4 1/2 5/8 WPC40-4N-AA 2 397.5 (19), 400 (37,61) 336.4 (18/1,26/7,30/7) 3 1 1/4 3 3/8 4 1/2 5/8 WPC40-4N4-AA 2 397.5 (19), 400 (37,61) 336.4 (18/1,26/7,30/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC48-2N-AA 1 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/7) 1 5/8 1 1/4 3 3/8 4 1/2 5/8 WPC48-4N-AA 2 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/7) 3 1 1/4 3 3/8 4 1/2 5/8 WPC48-4N4-AA 2 450 (19,37,61), 477 (19,37) 397.5 (18/1,24/7,26/7,30/7) 4 1 1/4 4 1/2 3/8 6 3/16 1 1/8 WPC55-2N-AA 1 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 1 5/8 1 1/4 3 3/8 4 1/2 5/8 WPC55-4N-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 3 1 1/4 3 3/8 4 1/2 5/8 WPC55-4N4-AA 2 500 (19,37,61), 550 (61,91), 556.5 (19,37) 477 (18/1,24/7,26/7,30/7) 4 1 1/4 4 3/8 5 1/2 1 1/8 WPC65-2N-AA 1 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 1 3/4 1 1/2 3 1/2 4 3/4 5/8 WPC65-4N-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 3 1 1/2 3 1/2 4 3/4 5/8 WPC65-4N4-AA 2 600 (37,61,91), 636 (37), 650 (37,61,91) 556.5 (18/1,24/7,26/7) 4 1 1/2 4 1/2 5 3/4 1 1/8 WPC71-2N-AA 1 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 1 3/4 1 1/2 3 1/2 4 3/4 5/8 WPC71-4N-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 3 1 1/2 3 1/2 4 3/4 5/8 WPC71-4N4-AA 2 650 (37,61,91), 700 (37,61,91), 715.5 (37,61) 636 (24/7,26/7), 605 (24/7,26/7,30/19) 4 1 1/2 4 1/2 5 3/4 1 1/8 WPC79-2N-AA 1 795 MCM — 1 3/4 1 1/2 3 5/8 4 3/4 5/8 WPC79-3N-AA 2 795 MCM — 3 1 1/2 3 5/8 4 3/4 5/8 WPC80-2N-AA 1 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 1 3/4 1 1/2 3 1/2 4 3/4 5/8 WPC80-2N3-AA 1 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 2 1 1/2 3 1/2 4 3/4 5/8 WPC80-4N-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 3 1 1/2 3 1/2 4 3/4 5/8 WPC80-4N4-AA 2 750 (37,61,91), 795 (37,61), 800 (61,91) 636 (30/19), 666.6 (24/7,26/7), 715.5 (24/7) 4 1 1/2 4 1/2 5 3/4 1 1/8 continued
3 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 3 TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Ordering Information Catalog No. FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C T L X WPC90-2N-AA 1 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 (36/1,45/7,24/7,54/7) 2 1 1/2 3 1/2 4 3/4 5/8 WPC90-4N-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 (36/1,45/7,24/7,54/7) 3 1 1/2 3 1/2 4 3/4 5/8 WPC90-4N4-AA 2 800 (61,91), 874.5 (37,61), 900 (37,61,91) 715.5 (30/19), 795 (36/1,45/7,24/7,54/7) 4 1 1/2 4 1/2 5 3/4 1 1/8 WPC95-2N-AA 1 900 (37,61), 954 (37,61) 795 (26/7, 30/19), 874.5 (54/7), 900 (45/7,54/7) 2 1 3/4 3 1/2 5 5/8 WPC95-4N-AA 2 900 (37,61), 954 (37,61) 795 (26/7, 30/19), 874.5 (54/7), 900 (45/7,54/7) 3 1 3/4 3 1/2 5 5/8 WPC95-4N4-AA 2 900 (37,61), 954 (37,61) 795 (26/7, 30/19), 874.5 (54/7), 900 (45/7,54/7) 4 1 3/4 4 1/2 6 1 1/8 WPC103-2N-AA 1 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 2 1 3/4 3 1/2 5 5/8 WPC103-4N-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 3 1 3/4 3 1/2 5 5/8 WPC103-4N4-AA 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 4 1 3/4 4 1/2 6 1 1/8 WPC103-4N4- AA-T3/4 2 954 (37/61), 1000 (37,61,91), 1033.5 (37,61) 954 (36/1,45/7,54/7) 4 1 3/4 4 3/4 6 1 1/8 WPC111-2N-AA 1 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 2 1/2 1 3/4 3 1/2 5 5/8 WPC111-4N-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 3 1 3/4 3 1/2 5 5/8 WPC111-4N4-AA 2 1100 (91,127), 1113 (61) 1033.5 (36/1,45/7,54/7) 4 1 3/4 4 1/2 6 1 1/8 WPC127A-4N-AA 2 — 1272 MCM 3 2 3 3/4 5 1/4 5/8 WPC127A-4N4-AA 2 — 1272 MCM 4 2 4 11/16 5 1/2 1 1/8 WPC127R-4N-AA 2 1272 MCM ROPE LAY — 3 2 3 11/16 5 1/2 5/8 WPC127R-4N4-AA 2 1272 MCM ROPE LAY — 4 2 4 1/4 11/16 6 1/2 1 1/8 WPC135-2N-AA 1 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 2 1/2 2 3 9/16 5 1/4 5/8 WPC135-4N-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 3 2 3 9/16 5 1/4 5/8 WPC135-4N4-AA 2 1192.5 (61), 1200 (91,127), 1250 (91,127), 1272 (61), 1300 (91,127), 1351.5 (61) 1113 (45/7,54/19), 1192.5 (45/7,54/19) 4 2 4 9/16 6 1/4 1 1/8 WPC151-4N-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 3 2 1/4 3 11/16 5 5/8 5/8 WPC151-4N4-AA 2 1400 (91,127), 1431 (61), 1500 (91,127), 1510.5 (61) 1272 (45/7,54/19), 1351.5 (45/7,54/19) 4 2 1/4 4 11/16 6 5/8 1 1/8 WPC159-2N-AA 1 1590 MCM — 2 1/2 2 3 11/16 5 5/16 5/8 WPC159-4N-AA 2 1590 MCM — 3 2 3 11/16 5 5/16 5/8 WPC159-4N4-AA 2 1590 MCM — 4 2 4 11/16 6 5/16 1 1/8 WPC170-2N-AA 1 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7, 54/19) 2 1/2 2 1/4 3 3/4 5 1/2 5/8 WPC170-4N-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7, 54/19) 3 2 1/4 3 5/8 5 1/2 5/8 WPC170-4N4-AA 2 1590 (61), 1600 (127,169), 1700 (127,169) 1431 (45/7,54/19), 1510.5 (45/7, 54/19) 4 2 1/4 4 3/4 6 5/8 1 1/8 WPC190-4N-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 3 2 1/4 3 11/16 5 1/2 5/8 WPC190-4N4-AA 2 1750 (127,169), 1800 (127,169), 1900 (127,169) 1590 (45/7,54/19), 1780 (84/19) 4 2 1/4 4 11/16 6 1/2 1 1/8 WPC190-6N4-AA 3 1750 (127, 169), 1800 (127, 169), 1900 (127, 169) 1590 (45/7, 54/19), 1780 (84/19) 6 2 1/4 4 11/16 6 1/2 1 1/8 WPC205-4N4-AA 2 2049 MCM ACAR — 4 2 1/4 4 3/4 6 9/16 1 1/8 continued
4 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 4 230 kV Aluminum Welded TYPE WPC-N-AA, WPCA-N-30-AA, WPCA-N-45-AA, WPCA-N-90-AA Ordering Information Catalog No. FIG. No. Cable Range Dimensions in Inches Aluminum ACSR A B C T L X WPC225-4N-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 3 2 1/4 3 3/4 5 9/16 5/8 WPC225-4N4-AA 2 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 4 2 1/4 4 3/4 6 9/16 1 1/8 WPC225-6N4-AA 3 2000 (91,127,169), 2250 (91) 1780 (84/19), 2167 (72/7) 6 2 1/4 4 3/4 6 9/16 1 1/8 WPC234-4N4-AA 2 2336 MCM ACAR — 4 2 1/4 4 3/4 6 9/16 1 1/8 WPC240R-4N4-AA 2 2.4 DI — 4 2 3/4 4 1/4 1 7 1/4 1 1/8 WPC250-4N-AA 2 2500 (91,127,169) 2156 (84/19) 3 2 1/4 3 3/4 5 1/2 5/8 WPC250-4N4-AA 2 2500 (91,127,169) 2156 (84/19) 4 2 1/4 4 3/4 6 1/2 1 1/8 WPC300-4N-AA 2 2750 (91), 3000 (127,169) 2870 MCM 3 2 1/4 3 3/4 5 1/2 5/8 WPC300-4N4-AA 2 2750 (91), 3000 (127,169) 2870 MCM 4 2 1/4 4 3/4 6 5/8 1 1/8
427 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 427 230 kV Aluminum Welded AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. WTP-N-AA TYPE WTP-N-AA Flush Welded Terminal Material Aluminum Alloy Notes 1. Add "U" for undrilled pad. EX: WTP400-4N4U-AA 2. Add "F" for finished pad on both sides. EX: WTP75-2NF-AA T ∅ 9/16 FIG. 1 1.75 A X ∅ 9/16 1.75 X A 1.75 C 1.75 1.75 X 1.75 ∅ 9/16 A C L C H FIG. 2 FIG. 3 continued
428 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 428 Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A C H L T X WTP75-2N-AA 3/4 1 2.00 3.00 1.31 4.31 0.38 0.63 WTP75-4N-AA 3/4 2 3.00 3.00 1.31 4.31 0.38 0.63 WTP100-2N-AA 1 1 2.00 3.00 1.19 4.25 0.50 0.63 WTP100-4N-AA 1 2 3.00 3.00 1.00 4.25 0.38 0.63 WTP100-4N4-AA 1 2 4.00 4.00 1.00 5.25 0.38 1.13 WTP125-2N-AA 1-1/4 1 2.00 3.00 1.25 4.63 0.50 0.63 WTP125-4N-AA 1-1/4 2 3.00 3.00 1.44 5.00 0.63 0.63 WTP125-4N4-AA 1-1/4 2 4.00 4.00 1.25 5.44 0.50 1.13 WTP150-2N-AA 1-1/2 1 2.00 3.00 1.56 5.00 0.50 0.63 WTP150-4N-AA 1-1/2 2 3.00 3.00 1.56 5.00 0.50 0.63 WTP150-4N4-AA 1-1/2 2 4.00 4.00 1.56 6.00 0.50 1.13 WTP200-2N-AA 2 1 2.00 3.00 1.69 4.88 0.50 0.63 WTP200-4N-AA 2 2 3.00 3.00 1.81 5.25 0.63 0.63 WTP200-4N4-AA 2 2 4.00 4.00 1.69 5.88 0.63 1.13 WTP250-2N-AA 2-1/2 1 2.00 3.00 1.94 5.25 0.63 0.63 WTP250-4N-AA 2-1/2 2 3.00 3.00 1.94 5.25 0.63 0.63 WTP250-4N4-AA 2-1/2 2 4.00 4.00 1.88 6.25 0.63 1.13 WTP300-2N-AA 3 1 2.00 3.00 2.31 5.63 0.63 0.63 WTP300-4N-AA 3 2 3.00 3.00 2.25 5.38 0.63 0.63 WTP300-4N4-AA 3 2 4.00 4.00 2.25 6.38 0.63 1.13 WTP300-5N4-AA 3 3 5.00 4.00 2.31 6.63 0.63 1.13 WTP300-6N4-AA 3 3 6.00 4.00 2.31 6.63 0.63 1.13 WTP350-2N-AA 3-1/2 1 2.00 3.00 2.56 5.50 0.75 0.63 WTP350-4N-AA 3-1/2 2 3.00 3.00 2.56 5.50 0.75 0.63 WTP350-4N4-AA 3-1/2 2 4.00 4.00 2.56 6.50 0.75 1.13 WTP350-5N4-AA 3-1/2 3 5.00 4.00 2.56 6.88 0.75 1.13 WTP350-6N4-AA 3-1/2 3 6.00 4.00 2.56 6.88 0.75 1.13 WTP400-4N-AA 4 2 3.00 3.50 2.97 6.38 0.75 0.63 WTP400-4N4-AA 4 2 4.00 4.00 2.97 7.50 0.75 1.13 WTP400-5N4-AA 4 3 5.00 4.00 2.88 7.13 0.75 1.13 WTP400-6N4-AA 4 3 6.00 4.00 2.88 7.13 0.75 1.13 WTP500-4N-AA 5 2 3.00 3.00 3.44 6.63 0.88 0.63 WTP500-4N4-AA 5 2 4.00 4.00 3.44 7.00 0.88 1.13 WTP500-5N4-AA 5 3 5.00 4.00 3.44 7.63 0.88 1.13 WTP500-6N4-AA 5 3 6.00 4.00 3.44 7.63 0.88 1.13 WTP600-4N-AA 6 2 3.00 3.00 3.94 7.13 1.00 0.63 WTP600-4N4-AA 6 2 4.00 4.50 4.25 8.94 1.06 1.13 WTP600-5N4-AA 6 3 5.00 4.00 3.94 8.13 1.00 1.13 WTP600-6N4-AA 6 3 6.00 4.00 3.94 7.00 1.00 1.13 WTP800R-4N4-AA 8" OD 2 4.00 4.00 5.08 8.13 1.25 1.13 WTP800R-6N4-AA 8" OD 3 6.00 4.00 5.02 8.00 1.25 1.13 TYPE WTP-N-AA Flush Welded Terminal
429 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 429 230 kV Aluminum Welded WTPA-N-45-AA TYPE WTPA-N-45-AA Flush Welded Terminal, 45 Degree Material Aluminum Alloy Notes 1. Add "U" for undrilled pad. EX: WTPA400-4N4U-45-AA 2. Add "F" for finished pad on both sides. EX: WTPA75-2NF-AA T ∅ 0.56 1.75 A X 45° C FIG. 1 FIG. 2 FIG. 3 ∅ 0.56 1.75 A X C 1.75 ∅ 0.56 1.75 A X C 1.75 1.75 continued
430 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 430 Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A C T X WTPA75-2N-45-AA 3/4 1 2.00 3.00 0.38 0.63 WTPA75-4N-45-AA 3/4 2 3.00 3.00 0.38 0.63 WTPA100-2N-45-AA 1 1 2.00 3.00 0.50 0.63 WTPA100-4N-45-AA 1 2 3.00 3.00 0.38 0.63 WTPA100-4N4-45-AA 1 2 4.00 4.00 0.38 1.13 WTPA125-2N-45-AA 1-1/4 1 2.00 3.00 0.50 0.63 WTPA125-4N-45-AA 1-1/4 2 3.00 3.00 0.63 0.63 WTPA125-4N4-45-AA 1-1/4 2 4.00 4.00 0.50 1.13 WTPA150-2N-45-AA 1-1/2 1 2.00 3.00 0.50 0.63 WTPA150-4N-45-AA 1-1/2 2 3.00 3.00 0.50 0.63 WTPA150-4N4-45-AA 1-1/2 2 4.00 4.00 0.50 1.13 WTPA200-2N-45-AA 2 1 2.00 3.00 0.50 0.63 WTPA200-4N-45-AA 2 2 3.00 3.13 0.50 0.63 WTPA200-4N4-45-AA 2 2 4.00 4.00 0.50 1.13 WTPA250-2N-45-AA 2-1/2 1 2.00 3.25 0.63 0.63 WTPA250-4N-45-AA 2-1/2 2 3.00 3.00 0.63 0.63 WTPA250-4N4-45-AA 2-1/2 2 4.00 4.00 0.63 1.13 WTPA300-2N-45-AA 3 1 2.00 3.00 0.63 0.63 WTPA300-4N-45-AA 3 2 3.00 3.00 0.63 0.63 WTPA300-4N4-45-AA 3 2 4.00 4.00 0.75 1.13 WTPA300-5N4-45-AA 3 3 5.00 4.00 0.63 1.13 WTPA300-6N4-45-AA 3 3 6.00 4.00 0.63 1.13 WTPA350-2N-45-AA 3-1/2 1 2.00 3.00 0.75 0.63 WTPA350-4N-45-AA 3-1/2 2 3.00 3.00 0.75 0.63 WTPA350-4N4-45-AA 3-1/2 2 4.00 4.00 0.75 1.13 WTPA350-5N4-45-AA 3-1/2 3 5.00 4.00 0.75 1.13 WTPA350-6N4-45-AA 3-1/2 3 6.00 4.00 0.75 1.13 WTPA400-4N-45-AA 4 2 3.00 3.00 0.75 0.63 WTPA400-4N4-45-AA 4 2 4.00 4.00 0.75 1.13 WTPA400-5N4-45-AA 4 3 5.00 4.00 0.75 1.13 WTPA400-6N4-45-AA 4 3 6.00 4.00 0.75 1.13 WTPA500-4N-45-AA 5 2 3.00 3.00 0.88 0.63 WTPA500-4N4-45-AA 5 2 4.00 4.00 0.88 1.13 WTPA500-5N4-45-AA 5 3 5.00 4.00 0.88 1.13 WTPA500-6N4-45-AA 5 3 6.00 4.00 0.88 1.13 WTPA600-4N-45-AA 6 2 3.00 3.00 1.00 0.63 WTPA600-4N4-45-AA 6 2 4.00 4.00 0.63 1.13 WTPA600-5N4-45-AA 6 3 5.00 4.00 1.00 1.13 WTPA600-6N4-45-AA 6 3 6.00 4.00 0.63 1.13 WTPA800R-4N4-45-AA 8" OD 2 4.00 4.00 1.25 1.13 WTPA800R-6N4-45-AA 8" OD 3 6.00 4.00 1.25 1.13 TYPE WTPA-N-45-AA Flush Welded Terminal, 45 Degree
431 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 431 230 kV Aluminum Welded WTPA-N-90-AA TYPE WTPA-N-90-AA Flush Welded Terminal, 90 Degree Material Aluminum Alloy Notes 1. Add "U" for undrilled pad. EX: WTPA400-4N4U-90-AA 2. Add "F" for finished pad on both sides. EX: WTPA75-2NF-90-AA ∅ 0.56 1.75 A X C FIG. 1 FIG. 3 ∅ 0.56 1.75 A X C 1.75 1.75 T FIG. 2 1.75 A X C 1.75 ∅ 0.56 L continued
432 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00535, Revision 11, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 432 Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A C L T X WTPA75-2N-90-AA 3/4 1 2.00 3.00 3.88 0.38 0.63 WTPA75-4N-90-AA 3/4 2 3.00 3.00 3.88 0.38 0.63 WTPA100-2N-90-AA 1 1 2.00 3.00 4.19 0.38 0.63 WTPA100-4N-90-AA 1 2 3.00 3.00 4.19 0.38 0.63 WTPA100-4N4-90-AA 1 2 4.00 4.00 5.19 0.38 1.13 WTPA125-2N-90-AA 1-1/4 1 2.00 3.00 4.50 0.63 0.63 WTPA125-4N-90-AA 1-1/4 2 3.00 3.00 4.50 0.63 0.63 WTPA125-4N4-90-AA 1-1/4 2 4.00 4.00 5.63 0.50 1.13 WTPA150-2N-90-AA 1-1/2 1 2.00 3.00 4.69 0.50 0.63 WTPA150-4N-90-AA 1-1/2 2 3.00 3.00 4.69 0.50 0.63 WTPA150-4N4-90-AA 1-1/2 2 4.00 4.00 5.63 0.50 1.13 WTPA200-2N-90-AA 2 1 2.00 3.00 4.75 0.50 0.63 WTPA200-4N-90-AA 2 2 3.00 3.00 4.75 0.50 0.63 WTPA200-4N4-90-AA 2 2 4.00 4.00 5.75 0.50 1.13 WTPA250-2N-90-AA 2-1/2 1 2.50 3.00 6.19 0.63 0.63 WTPA250-4N-90-AA 2-1/2 2 3.00 3.00 5.20 0.63 0.63 WTPA250-4N4-90-AA 2-1/2 2 4.00 4.00 6.19 0.63 1.13 WTPA300-2N-90-AA 3 1 2.00 3.00 5.44 0.63 0.63 WTPA300-4N-90-AA 3 2 3.00 3.00 5.41 0.63 0.63 WTPA300-4N4-90-AA 3 2 4.00 4.00 6.44 0.63 1.13 WTPA300-5N4-90-AA 3 3 5.00 4.00 6.44 0.63 1.13 WTPA300-6N4-90-AA 3 3 6.00 4.00 6.44 0.63 1.13 WTPA350-2N-90-AA 3-1/2 1 2.00 3.00 5.72 0.75 0.63 WTPA350-4N-90-AA 3-1/2 2 3.00 3.00 5.75 0.75 0.63 WTPA350-4N4-90-AA 3-1/2 2 4.00 4.00 6.75 0.75 1.13 WTPA350-5N4-90-AA 3-1/2 3 5.00 4.00 6.75 0.75 1.13 WTPA350-6N4-90-AA 3-1/2 3 6.00 4.00 6.75 0.75 1.13 WTPA400-4N-90-AA 4 2 3.00 3.00 6.52 0.75 0.63 WTPA400-4N4-90-AA 4 2 4.00 4.00 7.02 0.75 1.13 WTPA400-5N4-90-AA 4 3 5.00 4.00 7.02 0.75 1.13 WTPA400-6N4-90-AA 4 3 6.00 4.00 7.02 0.75 1.13 WTPA500-4N-90-AA 5 2 3.00 3.50 7.06 0.88 0.63 WTPA500-4N4-90-AA 5 2 4.00 4.00 7.56 0.88 1.13 WTPA500-5N4-90-AA 5 3 5.00 4.00 7.56 0.88 1.13 WTPA500-6N4-90-AA 5 3 6.00 4.50 8.12 1.13 1.13 WTPA600-4N-90-AA 6 2 3.00 3.00 7.00 1.00 0.63 WTPA600-4N4-90-AA 6 2 4.00 4.00 8.22 1.00 1.13 WTPA600-5N4-90-AA 6 3 5.00 4.00 8.22 1.00 1.13 WTPA600-6N4-90-AA 6 3 6.00 4.00 8.22 1.00 1.13 WTPA800R-4N4-90-AA 8" OD 2 4.00 4.00 9.33 1.25 1.13 WTPA800R-6N4-90-AA 8" OD 3 6.00 4.00 9.33 1.25 1.13 TYPE WTPA-N-90-AA Flush Welded Terminal, 90 Degree
433 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00556, Revision 9, 1.9.2025 Specifications are subject to change without notice. 433 230 kV Aluminum Welded TYPE WTPC-N-AA External Center Form Welded Terminal Material Aluminum Alloy Notes • Add "U" for undrilled • Add "F" for finished on both sides EX: WTPC75-2NF-AA FIELD WELD FIG. 2 X A 1 3/4 ∅ 9/16 FIG. 1 L T C C FIG. 3 1 3/4 ∅ 9/16 X A 1 3/4 A ∅ 9/16 C X 1 3/4 1 3/4 1 3/4 Ordering Information Catalog Number Figure Number SPS Dimensions in Inches A C L T X WTPC75-2N-AA 1 3/4 2 3 4 5/8 3/8 5/8 WTPC75-4N-AA 2 3/4 3 3 4 5/8 3/8 5/8 WTPC100-2N-AA 1 1 2 3 5 3/8 5/8 WTPC100-4N-AA 2 1 3 3 5 3/8 5/8 WTPC100-4N4-AA 2 1 4 4 6 3/8 1 1/8 WTPC125-2N-AA 1 1 1/4 2 3 5 1/2 5/8 WTPC125-4N4-AA 2 1 1/4 4 4 6 1/2 1 1/8 WTPC125-4N-AA 2 1 1/4 3 3 5 1/2 5/8 WTPC150-2N-AA 1 1 1/2 2 3 5 5/8 5/8 WTPC150-4N4-AA 2 1 1/2 4 4 6 1/32 1/2 1 1/8 WTPC150-4N-AA 2 1 1/2 3 3 4 5/8 1/2 5/8 WTPC200-2N-AA 1 2 2 3 5 1/2 5/8 WTPC200-4N4-AA 2 2 4 4 6 1/2 1 1/8 WTPC200-4N-AA 2 2 3 3 5 1/2 5/8 WTPC250-2N-AA 1 2 1/2 3 3 5 5/8 5/8 WTPC250-4N4-AA 2 2 1/2 4 4 6 5/8 1 1/8 WTPC250-4N-AA 2 2 1/2 3 3 5 5/8 5/8 WTPC300-2N-AA 1 3 2 1/2 3 5 1/4 3/4 5/8 WTPC300-4N4-AA 2 3 4 4 6 5/8 3/4 1 1/8 WTPC300-4N-AA 2 3 3 3 5 1/4 3/4 5/8 WTPC350-4N-AA 2 3 1/2 3 3 5 5/8 3/4 5/8 WTPC350-4N4-AA 2 3 1/2 4 4 6 5/8 3/4 1 1/8 WTPC400-2N-AA 1 4 2 1/2 3 6 3/4 5/8 WTPC400-4N4-AA 2 4 4 4 7 7/8 1 1/8 WTPC400-4N-AA 2 4 3 3 6 3/4 5/8 WTPC400-5N4-AA 3 4 5 4 6 3/4 3/4 1 1/8 WTPC400-6N4-AA 3 4 6 4 1/2 7 1/2 7/8 1 1/8 WTPC500-4N-AA 2 5 3 3 1/2 6 7/8 3/4 5/8 WTPC500-4N4-AA 2 5 4 4 7 3/8 3/4 1 1/8 WTPC500-5N4-AA 3 5 5 4 7 3/8 7/8 1 1/8 WTPC500-6N4-AA 3 5 6 4 7 3/8 7/8 1 1/8 WTPC600-4N4-AA 2 6 4 4 7 7/8 1 1 1/8 WTPC600-6N4-AA 3 6 6 1/8 4 7 7/8 1 1 1/8 WTPC800-4N4-AA 2 8 4 4 7 7/8 1 1/4 1 1/8 WTPC800-6N4-AA 3 8 6 4 7 7/8 1 1/4 1 1/8 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
434 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00568, Revision 4, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 434 WTPIA-N-90-AA WTPI-N-AA TYPE WTPI-N-AA, WTPIA-N-45-AA, WTPIA-N-90-AA Internal Welded Terminal WTPI-N-AA the pad and pipe run parallel, WTPIA-N-45-AA the pad is at a 45° angle to the pipe, and WTPI-N-90-AA the pad is at a 90° angle to the pipe. Material Aluminum Notes • Add "U" for undrilled • Add "F" for finished on both sides. EX: WTP75-2NF-AA • For a 1" SPS pipe to a 3" NEMA pad at 45°, order: WTPIA100-4N-45-AA • For a 2" SPS pipe to a 4" NEMA pad at 90°, order: WTPIA200-4N4-90-AA • For a 2" SPS pipe to a 4" NEMA pad finished on both sides, order: WTPI200-4N4F-AA • For a 1" SPS pipe to a 4" pad undrilled order: WTPI100-4N4U-AA WTPI-N-AA WTPIA-N-45-AA WTPIA-N-90-AA A 1 3/4 ∅ 9/16 T B X C FIG. 1 FIG. 2 ∅ 9/16 1 3/4 X 1 3/4 A C FIG. 3 ∅ 9/16 C 1 3/4 X 1 3/4 1 3/4 A CROSS DESIGN continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
435 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00568, Revision 4, 1.9.2025 Specifications are subject to change without notice. 435 230 kV Aluminum Welded Ordering Information Catalog Number SPS Figure Number Dimensions in Inches SCH 40 SCH 80 A B C T X WTPI75-2N-AA WTPI75E-2N-AA 3/4 1 1-1/2 3/4 3 3/8 5/8 WTPI100-2N-AA WTPI100E-2N-AA 1 1 1-1/2 3/4 3 3/8 5/8 WTPI100-4N-AA WTPI100E-4N-AA 1 2 3 3/4 3 3/8 5/8 WTPI100-4N4-AA WTPI100E-4N4-AA 1 2 4 3/4 4 3/8 1-1/8 WTPI150-2N-AA WTPI150E-2N-AA 1-1/2 1 2 1 3 1/2 5/8 WTPI150-4N-AA WTPI150E-4N-AA 1-1/2 2 3 1 3 1/2 5/8 WTPI150-4N4-AA WTPI150E-4N4-AA 1-1/2 2 4 1 4 1/2 1-1/8 WTPI200-2N-AA WTPI200E-2N-AA 2 1 2 1-1/4 3 5/8 5/8 WTPI200-4N-AA WTPI200E-4N-AA 2 2 3 1-1/4 3 5/8 5/8 WTPI200-4N4-AA WTPI200E-4N4-AA 2 2 4 1-1/4 4 5/8 1-1/8 WTPI200-6N4-AA * WTPI200E-6N4-AA * 2 3 6 2 4 5/8 1-1/8 WTPI250-2N-AA WTPI250E-2N-AA 2-1/2 1 2 1-1/2 3 5/8 5/8 WTPI250-4N-AA WTPI250E-4N-AA 2-1/2 2 3 1-1/2 3 5/8 5/8 WTPI250-4N4-AA WTPI250E-4N4-AA 2-1/2 2 4 1-1/2 4 5/8 1-1/8 WTPI300-2N-AA WTPI300E-2N-AA 3 1 2 1-3/4 3 5/8 5/8 WTPI300-4N-AA WTPI300E-4N-AA 3 2 3 1-3/4 3 3/4 5/8 WTPI300-4N4-AA WTPI300E-4N4-AA 3 2 4 1-3/4 4 5/8 1-1/8 WTPI300-6N4-AA * WTPI300E-6N4-AA * 3 3 6 2 4 3/4 1-1/8 WTPI350-4N-AA WTPI350E-4N-AA 3-1/2 2 3 2 3 3/4 5/8 WTPI350-4N4-AA * WTPI350E-4N4-AA * 3-1/2 2 4 2 4 3/4 1-1/8 WTPI400-6N4-AA WTPI400E-6N4-AA 4 3 6 2-1/4 4 3/4 1-1/8 WTPI400-4N-AA WTPI400E-4N-AA 4 2 3 2-1/4 3 3/4 5/8 WTPI400-4N4-AA WTPI400E-4N4-AA 4 2 4 2-1/4 4 3/4 1-1/8 WTPI500-4N-AA WTPI500E-4N-AA 5 2 3 2-7/8 3 7/8 5/8 WTPI500-4N4-AA WTPI500E-4N4-AA 5 2 4 2-7/8 4 7/8 1-1/8 WTPI600-4N-AA WTPI600E-4N-AA 6 2 3 3-3/8 3 1 5/8 WTPI600-4N4-AA WTPI600E-4N4-AA 6 2 4 3-3/8 4 1 1-1/8 * Cross Design TYPE WTPI-N-AA, WTPIA-N-45-AA, WTPIA-N-90-AA Internal Welded Terminal
436 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00569, Revision 3, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 436 ∅ 9/16 1 3/4 C X A FIG. 3 1 3/4 1 3/4 Material Aluminum Alloy Notes 1. Add "U" for undrilled. EX: WTPIC100-2NU-AA 2. Add "F" for finished on both sides. EX: WTPIC100-2NF-AA Ordering Information Catalog Number SPS Figure Number Dimensions in Inches SCH 40 SCH 80 A B C L T X WTPIC100-2N-AA WTPIC100E-2N-AA 1 1 2 3/4 3 4 1/4 3/8 5/8 WTPIC100-4N-AA WTPIC100E-4N-AA 1 2 3 3/4 3 4 1/4 3/8 5/8 WTPIC150-2N-AA WTPIC150E-2N-AA 1-1/2 2 2 1 3 4 1/2 1/2 5/8 WTPIC150-4N-AA WTPIC150E-4N-AA 1-1/2 1 3 1 3 4 1/2 1/2 5/8 WTPIC200-2N-AA WTPIC200E-2N-AA 2 2 2 1 1/4 3 5 1/4 5/8 5/8 WTPIC200-4N4-AA WTPIC200E-4N4-AA 2 1 4 1 1/4 4 6 1/4 5/8 1 1/8 WTPIC200-4N-AA WTPIC200E-4N-AA 2 2 3 1 1/4 3 5 1/4 5/8 5/8 WTPIC250-2N-AA WTPIC250E-2N-AA 2-1/2 2 2 1 1/2 3 5 1/2 5/8 5/8 WTPIC250-4N4-AA WTPIC250E-4N4-AA 2-1/2 1 4 1 1/2 4 6 1/2 5/8 1 1/8 WTPIC250-4N-AA WTPIC250E-4N-AA 2-1/2 2 3 1 1/2 3 5 1/2 5/8 5/8 WTPIC300-4N4-AA WTPIC300E-4N4-AA 3 2 4 1 3/4 4 6 3/4 5/8 1 1/8 WTPIC300-4N-AA WTPIC300E-4N-AA 3 2 3 1 3/4 3 5 3/4 5/8 5/8 WTPIC350-4N4-AA WTPIC350E-4N4-AA 3-1/2 2 4 2 4 7 1/4 3/4 1 1/8 WTPIC350-4N-AA WTPIC350E-4N-AA 3-1/2 2 3 2 3 6 1/4 3/4 5/8 WTPIC400-4N4-AA WTPIC400E-4N4-AA 4 2 4 2 1/4 4 7 1/4 3/4 1 1/8 WTPIC400-4N-AA WTPIC400E-4N-AA 4 2 3 2 1/4 3 6 1/4 3/4 5/8 WTPIC500-4N4-AA WTPIC500E-4N4-AA 5 2 4 2 1/2 4 8 1/8 7/8 1 1/8 WTPIC500-4N-AA WTPIC500E-4N-AA 5 2 3 2 1/2 3 7 1/8 7/8 5/8 WTPIC600-4N4-AA WTPIC600E-4N4-AA 6 2 4 3 3/8 4 8 3/4 1 1 1/8 WTPIC600-6N4-AA WTPIC600E-6N4-AA 6 3 6 3 3/8 4 9 7/16 1 1 1/8 WTPIC800-4N4-AA WTPIC800E-4N4-AA 8 2 4 3 3/8 4 8 3/4 1 1/8 1 1/8 FIG. 2 FIG. 1 T 1 3/4 ∅ 9/16 1 3/4 1 3/4 L C B C X A C A X TYPE WTPIC-N-AA Internal Center Formed Welded Terminal AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
437 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00572, Revision 6, 1.9.2025 Specifications are subject to change without notice. 437 230 kV Aluminum Welded WTPOA-N-90-AA WTPO-N-AA TYPE WTPO-N-AA, WTPOA-N-45-AA, WTPOA-N-90-AA WTPO-N-AA flush half sleeve welded terminal, WTPOA-N-45-AA flush 45° half sleeve welded terminal, and WTPOA-N-90-AA flush 90° half sleeve welded terminal. Material Aluminum Alloy Notes 1. To specify contact finish on top surface of pad in addition to bottom surface add letter "F" to the catalog number. Ex: 2NF - 4NF - 4N4F. 2. For a 45° flush half sleeve terminal, 2" SPS, and 4", 4 hole NEMA pad order: WTPOA200-4N4-45-AA. 3. For a 90° flush half sleeve terminal, 2" SPS, and 4", 4 hole NEMA pad finished on both sides order: WTPOA200-4N4F-90-AA. WTPO-N-AA FIG. 1 A FIG. 2 1 3/4 ∅ 9/16 WTPOA-N-45-AA WTPOA-N-90-AA T X C B H A 1 3/4 ∅ 9/16 ∅ 9/16 1 3/4 C X 1 3/4 C X 1 3/4 A 1 3/4 FIG. 3 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
438 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00572, Revision 6, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 438 Ordering Information SPS Catalog Number Figure Number Angle Dimensions in Inches A B C H T X 3/4 WTPO75-2N-AA 1 - 1 5/8 1 3 1 3/8 5/8 3/4 WTPOA75-2N-45-AA 1 45° 1 5/8 1 3 - 3/8 5/8 3/4 WTPOA75-2N-90-AA 1 90° 1 5/8 1 3 - 3/8 5/8 3/4 WTPO75-4N-AA 2 - 3 1 3 1 3/8 5/8 3/4 WTPOA75-4N-45-AA 2 45° 3 1 3 - 3/8 5/8 3/4 WTPOA75-4N-90-AA 2 90° 3 1 3 - 3/8 5/8 1 WTPO100-2N-AA 1 - 1 15/16 1 1/8 3 1 3/16 3/8 5/8 1 WTPOA100-2N-45-AA 1 45° 1 15/16 1 1/8 3 - 3/8 5/8 1 WTPOA100-2N-90-AA 1 90° 1 15/16 1 1/4 3 - 3/8 5/8 1 WTPO100-4N-AA 2 - 3 1 1/8 3 1 3/16 3/8 5/8 1 WTPOA100-4N-45-AA 2 45° 3 1 1/8 3 - 3/8 5/8 1 WTPOA100-4N-90-AA 2 90° 3 1 1/4 3 - 3/8 5/8 1 1/4 WTPO125-2N-AA 1 - 2 1 3/8 3 1 3/8 3/8 5/8 1 1/4 WTPOA125-2N-45-AA 1 45° 2 1 3/8 3 - 3/8 5/8 1 1/4 WTPOA125-2N-90-AA 1 90° 2 1 3/8 3 - 1/2 5/8 1 1/4 WTPO125-4N-AA 2 - 3 1 3/8 3 1 3/8 7/16 5/8 1 1/4 WTPOA125-4N-45-AA 2 45° 3 1 3/8 3 - 7/16 5/8 1 1/4 WTPOA125-4N-90-AA 2 90° 3 1 3/8 3 - 1/2 5/8 1 1/4 WTPOA125-4N4-90-AA 2 90° 4 1 3/8 4 - 1/2 1 1/8 1 1/2 WTPO150-2N-AA 1 - 2 1 5/8 3 1 15/32 7/16 5/8 1 1/2 WTPOA150-2N-45-AA 1 45° 2 1 5/8 3 - 1/2 5/8 1 1/2 WTPOA150-2N-90-AA 1 90° 2 1 5/8 3 - 1/2 5/8 1 1/2 WTPO150-4N-AA 2 - 3 1 5/8 3 1 15/32 1/2 5/8 1 1/2 WTPOA150-4N-45-AA 2 45° 3 1 5/8 3 - 1/2 5/8 1 1/2 WTPOA150-4N-90-AA 2 90° 3 1 5/8 3 - 1/2 5/8 1 1/2 WTPO150-4N4-AA 2 - 4 1 5/8 4 1 15/32 1/2 1 1/8 1 1/2 WTPOA150-4N4-45-AA 2 45° 4 1 5/8 4 - 1/2 1 1/8 1 1/2 WTPOA150-4N4-90-AA 2 90° 4 1 5/8 4 - 1/2 1 1/8 2 WTPO200-2N-AA 1 - 2 1 7/8 3 1 23/32 7/16 5/8 2 WTPOA200-2N-45-AA 1 45° 2 1 7/8 3 - 7/16 5/8 2 WTPOA200-2N-90-AA 1 90° 2 1 7/8 3 - 1/2 5/8 2 WTPO200-4N-AA 2 - 3 1 7/8 3 1 23/32 1/2 5/8 2 WTPOA200-4N-45-AA 2 45° 3 1 7/8 3 - 1/2 5/8 2 WTPOA200-4N-90-AA 2 90° 3 1 7/8 3 - 7/16 5/8 2 WTPO200-4N4-AA 2 - 4 1 7/8 4 1 23/32 1/2 1 1/8 2 WTPOA200-4N4-45-AA 2 45° 4 1 7/8 4 - 1/2 1 1/8 2 WTPOA200-4N4-90-AA 2 90° 4 1 7/8 4 - 7/16 1 1/8 2 1/2 WTPO250-2N-AA 1 - 2 2 1/4 3 1 31/32 5/8 5/8 2 1/2 WTPOA250-2N-45-AA 1 45° 2 2 1/4 3 - 5/8 5/8 2 1/2 WTPOA250-2N-90-AA 1 90° 2 2 1/4 3 - 5/8 5/8 2 1/2 WTPO250-4N-AA 2 - 3 2 1/4 3 1 31/32 5/8 5/8 2 1/2 WTPOA250-4N-45-AA 2 45° 3 2 1/4 3 - 5/8 5/8 2 1/2 WTPOA250-4N-90-AA 2 90° 3 2 1/4 3 - 5/8 5/8 2 1/2 WTPO250-4N4-AA 2 - 4 2 1/4 4 1 31/32 5/8 1 1/8 2 1/2 WTPOA250-4N4-45-AA 2 45° 4 2 1/4 4 - 5/8 1 1/8 2 1/2 WTPOA250-4N4-90-AA 2 90° 4 2 1/4 4 - 5/8 1 1/8 3 WTPO300-2N-AA 1 - 2 2 1/2 3 2 11/32 5/8 5/8 3 WTPOA300-2N-45-AA 1 45° 2 2 1/2 3 - 5/8 5/8 3 WTPOA300-2N-90-AA 1 90° 2 2 1/2 3 - 5/8 5/8 TYPE WTPO-N-AA, WTPOA-N-45-AA, WTPOA-N-90-AA continued
439 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00572, Revision 6, 1.9.2025 Specifications are subject to change without notice. 439 230 kV Aluminum Welded TYPE WTPO-N-AA, WTPOA-N-45-AA, WTPOA-N-90-AA Ordering Information SPS Catalog Number Figure Number Angle Dimensions in Inches A B C H T X 3 WTPO300-4N-AA 2 - 3 2 1/2 3 2 11/32 5/8 5/8 3 WTPOA300-4N-45-AA 2 45° 3 2 1/2 3 - 5/8 5/8 3 WTPOA300-4N-90-AA 2 90° 3 2 1/2 3 - 5/8 5/8 3 WTPO300-4N4-AA 2 - 4 2 1/2 4 2 11/32 5/8 1 1/8 3 WTPOA300-4N4-45-AA 2 45° 4 2 1/2 4 - 5/8 1 1/8 3 WTPOA300-4N4-90-AA 2 90° 4 2 1/2 4 - 5/8 1 1/8 3 1/2 WTPO350-2N-AA 1 - 2 3 3 2 19/32 3/4 5/8 3 1/2 WTPOA350-2N-45-AA 1 45° 2 3 3 - 3/4 5/8 3 1/2 WTPOA350-2N-90-AA 1 90° 2 3 3 - 3/4 5/8 3 1/2 WTPO350-4N-AA 2 - 3 3 3 2 19/32 3/4 5/8 3 1/2 WTPOA350-4N-45-AA 2 45° 3 3 3 - 3/4 5/8 3 1/2 WTPOA350-4N-90-AA 2 90° 3 3 3 - 3/4 5/8 3 1/2 WTPO350-4N4-AA 2 - 4 3 4 2 19/32 3/4 1 1/8 3 1/2 WTPOA350-4N4-45-AA 2 45° 4 3 4 - 3/4 1 1/8 3 1/2 WTPOA350-4N4-90-AA 2 90° 4 3 4 - 3/4 1 1/8 3 1/2 WTPO350-5N4-AA 3 - 5 3 4 2 19/32 3/4 1 1/8 3 1/2 WTPOA350-5N4-45-AA 3 45° 5 3 4 - 3/4 1 1/8 3 1/2 WTPOA350-5N4-90-AA 3 90° 5 3 4 - 3/4 1 1/8 4 WTPO400-2N-AA 1 - 2 3 1/2 3 2 27/32 3/4 5/8 4 WTPOA400-2N-45-AA 1 45° 2 3 1/2 3 - 3/4 5/8 4 WTPOA400-2N-90-AA 1 90° 2 3 3/4 3 - 3/4 5/8 4 WTPO400-4N-AA 2 - 3 3 1/2 3 2 27/32 3/4 5/8 4 WTPOA400-4N-45-AA 2 45° 3 3 1/2 3 - 3/4 5/8 4 WTPOA400-4N-90-AA 2 90° 3 3 3/4 3 - 3/4 5/8 4 WTPO400-4N4-AA 2 - 4 3 1/2 4 2 27/32 3/4 1 1/8 4 WTPOA400-4N4-45-AA 2 45° 4 3 1/2 4 - 3/4 1 1/8 4 WTPOA400-4N4-90-AA 2 90° 4 3 3/4 4 - 3/4 1 1/8 5 WTPO500-2N-AA 1 - 2 3 1/2 3 3 3/8 3/4 5/8 5 WTPOA500-2N-45-AA 1 45° 2 3 1/2 3 - 3/4 5/8 5 WTPOA500-2N-90-AA 1 90° 2 3 1/2 3 - 3/4 5/8 5 WTPO500-4N-AA 2 - 3 3 1/2 3 3 3/8 3/4 5/8 5 WTPOA500-4N-90-AA 2 90° 3 3 1/2 3 - 7/8 5/8 5 WTPOA500-4N-45-AA 2 45° 3 4 3 - 7/8 5/8 5 WTPO500-4N4-AA 2 - 4 3 1/2 4 3 3/8 3/4 1 1/8 5 WTPOA500-4N4-45-AA 2 45° 4 3 1/2 4 - 3/4 1 1/8 5 WTPOA500-4N4-90-AA 2 90° 4 3 1/2 4 - 7/8 1 1/8 5 WTPO500-6N4-AA 3 - 6 3 1/2 4 3 3/8 3/4 1 1/8 5 WTPOA500-6N4-45-AA 3 45° 6 3 1/2 4 - 3/4 1 1/8 5 WTPOA500-6N4-90-AA 3 90° 6 3 1/2 4 - 3/4 1 1/8 6 WTPO600-4N4-AA 2 - 4 3 5/8 4 3 3/8 1 1 1/8 6 WTPOA600-4N4-45-AA 2 45° 4 3 5/8 4 - 1 1 1/8 6 WTPOA600-4N4-90-AA 2 90° 4 3 5/8 4 - 1 1 1/8
440 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00571, Revision 3, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 440 Material Aluminum Alloy Notes 1. Add suffix "F" to the catalog number to add contact finish to both pad surfaces. EX: WTPOC200-2NF-AA Ordering Information Catalog Number SPS Figure Number Dimensions in Inches A B C T X WTPOC100-2N-AA 1 1 2 1 1/8 3 3/8 5/8 WTPOC100-4N-AA 1 2 3 1 1/8 3 3/8 5/8 WTPOC125-2N-AA 1-1/4 1 2 1 3/8 3 3/8 5/8 WTPOC125-4N-AA 1-1/4 2 3 1 3/8 3 3/8 5/8 WTPOC150-2N-AA 1-1/2 1 2 1 5/8 3 1/2 5/8 WTPOC150-4N-AA 1-1/2 2 3 1 5/8 3 3/8 5/8 WTPOC150-4N4-AA 1-1/2 2 4 1 5/8 4 3/8 1 1/8 WTPOC200-2N-AA 2 1 2 1 7/8 3 1/2 5/8 WTPOC200-4N-AA 2 2 3 1 7/8 3 1/2 5/8 WTPOC200-4N4-AA 2 2 4 1 7/8 4 1/2 1 1/8 WTPOC250-2N-AA 2-1/2 1 2 2 1/4 3 1/2 5/8 WTPOC250-4N-AA 2-1/2 2 3 2 1/4 3 1/2 5/8 WTPOC250-4N4-AA 2-1/2 2 4 2 1/4 4 1/2 1 1/8 WTPOC300-2N-AA 3 1 2 2 1/2 3 5/8 5/8 WTPOC300-4N-AA 3 2 3 2 1/2 3 5/8 5/8 WTPOC300-4N4-AA 3 2 4 2 1/2 4 5/8 1 1/8 WTPOC350-2N-AA 3-1/2 1 2 3 3 3/4 5/8 WTPOC350-4N-AA 3-1/2 2 3 3 3 3/4 5/8 WTPOC350-4N4-AA 3-1/2 2 4 3 4 3/4 1 1/8 WTPOC400-2N-AA 4 1 2 3 1/2 3 3/4 5/8 WTPOC400-4N-AA 4 2 3 3 1/2 3 3/4 5/8 WTPOC400-4N4-AA 4 2 4 3 1/2 4 3/4 1 1/8 WTPOC500-4N-AA 5 2 3 3 1/2 3 7/8 5/8 WTPOC500-4N4-AA 5 2 4 3 1/2 4 3/4 1 1/8 WTPOC600-4N4-AA 6 2 4 3 1/2 4 1 1 1/8 WTPOC800R-4N4-AA 8 2 4 3 1/2 4 1 1 1/8 WTPOC800-4N4-AA 8 2 4 3 1/2 4 1 1 1/8 FIG. 2 FIG. 1 T 1 3/4 ∅ 9/16 B A C X 1 3/4 X A 1 3/4 C ∅ 9/16 TYPE WTPOC-AA Welded Terminal Lug AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
442 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00584, Revision 7, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 442 Material Aluminm Alloy Laminates Pure Aluminum TYPE WXL-90V-AA Expansion Terminal Connector Notes • If alignment guide is not needed add "P" to the catalog number. EX: WXL200P-4N4-90V-AA Ordering Information Catalog Number SPS Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F L T X WXL100-2N-90V-AA WXL100E-2N-90V-AA 1 1 1-1/2 3 5-1/8 1-1/2 3-1/4 10-5/8 1/2 5/8 WXL100-4N-90V-AA WXL100E-4N-90V-AA 1 2 3 3 5-1/8 1-1/2 3-1/4 10-5/8 1/2 5/8 WXL100-4N4-90V-AA WXL100E-4N4-90V-AA 1 2 4 4 5-1/8 1-1/2 3-1/4 12-1/8 1/2 1-1/8 WXL125-2N-90V-AA WXL125E-2N-90V-AA 1 1/4 1 2 1/4 3 6 1-1/2 3-1/2 11-1/2 1/2 5/8 WXL125-4N-90V-AA WXL125E-4N-90V-AA 1 1/4 2 3 3 6 1-1/2 3-1/2 11-1/2 1/2 5/8 WXL150-2N-90V-AA WXL150E-2N-90V-AA 1-1/2 1 2-1/2 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 WXL150-4N-90V-AA WXL150E-4N-90V-AA 1-1/2 2 3 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 WXL200-2N-90V-AA WXL200E-2N-90V-AA 2 1 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 5/8 WXL200-4N-90V-AA WXL200E-4N-90V-AA 2 2 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 5/8 WXL200-4N4-90V-AA WXL200E-4N4-90V-AA 2 2 4 4 7-3/16 2-1/2 4-1/2 15-3/8 3/4 1-1/8 WXL250-2N-90V-AA WXL250E-2N-90V-AA 2-1/2 1 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 5/8 WXL250-4N-90V-AA WXL250E-4N-90V-AA 2-1/2 2 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 5/8 WXL250-4N4-90V-AA WXL250E-4N4-90V-AA 2-1/2 2 4 4 7-11/16 2-1/2 4-1/2 15-7/8 3/4 1-1/8 WXL300-2N-90V-AA WXL300E-2N-90V-AA 3 1 3 3 8-3/16 2-1/2 4-1/2 16 7/8 5/8 WXL300-4N-90V-AA WXL300E-4N-90V-AA 3 2 3 3 8-3/16 2-1/2 4-1/2 16 7/8 5/8 WXL300-4N4-90V-AA WXL300E-4N4-90V-AA 3 2 4 4 8-3/16 2-1/2 4-1/2 17 7/8 1-1/8 FIG. 2 FIG. 1 1 3/4 1 3/4 A C F X 1 3/4 A A C E NOM. D T X L FIG. 3 C 1 3/4 1 3/4 X 1 3/4 ∅ 9/16 ∅ 9/16 ∅ 9/16 A FIG. 4 C 1 3/4 X 1 3/4 ∅ 9/16 1 3/4 1 3/4 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
443 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00584, Revision 7, 1.9.2025 Specifications are subject to change without notice. 443 230 kV Aluminum Welded TYPE WXL-90V-AA Expansion Terminal Connector Ordering Information (cont.) Catalog Number SPS Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F L T X WXL350-2N-90V-AA WXL350E-2N-90V-AA 3-1/2 1 3 3 9-3/4 2-1/2 4-1/2 17-5/16 7/8 5/8 WXL350-4N-90V-AA WXL350E-4N-90V-AA 3-1/2 2 3 3 9-3/4 2-1/2 4-1/2 17-5/16 7/8 5/8 WXL350-4N4-90V-AA WXL350E-4N4-90V-AA 3-1/2 2 4 4 9-3/4 2-1/2 4-1/2 18-5/16 7/8 1-1/8 WXL350-6N4-90V-AA WXL350E-6N4-90V-AA 3-1/2 3 6 4 9 3/4 2 1/2 4 1/2 18 5/16 3/4 1 1/8 WXL400-2N-90V-AA WXL400E-2N-90V-AA 4 1 3 3 10 2-1/2 4-1/2 18 1 5/8 WXL400-4N-90V-AA WXL400E-4N-90V-AA 4 2 3 3 10 2-1/2 4-1/2 18 1 5/8 WXL400-4N4-90V-AA WXL400E-4N4-90V-AA 4 2 4 4 10 2-1/2 4-1/2 19 1 1-1/8 WXL400-6N4-90V-AA WXL400E-6N4-90V-AA 4 3 6 4-1/2 10 2-1/2 4-1/2 16-1/2 3/4 1-1/8 WXL500-4N-90V-AA WXL500E-4N-90V-AA 5 2 3 3 10 2-1/2 4-1/2 18 1-1/4 5/8 WXL500-4N4-90V-AA WXL500E-4N4-90V-AA 5 2 4 4 10 2-1/2 4-1/2 19 1-1/4 1-1/8 WXL500-6N4-90V-AA WXL500E-6N4-90V-AA 5 3 6 4 10 2-1/2 4-1/2 19 1-1/4 1-1/8 WXL600-4N-90V-AA WXL600E-4N-90V-AA 6 2 3 3 12 2-1/2 4-1/2 20-3/8 1-3/8 5/8 WXL600-4N4-90V-AA WXL600E-4N4-90V-AA 6 2 4 4 12 2-1/2 4-1/2 21-3/8 1-3/8 1-1/8 WXL600-6N4-90V-AA WXL600E-6N4-90V-AA 6 3 6 4 12 2-1/2 4-1/2 21-3/8 1 1-1/8 WXL600-8N4-90V-AA WXL600E-8N4-90V-AA 6 4 8 4 12 2 1/2 4 1/2 21 3/8 1 1 1/8
444 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00585, Revision 5, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 444 TYPE WXL-AA, WXL-E-AA Expansion Terminal Connector Material Aluminum Alloy Notes • Add "P" to suffix of WXL for no alignment guide. EX: WXLP200-4N-AA • Add "F" to suffix of pad type for contact finish on both sides of the pad. EX: WXL200-4NF-AA FIG. 1 ∅ 9/16 FIG. 2 1 3/4 ALUMINUM FLEXIBLE STRAPS COMPOSED OF "EC" ALUMINUM LAMINATES CUSTOMER PIPE FIELD WELD L F C T D A A E X 1 3/4 Y Y ∅ 9/16 1 3/4 X 1 3/4 1 3/4 X 1 3/4 A ∅ 9/16 FIG. 3 continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
445 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00585, Revision 5, 1.9.2025 Specifications are subject to change without notice. 445 230 kV Aluminum Welded TYPE WXL-AA, WXL-E-AA Expansion Terminal Connector Ordering Information Catalog Number SPS Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F L T Y X WXL100-2N-AA WXL100E-2N-AA 1 1 1-3/4 3 5-1/8 1-1/2 3-1/2 10-5/8 1/2 NA 5/8 WXL100-4N-AA WXL100E-4N-AA 1 2 3 3 5-1/8 1-1/2 3-1/2 10-5/8 1/2 5/8 5/8 WXL125-2N-AA WXL125E-2N-AA 1-1/4 1 2-1/4 3 6 1-1/2 3-1/2 11-1/2 1/2 NA 5/8 WXL125-4N-AA WXL125E-4N-AA 1-1/4 2 3 3 6 1-1/2 3-1/2 11-1/2 1/2 5/8 5/8 WXL125-4N4-AA WXL125E-4N4-AA 1-1/4 2 4 4 6 1-1/2 3-1/2 11-1/2 1/2 1-1/8 1-1/8 WXL150-2N-AA WXL150E-2N-AA 1-1/2 1 2-1/2 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 5/8 WXL150-4N-AA WXL150E-4N-AA 1-1/2 2 3 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 5/8 WXL150-4N4-AA WXL150E-4N4-AA 1-1/2 2 3 3 7-1/8 1-1/2 3-1/2 12-3/4 5/8 5/8 5/8 WXL200-2N-AA WXL200E-2N-AA 2 1 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 NA 5/8 WXL200-4N-AA WXL200E-4N-AA 2 2 3 3 7-3/16 2-1/2 4-1/2 14-3/8 3/4 5/8 5/8 WXL200-4N4-AA WXL200E-4N4-AA 2 2 4 4 7-3/16 2-1/2 4-1/2 14-3/8 3/4 1-1/8 1-1/8 WXL200-6N4-AA WXL200E-6N4-AA 2 3 6 4 7-3/16 2-1/2 4-1/2 14-3/8 3/4 1-1/4 1-1/8 WXL250-2N-AA WXL250E-2N-AA 2-1/2 1 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 NA 5/8 WXL250-4N-AA WXL250E-4N-AA 2-1/2 2 3 3 7-11/16 2-1/2 4-1/2 14-7/8 3/4 5/8 5/8 WXL250-4N4-AA WXL250E-4N4-AA 2-1/2 2 4 4 7-11/16 2-1/2 4-1/2 15-7/8 3/4 1-1/8 1-1/8 WXL300-2N-AA WXL300E-2N-AA 3 1 3 3 8-3/16 2-1/2 4-1/2 16 7/8 NA 5/8 WXL300-4N-AA WXL300E-4N-AA 3 2 3 3 8-3/16 2-1/2 4-1/2 16 7/8 5/8 5/8 WXL300-4N4-AA WXL300E-4N4-AA 3 2 4 4 8-3/16 2-1/2 4-1/2 17 7/8 1-1/8 1-1/8 WXL300-6N4-AA WXL300E-6N4-AA 3 3 6 4 8-3/16 2-1/2 4-1/2 17 7/8 1-1/8 1-1/8 WXL350-2N-AA WXL350E-2N-AA 3-1/2 1 3 3 9-3/4 2-1/2 4-1/2 17-5/16 7/8 NA 5/8 WXL350-4N-AA WXL350E-4N-AA 3-1/2 2 3 4-1/4 9-3/4 2-1/2 4-1/2 18-9/16 13/16 5/8 5/8 WXL350-4N4-AA WXL350E-4N4-AA 3-1/2 2 4 4 9-3/4 2-1/2 4-1/2 18-5/16 7/8 1-1/8 1-1/8 WXL400-2N-AA WXL400E-2N-AA 4 1 3 3 10 2-1/2 4-1/2 18 1 NA 5/8 WXL400-4N-AA WXL400E-4N-AA 4 2 3 3 10 2-1/2 4-1/2 18 1 5/8 5/8 WXL400-4N4-AA WXL400E-4N4-AA 4 2 4 4 10 2-1/2 4-1/2 19 1 1-1/8 1-1/8 WXL400-6N4-AA WXL400E-6N4-AA 4 3 6 4 10 2-1/2 5-9/16 19-1/4 1 1-1/4 1-1/8 WXL500-4N-AA WXL500E-4N-AA 5 2 3 3 10 2-1/2 4-1/2 18 1-1/4 5/8 5/8 WXL500-4N4-AA WXL500E-4N4-AA 5 2 4 4 10 2-1/2 4-1/2 19 1-1/4 1-1/8 1-1/8 WXL500-6N4-AA WXL500E-6N4-AA 5 3 6 4 10 2-1/2 5-5/8 19 1 1-1/4 1-1/8 WXL600-4N-AA WXL600E-4N-AA 6 2 3 3 12 2-1/2 4-1/2 20-3/8 1-3/8 5/8 5/8 WXL600-4N4-AA WXL600E-4N4-AA 6 2 4 4 12 2-1/2 4-1/2 21-3/8 1-3/8 1-1/8 1-1/8 WXL600-6N4-AA WXL600E-6N4-AA 6 3 6 4 12 2-1/2 4-1/2 21-3/8 1-3/8 1-1/4 1-1/8 WXL800-4N4-AA WXL800E-4N4-AA 8 2 4 4 15 2-1/2 4-1/2 24-3/8 1-3/8 1-1/8 1-1/8 WXL800-6N4-AA WXL800E-6N4-AA 8 3 6 4 15 2-1/2 4-1/2 24-3/8 1-3/8 1-1/4 1-1/8
446 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00586, Revision 2, 1.9.2025 Specifications are subject to change without notice. 230 kV Aluminum Welded 446 Material Aluminum Alloy Notes 1. Add "P" to suffix of WXLO for no alignment guide. EX: WXLOP300-4N-AA 2. Add "F" to suffix of pad type for contact finish on both sides of the pad. EX: WXLO300-4NF-AA ∅ 9/16 1 3/4 C L F D E NOM. X FIG. 2 U A 1 3/4 ∅ 9/16 FIG. 1 A C X 1 3/4 H T TYPE WXLO-AA, WXLO-E-AA Expansion Terminal Connector continued AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
447 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00586, Revision 2, 1.9.2025 Specifications are subject to change without notice. 447 230 kV Aluminum Welded Ordering Information Catalog Number Pipe Size Fig. No. Dimensions in Inches SCH 40 SCH 80 A C D E F H L T U X WXLO100-2N-AA WXLO100E-2N-AA 1 1 1 3/4 3 5 1/8 1 1/2 3 1/2 1 1/8 10 5/8 5/8 N/A 5/8 WXLO100-4N-AA WXLO100E-4N-AA 1 2 3 3 5 1/8 1 1/2 3 1/2 1 5/16 10 5/8 1/2 5/8 5/8 WXLO125-2N-AA WXLO125E-2N-AA 1 1/4 1 2 1/4 3 6 1 1/2 3 1/2 1 5/16 11 1/2 1/2 N/A 5/8 WXLO125-4N-AA WXLO125E-4N-AA 1 1/4 2 3 3 6 1 1/2 3 1/2 1 5/16 11 1/2 1/2 5/8 5/8 WXLO125-4N4-AA WXLO125E-4N4-AA 1 1/4 2 4 4 6 1 1/2 3 1/2 1 5/8 12 3/4 1/2 1 1/8 1 1/8 WXLO150-2N-AA WXLO150E-2N-AA 1 1/2 1 2 1/2 3 7 1/8 1 1/2 3 1/2 1 5/8 12 3/4 5/8 N/A 5/8 WXLO150-4N-AA WXLO150E-4N-AA 1 1/2 2 3 3 7 1/8 1 1/2 3 1/2 1 5/8 12 3/4 5/8 5/8 5/8 WXLO200-2N-AA WXLO200E-2N-AA 2 1 2 3 7 3/16 2 1/2 4 1/2 2 14 3/8 3/4 N/A 5/8 WXLO200-4N-AA WXLO200E-4N-AA 2 2 3 3 7 3/16 2 1/2 4 1/2 2 14 3/8 3/4 3/4 7/8 WXLO200-4N4-AA WXLO200E-4N4-AA 2 2 4 4 7 3/16 2 1/2 4 1/2 2 15 3/8 3/4 1 1/8 1 1/8 WXLO250-4N-AA WXLO250E-4N-AA 2 1/2 2 3 3 7 11/16 2 1/2 4 1/2 2 1/4 14 7/8 3/4 1 1/4 1 1/4 WXLO250-4N4-AA WXLO250E-4N4-AA 2 1/2 2 4 4 7 11/16 2 1/2 4 1/2 2 1/4 15 7/8 3/4 1 1/8 1 1/8 WXLO300-4N-AA WXLO300E-4N-AA 3 2 3 3 8 3/16 2 1/2 4 1/2 2 5/8 16 7/8 5/8 5/8 WXLO300-4N4-AA WXLO300E-4N4-AA 3 2 4 4 8 3/16 2 1/2 4 1/2 2 5/8 17 7/8 1 1/8 1 1/8 WXLO350-4N-AA WXLO350E-4N-AA 3 1/2 2 3 3 9 3/4 2 1/2 4 1/2 2 15/16 17 5/16 7/8 5/8 5/8 WXLO350-4N4-AA WXLO350E-4N4-AA 3 1/2 2 4 4 9 3/4 2 1/2 4 1/2 2 15/16 18 5/16 7/8 1 1/8 1 1/8 WXLO400-4N-AA WXLO400E-4N-AA 4 2 3 3 10 2 1/2 4 1/2 3 1/4 18 1 5/8 5/8 WXLO400-4N4-AA WXLO400E-4N4-AA 4 2 4 4 10 2 1/2 4 1/2 3 1/4 19 1 1 1/8 1 1/8 WXLO500-4N-AA WXLO500E-4N-AA 5 2 3 3 10 2 1/2 4 1/2 3 1/2 18 1 1/4 5/8 5/8 WXLO500-4N4-AA WXLO500E-4N4-AA 5 2 4 4 10 2 1/2 4 1/2 3 1/2 19 1 1/4 1 1/8 1 1/8 WXLO600-4N-AA WXLO600E-4N-AA 6 2 3 3 12 2 1/2 4 1/2 4 1/4 20 3/8 1 3/8 5/8 5/8 WXLO600-4N4-AA WXLO600E-4N4-AA 6 2 4 4 12 2 1/2 4 1/2 4 1/4 21 3/8 1 3/8 1 1/8 1 1/8 TYPE WXLO-AA, WXLO-E-AA Expansion Terminal Connector
Características:
- Aleación de aluminio
- Las almohadillas se ajustan a las normas NEMA
- Cumple con las normas NEMA CC1
Aplicaciones:
- Calificada para 230 kV
- Subestación
- Cable de aluminio
Conectores de terminales de aluminio de 230 kV soldados están diseñados para ser soldados a cables de aluminio. Las almohadillas se ajustan a las normas NEMA.
