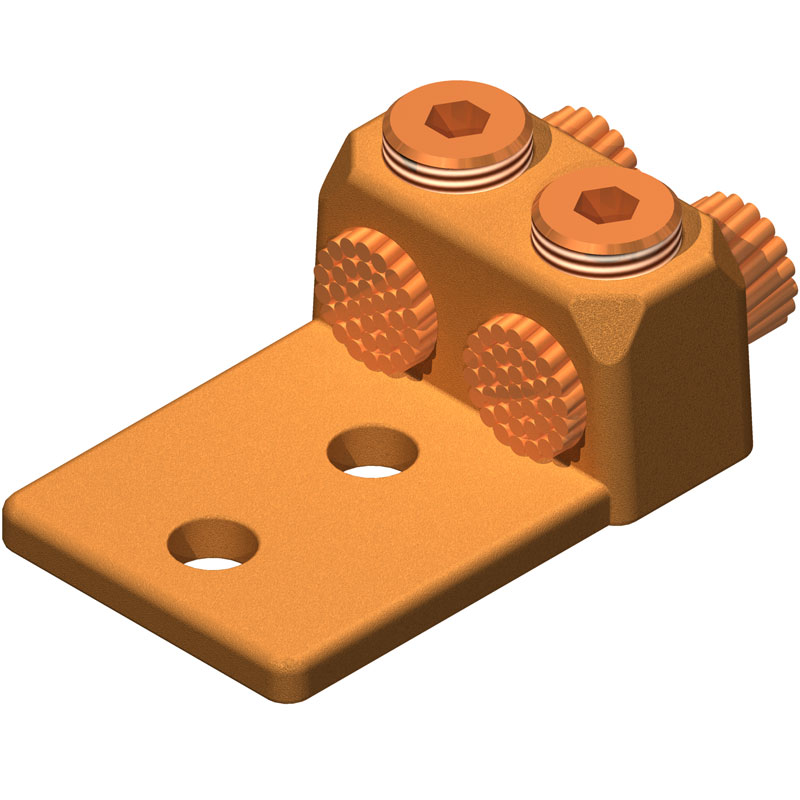

El terminal de tipo variable presenta la ventaja de que un solo conector se adapta a varios tamaños de cable. Esto minimiza en gran medida el problema de almacenar varios tamaños de conectores y los errores que se producen al especificar los conectores para tamaños de cable específicos.
0404a973ff1249859851295871ad551c
1 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00302, Revision 0, 3.10.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps Material Copper Alloy Hardware Zinc Plated Steel Screw Note Also available with Hex head set screw. Add (H) to catalog number. Example D35H. TYPE D Copper Screw Terminals For Cable To Flat Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES ALLEN HEAD BOLT HEX HEAD BOLT MINIMUM MAXIMUM A C G H L T X D10 D10H 4 STR 1/0 STR 1 3/4 3/4 7/8 11/32 1 1/2 5/32 3/8 D21 D21H 1 STR 4/0 STR 1 15/16 1 1 1/4 7/16 1 13/16 3/16 7/16 D25 D25H 2/0 STR 250 MCM 1 1 1 1 5/16 7/16 1 7/8 3/16 7/16 D35 D35H #14 SOL #8 STR 1 13/32 15/32 9/16 7/32 13/16 5/64 3/16 D50 D50H 4/0 STR 500 MCM 2 1 3/8 1 3/8 1 3/4 9/16 2 7/8 5/16 11/16 D70 D70H #14 SOL #4 STR 1 9/16 5/8 11/16 9/32 1 1/8 7/64 1/4 D100 D100H 500 MCM 1000 MCM 2 1 15/16 1 5/8 2 1/4 9/16 3 5/8 3/8 3/4 An inexpensive lug of rugged construction yet very compact. These lugs are suitable for all types of installations and are completely reusable. Acceptance of wide range of conductor sizes limits the need for large stock. FIG. 1 A A FIG. 2 L C X H G L T C X H G T
2 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00303, Revision 0, 3.10.11 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Material Copper Alloy Hardware Zinc Plated Steel Screw TYPE D2 Copper Screw Terminals For Two Cables To Flat Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES SOCKET HEX MIN MAX A G L T D2-25 D2-25H 1/0 STR 250 MCM 1 1 7/8 1 5/16 4 5/16 9/32 D2-50 D2-50H 4/0 STR 500 MCM 1 2 1/2 1 3/4 4 7/8 3/8 D2-100 D2-100H 500 MCM 1000 MCM 2 3 1/4 2 1/4 5 9/16 1/2 A double conductor lug of the same rugged construction as the Type D. Available with either hex socket or hex head pressure screws. Wide range of conductor sizes limits the need for large stock. A 1 3/4 A 1 3/4 3 3 L G T Ø9/16 Ø9/16 5/8 1 3/4 5/8
3 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00369, Revision 1, 8.5.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps Material Copper Alloy Hardware Zinc Plated Steel Screw Note For a 350MCM cable to a 2 NEMA pad with cap screws order: HHL350-2N-A TYPE HHL, HHL-A Copper Heavy Duty Terminal for Cable A variable terminal connector whose double clamping element provides for additional secureness where heavy duty service is required. The simplicity of installation and rugged design make this connector a serviceable unit. Made of high conductivity cast copperalloy and equipped with bronze pressure screws and clamping members. HHL-A has cap screws instead of hex bolts for clapping the conductor. FIG. 1 A HHL-A A FIG. 2 HHL FIG. 3 X C X C Y ØH Y ØH ØH X A Z C L T
4 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00369, Revision 1, 8.5.13 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 TYPE HHL, HHL-A Copper Heavy Duty Terminal for Cable Ordering Information CATALOG NUMBER CABLE SIZE FIG. NO. DIMENSIONS IN INCHES HEX HEAD BOLT ALLEN HEAD BOLT MIN MAX A C H L X Y Z T HHL4-1 HHL4-1-A 8 SOL 4 STR 1 1/2 5/8 9/32 2 3/8 5/16 - - 3/16 HHL4-2 HHL4-2-A 8 SOL 4 STR 2 1/2 1 1/4 9/32 2 15/16 5/16 5/8 - 3/16 HHL8-1 HHL8-1-A 4 SOL 1 STR 1 11/16 11/16 9/32 2 13/16 11/32 - - 7/32 HHL8-2 HHL8-2-A 4 SOL 1 STR 2 11/16 1 3/8 9/32 3 5/8 5/16 3/4 - 7/32 HHL13-1 HHL13-1-A 1 STR 2/0 STR 1 13/16 7/8 7/16 3 3/16 7/16 - - 7/32 HHL13-2 HHL13-2-A 1 STR 2/0 STR 2 13/16 1 5/8 11/32 4 3/16 3/8 7/8 - 7/32 HHL21-1 HHL21-1-A 2/0 STR 4/0 STR 1 1 1 7/16 3 9/16 1/2 - - 1/4 HHL21-2 HHL21-2-A 2/0 STR 4/0 STR 2 1 1 3/4 7/16 4 1/2 3/8 1 - 1/4 HHL21-2N HHL21-2N-A 2/0 STR 4/0 STR 2 1 1/2 3 9/16 5 5/8 5/8 1 3/4 - 1/4 HHL30-1 HHL30-1-A 4/0 STR 300 MCM 1 1 3/16 1 1/4 9/16 4 3/16 5/8 - - 5/16 HHL30-2 HHL30-2-A 4/0 STR 300 MCM 2 1 3/16 2 7/16 4 3/4 7/16 1 - 5/16 HHL30-2N HHL30-2N-A 4/0 STR 300 MCM 2 1 1/2 3 9/16 5 7/8 5/8 1 3/4 - 5/16 HHL35-1 HHL35-1-A 250 MCM 350 MCM 1 1 3/16 1 1/4 9/16 4 3/8 5/8 - - 5/16 HHL35-2 HHL35-2-A 250 MCM 350 MCM 2 1 3/16 2 7/16 4 7/8 7/16 1 - 5/16 HHL35-2N HHL35-2N-A 300 MCM 350 MCM 2 1 1/2 3 9/16 6 5/8 1 3/4 - 5/16 HHL50-1 HHL50-1-A 300 MCM 500 MCM 1 1 3/8 1 3/8 9/16 4 7/8 11/16 - - 11/32 HHL50-2 HHL50-2-A 300 MCM 500 MCM 2 1 3/8 2 7/16 5 3/8 7/16 1 - 11/32 HHL50-2N HHL50-2N-A 300 MCM 500 MCM 2 1 1/2 3 9/16 6 3/8 5/8 1 3/4 - 11/32 HHL50-4 HHL50-4-A 300 MCM 500 MCM 3 2 2 7/16 5 3/8 7/16 1 1 11/32 HHL50-4N HHL50-4N-A 500 MCM 750 MCM 3 3 3 9/16 6 7/8 5/8 1 3/4 1 3/4 11/32 HHL75-1 HHL75-1-A 500 MCM 750 MCM 1 1 5/8 1 3/4 11/16 5 11/16 7/8 - - 3/8 HHL75-2 HHL75-2-A 500 MCM 750 MCM 2 1 5/8 2 1/4 9/16 5 15/16 9/16 1 1/8 - 3/8 HHL75-2N HHL75-2N-A 500 MCM 750 MCM 2 1 5/8 3 9/16 6 13/16 5/8 1 3/4 - 3/8 HHL75-4 HHL75-4-A 500 MCM 750 MCM 3 2 1/4 2 1/4 7/16 5 3/4 5/8 1 1 3/8 HHL75-4N HHL75-4N-A 750 MCM 1000 MCM 3 3 3 9/16 6 7/8 5/8 1 3/4 1 3/4 3/8 HHL100-1 HHL100-1-A 750 MCM 1000 MCM 1 1 7/8 1 7/8 11/16 6 1/16 15/16 - - 1/2 HHL100-2 HHL100-2-A 750 MCM 1000 MCM 2 1 7/8 2 1/2 9/16 6 3/8 5/8 1 1/4 - 1/2 HHL100-2N HHL100-2N-A 750 MCM 1000 MCM 2 1 7/8 3 9/16 7 1/16 5/8 1 3/4 - 1/2 HHL100-4 HHL100-4-A 750 MCM 1000 MCM 3 2 1/2 2 1/2 7/16 6 1/4 5/8 1 1/4 1 1/4 1/2 HHL100-4N HHL100-4N-A 1000 MCM 1500 MCM 3 3 3 9/16 7 1/8 5/8 1 3/4 1 3/4 1/2 HHL150-1 HHL150-1-A 1000 MCM 1500 MCM 1 2 1/8 2 1/8 13/16 6 3/8 1 1/16 - - 9/16 HHL150-2 HHL150-2-A 1000 MCM 1500 MCM 2 2 1/8 2 5/8 9/16 7 3/8 5/8 1 3/8 - 9/16 HHL150-2N HHL150-2N-A 1000 MCM 1500 MCM 2 2 1/8 3 9/16 7 3/4 5/8 1 3/4 - 9/16 HHL150-4 HHL150-4-A 1000 MCM 1500 MCM 3 2 5/8 2 5/8 9/16 7 3/8 5/8 1 3/8 1 3/8 9/16 HHL150-4N HHL150-4N-A 1000 MCM 1500 MCM 3 3 3 9/16 8 1/4 5/8 1 3/4 1 3/4 9/16
5 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00370, Revision 1, 8.5.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps Material Copper Alloy Hardware Everdur pressure bolt Notes • For a 2 condutor, 4N NEMA pad, and 750 MCM cable order H2L75-4N • For a 3 condutor, 4N NEMA pad, 750 MCM cable, and cap screw order H3L75-4NA • For a 4 condutor, 4N NEMA pad, and 750 MCM cable order H4L75-4N • For angled terminals add angle to end of catalog number. Example: H4L1-1-45 HL The HERCULON ™ Lug is designed for quick and efficient installation. Its compact rigid structure makes it especially adaptable for assembly in inaccessible quarters. A high compressive clamping force on the cable conductors plus the additional gripping action of special serrated bearing areas makes for high electrical contact efficiency and pull out strength. TYPE HL, H2L, H3L, H4L Copper Set Screw Terminal. HL is a single condutor Herculon Connector, H2L is a two condutor HERCULON ™ Connector, H3L is a three condutor Herculon Connector, and H4L is a four condutor Herculon Connector. HL-A has a set screw instead of the hex bolt. FIG. 1 A A X FIG. 2 C X T HL H2L H3L A FIG. 3 H4L Ø H X C Y Y C Y
6 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00370, Revision 1, 8.5.13 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER COMMERCIAL CABLE SIZE NAVY CABLE SIZE FIG. N0. DIMENSIONS IN INCHES ONE CABLE TWO CABLES THREE CABLES FOUR CABLES MIN MAX MIN MAX A C H X Y T HL1-1 H2L1-1 H3L1-1 H4L1-1 14 SOL 8 STR 4 14 1 1/2 5/8 7/32 5/16 - 3/16 HL1-2 H2L1-2 H3L1-2 H4L1-2 14 SOL 8 STR 4 14 2 1/2 1 1/4 7/32 5/16 5/8 3/16 HL4-1 H2L4-1 H3L4-1 H4L4-1 8 SOL 4 STR 23 40 1 1/2 5/8 9/32 5/16 - 3/16 HL4-2 H2L4-2 H3L4-2 H4L4-2 8 SOL 4 STR 23 40 2 1/2 1 1/4 9/32 5/16 5/8 3/16 HL8-1 H2L8-1 H3L8-1 H4L8-1 4 SOL 1 STR 50 75 1 11/16 11/16 9/32 11/32 - 7/32 HL8-2 H2L8-2 H3L8-2 H4L8-2 4 SOL 1 STR 50 75 2 11/16 1 3/8 9/32 5/16 3/4 7/32 HL13-1 H2L13-1 H3L13-1 H4L13-1 1 STR 2/0 STR 100 125 1 13/16 7/8 7/16 7/16 - 7/32 HL13-2 H2L13-2 H3L13-2 H4L13-2 1 STR 2/0 STR 100 125 2 13/16 1 3/4 11/32 3/8 1 7/32 HL21-1 H2L21-1 H3L21-1 H4L21-1 2/0 STR 4/0 STR 150 200 1 1 1 7/16 1/2 - 1/4 HL21-2 H2L21-2 H3L21-2 H4L21-2 2/0 STR 4/0 STR 150 200 2 1 1 3/4 7/16 3/8 1 1/4 HL21-2N H2L21-2N H3L21-2N H4L21-2N 2/0 STR 4/0 STR 150 200 2 1 3 9/16 5/8 1 3/4 1/4 HL30-1 H2L30-1 H3L30-1 H4L30-1 4/0 STR 300 MCM 250 300 1 1 1/16 1 1/4 9/16 5/8 - 5/16 HL30-2 H2L30-2 H3L30-2 H4L30-2 4/0 STR 300 MCM 250 300 2 1 1/16 2 7/16 7/16 1 5/16 HL30-2N H2L30-2N H3L30-2N H4L30-2N 4/0 STR 300 MCM 250 300 2 1 1/16 3 9/16 5/8 1 3/4 5/16 HL35-1 H2L35-1 H3L35-1 H4L35-1 250 MCM 350 MCM 250 350 1 1 1/8 1 1/4 9/16 5/8 - 5/16 HL35-2 H2L35-2 H3L35-2 H4L35-2 250 MCM 350 MCM 250 350 2 1 1/8 2 7/16 7/16 1 5/16 HL35-2N H2L35-2N H3L35-2N H4L35-2N 250 MCM 350 MCM 250 350 2 1 1/8 3 9/16 5/8 1 3/4 5/16 HL50-1 H2L50-1 H3L50-1 H4L50-1 300 MCM 500 MCM 400 500 1 1 3/8 1 3/8 9/16 11/16 - 11/32 HL50-2 H2L50-2 H3L50-2 H4L50-2 300 MCM 500 MCM 400 500 2 1 3/8 2 7/16 7/16 1 11/32 HL50-2N H2L50-2N H3L50-2N H4L50-2N 300 MCM 500 MCM 400 500 2 1 3/8 3 9/16 5/8 1 3/4 11/32 HL50-4 H2L50-4 H3L50-4 H4L50-4 300 MCM 500 MCM 400 500 3 2 2 7/16 7/16 1 11/32 HL50-4N H2L50-4N H3L50-4N H4L50-4N 300 MCM 500 MCM 400 500 3 3 3 9/16 5/8 1 3/4 11/32 HL75-1 H2L75-1 H3L75-1 H4L75-1 500 MCM 750 MCM 500 750 1 1 5/8 1 3/4 11/16 7/8 - 3/8 HL75-2 H2L75-2 H3L75-2 H4L75-2 500 MCM 750 MCM 500 750 2 1 5/8 2 1/4 9/16 9/16 1 1/8 3/8 HL75-2N H2L75-2N H3L75-2N H4L75-2N 500 MCM 750 MCM 500 750 2 1 5/8 3 9/16 5/8 1 3/4 3/8 HL75-4 H2L75-4 H3L75-4 H4L75-4 500 MCM 750 MCM 500 750 3 2 1/4 2 1/4 7/16 5/8 1 3/8 HL75-4N H2L75-4N H3L75-4N H4L75-4N 500 MCM 750 MCM 500 750 3 3 3 9/16 5/8 1 3/4 3/8 HL100-1 H2L100-1 H3L100-1 H4L100-1 750 MCM 1000 MCM 800 1000 1 1 7/8 1 7/8 11/16 15/16 - 1/2 HL100-2 H2L100-2 H3L100-2 H4L100-2 750 MCM 1000 MCM 800 1000 2 1 7/8 2 1/2 9/16 5/8 1 1/4 1/2 HL100-2N H2L100-2N H3L100-2N H4L100-2N 750 MCM 1000 MCM 800 1000 2 1 7/8 3 9/16 5/8 1 3/4 1/2 HL100-4 H2L100-4 H3L100-4 H4L100-4 750 MCM 1000 MCM 800 1000 3 2 1/2 2 1/2 7/16 5/8 1 1/4 1/2 HL100-4N H2L100-4N H3L100-4N H4L100-4N 750 MCM 1000 MCM 800 1000 3 3 3 9/16 5/8 1 3/4 1/2 HL150-1 H2L150-1 H3L150-1 H4L150-1 1000 MCM 1500 MCM 1300 1300 1 2 3/16 2 1/8 13/16 1 1/16 - 9/16 HL150-2 H2L150-2 H3L150-2 H4L150-2 1000 MCM 1500 MCM 1300 1300 2 2 3/16 2 5/8 9/16 5/8 1 3/8 9/16 HL150-2N H2L150-2N H3L150-2N H4L150-2N 1000 MCM 1500 MCM 1300 1300 2 2 3/16 3 9/16 5/8 1 3/4 9/16 HL150-4 H2L150-4 H3L150-4 H4L150-4 1000 MCM 1500 MCM 1300 1300 3 2 1/2 2 5/8 9/16 5/8 1 3/8 1/2 HL150-4N H2L150-4N H3L150-4N H4L150-4N 1000 MCM 1500 MCM 1300 1300 3 3 3 9/16 5/8 1 3/4 1/2 HL200-1 H2L200-1 H3L200-1 H4L200-1 1600 MCM 2000 MCM 1600 2000 1 2 1/2 2 3/8 13/16 13/16 - 5/8 HL200-2 H2L200-2 H3L200-2 H4L200-2 1600 MCM 2000 MCM 1600 2000 2 2 1/2 2 3/4 9/16 5/8 1 1/2 5/8 HL200-2N H2L200-2N H3L200-2N H4L200-2N 1600 MCM 2000 MCM 1600 2000 2 2 1/2 3 9/16 5/8 1 3/4 5/8 HL200-4 H2L200-4 H3L200-4 H4L200-4 1600 MCM 2000 MCM 1600 2000 3 2 5/8 2 3/4 9/16 5/8 1 1/2 5/8 HL200-4N H2L200-4N H3L200-4N H4L200-4N 1600 MCM 2000 MCM 1600 2000 3 3 3 9/16 5/8 1 3/4 5/8 TYPE HL, H2L, H3L, H4L Copper Set Screw Terminal. HL is a single condutor Herculon Connector, H2L is a two condutor HERCULON ™ Connector, H3L is a three condutor Herculon Connector, and H4L is a four condutor Herculon Connector. HL-A has a set screw instead of the hex bolt.
7 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00371, Revision 2, 6.1.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps Material Copper Alloy Hardware Everdur pressure bolt Note For set screw instead of bolt, add "A" to end of part number. Example: HL1-1A HL The HERCULON ™ Lug is designed for quick and efficient installation. Its compact rigid structure makes it especially adaptable for assembly in inaccessible quarters. A high compressive clamping force on the cable conductors plus the additional gripping action of special serrated bearing areas makes for high electrical contact efficiency and pull out strength. TYPE HL, HLA-45, HLA-90 Copper Set Screw Terminal. HL conductor runs parallel to the pad, HLA45 the pad is at a 45° angle to the conductor, and HLA90 the pad is at a 90° angle to the conductor. HL-A has a set screw instead of the hex bolt. FIG. 1 A A X FIG. 2 C X T HL HLA-45 HLA-90 A FIG. 3 HL-A Ø H X C Y C Y Ø H Ø H Y HL-A
8 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00371, Revision 2, 6.1.18 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER COMMERCIAL CABLE SIZE NAVY CABLE SIZE FIG. NO. DIMENSIONS IN INCHES STRAIGHT 45 DEG 90 DEG MIN. MAX. MIN. MAX. A C H X Y T HL1-1 HLA1-1-45 HLA1-1-90 14 SOL 8 STR 4 14 1 9/16 3/4 7/32 5/16 - 3/16 HL1-2 HLA1-2-45 HLA1-2-90 14 SOL 8 STR 4 14 2 1/2 1 1/4 7/32 5/16 5/8 3/16 HL4-1 HLA4-1-45 HLA4-1-90 8 SOL 4 STR 23 40 1 9/16 3/4 9/32 5/16 - 3/16 HL4-2 HLA4-2-45 HLA4-2-90 8 SOL 4 STR 23 40 2 9/16 1 1/4 9/32 5/16 5/8 3/16 HL8-1 HLA8-1-45 HLA8-1-90 4 SOL 1 STR 50 75 1 3/4 7/8 9/32 11/32 - 7/32 HL8-2 HLA8-2-45 HLA8-2-90 4 SOL 1 STR 50 75 2 3/4 1 1/2 9/32 5/16 3/4 7/32 HL13-1 HLA13-1-45 HLA13-1-90 1 STR 2/0 STR 100 125 1 13/16 7/8 7/16 7/16 - 7/32 HL13-2 HLA13-2-45 HLA13-2-90 1 STR 2/0 STR 100 125 2 13/16 1 5/8 7/16 3/8 1 7/32 HL21-1 HLA21-1-45 HLA21-1-90 2/0 STR 4/0 STR 150 200 1 1 1 7/16 1/2 - 1/4 HL21-2 HLA21-2-45 HLA21-2-90 2/0 STR 4/0 STR 150 200 2 1 1 3/4 7/16 3/8 1 1/4 HL21-2N HLA21-2N-45 HLA21-2N-90 2/0 STR 4/0 STR 150 200 2 1 3 9/16 5/8 1 3/4 1/4 HL30-1 HLA30-1-45 HLA30-1-90 4/0 STR 300 MCM 250 300 1 1 1/16 1 1/4 9/16 5/8 - 5/16 HL30-2 HLA30-2-45 HLA30-2-90 4/0 STR 300 MCM 250 300 2 1 3/16 2 7/16 7/16 1 5/16 HL30-2N HLA30-2N-45 HLA30-2N-90 4/0 STR 300 MCM 250 300 2 1 1/16 3 9/16 5/8 1 3/4 5/16 HL35-1 HLA35-1-45 HLA35-1-90 250 MCM 350 MCM 250 350 1 1 3/16 1 1/4 9/16 5/8 - 5/16 HL35-2 HLA35-2-45 HLA35-2-90 250 MCM 350 MCM 250 350 2 1 3/16 2 7/16 7/16 1 5/16 HL35-2N HLA35-2N-45 HLA35-2N-90 250 MCM 350 MCM 250 350 2 1 1/2 3 9/16 5/8 1 3/4 5/16 HL50-1 HLA50-1-45 HLA50-1-90 300 MCM 500 MCM 400 500 1 1 3/8 1 1/2 9/16 3/4 - 11/32 HL50-2 HLA50-2-45 HLA50-2-90 300 MCM 500 MCM 400 500 2 1 3/8 2 7/16 7/16 1 11/32 HL50-2N HLA50-2N-45 HLA50-2N-90 300 MCM 500 MCM 400 500 2 1 1/2 3 9/16 5/8 1 3/4 11/32 HL50-4 HLA50-4-45 HLA50-4-90 300 MCM 500 MCM 400 500 3 2 2 7/16 7/16 1 11/32 HL50-4N HLA50-4N-45 HLA50-4N-90 300 MCM 500 MCM 400 500 3 3 3 9/16 5/8 1 3/4 11/32 HL75-1 HLA75-1-45 HLA75-1-90 500 MCM 750 MCM 500 750 1 1 5/8 1 3/4 11/16 7/8 - 3/8 HL75-2 HLA75-2-45 HLA75-2-90 500 MCM 750 MCM 500 750 2 1 5/8 2 1/4 7/16 9/16 1 1/8 3/8 HL75-2N HLA75-2N-45 HLA75-2N-90 500 MCM 750 MCM 500 750 2 1 5/8 3 9/16 5/8 1 3/4 3/8 HL75-4 HLA75-4-45 HLA75-4-90 500 MCM 750 MCM 500 750 3 2 1/4 2 1/4 7/16 5/8 1 3/8 HL75-4N HLA75-4N-45 HLA75-4N-90 500 MCM 750 MCM 500 750 3 3 3 9/16 5/8 1 3/4 3/8 HL100-1 HLA100-1-45 HLA100-1-90 750 MCM 1000 MCM 800 1000 1 1 7/8 1 7/8 11/16 15/16 - 1/2 HL100-2 HLA100-2-45 HLA100-2-90 750 MCM 1000 MCM 800 1000 2 1 7/8 2 1/2 9/16 5/8 1 1/4 1/2 HL100-2N HLA100-2N-45 HLA100-2N-90 750 MCM 1000 MCM 800 1000 2 1 7/8 3 9/16 5/8 1 3/4 1/2 HL100-4 HLA100-4-45 HLA100-4-90 750 MCM 1000 MCM 800 1000 3 2 1/2 2 1/2 7/16 5/8 1 1/4 1/2 HL100-4N HLA100-4N-45 HLA100-4N-90 750 MCM 1000 MCM 800 1000 3 3 3 9/16 5/8 1 3/4 1/2 HL150-1 HLA150-1-45 HLA150-1-90 1000 MCM 1500 MCM 1300 1300 1 2 3/16 2 1/8 13/16 1 1/16 - 9/16 HL150-2 HLA150-2-45 HLA150-2-90 1000 MCM 1500 MCM 1300 1300 2 2 3/16 2 5/8 9/16 5/8 1 3/8 9/16 HL150-2N HLA150-2N-45 HLA150-2N-90 1000 MCM 1500 MCM 1300 1300 2 2 3/16 3 9/16 5/8 1 3/4 9/16 HL150-4 HLA150-4-45 HLA150-4-90 1000 MCM 1500 MCM 1300 1300 3 2 1/2 2 5/8 9/16 5/8 1 3/8 9/16 HL150-4N HLA150-4N-45 HLA150-4N-90 1000 MCM 1500 MCM 1300 1300 3 3 3 9/16 5/8 1 3/4 9/16 HL200-1 HLA200-1-45 HLA200-1-90 1500 MCM 2000 MCM 1500 2000 1 2 1/2 2 3/8 13/16 1 1/4 - 5/8 HL200-2 HLA200-2-45 HLA200-2-90 1500 MCM 2000 MCM 1500 2000 2 2 1/2 2 3/4 9/16 5/8 1 1/2 5/8 HL200-2N HLA200-2N-45 HLA200-2N-90 1500 MCM 2000 MCM 1500 2000 2 2 1/2 3 9/16 5/8 1 3/4 5/8 HL200-4 HLA200-4-45 HLA200-4-90 1500 MCM 2000 MCM 1500 2000 3 2 5/8 2 3/4 9/16 5/8 1 1/2 5/8 HL200-4N HLA200-4N-45 HLA200-4N-90 1500 MCM 2000 MCM 1500 2000 3 3 3 9/16 5/8 1 3/4 5/8 TYPE HL, HLA-45, HLA-90
9 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00373, Revision 0, 3.10.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps Material Copper Alloy Hardware Everdur pressure bolt TYPE HLS, HLSC Copper Terminal for Cable to Stud Posts Ordering Information CATALOG NUMBER CABLE SIZE STUD DIA. DIMENSIONS IN INCHES HLS HLSC MIN MAX A H L T W HLS1-25 HLSC1-25 14 SOL 8 STR 1/4 3/4 9/32 1 1/2 3/16 15/32 HLS4-25 HLSC4-25 8 SOL 4 STR 1/4 3/4 9/32 1 9/16 1/4 1/2 HLS8-25 HLSC8-25 4 SOL 1 STR 1/4 3/4 9/32 1 11/16 9/32 11/16 HLS1-38 HLSC1-38 14 SOL 8 STR 3/8 1 13/32 1 3/4 3/16 15/32 HLS4-38 HLSC4-38 8 SOL 4 STR 3/8 1 13/32 1 13/16 1/4 1/2 HLS8-38 HLSC8-38 4 SOL 1 STR 3/8 1 13/32 1 15/16 9/32 11/16 HLS8-50 HLSC8-50 4 SOL 1 STR 1/2 1 1/4 17/32 2 3/16 1/4 11/16 HLS13-50 HLSC13-50 1 STR 2/0 STR 1/2 1 1/4 17/32 2 7/16 9/32 13/16 HLS21-50 HLSC21-50 2/0 STR 4/0 STR 1/2 1 1/4 17/32 2 11/16 5/16 1 HLS30-63 HLSC30-63 4/0 STR 300 MCM 5/8 1 1/2 21/32 3 3/16 3/8 1 3/16 HLS35-63 HLSC35-63 250 MCM 350 MCM 5/8 1 1/2 21/32 3 1/4 3/8 1 1/4 HLS50-63 HLSC50-63 300 MCM 500 MCM 5/8 1 1/2 21/32 3 1/4 3/8 1 11/32 HLS75-63 HLSC75-63 500 MCM 750 MCM 5/8 1 1/2 21/32 3 1/2 7/16 1 19/32 HLS30-75 HLSC30-75 4/0 STR 300 MCM 3/4 1 7/8 25/32 3 9/16 3/8 1 3/16 HLS35-75 HLSC35-75 250 MCM 350 MCM 3/4 1 7/8 25/32 3 5/8 3/8 1 1/4 HLS50-75 HLSC50-75 300 MCM 500 MCM 3/4 1 7/8 25/32 3 5/8 3/8 1 11/32 HLS75-75 HLSC75-75 500 MCM 750 MCM 3/4 1 7/8 25/32 3 7/8 7/16 1 19/32 HLS50-100 HLSC50-100 300 MCM 500 MCM 1 2 1/2 1.03125 4 1/4 3/8 1 11/32 HLS75-100 HLSC75-100 500 MCM 750 MCM 1 2 1/2 1.03125 4 1/2 7/16 1 19/32 HLS100-100 HLSC100-100 750 MCM 1000 MCM 1 2 1/2 1.03125 4 13/16 1/2 1 15/16 An efficient and easy to install variable type terminal for connecting wires or cables to studposts of electrical equipment. The wire or cable connector is securely clamped in position by merely tightening the pressure screw. The full bearing length of cable is clamped by means of an internal pressure pad curved to fit the conductor. HLS HLSC HLS A T HLSC H L W T
10 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00469, Revision 4, 4.18.18 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Material Copper Alloy Hardware Everdur bolts, nuts and lock washers. Notes • For tin plating add suffix (SN) to catalog number. Ex: T2CVH50-2N-SN • For undrilled pads, add the suffix (U) to the part numbers. Ex: T2CVH50-2U • For a 45° angle add -45, and for a 90° angle add -90. For an angled pad add an 'A' after TCVH. Ex: For 45° 2 hole NEMA pad to two 500MCM cables order: T2CVHA50-2N-45 T2CVH A heavy duty variable clamp type terminal for connecting a cable to a flat bar bus. Each size terminal accommodates a wide range of cable sizes. Designed to carry the full rated load of the maximum conductor without overheating. Contact pads other than those listed below can be promptly furnished to any specified size or drilling. The variable type terminal exhibits its advantage in that one connector will accommodate a number of cable sizes. This minimizes greatly the problem of stocking various sizes of connectors and the errors which occur in specifying connectors for specific cable sizes. TYPE T2CVH, T2CVHA-45, T2CVHA-90 Terminal Connector FIG. 1 A Ø9/16 1 3/4 X B FIG. 2 C X Ø9/16 1 3/4 T2CVH T2CVHA-90 TCVHA-45 1 3/4 Ø9/16 1 3/4 1 3/4 A X 1 3/4 FIG. 3 C W A T
www.AFLglobal.com or 800-890-8878 11 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00469, Revision 4, 4.18.18 Specifications are subject to change without notice. Bronze Terminals, Taps Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES BOLT SIZE STRAIGHT 45 DEG. 90 DEG. MIN MAX A B C T W X T2CVH25-2N T2CVHA25-2N-45 T2CVHA25-2N-90 # 4 SOL 250 MCM 1 2 2 3/4 3 5/16 3 1/2 5/8 1/2 T2CVH25-4N T2CVHA25-4N-45 T2CVHA25-4N-90 # 4 SOL 250 MCM 2 3 2 3/4 3 5/16 3 1/2 5/8 1/2 T2CVH50-2N T2CVHA50-2N-45 T2CVHA50-2N-90 1/0 SOL 500 MCM 1 2 3 3 3/8 4 5/8 1/2 T2CVH50-4N T2CVHA50-4N-45 T2CVHA50-4N-90 1/0 SOL 500 MCM 2 3 3 3 3/8 4 5/8 1/2 T2CVH50-4N4 T2CVHA50-4N4-45 T2CVHA50-4N4-90 1/0 SOL 500 MCM 2 4 3 4 3/8 4 1 1/8 1/2 T2CVH80-2N T2CVHA80-2N-45 T2CVHA80-2N-90 2/0 SOL 800 MCM 1 2 2 7/8 3 1/2 4 1/2 5/8 1/2 T2CVH80-4N T2CVHA80-4N-45 T2CVHA80-4N-90 2/0 SOL 800 MCM 2 3 2 7/8 3 1/2 4 1/2 5/8 1/2 T2CVH80-4N4 T2CVHA80-4N4-45 T2CVHA80-4N4-90 2/0 SOL 800 MCM 2 4 2 7/8 4 1/2 4 1/2 1 1/8 1/2 T2CVH100-2N T2CVHA100-2N-45 T2CVHA100-2N-90 4/0 SOL 1000 MCM 1 2 1/2 3 3 1/2 4 3/4 5/8 1/2 T2CVH100-4N T2CVHA100-4N-45 T2CVHA100-4N-90 4/0 SOL 1000 MCM 2 3 3 3 1/2 4 3/4 5/8 1/2 T2CVH100-4N4 T2CVHA100-4N4-45 T2CVHA100-4N4-90 4/0 SOL 1000 MCM 2 4 3 4 1/2 4 3/4 1 1/8 1/2 T2CVH100-4N4-T5/8 T2CVH100-4N4-T5/8-45 T2CVH100-4N4-T5/8-90 4/0 SOL 1000 MCM 2 4 3 4 5/8 4 3/4 1 1/8 1/2 T2CVH100-4N4-T3/4 T2CVH100-4N4-T3/4-45 T2CVH100-4N4-T3/4-90 4/0 SOL 1000 MCM 2 4 3 4 3/4 4 3/4 1 1/8 1/2 T2CVH100-6N4 T2CVH100-6N4-45 T2CVH100-6N4-90 4/0 SOL 1000 MCM 3 6 3 4 1/2 4 3/4 1 1/8 1/2 T2CVH200-4N T2CVHA200-4N-45 T2CVHA200-4N-90 500 MCM 2000 MCM 2 3 3 5/8 3 11/16 5 5/8 5/8 1/2 T2CVH200-4N4 T2CVHA200-4N4-45 T2CVHA200-4N4-90 500 MCM 2000 MCM 2 4 3 5/8 4 11/16 5 5/8 1 1/8 1/2 T2CVH200-5N4 T2CVH200-5N4-45 T2CVH200-5N4-90 500 MCM 2000 MCM 3 5 3 5/8 4 11/16 5 5/8 1 1/8 1/2 T2CVH200-6N4 T2CVHA200-6N4-45 T2CVHA200-6N4-90 500 MCM 2000 MCM 3 6 3 5/8 4 11/16 5 5/8 1 1/8 1/2 T2CVH300-4N4 T2CVH300-4N4-45 T2CVH300-4N4-90 1000 MCM 3000 MCM 2 4 3 7/8 4 1 7 3/16 1 1/8 5/8 T2CVH300-6N4 T2CVH300-6N4-45 T2CVH300-6N4-90 1000 MCM 3000 MCM 3 6 3 7/8 4 1 7 3/16 1 1/8 5/8 TYPE T2CVH, T2CVHA-45, T2CVHA-90 Terminal Connector
12 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00472, Revision 3, 12.16.2024 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Bronze Terminals, Taps 12 continued TYPE TCVHA Angled (15, 30, 45, 90 Degrees) Heavy Duty Copper Terminal for Cable to a Flat Pad Material Copper Alloy Hardware Everdur bolts, nuts and lock washers. Notes • For Electro Tin plate, add "-SN" to catalog number. Ex: TCVH50-2N-SN • For Angled Pad, add "A" to prefix and angle to catalog number. EX: TCVHA50-45 • For Undrilled Pad, add "-U" to pad size in catalog number. Ex: TCVH50-4N4U A heavy duty variable clamp type terminal for connecting a cable to flat bus bar. Each size terminal accommodates a wide range of cable sizes. Designed to carry the full rated load of the maximum conductor without overheating. Contact pads other than those listed below can be furnished to any specified size or drilling. A C Y X ∅ 0.56 FIG. 1 FIG. 2 FIG. 3 A C 1.75 X ∅ 0.56 Y A C 1.75 1.75 ∅ 0.56 Y T B TCVHA-15 TCVHA-30 TCVHA-45 TCVHA-90
13 AFLglobal.com1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00472, Revision 3, 12.16.2024 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Bronze Terminals, Taps 13 TYPE TCVHA Angled (15, 30, 45, 90 Degrees) Heavy Duty Copper Terminal for Cable to a Flat Pad Ordering Information Catalog Number Cable Range Fig. No. Dimensions in Inches Bolt Size 15 Deg. 30 Deg. 45 Deg. 90 Deg. Min. Max. A B C T X Y TCVHA25-1-15 TCVHA25-1-30 TCVHA25-1-45 TCVHA25-1-90 #4 SOL. 250 MCM 3 1.50 2.75 1.38 0.31 0.75 0.75 1/2 TCVHA25-2N-15 TCVHA25-2N-30 TCVHA25-2N-45 TCVHA25-2N-90 #4 SOL. 250 MCM 1 1.50 2.75 3.00 0.31 0.75 0.63 1/2 TCVHA25-4N-15 TCVHA25-4N-30 TCVHA25-4N-45 TCVHA25-4N-90 #4 SOL. 250 MCM 2 3.00 2.75 3.00 0.31 0.63 0.63 1/2 TCVHA25-4N4-15 TCVHA25-4N4-30 TCVHA25-4N4-45 TCVHA25-4N4-90 #4 SOL. 250 MCM 2 4.00 2.75 4.00 0.31 1.13 1.13 1/2 TCVHA50-1-15 TCVHA50-1-30 TCVHA50-1-45 TCVHA50-1-90 1/0 SOL. 500 MCM 3 2.00 2.63 1.50 0.38 1.00 0.88 1/2 TCVHA50-2N-15 TCVHA50-2N-30 TCVHA50-2N-45 TCVHA50-2N-90 1/0 SOL. 500 MCM 1 2.00 2.63 3.00 0.38 1.00 0.63 1/2 TCVHA50-2N3-15 TCVHA50-2N3-30 TCVHA50-2N3-45 TCVHA50-2N3-90 1/0 SOL. 500 MCM 1 2.00 2.63 3.00 0.38 1.00 0.63 1/2 TCVHA50-4N-15 TCVHA50-4N-30 TCVHA50-4N-45 TCVHA50-4N-90 1/0 SOL. 500 MCM 2 3.00 2.63 3.00 0.38 0.63 0.63 1/2 TCVHA50-4N4-15 TCVHA50-4N4-30 TCVHA50-4N4-45 TCVHA50-4N4-90 1/0 SOL. 500 MCM 2 4.00 2.63 4.00 0.38 1.13 1.13 1/2 TCVHA80-2N-15 TCVHA80-2N-30 TCVHA80-2N-45 TCVHA80-2N-90 2/0 SOL. 800 MCM 1 2.00 2.88 3.00 0.50 1.00 0.63 1/2 TCVHA80-2N3-15 TCVHA80-2N3-30 TCVHA80-2N3-45 TCVHA80-2N3-90 2/0 SOL. 800 MCM 1 2.00 2.88 3.00 0.50 1.00 0.63 1/2 TCVHA80-4N-15 TCVHA80-4N-30 TCVHA80-4N-45 TCVHA80-4N-90 2/0 SOL. 800 MCM 2 3.00 2.88 3.00 0.50 0.63 0.63 1/2 TCVHA80-4N4-15 TCVHA80-4N4-30 TCVHA80-4N4-45 TCVHA80-4N4-90 2/0 SOL. 800 MCM 2 4.00 2.88 4.00 0.50 1.13 1.13 1/2 TCVHA100-2N-15 TCVHA100-2N-30 TCVHA100-2N-45 TCVHA100-2N-90 4/0 SOL. 1000 MCM 1 2.00 2.88 3.00 0.50 1.00 0.63 1/2 TCVHA100-4N-15 TCVHA100-4N-30 TCVHA100-4N-45 TCVHA100-4N-90 4/0 SOL. 1000 MCM 2 3.00 2.88 3.00 0.50 0.63 0.63 1/2 TCVHA100-4N4-15 TCVHA100-4N4-30 TCVHA100-4N4-45 TCVHA100-4N4-90 4/0 SOL. 1000 MCM 2 4.00 2.88 4.00 0.50 1.13 1.13 1/2 TCVHA200-4N-15 TCVHA200-4N-30 TCVHA200-4N-45 TCVHA200-4N-90 500 MCM 2000 MCM 2 3.00 3.38 3.00 0.69 0.63 0.63 1/2 TCVHA200-4N4-15 TCVHA200-4N4-30 TCVHA200-4N4-45 TCVHA200-4N4-90 500 MCM 2000 MCM 2 4.00 3.38 4.00 0.69 1.13 1.13 1/2 TCVHA250-4N-15 TCVHA250-4N-30 TCVHA250-4N-45 TCVHA250-4N-90 2000 MCM 2500 MCM 2 3.00 4.50 3.00 0.81 0.63 0.63 5/8
14 AFLglobal.com1 (800) 890-8878 © 2024, AFL, all rights reserved. PP-3-00894, Revision 0, 11.22.2024 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Bronze Terminals, Taps 14 Material Copper Alloy Hardware Everdur bolts, nuts and lock washers. Notes • For Electro Tin plate, add "-SN" to catalog number. Ex: TCVH50-2N-SN • For Undrilled Pad add "U" to pad size in catalog number. EX: TCVH50-4N4U • For Stainless Steel Hardware add "-SS" to catalog number. EX: TCVH50-4N4-SS A heavy duty variable clamp type terminal for connecting a cable to flat bus bar. Each size terminal accommodates a wide range of cable sizes. Designed to carry the full rated load of the maximum conductor without overheating. Contact pads other than those listed below can be furnished to any specified size or drilling. TYPE TCVH-N Straight Heavy Duty Copper Terminal for Cable to a Flat Pad continued FIG. 1 FIG. 3 FIG. 2 FIG. 4 A A A A T C C C C B 1 3/4 1 3/4 1 3/4 1 3/4 Y Y Y Y X X X X Ø9/16 Ø9/16 Ø9/16 Ø9/16 1 3/4 1 3/4
15 AFLglobal.com1 (800) 890-8878 © 2024, AFL, all rights reserved. PP-3-00894, Revision 0, 11.22.2024 S p e c i c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Bronze Terminals, Taps 15 TYPE TCVH-N Striaght Heavy Duty Copper Terminal for Cable to a Flat Pad Ordering Information Catalog Number Cable Range Fig. No. Dimensions in Inches Bolt Size Straight Min. Max. A B C T X Y TCVH25-1 #4 SOL. 250 MCM 1 1.50 2.75 1.38 0.31 0.75 0.75 1/2 TCVH25-2N #4 SOL. 250 MCM 2 1.50 2.75 3.00 0.28 0.75 0.63 1/2 TCVH25-4N #4 SOL. 250 MCM 3 3.00 2.75 3.00 0.31 0.63 0.63 1/2 TCVH25-4N4 #4 SOL. 250 MCM 3 4.00 2.75 4.00 0.31 1.13 1.13 1/2 TCVH50-1 1/0 SOL. 500 MCM 1 2.00 2.63 1.50 0.38 1.00 0.88 1/2 TCVH50-2N 1/0 SOL. 500 MCM 2 2.00 2.63 3.19 0.25 1.00 0.63 1/2 TCVH50-2N3 1/0 SOL. 500 MCM 2 2.00 2.63 3.00 0.38 1.00 0.63 1/2 TCVH50-4N 1/0 SOL. 500 MCM 3 3.00 2.63 3.00 0.25 0.63 0.63 1/2 TCVH50-4N4 1/0 SOL. 500 MCM 3 4.00 2.63 4.00 0.38 1.13 1.13 1/2 TCVH80-2N 2/0 SOL. 800 MCM 2 2.00 2.88 3.00 0.34 1.00 0.63 1/2 TCVH80-2N3 2/0 SOL. 800 MCM 2 2.00 2.88 3.00 0.50 1.00 0.63 1/2 TCVH80-4N 2/0 SOL. 800 MCM 3 3.00 2.88 3.00 0.34 0.63 0.63 1/2 TCVH80-4N4 2/0 SOL. 800 MCM 3 4.00 2.88 4.00 0.34 1.13 1.13 1/2 TCVH100-2N 4/0 SOL. 1000 MCM 2 2.00 2.88 3.00 0.50 1.00 0.63 1/2 TCVH100-4N 4/0 SOL. 1000 MCM 3 3.00 2.88 3.25 0.34 0.63 0.63 1/2 TCVH100-4N4 4/0 SOL. 1000 MCM 3 4.00 2.88 4.25 0.34 1.13 1.13 1/2 TCVH200-4N 500 MCM 2000 MCM 3 3.00 3.38 3.00 0.69 0.63 0.63 1/2 TCVH200-4N4 500 MCM 2000 MCM 3 4.00 3.38 4.00 0.69 1.13 1.13 1/2 TCVH200-6N4 500 MCM 2000 MCM 4 6.00 3.38 4.00 0.69 1.25 1.25 1/2 TCVH250-4N 2000 MCM 2500 MCM 3 3.00 4.50 3.00 0.81 0.63 0.63 5/8
16 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00474, Revision 0, 3.10.11 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Material Copper Alloy Hardware Everdur-bolts, nuts, and lockwashers. Note For tin plating add "-SN" to the end of the catalog number. TYPE TCX Bar to Variable Cable or Pipe Ordering Information CATALOG NUMBER CABLE RANGE SPS RANGE FIG NO. DIMENSIONS IN INCHES BOLT SIZE SMALL GROOVE LARGE GROOVE SMALL GROOVE LARGE GROOVE A B C L T X TCX21-2N 6SOL-1STR 1STR-4/0STR - - 1 1 1/2 2 3 5 1/8 5/16 5/8 3/8 TCX21-4N 6SOL-1STR 1STR-4/0STR - - 2 3 2 3 5 1/8 5/16 5/8 3/8 TCX60-2N 4SOL-4/0STR 250-600 1/4 1/2 1 1 1/2 2 5/16 3 5 1/2 3/8 5/8 3/8 TCX60-4N 4SOL-4/0STR 250-600 1/4 1/2 2 3 2 5/16 3 5 1/2 3/8 5/8 3/8 TCX80-2N 2SOL-250 300-800 1/4 3/4 1 2 2 7/16 3 5 11/16 1/2 5/8 3/8 TCX80-4N 2SOL-250 300-800 1/4 3/4 2 3 2 7/16 3 5 11/16 1/2 5/8 3/8 TCX150-2N 4/0SOL-850 900-1500 1/4 1 1 2 3 1/4 3 6 1/2 9/16 5/8 1/2 TCX150-4N 4/0SOL-850 900-1500 1/4 1 2 3 3 1/4 3 6 1/2 9/16 5/8 1/2 TCX150-4N4 4/0SOL-850 900-1500 1/4 1 2 4 3 1/4 4 7 1/2 9/16 1 1/8 1/2 TCX200-2N 500-1300 1500-2000 3/4 1 1/2 2 2 3 1/2 3 6 3/4 11/16 5/8 1/2 TCX200-4N 500-1300 1500-2000 3/4 1 1/2 2 3 3 1/2 3 6 3/4 11/16 5/8 1/2 TCX can be used as a tap or a terminal. A variable clamp type terminal or tap for connecting a cable or pipe to a flat bar bus. Each size accommodates a wide range of cable sizes. FIG. 1 L 1 3/4 A FIG. 2 1 3/4 A B T CABLE OR PIPE C Ø9/16 X X C 1 3/4 Ø9/16
17 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00498, Revision 0, 3.10.11 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Material Copper Alloy Hardware Everdur U-bolts, nuts and lockwashers. TYPE UL-90H Copper Horizontal Terminal For Cable To Bus Ordering Information CATALOG NUMBER CABLE SIZE DIMENSIONS IN INCHES U-BOLT SIZE MIN MAX B L T UL13-2N-90H 6 Str 2/0 Str 2 1/2 4 1/4 5/16 5/16 UL21-2N-90H 1 Str 4/0 Str 2 5/8 4 3/8 5/16 3/8 UL30-2N-90H 1/0 Str 300 MCM 2 3/4 4 1/2 3/8 3/8 UL50-2N-90H 300 MCM 500 MCM 3 4 3/4 3/8 3/8 UL80-2N-90H 500 MCM 800 MCM 3 1/4 5 1/2 1/2 UL100-2N-90H 750 MCM 1000 MCM 3 1/2 5 1/4 1/2 1/2 UL150-2N-90H 1000 MCM 1500 MCM 4 5 3/4 9/16 1/2 UL200-2N-90H 1500 MCM 2000 MCM 4 1/2 6 1/4 9/16 1/2 A horizontal angle terminal for connecting a cable at 90 degree to the bus. ƒ L 3/4 1 3/4 B T Ø9/16 3 1 3/4
18 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00499, Revision 0, 3.10.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps Material Copper Alloy Hardware Everdur U-bolts, nuts and lockwashers. Note Contact pads can be furnished to any specification of size undrilled or drilled to specified hole sizes and center to center dimensions. TYPE UL-90V Copper Vertical Mouting Terminal Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES BOLT SIZE MIN MAX A C L T UL13-2N-90V 6 Str 2/0 Str 1 1 1/2 3 1/4 5 3/4 5/16 5/16 UL13-4N-90V 6 Str 2/0 Str 2 3 3 1/4 5 3/4 5/16 5/16 UL21-2N-90V 1 Str 4/0 Str 1 1 1/2 3 1/4 5 7/8 5/16 3/8 UL21-4N-90V 1 Str 4/0 Str 2 3 3 1/4 5 7/8 5/16 3/8 UL30-2N-90V 1/0 Str 300 MCM 1 1 1/2 3 1/4 6 3/8 3/8 UL30-4N-90V 1/0 Str 300 MCM 2 3 3 1/4 6 3/8 3/8 UL50-2N-90V 300 MCM 500 MCM 1 1 1/2 3 1/4 6 1/4 3/8 3/8 UL50-4N-90V 300 MCM 500 MCM 2 3 3 1/4 6 1/4 3/8 3/8 UL50-4N4-90V 300 MCM 500 MCM 2 4 4 1/4 7 1/4 3/8 3/8 UL80-2N-90V 500 MCM 800 MCM 1 1 1/2 3 1/4 6 1/2 1/2 3/8 UL80-4N-90V 500 MCM 800 MCM 2 3 3 1/4 6 1/2 1/2 3/8 UL80-4N4-90V 500 MCM 800 MCM 2 4 4 1/4 7 1/2 1/2 3/8 UL100-2N-90V 750 MCM 1000 MCM 1 1 1/2 3 1/4 6 3/4 1/2 1/2 UL100-4N-90V 750 MCM 1000 MCM 2 3 3 1/4 6 3/4 1/2 1/2 UL100-4N4-90V 750 MCM 1000 MCM 2 4 4 1/4 7 3/4 1/2 1/2 UL150-2N-90V 1000 MCM 1500 MCM 1 2 3/4 3 1/4 7 1/4 9/16 1/2 UL150-4N-90V 1000 MCM 1500 MCM 2 3 3 1/4 7 1/4 9/16 1/2 UL150-4N4-90V 1000 MCM 1500 MCM 2 4 4 1/4 8 1/4 9/16 1/2 UL200-2N-90V 1500 MCM 2000 MCM 1 3 3 1/4 7 3/4 11/16 1/2 UL200-4N-90V 1500 MCM 2000 MCM 2 3 3 1/4 7 3/4 11/16 1/2 UL200-4N4-90V 1500 MCM 2000 MCM 2 4 4 1/4 8 3/4 11/16 1/2 A vertical side mounting type terminal lug for connecting cables to flat bar busses. The side clamping feature provides clearance to enable terminal to be mounted well within the bus surface without interference of the U-bolts. FIG. 1 A 1 3/4 A FIG. 2 1 3/4 L T C Ø9/16 C 1 3/4 Ø9/16
19 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00497, Revision 2, 12.14.17 Specifications are subject to change without notice. Bronze Terminals, Taps www.AFLglobal.com or 800-890-8878 Material Copper Alloy Hardware Everdur U-bolts, lockwashers and nuts. Notes • Contact pads other than those listed can be promptly furnished to any specified size or drilling. • For a Two Conductor Terminal add a '2' in UL Ex:U2L150-4N4 TYPE UL, U2L U-Bolt Variable Terminal A conductor U-bolt type variable terminal lug for connecting cables to flat bar busses. UL U2L UL A U2L ∅ H ∅ H ∅ A L T X 1 3/4 C ∅ H FIG. 1 FIG. 2 FIG. 3 C 1 3/4 A X 1 3/4 B
20 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00497, Revision 2, 12.14.17 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Terminals, Taps TYPE UL, U2L U-Bolt Variable Terminal Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES U-BOLT SIZE MIN MAX A B C H L T X UL13-1 6 Str 2/0 Str 1 1.25 2.50 — 0.44 3.88 0.31 — 5/16 UL13-2 6 Str 2/0 Str 2 1.25 2.50 1.88 0.44 4.50 0.31 0.44 5/16 UL13-2N 6 Str 2/0 Str 2 1.50 2.50 3.00 0.56 5.75 0.31 0.63 5/16 UL21-1 1 Str 4/0 Str 1 1.50 2.63 — 0.56 4.25 0.31 — 3/8 UL21-2 1 Str 4/0 Str 2 1.25 2.63 2.13 0.44 4.88 0.31 0.50 3/8 UL21-2N 1 Str 4/0 Str 2 1.50 2.63 3.00 0.56 5.88 0.31 0.63 3/8 UL21-4N 1 Str 4/0 Str 3 3.00 2.63 3.00 0.56 5.88 0.31 0.63 3/8 UL30-1 1/0 Str 300 MCM 1 1.50 2.75 2.00 0.56 4.75 0.38 0.75 3/8 UL30-2 1/0 Str 300 MCM 2 1.63 2.75 2.63 0.56 5.50 0.38 0.63 3/8 UL30-2N 1/0 Str 300 MCM 2 1.50 2.75 3.00 0.56 6.00 0.38 0.63 3/8 UL30-4 1/0 Str 300 MCM 3 2.00 2.75 2.00 0.44 4.88 0.38 0.50 3/8 UL30-4N 1/0 Str 300 MCM 3 3.00 2.75 3.00 0.56 6.00 0.38 0.63 3/8 UL50-1 300 MCM 500 MCM 1 2.13 3.00 — 0.56 5.25 0.38 — 3/8 UL50-2 300 MCM 500 MCM 2 1.75 3.00 2.75 0.56 5.88 0.38 0.69 3/8 UL50-2N 300 MCM 500 MCM 2 1.50 3.00 3.00 0.56 6.25 0.38 0.63 3/8 UL50-4 300 MCM 500 MCM 3 2.25 3.00 2.25 0.44 5.38 0.38 0.56 3/8 UL50-4N 300 MCM 500 MCM 3 3.00 3.00 3.00 0.56 6.25 0.38 0.63 3/8 UL80-2 500 MCM 800 MCM 2 1.75 3.25 3.00 0.56 6.44 0.50 0.75 1/2 UL80-2N 500 MCM 800 MCM 2 1.75 3.25 3.00 0.56 6.50 0.50 0.63 1/2 UL80-4 500 MCM 800 MCM 3 2.25 3.25 2.25 0.44 5.69 0.50 0.56 1/2 UL80-4N 500 MCM 800 MCM 3 3.00 3.25 3.00 0.56 6.50 0.50 0.63 1/2 UL100-2 750 MCM 1000 MCM 2 2.00 3.50 3.13 0.56 6.81 0.50 0.75 1/2 UL100-2N 750 MCM 1000 MCM 2 2.00 3.50 3.00 0.56 6.75 0.50 0.63 1/2 UL100-4 750 MCM 1000 MCM 3 2.38 3.50 2.38 0.44 6.13 0.50 0.56 1/2 UL100-4N 750 MCM 1000 MCM 3 3.00 3.50 3.00 0.56 6.75 0.50 0.63 1/2 UL150-2 1000 MCM 1500 MCM 2 2.00 4.00 3.13 0.56 7.31 0.56 0.75 1/2 UL150-2N 1000 MCM 1500 MCM 2 2.00 4.00 3.00 0.56 7.25 0.56 0.63 1/2 UL150-4 1000 MCM 1500 MCM 3 2.75 4.00 2.75 0.56 6.94 0.56 0.69 1/2 UL150-4N 1000 MCM 1500 MCM 3 3.00 4.00 3.00 0.56 7.25 0.56 0.63 1/2 UL200-2 1500 MCM 2000 MCM 2 2.13 4.50 3.25 0.56 7.94 0.69 0.81 1/2 UL200-2N 1500 MCM 2000 MCM 2 2.75 4.50 3.00 0.56 7.75 0.69 0.63 1/2 UL200-4 1500 MCM 2000 MCM 3 3.13 4.50 3.13 0.56 7.81 0.69 0.75 1/2 UL200-4N 1500 MCM 2000 MCM 3 3.00 4.50 3.00 0.56 7.75 0.69 0.63 1/2
21 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00501, Revision 2, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 Bronze Terminals, Taps Material High Conductivity Copper Alloy Hardware Everdur U-bolts, nuts and lockwashers. Note Contact pads can be furnished to any specification of size undrilled or drilled to specified hole sizes and center to center dimensions. TYPE ULI, UULI Copper U-Bolt Variable Range Terminal A single and double U-bolt type terminal. Each size accommodates a wide range of cable sizes. The inverted clamping member and the offset pad provides for contactmounting clearance when required. ULI UULI ULI A T UULI ØH C C X FIG. 1 FIG. 2 ØH ØH X Y Y A X L* Z C L FIG. 3 P A
© 2011, AFL, all rights reserved. PP-3-00501, Revision 2, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 22 Bronze Terminals, Taps Bronze Terminals, Taps TYPE ULI, UULI Copper U-Bolt Variable Range Terminal Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES U-BOLT SIZE ULI UULI MIN MAX A C H L L* P T X Y Z ULI13-1 UULI13-1 6 SOL 2/0 STR 1 1 1/4 1 1/4 7/16 3 3 2 1/16 5/16 5/8 – – 5/16 ULI13-2 UULI13-2 6 SOL 2/0 STR 2 1 1/4 1 7/8 7/16 3 5/8 3 5/8 2 1/16 5/16 7/16 1 – 5/16 ULI13-2N UULI13-2N 6 SOL 2/0 STR 2 1 1/2 3 9/16 4 3/4 4 3/4 2 1/16 5/16 5/8 1 3/4 – 5/16 ULI13-4 UULI13-4 6 SOL 2/0 STR 3 2 2 7/16 3 3/4 3 3/4 2 1/16 5/16 1/2 1 1 5/16 ULI13-4N UULI13-4N 6 SOL 2/0 STR 3 3 3 9/16 4 3/4 4 3/4 2 1/16 5/16 5/8 1 3/4 1 3/4 5/16 ULI21-1 UULI21-1 1 SOL 4/0 STR 1 1 1/2 1 1/2 9/16 3 5/16 3 5/16 2 3/16 5/16 3/4 – – 3/8 ULI21-2 UULI21-2 1 SOL 4/0 STR 2 1 1/4 2 1/8 7/16 3 15/16 3 15/16 2 3/16 5/16 1/2 1 1/8 – 3/8 ULI21-2N UULI21-2N 1 SOL 4/0 STR 2 1 1/2 3 9/16 4 13/16 4 13/16 2 3/16 5/16 5/8 1 3/4 – 3/8 ULI21-4 UULI21-4 1 SOL 4/0 STR 3 2 2 7/16 3 13/16 3 13/16 2 3/16 5/16 1/2 1 1 3/8 ULI21-4N UULI21-4N 1 SOL 4/0 STR 3 3 3 9/16 4 13/16 4 13/16 2 3/16 5/16 5/8 1 3/4 1 3/4 3/8 ULI30-1 UULI30-1 1/0 STR 300 MCM 1 1 7/8 1 7/8 9/16 3 3/4 3 3/4 2 5/16 3/8 15/16 – – 3/8 ULI30-2 UULI30-2 1/0 STR 300 MCM 2 1 5/8 2 5/8 9/16 4 1/2 4 1/2 2 5/16 3/8 5/8 1 1/8 – 3/8 ULI30-2N UULI30-2N 1/0 STR 300 MCM 2 1 1/2 3 9/16 4 7/8 4 7/8 2 5/16 3/8 5/8 1 3/4 – 1/2 ULI30-4 UULI30-4 1/0 STR 300 MCM 3 2 2 7/16 3 7/8 3 7/8 2 5/16 3/8 1/2 1 1 3/8 ULI30-4N UULI30-4N 1/0 STR 300 MCM 3 3 3 9/16 4 7/8 4 7/8 2 5/16 3/8 5/8 1 3/4 1 3/4 1/2 ULI50-1 UULI50-1 300 MCM 500 MCM 1 2 1/8 2 1/8 9/16 4 1/8 4 1/8 2 7/8 3/8 1 1/16 – – 3/8 ULI50-2 UULI50-2 300 MCM 500 MCM 2 1 3/4 2 3/4 9/16 4 7/8 4 7/8 2 7/8 3/8 1 1/16 1 3/8 – 3/8 ULI50-2N UULI50-2N 300 MCM 500 MCM 2 1 1/2 3 9/16 5 1/8 5 1/8 2 7/8 3/8 5/8 1 3/4 – 1/2 ULI50-4 UULI50-4 300 MCM 500 MCM 3 2 1/4 2 1/4 7/16 4 3/8 4 3/8 2 7/8 3/8 9/16 1 1/8 1 1/8 3/8 ULI50-4N UULI50-4N 300 MCM 500 MCM 3 3 3 9/16 5 1/8 5 1/8 2 7/8 3/8 5/8 1 3/4 1 3/4 1/2 ULI80-1 UULI80-1 500 MCM 800 MCM 1 2 3/8 2 3/4 9/16 4 5/8 4 5/8 3 3/8 3/8 1 1/16 – – 1/2 ULI80-2 UULI80-2 500 MCM 800 MCM 2 1 3/4 3 9/16 5 1/4 5 1/4 3 3/8 3/8 3/4 1 1/8 – 1/2 ULI80-2N UULI80-2N 500 MCM 800 MCM 2 1 3/4 3 9/16 5 1/4 6 3/4 3 3/8 3/8 5/8 1 3/4 – 1/2 ULI80-4 UULI80-4 500 MCM 800 MCM 3 2 1/4 2 1/4 7/16 4 1/2 4 1/2 3 3/8 3/8 9/16 1 1/8 1 1/8 1/2 ULI80-4N UULI80-4N 500 MCM 800 MCM 3 3 3 9/16 5 1/4 6 3/4 3 3/8 3/8 5/8 1 3/4 1 3/4 1/2 ULI100-1 UULI100-1 750 MCM 1000 MCM 1 2 1/2 2 1/2 9/16 4 7/8 4 7/8 3 1/2 1/2 1 1/4 – – 1/2 ULI100-2 UULI100-2 750 MCM 1000 MCM 2 2 3 1/8 9/16 5 1/2 5 1/2 3 1/2 1/2 3/4 1 5/8 – 1/2 ULI100-2N UULI100-2N 750 MCM 1000 MCM 2 2 3 9/16 5 3/8 5 3/8 3 1/2 1/2 5/8 1 3/4 – 1/2 ULI100-4 UULI100-4 750 MCM 1000 MCM 3 2 3/8 2 3/8 7/16 4 3/4 4 3/4 3 1/2 1/2 9/16 1 1/4 1 1/4 1/2 ULI100-4N UULI100-4N 750 MCM 1000 MCM 3 3 3 9/16 5 3/8 5 3/8 3 1/2 1/2 5/8 1 3/4 1 3/4 1/2 ULI150-1 UULI150-1 1000 MCM 1500 MCM 1 2 3/4 2 3/4 9/16 5 1/2 5 1/2 3 3/4 9/16 1 3/8 – – 1/2 ULI150-2 UULI150-2 1000 MCM 1500 MCM 2 2 3 1/8 9/16 5 3/4 5 3/4 3 3/4 9/16 3/4 1 5/8 – 1/2 ULI150-2N UULI150-2N 1000 MCM 1500 MCM 2 2 3 9/16 5 5/8 5 5/8 3 3/4 9/16 5/8 1 3/4 – 1/2 ULI150-4 UULI150-4 1000 MCM 1500 MCM 3 2 3/4 2 3/4 9/16 5 3/8 5 3/8 3 3/4 9/16 11/16 1 1/2 1 1/2 1/2 ULI150-4N UULI150-4N 1000 MCM 1500 MCM 3 3 3 9/16 5 5/8 5 5/8 3 3/4 9/16 5/8 1 3/4 1 3/4 1/2 ULI200-1 UULI200-1 1500 MCM 2000 MCM 1 2 3/4 2 3/4 9/16 5 7/8 5 7/8 4 1/8 9/16 1 3/8 – – 1/2 ULI200-2 UULI200-2 1500 MCM 2000 MCM 2 2 1/8 3 1/4 9/16 6 1/8 6 1/8 4 1/8 9/16 11/16 1 5/8 – 1/2 ULI200-2N UULI200-2N 1500 MCM 2000 MCM 2 2 3/4 3 9/16 5 7/8 5 7/8 4 1/8 9/16 5/8 1 3/4 – 1/2 ULI200-4 UULI200-4 1500 MCM 2000 MCM 3 3 1/8 3 1/8 9/16 6 6 4 1/8 9/16 3/4 1 3/4 1 3/4 1/2 ULI200-4N UULI200-4N 1500 MCM 2000 MCM 3 3 3 9/16 5 7/8 5 7/8 4 1/8 9/16 5/8 1 3/4 1 3/4 1/2 L* = Length for UULI items
23 Bronze Terminals, Taps © 2011, AFL, all rights reserved. PP-3-00501, Revision 2, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 Bronze Terminals, Taps
Características:
- Aleación de bronce
- Herrajes Everdur
- Cumple las normas de NEMA CC1
Aplicaciones:
- Calificada para 230 kV
- Subestación
- Cable de cobre
El terminal de tipo variable presenta la ventaja de que un solo conector se adapta a varios tamaños de cable. Esto minimiza en gran medida el problema de almacenar varios tamaños de conectores y los errores que se producen al especificar los conectores para tamaños de cable específicos.
