1 FIBER OPTIC CABLE Premise Cable © 2013, AFL, all rights reserved. PP-1-00095, Revision 8, 3.7.2024 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued A aramid yarn colored fiber outer jacket 8/12 fiber sub-unit 2.0 mm 16, 24, 36 and 48 fiber sub-unit outer jacket 48/72 fiber center member flexible outer jacket sub-unit ripcord 72/96 fiber center member flexible outer jacket sub-unit ripcord 96/144-9 fiber center member flexible outer jacket sub-unit ripcord ripcord Sub-unitized Premise MicroCore ® 2.0 AFL Sub-unitized MicroCore 2.0 cables continue to push evolution of high performance premise cabling. Now available in Base-8 cable configurations up to 144 fibers, and Base-12 configurations up to 216 fibers. MicroCore 2.0 can support all of your high-density network needs, offering the highest density 2.0 mm fiber cables available. Constructed of the highest quality materials to exacting industry standards, these small-diameter cables provide the solution sought out by today’s structured cabling professionals. Each sub- cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This enables a flexibility of design and deployment not available in comparable high- density designs. Designed for direct termination and supportive of both single-fiber and multifiber architectures, this cable family should serves as the backbone to any deployed system. Cables are constructed with AFL MicroCore technology consistent with a long line of market leading designs. Applications • Headend termination to a fiber "backbone" • Termination of fiber rack systems • Multifloor deployment where select fibers are used at each floor • Intra-building "backbones" • MTP/MPO or MTP to break-out terminations Features • 8-fiber sub-units with 16-144 fibers • 12-fiber sub-units with 24-216 fibers • Plenum flame-rated jacket • All aramid tensile strength members within sub-units Cable Components Current 3.0 Sub-unitized Cable in Tray 120 x 72ct cables in standard 4"X 12" tray Next Generation Sub-unitized MicroCore 2.0 Cable in Tray 250 x 72ct cables in standard 4"X 12" tray Current 3.0 Sub-unitized Cable in Tray 120 x 72ct cables in standard 4"X 12" tray Next Generation Sub-unitized MicroCore 2.0 Cable in Tray 250 x 72ct cables in standard 4"X 12" tray 30% Reduction in 72ct Cable Diameter Yields 100% Increase in Pathway Capacity 27% Reduction in 72ct Cable Diameter Yields Over 100% Increase in Pathway Capacity aramid yarn colored fiber outer jacket 8/12 fiber sub-unit 2.0 mm 16, 24, 36 and 48 fiber sub-unit outer jacket 48/72 fiber center member flexible outer jacket sub-unit ripcord 72/96 fiber center member flexible outer jacket sub-unit ripcord 96/144-9 fiber center member flexible outer jacket sub-unit ripcord ripcord aramid yarn colored fiber outer jacket 8/12 fiber sub-unit 2.0 mm 16, 24, 36 and 48 fiber sub-unit outer jacket 48/72 fiber center member flexible outer jacket sub-unit ripcord 72/96 fiber center member flexible outer jacket sub-unit ripcord 96/144-9 fiber center me flexible outer jacket sub-unit ripcord ripcord aramid yarn colored fiber outer jacket er sub-unit 0 mm 16, 24, 36 and 48 fiber sub-unit outer jacket 72/96 fiber center member flexible outer jacket sub-unit ripcord 96/144-9 fiber center member flexible outer jacket sub-unit ripcord ripcord aramid yarn colored fiber outer jacket 8/12 fiber sub-unit 2.0 mm 16, 24, 36 and 48 fiber sub-unit outer jacket center member flexible outer jacket sub-unit ripcord 72/96 fiber center member flexible outer jacket sub-unit ripcord 96/144-9 fiber center member flexible outer jacket sub-unit ripcord ripcord
© 2013, AFL, all rights reserved. PP-1-00095, Revision 8, 3.7.2024 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Premise Cable Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT GOVERNING BODY STANDARD CODE COMPONENT NFPA 262 (ONFP) Outer Jaket ICEA S-104-696 Sub-units Telcordia GR-409-CORE Sub-units RoHS 2002/95/EC Cable EIA/TIA 568 Sub-units IEC Sub-unitized Premise MicroCore ® 2.0 Mechanical Data TYPE AFL NO. FIBER COUNT NO.OF SUBS NO.OF FILLERS NOMINAL DIAMETER inches (mm) WEIGHT lbs/1000 ft (kg/km) TENSION lbs (N) BENDING RADIUS inches (cm) PLENUM INSTALLATION LONG TERM INSTALLATION LONG TERM 8-FIBER SUBUNITS GQ016 201##B:848 16 4 2 0.27 (7.0) 32 (47) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) GQ032 201##B:848 32 4 0 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) GQ048 201##B:868 48 6 0 0.32 (8.2) 42 (63) 150 (660) 45 (198) 4.8 (12.3) 3.2 (8.2) GQ064 201##B:888 64 8 0 0.33 (8.5) 35 (52) 150 (660) 45 (198) 5.0 (12.8) 3.3 (8.5) GQ072 201##B:898 72 9 0 0.40 (10.3) 81 (120) 150 (660) 45 (198) 6.0 (15.5) 4.0 (10.3) GQ096 201##B:8C8 96 12 0 0.41 (10.3) 66 (98) 150 (660) 45 (198) 6.1 (15.4) 4.1 (10.3) GQ144 201##B:8I8 144 18 0 0.50 (12.9) 104 (155) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) 12-FIBER SUBUNITS GQ024 201##B:C4C 24 4 2 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) GQ036 201##B:C4C 36 4 1 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) GQ048 201##B:C4C 48 4 0 0.27 (7.0) 33 (49) 150 (660) 45 (198) 4.1 (10.5) 2.7 (7.0) GQ072 201##B:C6C 72 6 0 0.32 (8.2) 44 (66) 150 (660) 45 (198) 4.8 (12.3) 3.2 (8.2) GQ096 201##B:C8C 96 8 0 0.43 (10.9) 87 (130) 150 (660) 45 (198) 6.4 (16.4) 4.3 (10.9) GQ144 201##B:CCC 144 12 0 0.40 (10.3) 67 (100) 150 (660) 45 (198) 6.0 (15.5) 4.0 (10.3) GQ168 201##B:CIC 168 18 4 0.50 (12.9) 108 (160) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) GQ192 201##B:CIC 192 18 2 0.50 (12.9) 108 (160) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) GQ216 201##B:CIC 216 18 0 0.50 (12.9) 108 (160) 150 (660) 45 (198) 7.5 (19.4) 5.0 (12.9) Fiber Types – Replace asterisk ( ) in AFL number with number in the Fiber Specifications table below. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Temperature Specifications TEMPERATURE RANGE INSTALLATION 0°C to +60°C (32°F to +140°F) OPERATION 0°C to +70°C (32°F to +158°F) STORAGE -40°C to +70°C (-40°F to +158°F) Cable Jacket Color Options 1 - Blue 6 - White B - Rose 2 - Orange 7 - Red C - Aqua 3 - Green 8 - Black K - Erika Violet (RAL 4003) 4 - Brown 9 - Yellow 5 - Slate A - Violet Fiber Specifications CORE SIZE/FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION (dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) EMB c (MHz•km) GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000
Características:
- Subunidades de 8 fibras con 16-144 fibras
- Subunidades de 12 fibras con 24-216 fibras
- Revestimiento ignífugo del plénum
- Todos los elementos de resistencia a la tracción de aramida dentro de las subunidades
- LSZH,PLENUM, RISER
- GE,GQ,GR
Aplicaciones:
- Terminación de la cabecera a una "red troncal" de fibra
- Terminación de sistemas de bastidores de fibra
- Despliegue de varias plantas en las que se utilizan fibras seleccionadas en cada una de ellas
- Redes troncales dentro de los edificios
- Terminaciones MTP/MPO o MTP a break-out

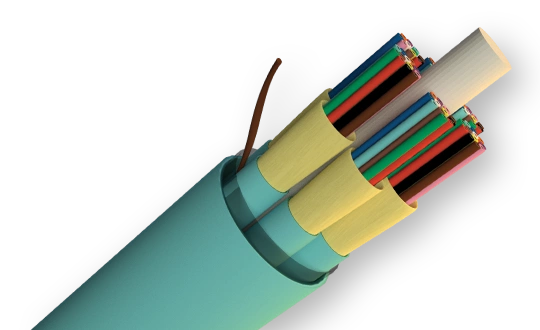

Los cables MicroCore 2.0 subunitizados de AFL siguen impulsando la evolución del cableado de alto rendimiento para instalaciones. Ahora disponible en configuraciones de cable Base-8 de hasta 144 fibras, y configuraciones Base-12 de hasta 216 fibras. MicroCore 2.0 puede admitir todas sus necesidades de red alta densidad, ofreciendo los cables de fibra de 2 mm con la densidad más alta disponibles en el mercado.
Fabricados con materiales de la más alta calidad según los estándares industriales más exigentes, estos cables de pequeño diámetro proporcionan la solución que buscan los profesionales del cableado estructurado de hoy en día’. Cada subcable está calificado de forma independiente y es adecuado para las rutas individuales dentro de la arquitectura del rack/panel. Esto permite una flexibilidad de diseño y despliegue que no está disponible en diseños comparables de alta densidad. Diseñada para la terminación directa y compatible con las arquitecturas de fibra única y multifibra, esta familia de cables debería servir como columna vertebral de cualquier sistema desplegado. Los cables están fabricados con tecnología MicroCore de AFL, compatible con una amplia gama de diseños líderes en el mercado.
