La tercera generación del cable MicroCore Sub-Unitized Premise de AFL con tecnología SWR es otra asombrosa evolución del cableado local de alto rendimiento.
c154802f01ef4a4bac5d674b31340fc8
1 FIBER OPTIC CABLE Fiber Optic Cable © 2017, AFL, all rights reserved. PP-1-00141, Revision 21, 5.25.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Applications • In-building cable runs where space is a premium • Trunk applications where flexibility and small bend radii are required to route cable • High-density cable areas like data centers and central offices • Lower cost cable runs where easy handling of tight buffered fibers not needed because cable will be spliced to factory terminated pigtails Features • SpiderWeb Ribbon technology allows for a highly efficient ribbonizing application or for individual fiber break-outs • Each sub-unit can stand alone as a rated cable • 12-fiber sub-units with 12-144 fiber counts • 24-fiber sub-units with 24-288 fiber counts • High fiber density—more channels in less space • No preferential bend direction typically found in stacked ribbon design • Small diameter/superior bend performance • LSZH or Plenum flame-rated jacket • All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within core for use with MT termination Sub-unitized Premise MicroCore ® 3.0 with SpiderWeb Ribbon ® (SWR ® ) Technology Cable Components A Central strength member 3 mm, 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 12 fiber or 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket 144 and 288 Fiber 72 and 144 Fiber 24, 48, 72 and 96 Fiber Central strength member 3 mm, 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 12 fiber or 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 12 fiber or 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket Central strength member 3 mm, 24 fiber sub-unit Aramid strength members LSZH or Plenum outer jacket The third generation of AFL's Sub-Unitized Premise MicroCore Cable with SWR Technology is another astounding evolution of high performance premise cabling. Enabling even greater pathway density than our 2.0 version, the 3.0 revolutionizes cable deployment and allows the end user to realize savings in space, routing infrastructures and fiber management. Combining the highest quality materials with rigorous testing to industry standards, this generation builds on the same quality of construction as the previous versions of our Sub-Unitized Premise MicroCore cables. Additionally, this version features stand-alone sub cables. Each sub cable is independently qualified and is suitable for individual routing paths within the rack/panel architecture. This flexibility of design and deployment is not available in comparable high-density designs. Designed for direct termination and supportive of both single-fiber and multi-fiber architectures, this cable family is capable of serving as the backbone in any deployed system. SpiderWeb Ribbon is a bonded fiber design allowing for either a highly efficient ribbonizing application or for individual fiber break-outs. This flexibility allows for the application of a single cable design to cover a diverse set of applications. High density round designs allow for the most efficient use of space and materials, resulting in a cost-effective solution. SpiderWeb Ribbon Technology
© 2017, AFL, all rights reserved. PP-1-00141, Revision 21, 5.25.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Temperature Specifications TEMPERATURE RANGE LSZH/PLENUM INSTALLATION 0°C to +60°C OPERATION 0°C to +70°C STORAGE -40°C to +70°C Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT NFPA 262 (ONFP) / FT6 Plenum Jacket IEC 60332, 60754, 61034 LSZH/OFNR-LS Jacket Telcordia GR-409-CORE Jacket EIA/TIA 568 Jacket ICEA Jacket RoHS REACH Jacket Sub-unitized Premise MicroCore ® 3.0 with SpiderWeb Ribbon ® Technology SWR Fiber Specifications CORE SIZE/FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION (dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) EMB c (MHz•km) GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (P) AFL Bend-Insensitive Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 Mechanical Data NO. OF SUBS NO. OF FILLERS NOMINAL DIAMETER inches (mm) WEIGHT lbs/1000 ft (kg/km) TENSION lbs (N) BENDING RADIUS inches (cm) INSTALLATION LONG TERM INSTALLATION LONG TERM 1 3 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 2 2 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 3 1 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 4 0 0.40 (10.2) 60 (90) 150 (670) 45 (200) 6.0 (15.3) 4.0 (10.2) 5 1 0.47 (11.9) 107 (160) 150 (670) 45 (200) 7.1 (17.9) 4.7 (11.9) 6 0 0.47 (11.9) 107 (160) 150 (670) 45 (200) 7.1 (17.9) 4.7 (11.9) 7 2 0.56 (14.3) 171 (255) 150 (670) 45 (200) 8.4 (21.5) 5.6 (14.3) 8 1 0.56 (14.3) 171 (255) 150 (670) 45 (200) 8.4 (21.5) 5.6 (14.3) 9 0 0.56 (14.3) 171 (255) 150 (670) 45 (200) 8.4 (21.5) 5.6 (14.3) 10 2 0.62 (15.7) 218 (325) 150 (670) 45 (200) 9.3 (23.6) 6.2 (15.7) 11 1 0.62 (15.7) 218 (325) 150 (670) 45 (200) 9.3 (23.6) 6.2 (15.7) 12 0 0.62 (15.7) 218 (325) 150 (670) 45 (200) 9.3 (23.6) 6.2 (15.7) Cable Jacket Color Options 1 - Blue 8 - Black 2 - Orange 9 - Yellow (SM) 3 - Green A- Violet 4 - Brown B - Rose 5 - Slate C - Aqua (OM3 and OM4) 6 - White K - Erika Violet (OM4) 7 - Red L - Lime continued
3 FIBER OPTIC CABLE Fiber Optic Cable © 2017, AFL, all rights reserved. PP-1-00141, Revision 21, 5.25.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Sub-unitized Premise MicroCore ® 3.0 with SpiderWeb Ribbon ® Technology Ordering Information CABLE TYPE FIBER COUNT NO. OF SUBS NO. OF FILLERS AFL NO. SINGLE-MODE PLENUM LSZH 12 Fiber Subunit 12 1 3 GQ012P301##R:C4C GE012P301##R:C4C 24 2 2 GQ024P301##R:C4C GE024P301##R:C4C 36 3 1 GQ036P301##R:C4C GE036P301##R:C4C 48 4 0 GQ048P301##R:C4C GE048P301##R:C4C 60 5 1 GQ060P301##R:C6C GE060P301##R:C6C 72 6 0 GQ072P301##R:C6C GE072P301##R:C6C 84 7 1 GQ084P301##R:C8C GE084P301##R:C8C 96 8 0 GQ096P301##R:C8C GE096P301##R:C8C 120 10 2 GQ120P301##R:CCC GE120P301##R:CCC 132 11 1 GQ132P301##R:CCC GE132P301##R:CCC 144 12 0 GQ144P301##R:CCC GE144P301##R:CCC 24 Fiber Subunit 24 1 3 GQ024P301##R:O4C GE024P301##R:O4C 48 2 2 GQ048P301##R:O4C GE048P301##R:O4C 72 3 1 GQ072P301##R:O4C GE072P301##R:O4C 96 4 0 GQ096P301##R:O4C GE096P301##R:O4C 120 5 1 GQ120P301##R:O6C GE120P301##R:O6C 144 6 0 GQ144P301##R:O6C GE144P301##R:O6C 168 7 2 GQ168P301##R:O9C GE168P301##R:O9C 192 8 1 GQ192P301##R:O9C GE192P301##R:O9C 216 9 0 GQ216P301##R:O9C GE216P301##R:O9C 240 10 2 GQ240P301##R:OCC GE240P301##R:OCC 264 11 1 GQ264P301##R:OCC GE264P301##R:OCC 288 12 0 GQ288P301##R:OCC GE288P301##R:OCC Notes: • Replace first # with number corresponding to desired jacket color from Cable Jacket Color Options table on previous page. • Replace second # with number corresponding to desired subunit color from Cable Jacket Color Options table on previous page.
Características:
- La tecnología SpiderWeb Ribbon permite una aplicación de ribbonización altamente eficiente o para la ruptura de fibras individuales
- Cada subunidad puede ser independiente como un cable nominal
- Subunidades de 12 fibras con 126-144 fibras
- Subunidades de 24 fibras con 24-288 fibras
- Alta densidad de fibras—
más canales en menos espacio - No hay dirección de curvatura preferente, como suele ocurrir en los diseños de cintas apiladas
- Diámetro pequeño/rendimiento de curvatura superior
- Cubierta ignífuga LSZH o Plenum
- Todos los miembros de resistencia a la tracción de aramida alrededor del cable del núcleo para facilitar la fijación del ojo de tiro; aramida dentro del núcleo para su uso con la terminación MT
Aplicaciones:
- Tendidos de cable dentro de edificios donde el espacio es escaso
- Aplicaciones troncales en las que se requiere flexibilidad y pequeños radios de curvatura para el tendido del cable
- Zonas de alta densidad de cables, como centros de datos y oficinas centrales

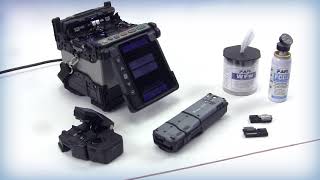

- Tendidos de cable de bajo coste en los que no se necesita una manipulación sencilla de las fibras ajustadas, ya que el cable se empalmará con los latiguillos terminados en fábrica.

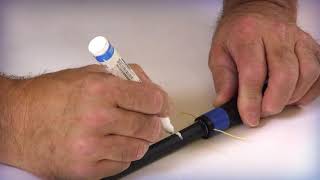

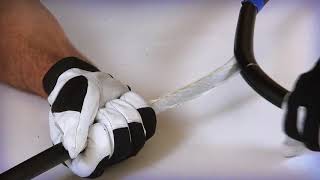

La tercera generación del cable MicroCore Sub-Unitized Premise de AFL'con tecnología SWR® es otra asombrosa evolución del cableado local de alto rendimiento. Al permitir una densidad de vías aún mayor que nuestra versión 2.0, la 3.0 revoluciona el despliegue de cables y permite al usuario final ahorrar en espacio, infraestructuras de enrutamiento y gestión de la fibra. Combinando materiales de la más alta calidad con pruebas rigurosas según los estándares de la industria, esta generación se basa en la misma calidad de construcción que las versiones anteriores de nuestros cables MicroCore de Premisa Sub-Unitizada.
Además, esta versión cuenta con cables de subwoofer independientes. Cada cable secundario está calificado de forma independiente y es adecuado para rutas individuales dentro de la arquitectura del rack/panel. Esta flexibilidad de diseño y despliegue no está disponible en diseños comparables de alta densidad. Diseñada para la terminación directa y compatible con arquitecturas de fibra única y multifibra, esta familia de cables es capaz de servir como columna vertebral en cualquier sistema desplegado.
La cinta SpiderWeb es un diseño de fibra unida que permite una aplicación de ribbonización altamente eficiente o para la ruptura de fibras individuales. Esta flexibilidad permite aplicar un único diseño de cable para cubrir un conjunto diverso de aplicaciones. Los diseños redondos de alta densidad permiten el uso más eficiente del espacio y los materiales, lo que resulta en una solución rentable.
