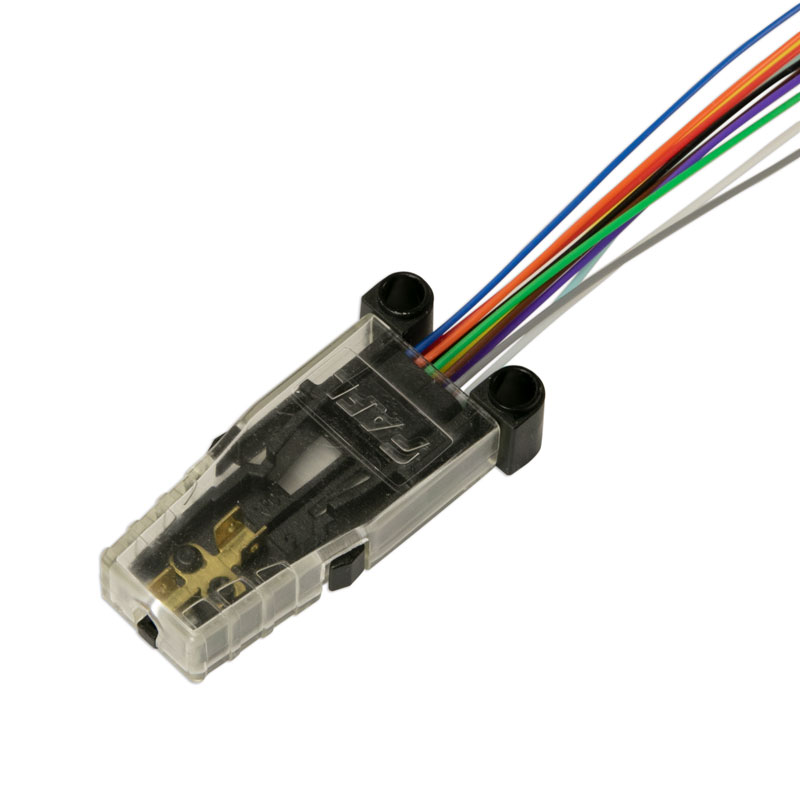

Los kits Fanout dirigen las fibras de 250 µm a tubos de almacenamiento intermedio de 900 µm, listos para su terminación.
4f4b003fac1847358480e9d767a86c71
© 2024, AFL, all rights reserved. PP-2-00399, Revision 0, 1.18.2024 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 16 Optical Connectivity Connectivity Accessories continued Fanout Kits Fanout kits route 250 μm fibers into 900 μm buffer tubes ready for termination. These kits require no special tools and accommodate input cables from 2.0-3.8 mm in diameter. Fanout kits feature a clear, removable cover which is VFL-compatible and does not require epoxy. Color-coded 900 μm buffer tubes allow for easy identification of individual fiber channels. Features • Accepts 2.0-3.8 mm input cable • Epoxy-free installation • Clear, removable cover works with Visual Fault Locators (VFL) • Protects sensitive 250 μm fibers • Compatible with FUSEConnect ® and FASTConnect ® field-installable connectors Applications • Routing 250 μm fibers into 900 μm buffer tubes for termination Temperature Specifications TEMPERATURE RANGE Operation -0°C to 70°C Specifications PARAMETER VALUE Fiber Count 12 Environment Indoor Input Cable Size 2.0 - 3.8 mm Length 1 meter or 3 meter Ordering Information DESCRIPTION AFL NO. Fanout kit, 1 position base, 900 μm, 12 tubes, A, 1M FAN1-9-012-A-01 Fanout kit, 1 position base, 900 μm, 12 tubes, A, 3M FAN1-9-012-A-03
© 2024, AFL, all rights reserved. PP-2-00399, Revision 0, 1.18.2024 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 17 Optical Connectivity Connectivity Accessories continued Loose Tube Fanout Kits Loose Tube Fanout kits route 250 μm fiber into 900 μm tubes ready for connectorization. Easily installed in minutes, these kits require no special tools. Color-coded tubing allows easy identification. The furcation unit snaps together, eliminating epoxy. Loose tube fanout kits are available in 6 and 12 fiber configurations. Ordering Information CABLE TYPE FIBER COUNT LENGTH AFL NO. Loose Tube Fanout Kit (for 3.0 mm tube) 6 Fibers 24 inches C189826 Loose Tube Fanout Kit (for 3.0 mm tube) 12 Fibers 24 inches C189818 Ribbon-Link ® Fanout Kit 6 Fibers 36 inches C189842 Ribbon-Link Fanout Kit 12 Fibers 36 inches C189834 Uni-Tube Fanout Kit 6 Fibers 36 inches C193114 Uni-Tube Fanout Kit 12 Fibers 36 inches C193122
© 2024, AFL, all rights reserved. PP-2-00399, Revision 0, 1.18.2024 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 18 Optical Connectivity Connectivity Accessories Router Kits AFL router kits are designed to provide a method of safely routing fibers from a loose bundle into smaller fiber counts per tube. The individual tubes can then be terminated using a module (such as the Poli-MOD ® Patch and Splice Module), FUSEConnect ® MPO, or a fanout kit to be further furcated into individual 900 μm tubes. Easily installed in minutes, these kits require no special tools. Color-coded tubing allows for easy identification. Router tube kits are available in 1x6 and 1x8 configurations. Ordering Information ROUTER KIT CONFIGURATION INDIVIDUAL TUBE LENGTH AFL NO. 1x6 4 ft FC000070 1x8 4 ft FC000008 1x8 Fiber Router Kit (FC000008) 1x6 Fiber Router Kit (FC000070)
Características:
- Acepta cable de entrada de 2,0-3,8 mm
- Instalación sin epoxi
- La cubierta transparente y extraíble funciona con los localizadores visuales de fallos (VFL)
- Protege las fibras sensibles de 250 μ
m - Compatible con los conectores instalables en campo FUSEConnect®
y FASTConnect®
