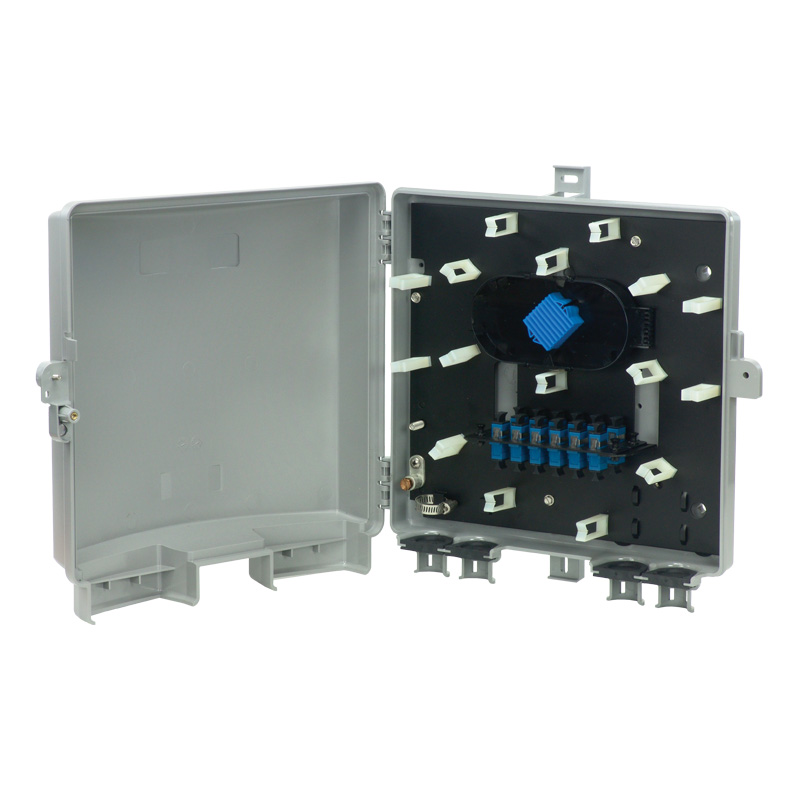

El OptiNID® OPN-760XL es un cierre de demarcación óptica diseñado para su uso en entornos interiores o exteriores.
95f12aefb36d46b08f12bbce20b2d75c
© 2005, AFL, all rights reserved. PP-2-00161, Revision 6, 6.2.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity LGX is a registered trademark of Furukawa Electric North America, Inc. Ordering Information DESCRIPTION AFL NO. BASE PRODUCT 1,2 OptiNID OPN-760XL, No Adapters, No Security Cover DM001000 OptiNID OPN-760XL, No Adapters, Security Cover DM001022 ACCESSORIES 3 3/4" Pipe Fitting Transition Kit (includes 2) DM001174 OPN-760XL Security Cover Kit DM000923 OPN-760XL Pole Mounting Kit DM000927 Notes: 1. All standard OPN-760XL configurations come equipped with four slip-in rubber grommets and a splice tray equipped for 32 single fusion splices. 2. Contact AFL customer service for additional configurations. 3. See OptiNID Accessory Page for additional kits. OptiNID ® 760XL Optical Demarcation Closure The OptiNID (OPN) 760XL is an optical demarcation closure designed for use in either indoor or outdoor environments. It is capable of housing up to 24 bulkhead adapters in two 118 LGX ® compatible adapter plates and is equipped with a splice tray (LL-2425), which holds up to 32 single fusion splices. The OPN-760XL can be either wall or pole-mounted. Specifications PARAMETER VALUES Dielectric Strength Minimum 2500 Vrms for 1 minute High Temperature Storage/Mold Stress 14 days at 159°F (70.55 °C) Temperature Cycling with Humidity 150 day cycling from 40-140°F (4.44-60°C) with 95% RH Impact Test -40°F (-40°C), 5*/lbs on all external surfaces Drop Test -40°F (-40°C), 5* (12.7 cm) onto concrete surface 4 times Rain 24 hours at 10 psi UV Resistance (Days Exposed) 60 per ASTM-G26-84 Salt Fog (Days Exposed) 60 per ASTM-BLL7-90 Flammability UL94-5V Chemical Resistance 30 Days at 100 °F and 95% RH Subject to: Resists chipping and/or cracking when subject to: house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide Material UL ® listed flame retardant thermoplastic alloy Dimensions (H x W x D) in. (cm) 13 x 13 x 3.75 (32.5 x 32.5 x 9.5) Cable Entrances in. (cm) diameter—Input 4 x 0.875 (2.2)—3/4" conduit Covers Standard – molded-in snap finger and 3/8" hex head fastener Features • Capacity for up to two 118 LGX compatible adapter plates • Rugged weather-resistant thermoplastic alloy • Self-latching, hinged cover design allows easy access without loose parts • Slip-in grommets allow pre-connectorized cable deployment • Provider override is provided so that technician can override customer lock • Security cover option available OPN-760XL with optional security cover kit OPN-760XL with 3/4" Pipe Fitting Transition Kit 3/4" Pipe Fitting Transition Kit
Características:
- Capacidad para hasta dos placas adaptadoras compatibles con 118 LGX
- Aleación termoplástica resistente a la intemperie
- El diseño de la cubierta con bisagras y cierre automático permite un fácil acceso sin piezas sueltas
- Los puertos de entrada individuales autosellantes evitan la entrada de agua e insectos
- Se proporciona la anulación del proveedor para que el técnico pueda anular la cerradura del cliente
- Ubicación disponible en la cubierta frontal para logotipos personalizados
- Opción de cubierta de seguridad disponible
