1 AFLglobal.com 1 (800) 235-3423 © 2021, AFL, all rights reserved. PP-2-00358, Revision 2, 2.24.2026 Speciμcations are subject to change without notice. Optical Connectivity 1 AFL's Pre-terminated Drop Cable Assemblies are engineered to meet the rigorous performance standards required for today’s FTTH (Fiber to the Home) applications. These assemblies help reduce costs by eliminating labor-intensive field terminations while delivering the same factory-terminated reliability trusted by the industry for years. In addition, AFL Compact Drop Cable assemblies provide a compact, technician- friendly solution tailored for modern FTTx networks. Featuring reduced-diameter flat drop cables, these assemblies are available with dielectric and toneable options and an innovative design which allows quick and easy access to the fiber to reduce prep and installation time. Each cable includes tight-buffered fibers to simplify field-installable connections and can be offered with factory-terminated ends on one or both sides. Pre-terminated Drop Cable Assemblies Features • Factory Terminations on: - 250 μm outdoor or 900 μm indoor/outdoor flat drop cable - 250 μm armored drop - 900 μm pushable/air-jettable MicroDrop - 900 μm tight buffered fiber in dielectric and toneable options - BABA compliant cable options • Flat drop is aerial self-support capable • Smaller diameter • Easier access to fiber for terminations Applications • FTTx and Service Provider drop cables to the end customers • Toneable cables designed for direct burial Cable Components Standard Dielectric Flat Drop Reduced Diameter Dielectric Flat drop cable UV Resistant Jacket Water Blocking Dielectric Strength Member Water Blocking Dielectric Strength Member Water Blocking Thread Optical Fiber Gel-Filled Loose Buffer Tube Toneable Indoor/Outdoor UV Resistant Jacket Water Blocking Dielectric Strength Member Water Blocking Dielectric Strength Member Toneable Copper Element Water Blocking Thread 900 μm Tight Buffered Optical Fiber OFNR Jacket Aramid Yarns Armored Drop UV Resistant Jacket Corrugated Steel Armor Rip Cords Dielectric Water Blocking Strength Members Optical Fiber PFM ™ Gel-Filled Tube MicroDrop Tight Buffer Tube Outer Sheath Water Blocking Aramid Yarns Optical Fiber Strength Member Polyethylene Outer Jacket Tight Buffer with Optical Fiber Aramid Yarns Reduced Diameter Toneable Flat drop cable Toneable Copper Element FastAccess Technology Jacket Optical Fiber Aramid Yarns BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
2 AFLglobal.com 1 (800) 235-3423 © 2021, AFL, all rights reserved. PP-2-00358, Revision 2, 2.24.2026 Speciμcations are subject to change without notice. Optical Connectivity 2 Pre-terminated Drop Cable Assemblies Cable Specifications Max Span Length at 1% Sag Standard Dielectric Flat Drop and Standard Toneable Flat Drop Cables NESC Light 550 ft (168 m) NESC Medium 275 ft (84 m) NESC Heavy 150 ft (46 m) Mechanical Specifications Reduced Diameter Flat Drop Cables Max. Tensile Strength Long-Term 400 N (89.92 lbf) (300 lbf Max Installation) Min. Bend Radius Operation 63 mm (2.48 in) Nominal Outer Diameter 5.4 mm x 3 mm (0.21 in x 0.12 in) Cable Weight 15.2 kg/km (10.21 lb/1000 ft) Optical Characteristics Reduced Diameter Flat Drop Cables Maximum Attenuation 0.35 dB/km / 0.35 dB/km / 0.25 dB/km Ordering Information Inside End Connector XXX = No connector ASC = Angled SC USC = Ultra SC UDL = SM LC Duplex XXX Fiber Type Q = Corning SMF (OS2) ITU-T G.652.D Z = Single-mode ITU-T G.657.A2 BIF (for I/O flat drop) Q Cable Length *4 digits Example: 0100F for 100 feet 0100 DD Cable Type MDD = Reduced Diameter Dielectric Flat drop MTD = Reduced Diameter Toneable Flat Drop DD = Dielectric Flat Drop TD = Toneable Flat Drop KTD = Toneable Indoor/Outdoor Flat Drop KDD = Dielectric Indoor/Outdoor Flat Drop AN = Armored Drop PD = Pushable Micro Drop Outside End Connector * NOT all fiber types and fiber counts are available with each cable type. Contact your AFL Sales Team for further information. Cable Length Cable Type, Fiber Count and Fiber Type Inside End Connector 001 Fiber Count 001 002 004 UOM F = Feet M = Meter F P Leave Blank if Pulling Eye not needed P ASC Outside End Connector XXX = No connector ASC = Angled SC USC = Ultra SC ULC = Ultra LC Qualifications Governing Body Standard Code Component Telcordia GR-326 Connectors and Cable EIA/TIA 455-3 SC Connectors ITU-T G.652.D Fiber Cable Temperature Specifications Temperature Range Installation -30°C to 70°C (-22°F to 158°F) Operation -40°C to 70°C (-40°F to 158°F ) Storage -40°C to 70°C (-40°F to 158°F ) BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
Características:
- Recuento de fibras de 6 a 144 fibras (hasta 432 para Loose Tube)
- Disponible con conectores ST, SC, FC y LC monomodo
- Conjuntos pigtail, configuración estándar (configuraciones no estándar disponibles)
- Conectores ST, SC, FC y LC disponibles en monomodo y multimodo
- Kits de ojetes preinstalados disponibles
- Longitud de ruptura estándar de 1 metro
- Surco estándar de 2,4 mm para SC, FC y ST; surco estándar de 1,6 mm para LC
- Cubierta exterior resistente a los rayos UV
- Cableado S-Z para facilitar el acceso a la mitad del tramo
- Tubos holgados rellenos de gel (RL) Tubos holgados rellenos de gel (LT)
Aplicaciones:
- Armarios de exterior
- Recorridos exteriores del edificio
- Bóvedas
- CEVs
- Aplicaciones en conductos y trincados

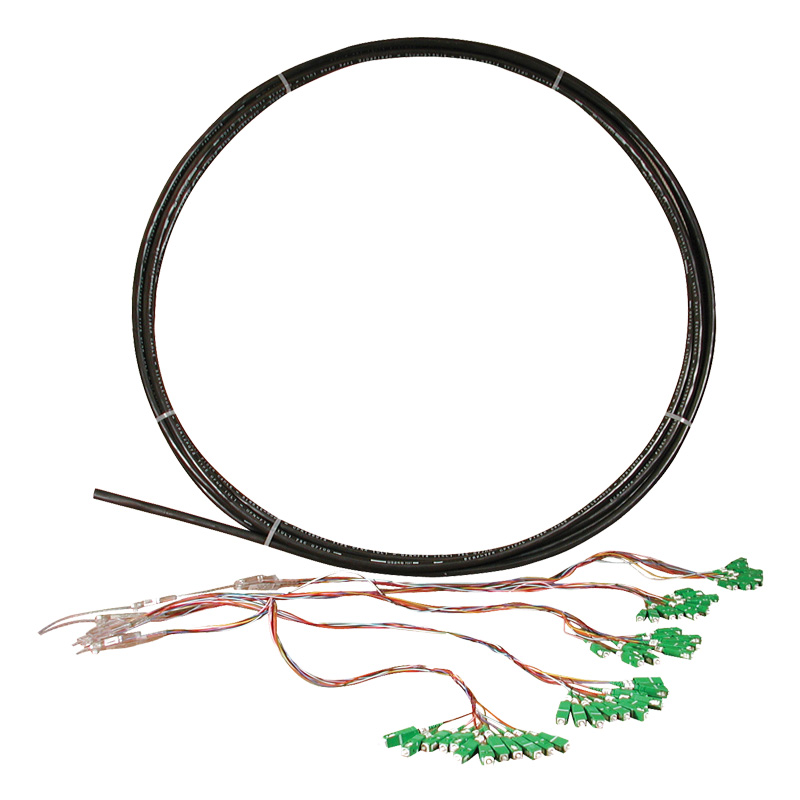

Los conjuntos de cables de tubo holgado de alto número de fibras y de tubo holgado para interior/exterior proporcionan un método seguro y probado de utilizar la tecnología de conectores preterminados para aplicaciones de planta exterior. Estos conjuntos ayudan a controlar los costes al eliminar la terminación en campo, que requiere mucha mano de obra, y proporcionan la misma fiabilidad de terminación en fábrica en la que la industria ha confiado durante muchos años. Los conjuntos de cables están disponibles en tubo suelto para interior/exterior, adecuado para su uso en aplicaciones de interior y exterior. Cada unidad se fabrica para superar todos los requisitos de la TIA y Telecordia.
