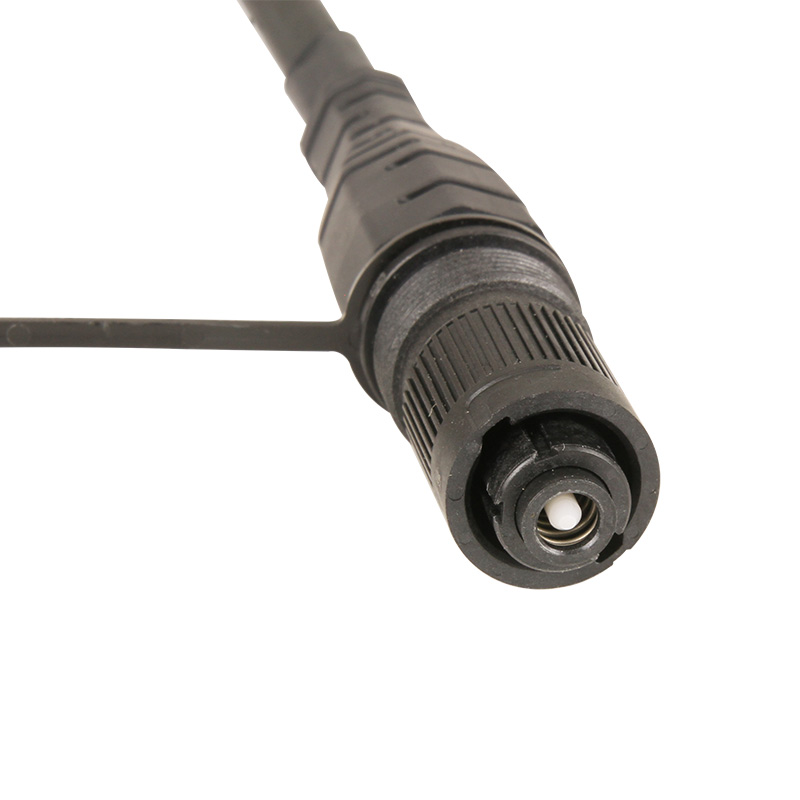

El conector AFL TRIDENT® proporciona conexiones rápidas y sencillas a los terminales multipuertos AFL TITAN RTD®, lo que permite una rápida conexión de los abonados al servicio.
beb20175ed324b528c7d50028b4375bc
1 AFLglobal.com 1 (800) 235-3423 © 2016, AFL, all rights reserved. PP-2-00241, Revision 12, 2.25.2026 Speciμcations are subject to change without notice. Optical Connectivity 1 Fiber Management AFL TRIDENT factory-terminated drop cables are the final piece of the AFL TITAN RTD ® FTTx System. The quarter-turn latching and sealing mechanism of the AFL TRIDENT connector provides quick and easy “plug and play” connections to AFL TITAN RTD multiport terminals, enabling lighting fast service subscriber connections with outstanding long term reliability. The connector/adapter interface is keyed to ensure proper alignment of the 2.5 mm APC ferrule. Once the connector is keyed and inserted, locking and sealing is provided with a “BNC-like” quarter-turn of the connector coupling. Drops are available with one or both ends terminated (either both ends AFL TRIDENT or hybrid—one end AFL TRIDENT and one end standard SC). Drop cables are available in one, two, or four fibers (flat drop only). AFL TRIDENT ® Hardened Drop Cables Features • AFL TRIDENT Hardened Connector ports for speedy customer connections • Factory terminated on: – 250 μm outdoor or 900 μm indoor/outdoor flat drop cable – 250 μm armored drop – 900 μm pushable/air-jettable MicroDrop • Flat drop is aerial self-support capable Cable Components Dielectric OSP UV Resistant Jacket Water Blocking Dielectric Strength Member Water Blocking Dielectric Strength Member Water Blocking Thread Optical Fiber Gel-Filled Loose Buffer Tube Toneable Indoor/Outdoor UV Resistant Jacket Water Blocking Dielectric Strength Member Water Blocking Dielectric Strength Member Toneable Copper Element Water Blocking Thread 900 μm Tight Buffered Optical Fiber OFNR Jacket Aramid Yarns Armored Drop UV Resistant Jacket Corrugated Steel Armor Rip Cords Dielectric Water Blocking Strength Members Optical Fiber PFM ™ Gel-Filled Tube MicroDrop Tight Buffer Tube Outer Sheath Water Blocking Aramid Yarns Optical Fiber Strength Member Qualifications Governing Body Standard Code Telcordia GR-3120 BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
2 AFLglobal.com 1 (800) 235-3423 © 2016, AFL, all rights reserved. PP-2-00241, Revision 12, 2.25.2026 Speciμcations are subject to change without notice. Optical Connectivity 2 Fiber Management AFL TRIDENT ® Hardened Drop Cables AFL TRIDENT Hardened Connector Specifications PARAMETER VALUE Insertion Loss, Maximum 0.50 dB Insertion Loss, Typical 0.15 dB Reflection ≤ -65 dB Operating Temperature -40°C to +75°C Retention Force 25 lbs (111 N) Dust Cap Pulling Eye Tension 100 lbs (444 N)* Cable Specifications (Flat Drop Cable Only) Max Span Length at 1% Sag NESC Light 550 ft (168 m) NESC Medium 275 ft (84 m) NESC Heavy 150 ft (46 m) Ordering Information Inside End Connector XXX = No connector TASC = Trident ASC = Angle SC XXX Fiber Type Q = Single-mode ITU-T G.652.D Z = Single-mode ITU-T G.657.A2 BIF (for I/O flat drop) Q Cable Length *4 digits Example: 0100F for 100 feet 0100 TD Cable Type DD = Dielectric Flat Drop TD = Toneable Flat Drop KTD = Toneable Indoor/Outdoor Flat Drop KDD = Dielectric Indoor/Outdoor Flat Drop AN = Armored Drop PD = Pushable MicroDrop AD = ADSS 001 Fiber Count 001 002 004 UOM F = Feet M = Meter F TASC Outside End Connector XXX = No connector TASC = Trident ASC = Angle SC *One fiber only. Two or four fiber drops should not be pulled by the dust cap pulling eye. BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
Características:
- Conectores reforzados AFL TRIDENT para acelerar las conexiones de los clientes
- Terminado en fábrica en 250 μ
m de cable plano de exterior o 900 μm de interior/exterior, así como en 250 μ
m de cable blindado o 900 μm de MicroDrop empujable/aireable
Capacidad de autosoporte aéreoLos cables de bajada con terminación de fábrica AFL TRIDENT son la pieza final del sistema FTTx AFL TITAN RTD® . El mecanismo de enclavamiento y sellado de un cuarto de vuelta del conector AFL TRIDENT proporciona conexiones rápidas y sencillas “plug and play” a los terminales multipuerto AFL TITAN RTD, lo que permite realizar conexiones de abonado de servicio rápidas como la luz con una fiabilidad excepcional a largo plazo. La interfaz del conector/adaptador está enchavetada para garantizar la correcta alineación de la virola APC de 2,5 mm. “Una vez que el conector está enchavetado e insertado, el bloqueo y el sellado se realizan con un cuarto de vuelta del acoplamiento del conector, similar al de un BNC” . Las gotas están disponibles con uno o ambos extremos terminados (ambos extremos AFL TRIDENT o híbrido—un extremo AFL TRIDENT y un extremo SC estándar). Los cables de caída están disponibles en una, dos o cuatro fibras (sólo en caída plana).
