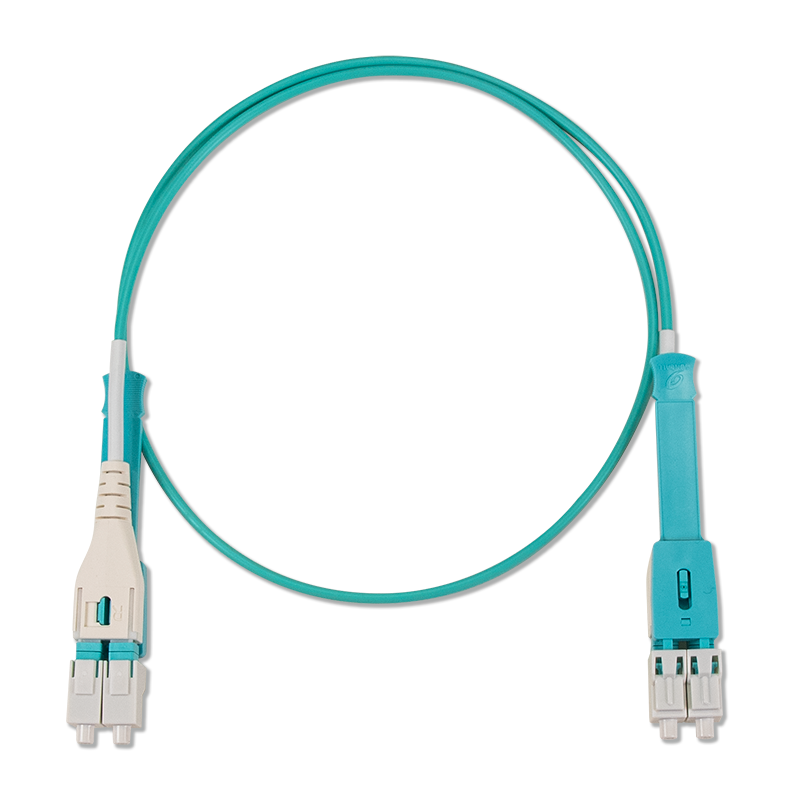

DENALI LC Patch Cords are optimized for high-density environments with field reversible flexibility. The DENALI LC Patch Cords combine AFL’s Micro Dual-Link cable with a field-reversible Uniboot LC connector, delivering compact, high performance connectivity for dense fiber environments.
ebbdd8f322ef48d689dc6d2049d07732
1 AFLglobal.com 1 (800) 8 66-7385 © 2025, AFL, all rights reserved. PP-2-00415, Revision 0, 6.19.2025 Speciflcations are subject to change w ithout notice. Optical Connectivity 1 Specifications Parameter SM MM Insertion Loss (Typical) 0.10 dB 0.10 dB Insertion Loss (Max) 0.30 dB 0.30 dB Reflectance (Typical) -55 dB -30 dB Durability 500 Cycles Operating Temperature -40°C to +75°C Ferrule Zirconia Features • Tool-free field reversibility (pre-terminated A-to-B polarity) • Available in single-mode (SM), OM3 and OM4 multimode (MM) • Bend-insensitive SM G.657.A1 fiber for greater installation flexibility • Compact 2.0 mm round jacket available in plenum and LSZH • Extended push-pull latch for improved accessibility in high-density panels DENALI LC Patch Cords are optimized for high-density environments with field- reversible flexibility. The DENALI LC Patch Cords combine AFL’s Micro Dual-Link cable with a field-reversible Uniboot LC connector, delivering compact, high- performance connectivity for dense fiber environments. The compact cable diameter reduces front-of-rack congestion and promotes better airflow, while the extended push-pull latch ensures fast, reliable connections in high-density environments. The Uniboot LC connector also allows tool-free polarity reversal in the field, offering added flexibility during installation. Applications • AI/ML • Hyperscale • Colocation • Campus Networks • Central Office and Office Backbone DENALI ™ Patch Cord Assemblies ULS ULS 002 = 2 XXXX = Meters XXXXFT = Feet Q = Single-mode G.657.A1 L = Multimode OM3 C = Multimode OM4 P20D 002 0000 Q Connector End A Connector End B Cable Type Fiber Count Cable Length (Meters) Fiber Type P20D = 2.0 mm Dual Link Plenum L20D = 2.0 mm Dual-Link LSZH ULS = Single-mode LC Uniboot, Push/ Pull Tab PLS = Multimode LC Uniboot, Push/ Pull Tab ULS = Single-mode LC Uniboot, Push/ Pull Tab PLS = Multimode LC Uniboot, Push/ Pull Tab Ordering Information Qualifications Governing Body Standard Code Component ITU G.657.A1 Single-mode optical fiber only Telcordia GR-409 Cable GR-326 Connectors RoHS Compliant Cable
Features:
- Tool-free field reversibility (pre-terminated A-to-B polarity)
- Available in single-mode (SM), OM3 and OM4 multimode (MM)
- Bend-insensitive SM G.657.A1 fiber for greater installation flexibility
- Compact 2.0 mm round jacket available in plenum and LSZH
- Extended push-pull latch for improved accessibility in high-density panels
Applications:
- Data Centers
- AI/ML
- Hyperscale
- Colocation
- Campus Networks
- Central Office and Office Backbone
DENALI LC Patch Cords are optimized for high-density environments with fieldreversible flexibility. The DENALI LC Patch Cords combine AFL’s Micro Dual-Link cable with a field-reversible Uniboot LC connector, delivering compact, highperformance connectivity for dense fiber environments.
The compact cable diameter reduces front-of-rack congestion and promotes better airflow, while the extended push-pull latch ensures fast, reliable connections in high-density environments. The Uniboot LC connector also allows tool-free polarity reversal in the field, offering added flexibility during installation.
