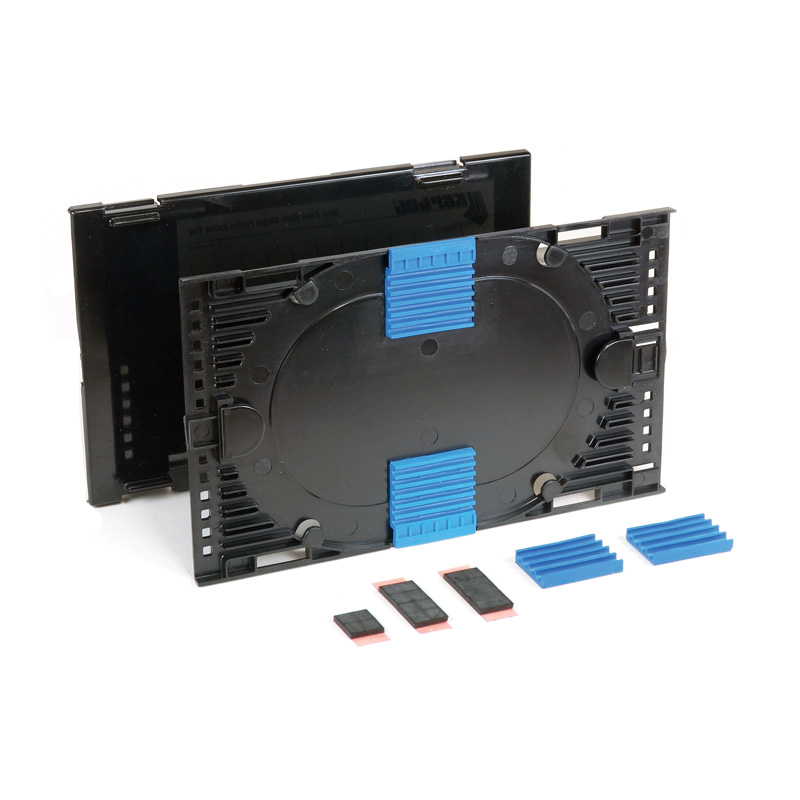

La serie LightLink de AFL de bandejas de empalme de fibra óptica ofrece una variedad de posibilidades únicas y flexibles de empalme y almacenamiento.
603d7fb9fdd4407d8255f9bf9e626eb2
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity Ordering Information—Splice Trays for Sealed Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-55-U LG-150-U LG-250-U LG-350-U LG-350-20-WTC LG-350-27-WTC Single Fuse: 32 Mass Fuse: N/A 6.300" (L) x 2.730" (W) x 0.829" (H) LL-2425 FC000053 Max trays: 1 Single: 32 Mass: N/A N/A N/A N/A N/A N/A Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 N/A Max Trays: 4 Single: 48 Mass: N/A N/A N/A N/A N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 N/A Max Trays: 4 Single: N/A Mass: 32 (384 fiber) N/A N/A N/A N/A Single Fuse: 12 Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-1248 911221-00- 00 N/A Max Trays: 4 Single: 48 Mass: 48 (384 fiber) N/A N/A N/A N/A Single Fuse: 24 Mass Fuse: N/A 12.542" (L) x 4.042" (W) x 0.390" (H) LL-2400 91710-06 N/A N/A Max Trays: 5 Single: 120 Mass: N/A Max Trays: 13 Single: 312 Mass: N/A N/A N/A continued LightLink Fiber Optic Splice Trays Features • In-line or butt splice capability (see model descriptions) • Pre-formed radiuses maintain bend requirements • Interlocking base and cover provides tray stability without the use of a bolt • Extended finger guides easily store and route loose fiber or ribbon AFL’s LightLink series of Fiber Optic Splice Trays offers a variety of unique and flexible splice and storage possibilities. They are available in industry standard config urations (single, mass).
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Optical Connectivity continued LightLink Fiber Optic Splice Trays (cont.) Ordering Information—Splice Trays for Sealed Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-250-U LG-350-U LG-350-AC LG-350XL-U LG-350-20-WTC LG-350-27-WTC Single Fuse: 60 Mass Fuse: 12 (144 fiber) 12.000" (L) x 5.125" (W) x 0.485" (H) LL-7644 FA000044 N/A Max Trays: 6 Single: 360 Mass: 72 (864 fiber) N/A N/A N/A Max Trays: 3 Single: 180 Mass: 72 (864 fiber) Single Fuse: 24 Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 Max Trays: 8 Single: 192 Mass: 32 (384 fiber) Mechanical: 96 N/A N/A N/A N/A Single Fuse: 48 Mass Fuse: N/A 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448-48S FA000045 Max Trays: 3 Single: 144 Mass: N/A Max Trays: 8 Single: 384 Mass: N/A N/A N/A N/A N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 Max Trays: 3 Single: N/A Mass: 36 (432 fiber) Max Trays: 8 Single: N/A Mass: 96 (1152 fiber) N/A N/A N/A N/A Single Fuse: 96 Mass Fuse: 24 (288 fiber) 15.950" (L) x 4.875" (W) x 0.485" (H) LL-4896 911676-00-02 N/A Max Trays: 5 Single: 480 Mass: 120 (1440 fiber) N/A Max Trays: 9 Single: 864 Mass: 216 (2592 fiber) N/A N/A Single Fuse: 60 Mass Fuse: N/A 12.000" (L) x 5.125" (W) x 0.485" (H) LL-7060 FA000042 N/A Max Trays: 6 Single: 360 Mass: N/A N/A N/A N/A Max Trays: 3 Single: 180 Mass: N/A * Note: Contains enough splice holders for 24 mass splices (288 fibers) when using AFL Wrapping Tube Cable.
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 3 Optical Connectivity Optical Connectivity continued LightLink Fiber Optic Splice Trays (cont.) Ordering Information – Splice Trays for LG-350 and LG-350XL-U Sealed Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-350-U LG-350-AC LG-350XL-U LG-350-20-WTC LG-350-27-WTC Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.000" (L) x 5.125" (W) x 0.485" (H) LL-7144 FA000043 Max Trays: 6 Single: 360 Mass: 72 (864 fiber) N/A N/A N/A Max Trays: 3 Single: 180 Mass: 72 (864 fiber) Single Fuse: 36 Mass Fuse: 12 (144 fiber) 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808L-R FA000037 N/A Max Trays: 4 Single: 144 Mass: 48 (576 fiber) N/A Max Trays: 4 Single: 144 Mass: 48 (576 fiber) N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808 R FA000020 N/A Max Trays: 4 Single: N/A Mass: 48 (576 fiber) N/A Max Trays: 4 Single: N/A Mass: 48 (576 fiber) N/A Single Fuse: 36 Mass Fuse: N/A 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808 L FA000021 N/A Max Trays: 4 Single: 144 Mass: N/A N/A Max Trays: 4 Single: 144 Mass: N/A N/A Single Fuse: N/A Mass Fuse: 24 (288 fiber) 15.950" (L) x 4.875" (W) x 0.485" (H) LL-4896 R FA000022 Max Trays: 5 Single: N/A Mass: 120 (1440 fiber) N/A Max Trays: 9 Single: N/A Mass: 216 (2592 fiber) N/A N/A Single Fuse: 96 Mass Fuse: N/A 15.950" (L) x 4.875" (W) x 0.485" (H) LL-4896 L FA000023 Max Trays: 5 Single: 480 Mass: N/A N/A Max Trays: 9 Single: 864 Mass: N/A N/A Max Trays: 3 Single: 180 Mass: N/A
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 4 Optical Connectivity Optical Connectivity continued LightLink Fiber Optic Splice Trays (cont.) Ordering Information – Splice Trays for Aerial Weathertight Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-410-U LG-420-U FTT x LG-500-U LG-500-U FTT x Single Fuse: 24 Mass Fuse: N/A 12.542" (L) x 4.042" (W) x 0.390" (H) LL-2400 91710-06 Max Trays: 4 Single: 96 Mass: N/A N/A Max Trays: 4 Single: 96 Mass: N/A N/A Single Fuse: 32 Mass Fuse: N/A 6.300" (L) x 2.730" (W) x 0.829" (H) LL-2425 FC000053 N/A Max Trays: 1 Single: 32 Mass: N/A N/A Max Trays: 1 Single: 32 Mass: N/A Single Fuse: 24 Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 N/A Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 N/A Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 N/A N/A N/A N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 Max Trays: 3 Single: N/A Mass: 36 (432 fiber) N/A Max Trays: 3 Single: N/A Mass: 36 (432 fiber) N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 N/A N/A N/A N/A Single Fuse: 12 Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-1248 911221-00-00 N/A N/A N/A N/A
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 5 Optical Connectivity Optical Connectivity Ordering Information – Splice Trays for Aerial Weathertight Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-500-U-FTT x -ISO LG-600-U LG-600-FTT x LG-600-U-FTT x-ISO Single Fuse: 24 Mass Fuse: N/A 12.542" (L) x 4.042" (W) x 0.390" (H) LL-2400 91710-06 N/A Max Trays: 12 Single: 288 Mass: N/A Max Trays: 2 Single: 48 Mass: N/A N/A Single Fuse: 32 Mass Fuse: N/A 6.300" (L) x 2.730" (W) x 0.829" (H) LL-2425 FC000053 N/A N/A N/A N/A Single Fuse: 24 Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 N/A Max Trays: 8 Single: 192 Mass: 32 (384 fiber) Mechanical: 12 N/A N/A Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 Max Trays: 1 Single: 12 Mass: N/A N/A N/A Max Trays: 2 Single: 24 Mass: N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 N/A Max Trays: 8 Single: N/A Mass: 96 (1152 fiber) N/A N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 Max Trays: 1 Single: N/A Mass: 8 (96 fiber) N/A N/A Max Trays: 2 Single: N/A Mass: 16 (192 fiber) Single Fuse: 12 Mass Fuse: 8 (96) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-1248 911221-00-00 Max Trays: 1 Single: 12 Mass: 8 (96 fiber) N/A N/A Max Trays: 2 Single: 24 Mass: 16 (192 fiber) continued LightLink Fiber Optic Splice Trays (cont.)
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 6 Optical Connectivity Optical Connectivity Ordering Information—Splice Trays for Fiber Optic Enclosures DESCRIPTION MODEL NO. AFL NO. LL-400B WITH INTERCONNECT LL-400B WITHOUT INTERCONNECT LL-400SX WITH 2 LGX ® PLATES LL-400SX WITHOUT LGX PLATES Single Fuse: 24 Mass Fuse: 4 (48 fiber) Mechanical : 12 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 Max Trays: 4 Single: 96 Mass: 16 (192 fiber) Mechanical: 48 Max Trays: 6 Single: 144 Mass: 24 (288 fiber) Mechanical: 72 Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 Max Trays: 9 Single: 216 Mass: 36 (432 fiber) Mechanical: 108 Single Fuse: 48 Mass Fuse: N/A 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448-48S FA000045 Max Trays: 4 Single: 192 Mass: N/A Max Trays: 6 Single: 288 Mass: N/A Max Trays: 3 Single: 144 Mass: N/A Max Trays: 9 Single: 432 Mass: N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 Max Trays: 4 Single: N/A Mass: 48 (576 fiber) Max Trays: 6 Single: N/A Mass: 72 (864 fiber) Max Trays: 3 Single: N/A Mass: 36 (432 fiber) Max Trays: 9 Single: N/A Mass: 108 (1296 fiber) Single Fuse: N/A Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531 (H) LL-4800 91711-07 Max Trays: 4 Single: N/A Mass: 16 (192 fiber) Max Trays: 6 Single: N/A Mass: 24 (288 fiber) Max Trays: 3 Single: N/A Mass: 12 (144 fiber) Max Trays: 9 Single: N/A Mass: 108 (1296 fiber) continued LightLink Fiber Optic Splice Trays (cont.) Ordering information – Splice Trays for Aerial Weathertight Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-410-U LG-500-U LG-600-U Single Fuse: N/A Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4800 91711-07 Max Trays: 3 Single: N/A Mass: 12 (144 fiber) Max Trays: 3 Single: N/A Mass: 12 (144 fiber) Max Trays: 8 Single: N/A Mass: 32 (384 fiber)
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 7 Optical Connectivity Optical Connectivity Ordering Information—Splice Trays for Fiber Optic Enclosures DESCRIPTION MODEL NO. AFL NO. LL-500 LL-580 Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.000" (L) x 5.125" (W) 0.485" (H) LL-7144 FA000043 N/A Max Trays: 2 Single: N/A Mass: 24 (288 fiber) Single Fuse: 60 Mass Fuse: 12 (144) 12.000" (L) x 5.125" (W) 0.485" (H) LL-7644 FA000044 N/A Max Trays: 2 Single: 120 Mass: 24 (288 fiber) Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 Max Trays: 5 Single: 60 Mass: N/A N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 Max Trays: 3 Single: N/A Mass: 24 (288 fiber) N/A Single Fuse: 36 Mass Fuse: 12 (144 fiber) 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808L-R FA000037 N/A Max Trays: 2 Single: 72 Mass: 24 (288 fiber) continued LightLink Fiber Optic Splice Trays (cont.)
© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 8 Optical Connectivity Optical Connectivity LightLink Fiber Optic Splice Trays (cont.) Dimensions LL-2448 and LL-4848 Splice Trays LL-2400 Splice Tray LL-4896 Splice Tray OEE Splice Tray LL-1248, LL-2450 and LL-4850 Splice Trays LL-2425 Splice Tray Ordering Information – Splice Tray for Splicing Cabinets and Shelves DESCRIPTION MODEL NO. AFL NO. Telescoping Splice Tray - Stores up to 48 single fusion sleeves or 12 mass fusion sleeves (144 fibers). For use in the following products: LL-300, LL-288/576, LL-720/1440, OTSS-SYS1, OSS-SYS2 and OSS-SYS1 STF-48 911442-00-00 FTTx Splice Tray - Stores up to 2 single fusion sleeves. For use in the following products: ONT-760XL, ONT-3000 and CG-1500 — DM000445 Bare Fiber Splice Tray - Stores up 24 single fusion fibers without sleeves. For use in the following products: Any product that accepts the LL-2400 splice tray — C184190 Ordering Information—Splice Tray Accessories DESCRIPTION AFL NO. FP-40 Splice Protection Sleeves, 40 mm length (1000 box/100 pack) S015916 FP-60 Splice Protection Sleeves, 60 mm length (1000 box/100 pack) S015915 Single Fusion Splice Chip - 6 splices per chip. (10 pcs. per kit) FA000034 Single Fusion Splice Chip - 12 splices per chip. (10 pcs. per kit) FC000657 Single Fusion Splice Chip - 24 splices per chip. (10 pcs. per kit) 91745-02 Mass Fusion Splice Chip - 4 splices per chip. (10 pcs. per kit) FA000088 Mechanical Fusion Splice Tape (10 pcs. per kit) FA000089 Core Tube Cable Fiber Router for routing fiber up to 8 directions. For all central core tube sizes. FC000008 Loose Tube or Ribbon Router for routing fiber up to 6 directions. For all Loose Tube and up to 12 fiber Ribbon. FC000070
Características:
- Capacidad de empalme en línea o a tope
- Los radios preformados mantienen los requisitos de curvatura
- La base y la cubierta interconectadas proporcionan estabilidad a la bandeja sin necesidad de utilizar un perno
- Las guías de dedos extendidas almacenan y dirigen fácilmente la fibra o la cinta suelta
Aplicaciones:
- LG-150-U
- LG-500-U-FTTx-ISO
- LG-600-U-FTTx-ISO
La serie LightLink de bandejas de empalme de fibra óptica de AFL’ofrece una variedad de posibilidades de empalme y almacenamiento únicas y flexibles. Están disponibles en configuraciones estándar de la industria (simple, masiva).
Capacidad de empalme
- 12 manguitos de fusión simples
-
8 manguitos de fusión masiva
Dimensiones
- 7,139" (L) x 4,294" (W) x 0,370" (H)
