Avec plus de 80 ans d'expérience dans la conception et la fabrication de produits accessoires pour les services publics d'électricité, AFL est un leader reconnu, fournissant des solutions de produits supérieures et améliorant la fiabilité des composants d'infrastructures critiques utilisés pour la transmission et la distribution d'électricité.
664fffbdefe74070ad59e5c037f99d4f
HIBUS ® Series for Conductors
HIBUS Series The HIBUS Series features the Conductor Suspension (left) and Conductor Trunnion (above). With over 80 years of experience designing and manufacturing accessory products for electric power utilities, AFL is a recognized leader, providing superior product solutions and improving reliability of critical infrastructure components used for the transmission and distribution of electricity. We commit to being proactive to our customers' needs and it is with this commitment that we are introducing the Hinged Bushing (HIBUS) clamp series, available in both suspension and trunnion configurations. Designed to reduce static and dynamic stress at the attachment point on transmission conductors, HIBUS clamps are a versatile, cost-effective choice.

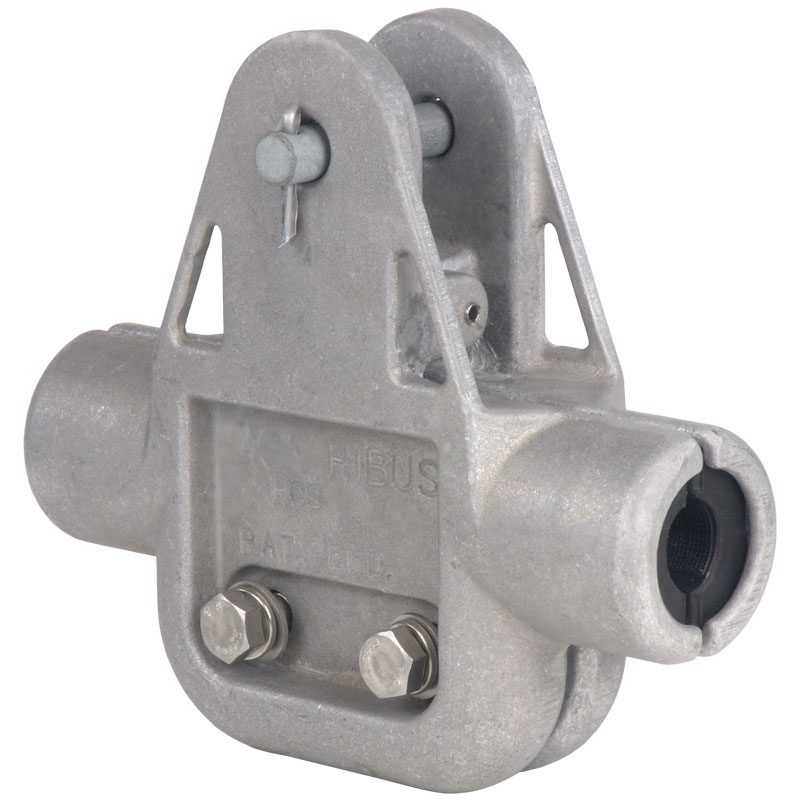

HIBUS Series – Conductor Suspension The HIBUS clamp is designed to reduce static and dynamic stress at the attachment point on transmission conductors without the use of armor rods or line guards. Rated for 250°C operation, the HIBUS clamp has a specially formulated bushing material for high temperature conductors. The hinged concept on the suspension configuration provides self-alignment of the housing halves. All hardware is captive except for the mounting pin. Test results have shown that the unique bushing system significantly reduces the bending strain level produced by the effects of Aeolian vibration as compared to standard clamps using armor rods or line guards. This proven level of performance eliminates the need for any type of attachment using rods. Test reports available include corona test, high temperature profile, standard and high temperature slip, ultimate strength, and catastrophic conductor failure impact strength. Ordering Information Features • Suitable for all ACSR and ACSS conductors • Self-aligning housing halves • Stress relief bushings reduce bending strain 40% • Aluminum clamp body with captive stainless steel mounting bolts • Galvanized steel mounting pin with two washers and cotter pin for added security • Optional bolt, nut, and cotter pin (“BNC” suffix) available on some sizes. Contact AFL for availability. • Optional Live-line Attachment Tool available • Line angles up to 30° for single unit, up to 60° for two units • Rated for 500 kV applications • Rated for 250°C high temperature applications (with special bushings) Blank = no Live-line Attachment Point LL = include Live-line Attachment Point HCSHT LL 1073 ORDERING EXAMPLE: HCSHT1073LL HIBUS Series Conductor Suspension, 1.073-1.115 range, rated for 250°C high temperature application and including a Live-line Attachment Point. Captive Bolts Mounting Pin with Washers and Cotter Pin Hinge Point (aligns housing halves) Rubber Bushings for Stress Relief 500 kV Shielding Radius Bushing Functions as a Stress Relief Rubber Bushings Amplitude Reduced Approximately 40% as Compared to a Standard Suspension Clamp Suspension Configuration Suspension Components Conductor Range Code HCS = HIBUS Series Conductor Suspension HCSHT = HIBUS Series Conductor Suspension for high temperature applications Blank = Clevis Pin and Cotter Pin Attachment BNC = Bolt, Nut, Cotter Pin Attachment (Note: limited availability for BNC, contact AFL) BNC
HIBUS Series – Conductor Suspension S W Pin size H L STANDARD CONDUCTORS : ACSR, AAC, AAAC, ACAR HIGH TEMPERATURE CONDUCTORS : ACSS, HS285 AFL NO. RANGE (IN) RANGE (MM) LENGTH (L) HEIGHT (H) WIDTH (W) CLEVIS WIDTH (S) WEIGHT (LBS) VERT. LOAD RATING (LBS) PIN/BOLT SIZE STANDARD HIGH TEMP. MIN MAX MIN MAX HCS710 HCSHT710 0.710 0.755 18.0 19.2 9.5" 8.6" 2.6" 1.4" 7.5 25,000 .625" x 3.25" HCS756 HCSHT756 0.756 0.799 19.2 20.3 HCS800 HCSHT800 0.800 0.842 20.3 21.4 HCS843 HCSHT843 0.843 0.883 21.4 22.4 HCS880 HCSHT880 0.880 0.931 22.4 23.6 HCS932 HCSHT932 0.932 0.980 23.7 24.9 HCS981 HCSHT981 0.981 1.027 24.9 26.1 9.5" 8.8" 2.9" 1.4" 7.8 25,000 .625" x 3.25" HCS1028 HCSHT1028 1.028 1.072 26.1 27.2 HCS1073 HCSHT1073 1.073 1.115 27.3 28.3 HCS1116 HCSHT1116 1.116 1.156 28.3 29.4 HCS1157 HCSHT1157 1.157 1.196 29.4 30.4 HCS1197 HCSHT1197 1.197 1.237 30.4 31.4 HCS1238 HCSHT1238 1.238 1.294 31.4 32.9 HCS1295 HCSHT1295 1.295 1.349 32.9 34.3 10.0" 9.6" 3.3" 1.4" 8.1 25,000 .625" x 3.25" HCS1350 HCSHT1350 1.350 1.401 34.3 35.6 HCS1402 HCSHT1402 1.402 1.451 35.6 36.9 HCS1452 HCSHT1452 1.452 1.499 36.9 38.1 HCS1500 HCSHT1500 1.500 1.545 38.1 39.2 HCS1546 HCSHT1546 1.546 1.569 39.3 39.9 HCS1570 HCSHT1570 1.570 1.639 39.9 41.6 HCS1640 HCSHT1640 1.640 1.707 41.7 43.4 10.9" 10.4" 3.8" 1.5" 9.7 30,000 .750" x 4.00" HCS1708 HCSHT1708 1.708 1.771 43.4 45.0 HCS1772 HCSHT1772 1.772 1.833 45.0 46.6 HCS1834 HCSHT1834 1.834 1.892 46.6 48.1 *Dimensions are approximate and will vary slightly according to conductor size.
HIBU S Series – Conductor Suspension Live-line Attachment Tool Installation Sequence for Live-line Attachment Ordering Information DESCRIPTION AFL NO. Live-line Attachment Tool (order separately) HIBUS-LLT Captive bolts Hinged point aligns housing halves Live-line Attachment Tool Live-line Attachment Tool (ordered separately) 1. HIBUS Suspension with the Live-line Attachment Tool ordered from AFL 2. Secure the HIBUS Suspension to the “Hot Stick" using the Live-line Attachment Tool 3. With the HIBUS Suspension in the open position, locate the unit on the conductor 4. Once in position, rotate the “Hot Stick” (with Live-line Attachment Tool attached) in a clockwise direction until the HIBUS Suspension is fully closed 5. Remove the “Hot Stick” from the Live-line Attachment Tool 6. Attach a “Drive Socket” to the “Hot Stick” (normally included with standard hot stick kits) 7. Tighten the captive bolts on the HIBUS Suspension to the specified torque 8. Remove the Live-line Attach - ment Tool with the “Hot Stick” and attach the HIBUS Suspen - sion to the insulator with the mounting pin provided
HIBU S Series – Conductor Trunnion The HIBUS Series Conductor Trunnion is designed to reduce static and dynamic stress at the attachment point on transmission conductors without the use of armor rods or line guards. Rated for 250°C operation, the HIBUS Series Conductor Trunnion has a specially formulated bushing material for high temperature conductors. Test results have shown that the unique bushing system significantly reduces the bending strain level produced by the effects of Aeolian vibration as compared to standard clamps using armor rods or line guards. This proven level of performance eliminates the need for any type of attachment using rods. Test reports available include corona test, high temperature profile, standard and high temperature slip, ultimate strength, and catastrophic conductor failure impact strength. The unit features captive hardware. Ordering Information Conductor Range Code HCT = HIBUS Series Conductor Trunnion HCTHT = HIBUS Series Conductor Trunnion for high temperature applications HCTHT 1073 ORDERING EXAMPLE: HCTHT1073 HIBUS Series Conductor Trunnion, 1.073-1.115 range, rated for 250°C high temperature application. Stainless Steel Bolts Steel Bushing for Wear Resistance Rubber Bushing for Stress Relief Features • Suitable for all ACSR and ACSS conductors • Stress relief bushings reduce bending strain 40% • Aluminum body with secured captive stainless steel mounting bolts • Wear resistant with steel bushing insert in mounting trunnion hole • Line angles up to 30° for single unit, up to 60° for two units • Rated for 500 kV applications • Rated for 250°C high temperature applications (with special bushings) Trunnion Components
HIBUS Series – Conductor Trunnion L W H Bolt STANDARD CONDUCTORS : ACSR, AAC, AAAC, ACAR HIGH TEMPERATURE CONDUCTORS : ACSS, HS285 AFL NO. RANGE (IN) RANGE (MM) LENGTH (L) HEIGHT (H) WIDTH (W) WEIGHT (LBS) VERT. LOAD RATING (LBS) BOLT SIZE STANDARD HIGH TEMP. MIN MAX MIN MAX HCT710 HCTHT710 0.710 0.755 19.2 19.2 9.5" 2.6" 3.8" 4.5 25,000 1/2" – 13 UNC HCT756 HCTHT756 0.756 0.799 20.3 20.3 HCT800 HCTHT800 0.800 0.842 21.4 21.4 HCT843 HCTHT843 0.843 0.883 22.4 22.4 HCT880 HCTHT880 0.880 0.931 23.6 23.6 HCT932 HCTHT932 0.932 0.980 24.9 24.9 HCT981 HCTHT981 0.981 1.027 26.1 26.1 9.5" 3.0" 3.8" 4.5 25,000 1/2" – 13 UNC HCT1028 HCTHT1028 1.028 1.072 27.2 27.2 HCT1073 HCTHT1073 1.073 1.115 28.3 28.3 HCT1116 HCTHT1116 1.116 1.156 29.4 29.4 HCT1157 HCTHT1157 1.157 1.196 30.4 30.4 HCT1197 HCTHT1197 1.197 1.237 31.4 31.4 HCT1238 HCTHT1238 1.238 1.294 32.9 32.9 HCT1295 HCTHT1295 1.295 1.349 34.3 34.3 10.0" 3.4" 3.8" 4.2 25,000 1/2" – 13 UNC HCT1350 HCTHT1350 1.350 1.401 35.6 35.6 HCT1402 HCTHT1402 1.402 1.451 36.9 36.9 HCT1452 HCTHT1452 1.452 1.499 38.1 38.1 HCT1500 HCTHT1500 1.500 1.545 39.2 39.2 HCT1546 HCTHT1546 1.546 1.569 39.9 39.9 HCT1570 HCTHT1570 1.570 1.639 41.6 41.6
HIBUS Series – Hanger Links AFL NO. ITEMS PER ASSEMBLY DIMENSIONS IN INCHES STANDARD 1 2 A HCS710-12HL 1700-E-12 HCS710 12.0 HCS710-18HL 1700-E-18 HCS710 18.0 HCS756-12HL 1700-E-12 HCS756 12.0 HCS756-18HL 1700-E-18 HCS756 18.0 HCS800-12HL 1700-E-12 HCS800 12.0 HCS800-18HL 1700-E-18 HCS800 18.0 HCS843-12HL 1700-E-12 HCS843 12.0 HCS843-18HL 1700-E-18 HCS843 18.0 HCS880-12HL 1700-E-12 HCS880 12.0 HCS880-18HL 1700-E-18 HCS880 18.0 HCS932-12HL 1700-E-12 HCS932 12.0 HCS932-18HL 1700-E-18 HCS932 18.0 HCS981-12HL 1700-E-12 HCS981 12.0 HCS981-18HL 1700-E-18 HCS981 18.0 HCS1028-12HL 1700-E-12 HCS1028 12.0 HCS1028-18HL 1700-E-18 HCS1028 18.0 HCS1073-12HL 1700-E-12 HCS1073 12.0 HCS1073-18HL 1700-E-18 HCS1073 18.0 HCS1116-12HL 1700-E-12 HCS1116 12.0 HCS1116-18HL 1700-E-18 HCS1116 18.0 HCS1157-12HL 1700-E-12 HCS1157 12.0 HCS1157-18HL 1700-E-18 HCS1157 18.0 HCS1197-12HL 1700-E-12 HCS1197 12.0 HCS1197-18HL 1700-E-18 HCS1197 18.0 AFL NO. ITEMS PER ASSEMBLY DIMENSIONS IN INCHES STANDARD 1 2 A HCS1238-12HL 1700-E-12 HCS1238 12.0 HCS1238-18HL 1700-E-18 HCS1238 18.0 HCS1295-12HL 1700-E-12 HCS1295 12.0 HCS1295-18HL 1700-E-18 HCS1295 18.0 HCS1350-12HL 1700-E-12 HCS1350 12.0 HCS1350-18HL 1700-E-18 HCS1350 18.0 HCS1402-12HL 1700-E-12 HCS1402 12.0 HCS1402-18HL 1700-E-18 HCS1402 18.0 HCS1452-12HL 1700-E-12 HCS1452 12.0 HCS1452-18HL 1700-E-18 HCS1452 18.0 HCS1500-12HL 1700-E-12 HCS1500 12.0 HCS1500-18HL 1700-E-18 HCS1500 18.0 HCS1546-12HL 1700-E-12 HCS1546 12.0 HCS1546-18HL 1700-E-18 HCS1546 18.0 HCS1570-12HL 1700-E-12 HCS1570 12.0 HCS1570-18HL 1700-E-18 HCS1570 18.0 HCS1640BNC-12HL 1700-E-12 HCS1640BNC 12.0 HCS1640BNC-18HL 1700-E-18 HCS1640BNC 18.0 HCS1708BNC-12HL 1700-E-12 HCS1708BNC 12.0 HCS1708BNC-18HL 1700-E-18 HCS1708BNC 18.0 HCS1772BNC-12HL 1700-E-12 HCS1772BNC 12.0 HCS1772BNC-18HL 1700-E-18 HCS1772BNC 18.0 HCS1834BNC-12HL 1700-E-12 HCS1834BNC 12.0 HCS1834BNC-18HL 1700-E-18 HCS1834BNC 18.0 A 1700 Hanger 1700 Hanger HIBUS Suspension Unit HIBUS Suspension Unit HIBUS Suspension Unit HIBUS Suspension Unit Available in both Standard and High Temperature. Ordering information HIBUS Suspension Unit – Standard
AFL NO. ITEMS PER ASSEMBLY DIMENSIONS IN INCHES HIGH TEMP. 1 2 A HCSHT710-12HL 1700-E-12 HCSHT710 12.0 HCSHT710-18HL 1700-E-18 HCSHT710 18.0 HCSHT756-12HL 1700-E-12 HCSHT756 12.0 HCSHT756-18HL 1700-E-18 HCSHT756 18.0 HCSHT800-12HL 1700-E-12 HCSHT800 12.0 HCSHT800-18HL 1700-E-18 HCSHT800 18.0 HCSHT843-12HL 1700-E-12 HCSHT843 12.0 HCSHT843-18HL 1700-E-18 HCSHT843 18.0 HCSHT880-12HL 1700-E-12 HCSHT880 12.0 HCSHT880-18HL 1700-E-18 HCSHT880 18.0 HCSHT932-12HL 1700-E-12 HCSHT932 12.0 HCSHT932-18HL 1700-E-18 HCSHT932 18.0 HCSHT981-12HL 1700-E-12 HCSHT981 12.0 HCSHT981-18HL 1700-E-18 HCSHT981 18.0 HCSHT1028-12HL 1700-E-12 HCSHT1028 12.0 HCSHT1028-18HL 1700-E-18 HCSHT1028 18.0 HCSHT1073-12HL 1700-E-12 HCSHT1073 12.0 HCSHT1073-18HL 1700-E-18 HCSHT1073 18.0 HCSHT1116-12HL 1700-E-12 HCSHT1116 12.0 HCSHT1116-18HL 1700-E-18 HCSHT1116 18.0 HCSHT1157-12HL 1700-E-12 HCSHT1157 12.0 HCSHT1157-18HL 1700-E-18 HCSHT1157 18.0 HCSHT1197-12HL 1700-E-12 HCSHT1197 12.0 HCSHT1197-18HL 1700-E-18 HCSHT1197 18.0 AFL NO. ITEMS PER ASSEMBLY DIMENSIONS IN INCHES HIGH TEMP. 1 2 A HCSHT1238-12HL 1700-E-12 HCSHT1238 12.0 HCSHT1238-18HL 1700-E-18 HCSHT1238 18.0 HCSHT1295-12HL 1700-E-12 HCSHT1295 12.0 HCSHT1295-18HL 1700-E-18 HCSHT1295 18.0 HCSHT1350-12HL 1700-E-12 HCSHT1350 12.0 HCSHT1350-18HL 1700-E-18 HCSHT1350 18.0 HCSHT1402-12HL 1700-E-12 HCSHT1402 12.0 HCSHT1402-18HL 1700-E-18 HCSHT1402 18.0 HCSHT1452-12HL 1700-E-12 HCSHT1452 12.0 HCSHT1452-18HL 1700-E-18 HCSHT1452 18.0 HCSHT1500-12HL 1700-E-12 HCSHT1500 12.0 HCSHT1500-18HL 1700-E-18 HCSHT1500 18.0 HCSHT1546-12HL 1700-E-12 HCSHT1546 12.0 HCSHT1546-18HL 1700-E-18 HCSHT1546 18.0 HCSHT1570-12HL 1700-E-12 HCSHT1570 12.0 HCSHT1570-18HL 1700-E-18 HCSHT1570 18.0 HCSHT1640BNC-12HL 1700-E-12 HCSHT1640BNC 12.0 HCSHT1640BNC-18HL 1700-E-18 HCSHT1640BNC 18.0 HCSHT1708BNC-12HL 1700-E-12 HCSHT1708BNC 12.0 HCSHT1708BNC-18HL 1700-E-18 HCSHT1708BNC 18.0 HCSHT1772BNC-12HL 1700-E-12 HCSHT1772BNC 12.0 HCSHT1772BNC-18HL 1700-E-18 HCSHT1772BNC 18.0 HCSHT1834BNC-12HL 1700-F-12 HCSHT1834BNC 12.0 HCSHT1834BNC-18HL 1700-E-18 HCSHT1834BNC 18.0 Ordering information HIBUS Suspension Unit – High Temperature HIBUS Series – Hanger Links
HIBUS Series Hardware Socket Eye "SE" Suffix ∅ 0.75 45 ° 1.75 1.06 2.00 1.56 ∅ 0.68 Cotter Pin Nut Bolt Body 2.50 0.81 L C 2 5 / 16 1 1 / 16 1 5 / 8 ∅ 11 / 16 L C 1 3 / 4 ∅ 11 / 16 1 1 / 2 2 1 / 2 1 1 / 4 13 / 16 ∅ 5 / 8 1 3 / 8 Ordering Information AFL NO. HARDWARE TYPE ULTIMATE STRENGTH (LBS.) APPROX. WEIGHT EACH (LBS.) MATERIAL YC90E-688-1062 Y-Clevis Eye 90° 30,000 2.7 Body – Ductile Iron Bolt, Nut – Forged Steel Cotter Pin – Stainless Steel SI-1062 Socket Eye 30,000 1.17 Hot Dip Galvanized Ductile Iron SCE-55-1375 Clevis Eye 30,000 1.58 Hot Dip Galvanized Ductile Iron Y-Clevis Eye 90 ° "YC90E" Suffix Clevis Eye "SCE" Suffix
© 2 0 1 4 AFL, all rights reserved. BRO - 03001 8.25.2015 www.AFLglobal.com
Caractéristiques :
- Convient à tous les conducteurs ACSR et ACSS
- Les douilles anti-stress réduisent l'effort de flexion de 40%.
- Conçu pour les applications à haute température 250°C (avec des bagues spéciales).
Les applications:
- Conçu pour les applications de 500 kV
Nous nous engageons à être proactifs face aux besoins de nos clients' et c'est avec cet engagement que nous introduisons la série de colliers de serrage à douille articulée (HIBUS®), disponibles dans les configurations de suspension et de tourillon. Conçus pour réduire les contraintes statiques et dynamiques au point de fixation des conducteurs de transmission, les colliers HIBUS constituent un choix polyvalent et rentable.
