Les colliers de serrage à rainure parallèle (colliers PG) sont conçus pour accepter une large gamme de conducteurs afin de minimiser le nombre de colliers nécessaires pour couvrir des conducteurs allant de No. 8 AWG à 1750 MCM.
9b252adee0a943ed8ff3c528ad24a978
543 Clamps and Connectors Clamps and Connectors © 2012, AFL, all rights reserved. PP-3-00757, Revision 5, 10.3.2023 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Universal Groove Clamps Through extensive research, AFL has developed a "universal groove" design which accept a range of conductor sizes. The blended radii proved to be the shape that accommodates a wide range of conductors and have the desired low electrical resistance for each conductor size. This patented groove shape is utilized in all of AFL's clamps and connectors. Positive Alignment and Weather Protection Extended lip aligns clamp as bolt is tightened. Clamp base section forms a weather shield for the grooves. Compound stays in place, connections last longer. Corrosion Resistant Lubricated Hardware Bolts are made of high-strength aluminum alloy and maintain high contact pressure during heating and cooling cycles (bolts, extrusions and conductors have the same coef - ficients). Bolts have an Alumilite 205 finish and are coated with a lubricant for addi - tional corrosion protection and reduced friction. No Loose Parts Extruded clamps can be applied "hot" without taking them apart. No losing nuts or washers or fumbling for loose parts. Conductance The electrical conductivity of the heavy-duty 480 Series clamps exceeds that of the con - ductor. Each clamp is designed and tested for the conductor sizes in its stated range. Groove Range Identification Raised ridges on both sides of the cap and base of multiple bolt clamps identify groove range sizes. The two ridges visible on the clamp in the photo on the left, indicate a No. 2 groove with a range of .464" to .743" (11.8 mm to 18.9 mm). Greater Strength Aluminum extrusions have the inherently strong construction of wrought metal. For parallel groove clamps, a tough heat-treated alloy is used. Available Prefilled All clamps are available with Alnox Joint Compound in the grooves. Clamps with equal grooves are available in "strip" packages (shown). These packages retain the compound until ready for use and are easily removed while wearing gloves. All clamps are available poly wrapped in polyethylene shrink packaging. Minimum Sizes to Stock Minimum number of clamps to cover No. 8 AWG to 1750 MCM connecting applications. No Loose Parts Compact assembly simplifies taping and handling resulting in a neater, more professional job.

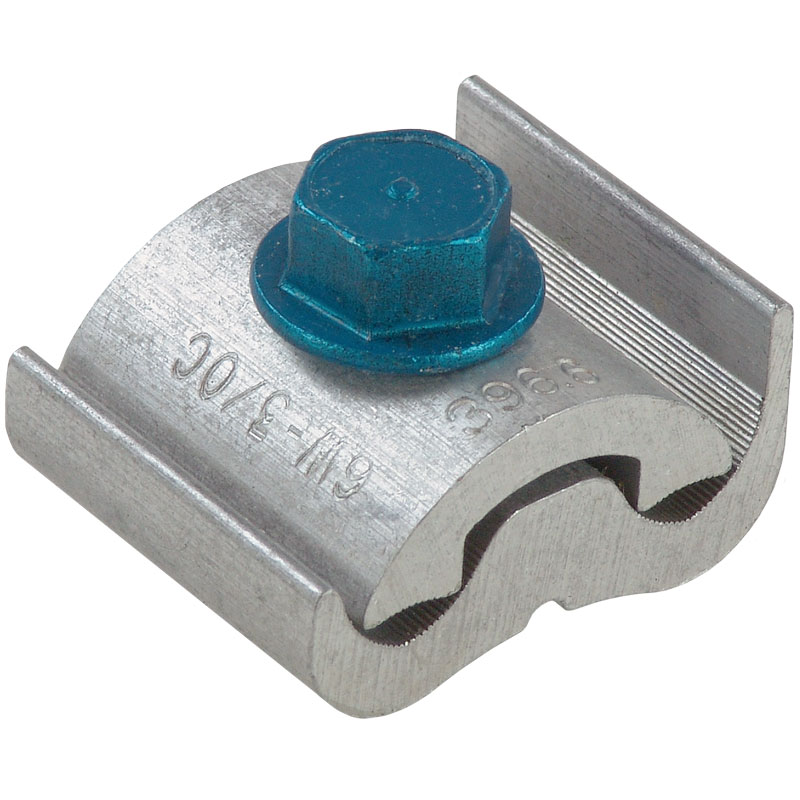

© 2012, AFL, all rights reserved. PP-3-00757, Revision 5, 10.3.2023 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 544 Clamps and Connectors Clamps and Connectors Distribution Parallel Groove Clamps (Series 390 and 490) Catalog 390 and Catalog 490 Series Distribution Parallel Groove Clamps with a single bolt accommodate a range of conductors in each groove. This type of clamp is commonly used for service drop connections and as a tap from large to relatively small conductors. Center Bolt Clamps (Series 480) Catalog 480 Series Center Bolt Clamps are a multiple bolt heavy duty universal groove design which can handle the full electrical load of the conductor. They offer the con - venience of installation without any loose parts. Catalog 480 Clamps are made from extruded high strength aluminum alloy and can be taped easily. Additionally, they have a minimum bulk, which results in a neat appearance. AFL NO. GROOVE SIZE* – SIDE 1 – GROOVE SIZE* – SIDE 2 – NUMBER OF BOLTS BOLT SIZE (in) TORQUE (ft / lbs) NOMINAL WEIGHT (lb) (Kg) 481.0 1 0 2 3/8" 15 0.3 .14 481.1 1 1 2 3/8" 15 0.3 .14 482.1 2 1 2 1/2" 25 0.6 .27 482.2 2 2 3 1/2" 25 1.1 .50 483.2 3 2 2 5/8" 40 1.8 .82 483.3 3 3 3 5/8" 40 2.8 1.27 AFL NO. GROOVE SIZE* – RUN 1 – GROOVE SIZE* – TAP 2 – BOLT SIZE (in) TORQUE (ft / lbs) NOMINAL WEIGHT (lb) (Kg) 490.0 0 0 5/16" 10 .060 .03 395.5 5 5 3/8" 15 .092 .04 396.6 6 6 3/8" 15 .129 .06 392.6 2 6 1/2" 25 .316 .14 393.6 3 6 5/8" 40 .642 .29 * Groove size designation on following page. * Groove size designation on following page.
545 Clamps and Connectors Clamps and Connectors © 2012, AFL, all rights reserved. PP-3-00757, Revision 5, 10.3.2023 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 U-Bolt Clamps (Series 580) Catalog 580 Series U-Bolt Clamps are heavy duty, high efficiency connectors with AFL full-capacity grooves. The U-Bolts are high strength aluminum alloy for excellent thermal expansion and corrosion resistance characteristics. AFL NO. GROOVE SIZE* – SIDE 1 – GROOVE SIZE* – SIDE 2 – NUMBER OF BOLTS BOLT SIZE (in) TORQUE (ft / lbs) NOMINAL WEIGHT (lb) (Kg) 581.1 1 1 1 3/8" 15 .3 .14 582.1 2 1 1 1/2" 25 .6 .27 582.2 2 2 2 1/2" 25 1.3 .59 583.1 3 1 1 5/8" 40 1.1 .50 583.2 3 2 2 5/8" 40 2.6 1.18 583.3 3 3 3 5/8" 40 3.9 1.77 584.1 4 1 1 5/8" 40 1.7 .77 584.2 4 2 2 5/8" 40 3.6 1.63 584.3 4 3 3 5/8" 40 5.8 2.63 584.4 4 4 3 5/8" 40 6.0 2.72 GROOVE SIZE GROOVE RANGE CONDUCTOR SIZE MIN MAX ACSR STRANDED ALUMINUM IN MM IN MM MIN MAX MIN MAX 0 .128 3.3 .325 8.3 6 6 ⁄ 1 2 7 ⁄ 1 8 & 8W 2 5 .128 3.3 .398 10.1 6 6 ⁄ 1 1/0 8 & 8W 1/0 6 .162 4.1 .464 11.8 6 6 ⁄ 1 2/ 0 6 ⁄ 1 6 3/0 1 .292 7.4 .502 12.8 2 6 ⁄ 1 3/0 2 3/0 7 .368 9.3 .593 15.1 1/0 4/0 1/0 266.8 MCM 2 .464 11.8 .743 18.9 3/0 397 18 ⁄ 1 3/0 400 MCM 3 .743 18.9 1.152 29.3 397 18 ⁄ 1 79 5 26 ⁄ 7 450 MCM 1,000 MCM 4 1.060 26.9 1.545 39.2 79 5 45 ⁄ 7 159 0 54 ⁄ 19 874.5 MCM 1,750 MCM NOTE: NEMA standard abbreviations for aluminum or copper: W = solid conductor, ACSR = aluminum conductor/steel reinforced Standard Groove Numbers Standard groove numbers are used for the complete range of clamps and connectors. These numbers are incorporated into the AFL part number itself.
© 2012, AFL, all rights reserved. PP-3-00757, Revision 5, 10.3.2023 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 546 Clamps and Connectors Clamps and Connectors Ordering Information S Blank = Aluminum Bolt S = Galvanized Bolt Bolt Type 39 Clamp Series 6 Groove 1 "Run" Size 6 Groove 2 "Tap" Size . P Fill and Wrap Blank = No Prefill P = Prefill with Alnox Compound and Polywrap W = Prefill with Alnox Compound and Paper Wrap EXAMPLE: S396.6P This part number orders: 390 Series Distribution Parallel Groove Clamp with a #6 groove on the run (1) side and a #6 groove on the tap (2) side, galvanized bolts and prefilled with Alnox Compound and a polywrap. NOTES: 1. To order Parallel Groove Clamps prefilled with Alnox Compound, add P or W suffix to part number. 2. The use of Alnox Compound liberally in grooves and on wire is recommended. Be sure conductors are clean. All conductors (new and old) should be thoroughly cleaned with a wire brush or emery cloth. 3. Extensive field experience and exposure tests show that if a suitable type joint compound is liberally applied over and around the contact area, copper-to-aluminum electric connections can be made satisfactorily with aluminum clamps without copper bushings. Alnox Compound is recommended. 4. Petroleum-free compound, Alnox UG, is available for pre-filled clamps. For Alnox UG, add “-UG” to end of part number. Ex: 396.6P-UG, 396.6W-UG The information below is provided to define the standard configurations available on the previous pages. NOTE: Bolt type and fill are the only ordering options available. 39 = 390 Series 49 = 490 Series 48 = 480 Series 0 = 0 5 = 5 6 = 6 1 = 1 2 = 2 3 = 3 4 = 4 0 = 0 5 = 5 6 = 6 1 = 1 7 = 7 2 = 2 3 = 3 4 = 4 Universal Groove Clamps (cont.)
Caractéristiques :
- La lèvre allongée aligne le collier lorsque le boulon est serré. La section de la base de la pince forme un écran contre les intempéries pour les rainures. Le composé reste en place, les connexions durent plus longtemps.
- Les boulons sont fabriqués en alliage d'aluminium à haute résistance et maintiennent une pression de contact élevée pendant les cycles de chauffage et de refroidissement.
- La méthode de serrage par rotation pour les colliers 396.6, 395.5 et 490.0 permet un serrage précis. Serrez l'assemblage à la main et serrez l'indicateur de boulon à la clé de 1-1/4 tour.
- Les colliers extrudés peuvent être appliqués "à chaud" sans les démonter. Il n'est pas nécessaire de perdre des écrous ou des rondelles ou de chercher des pièces détachées.
