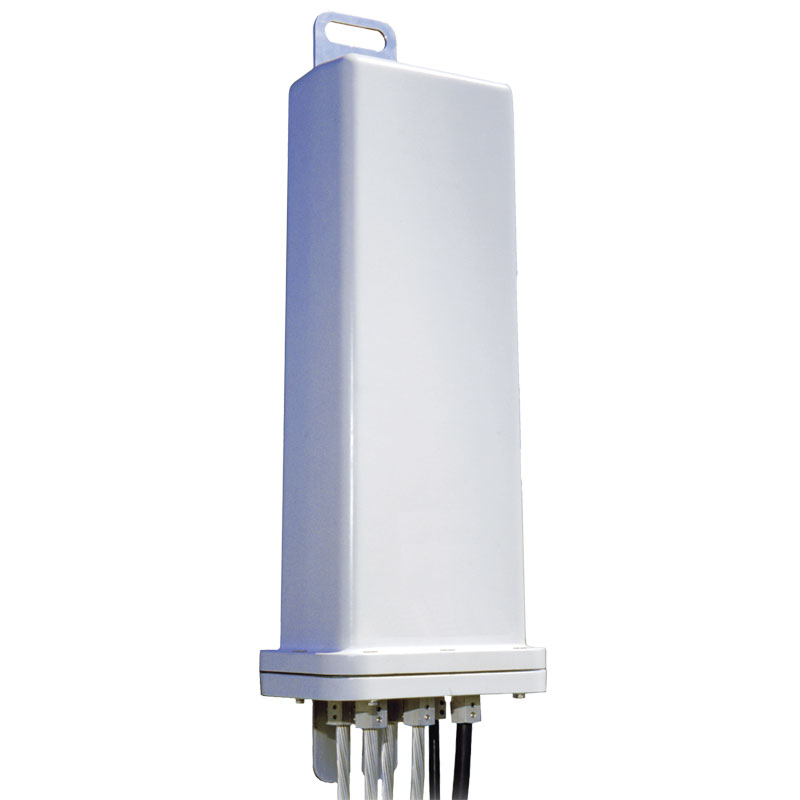

1 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 1999, AFL, all rights reserved. PP-3-00051, Revision 11, 9.13.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 The Opti-Guard Splice Enclosure from AFL offers an impressive spectrum of features which makes it the best selection for your splice protection needs. Its unique and flexible design was created with the "real-world" technician in mind. The Opti-Guard combines optimized system performance with unparalleled ease of use. It is resistant to water, ultraviolet rays, temperature and ballistics. Opti-Guard installs easily without messy tapes or adhesives. It provides the flexibility needed to handle the most demanding installation scenarios. Opti-Guard Splice Enclosure Ordering Information DESCRIPTION MODEL AFL NO. Supplied without Splice Trays or Cable Connectors. These items ordered separately Opti-Guard Splice Enclosure OG03 Capacity of up to 72 single fusion splices per tray Opti-Guard Splice Tray OGST01-72 Capacity of up to 96 single fusion splices per tray Opti-Guard Splice Tray OGST01-96 60 mm, Fujikura FP3 (standard) 40 mm, Fujikura FP3-40 (special applications only) Sold in packs of ten (not included with splice trays) Splice Protection Sleeves SPS60 SPS40 Ballistic shield for Opti-Guard Splice Enclosure Opti-Guard Bullet Guard OGBGS-01 Order one kit for each stainless steel tube Opti-Guard Fiber Routing Kit OGFKO1 Used for Optical Ground Wire Connector Kit SLCK, SCK, APCK Used for All-Dielectric Self-Supporting (ADSS) Cable and Loose Tube Cable Connector Kit BCK Used to store extra length of optical ground wire cable External Coil Bracket CB-44-3AL NOTE: Refer to page on Connector Kit for AFL number set-up. Features • Accomodates up to 672 single fusion splices • Craft friendly design requires no specialized tools to install and minimizes required training • Easy to maintain and re-enter; no re-entry kit required • Unit is lightweight and mounts to many types of structures • May be bolted or banded; no special adapters needed • Specially designed non-metallic housing • Environmentally sealed to protect fibers • Accepts up to six individual cables • Accommodates most cable types in most environments • Versatile cable tie-off system resists up to 100 pounds of tension per cable continued © 1999, AFL, all rights reserved. PP-3-00051, Revision 11, 9.13.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Fiber Optic Cable Hardware Fiber Optic Cable Hardware continued 1.25” (31.8 MM) MAX. BAND WIDTH OPTIONAL BAND MOUNTING PRESSURIZING VALVE 9.00” (31.8 MM) TWO 5/8” BOLTS ON 35.75” (908 MM) CENTERS 38.00” (965MM) 40.00” (1,016 MM) APPROX. 12.50” (318 MM) 14.69” (373 MM) Opti-Guard Splice Enclosure CONNECTOR KITS DRAWER CASING PROTECTIVE DRAWER COVER (SOLD SEPARATELY) Exploded View Mounting Details and Options 3 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 1999, AFL, all rights reserved. PP-3-00051, Revision 11, 9.13.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Connector Kits for Opti-Guard and SB01 Splice Enclosures—OPGW Cable Optical Ground Wire Connector Kit OPGW Connector Kit Cable Type SLCK = Slotted Core SCK = MiniCore, HexaCore or PentaCore APCK = CentraCore, AlumaCore Ordering Example: For 0.571" diameter SX-67/49/571, which has a layer 1 total diameter of 0.358", the AFL number is SCKB569/583. ZZZZ Y XXX/XXX Connector Kit: Optical Ground Wire Inner Layer Range Code in Decimal Inches (see Table 1) Cable Diameter Range Code in Decimal Inches (see Table 2) Table 2 – Cable Diameter Range Codes RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 225/240 0.225 0.240 241/255 0.241 0.255 256/271 0.256 0.271 272/286 0.272 0.286 287/302 0.287 0.302 303/318 0.303 0.318 319/333 0.319 0.333 334/349 0.334 0.349 350/365 0.350 0.365 366/380 0.366 0.380 381/396 0.381 0.396 397/412 0.397 0.412 413/427 0.413 0.427 428/443 0.428 0.443 444/459 0.444 0.459 460/474 0.460 0.474 475/490 0.475 0.490 RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 491/506 0.491 0.506 507/521 0.507 0.521 522/537 0.522 0.537 538/553 0.538 0.553 554/568 0.554 0.568 569/583 0.569 0.583 584/599 0.584 0.599 600/615 0.600 0.615 616/630 0.616 0.630 631/646 0.631 0.646 647/662 0.647 0.662 663/677 0.663 0.677 678/693 0.678 0.693 694/708 0.694 0.708 709/727 0.709 0.727 728/740 0.728 0.740 Table 1 – Inner Layer Range Codes RANGE CODE SLOTTED CORE DIAMETER MINICORE, HEXACORE OR PENTACORE LAYER 1 DIAMETER C ENTRACORE OR ALUMACORE PIPE DIAMETER A 0.185 - 0.227 0.000 - 0.230 0.185 - 0.227 B 0.228 - 0.264 0.231 - 0.500 0.228 - 0.264 C 0.265 - 0.300 0.501 - 0.636 0.265 - 0.300 D 0.301 - 0.374 — 0.301 - 0.374 E 0.375 - 0.479 — 0.375 - 0.479 F 0.480 - 0.550 — 0.480 - 0.550 G 0.551 - 0.630 — 0.551 - 0.630 H 0.631 - 0.700 — 0.631 - 0.700 © 1999, AFL, all rights reserved. PP-3-00051, Revision 11, 9.13.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 4 Fiber Optic Cable Hardware Fiber Optic Cable Hardware continued Armored Loose Tube Connector Kit All-Dielectric Self-Supporting Connector Kit Connector Kits for Opti-Guard and SB01 Splice Enclosures— Black Jacket Cable Black Jacket Cable Connector Kit Ordering Example: For 0.528" diameter ADSS, the AFL number is BCK522/537. BCK Connector Kit: All-Dielectric Self-Supporting Fiber Optic Cable Range Code in Decimal Inches (see Table 1 below) Table 1 RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 225/240 0.225 0.240 241/255 0.241 0.255 256/271 0.256 0.271 272/286 0.272 0.286 287/302 0.287 0.302 303/318 0.303 0.318 319/333 0.319 0.333 334/349 0.334 0.349 350/365 0.350 0.365 366/380 0.366 0.380 381/396 0.381 0.396 397/412 0.397 0.412 413/427 0.413 0.427 428/443 0.428 0.443 444/459 0.444 0.459 460/474 0.460 0.474 475/490 0.475 0.490 RANGE CODE CABLE DIAMETER RANGE MIN. MAX. 491/506 0.491 0.506 507/521 0.507 0.521 522/537 0.522 0.537 538/553 0.538 0.553 554/568 0.554 0.568 569/583 0.569 0.583 584/599 0.584 0.599 600/615 0.600 0.615 616/630 0.616 0.630 631/646 0.631 0.646 647/662 0.647 0.662 663/677 0.663 0.677 678/693 0.678 0.693 694/708 0.694 0.708 709/727 0.709 0.727 728/740 0.728 0.740 F Blank = No Additional Connector Assembly Required F = 1 " Flex Conduit Connector Required Ordering Example: For 0.510" armored loose tube (duct) cable with flexible conduit and armor ground connections, the AFL number is BCK507/521B. Connector Kit: Loose Tube Fiber Optic Cable Black Jacket Cable Connector Kit BCK XXX/XXX Range Code in Decimal Inches (see Table 1 below) B Options Blank = No Additional Connector Assembly Required F = 1" Flexible Conduit Connector Required A = Armor Ground Assembly Required B = Armor Ground Assembly and 1" Flexible Conduit Connector Required XXX/XXX 5 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 1999, AFL, all rights reserved. PP-3-00051, Revision 11, 9.13.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Opti-Guard Splice Tray Opti-Guard Bullet Guard Opti-Guard Fiber Routing Kit Opti-Guard Bullet Guard Opti-Guard Fiber Routing Kit The Opti-Guard Bullet Guard is designed to supplement the ballistic resistance of the Opti-Guard Splice Enclosure. The Opti-Guard Splice Tray is specifically designed to be used with the Opti-Guard Splice Enclosure. The Opti-Guard Fiber Routing Kit provides all of the materials to properly route fibers from a stainless steel tube to the OGST01-72 splice tray inside the Opti-Guard splice enclosure. Ordering Information MODEL AFL NO. Opti-Guard Bullet Guard OGBGS-01 Ordering Information MODEL AFL NO. Opti-Guard Splice Tray (72 fiber) OGST01-72 Opti-Guard Splice Tray (96 fiber) OGST01-96 60 mm Splice Protection Sleeve SPS60 40 mm Splice Protection Sleeve SPS40 Ordering Information MODEL AFL NO. Opti-Guard Fiber Routing Kit OGFK01 NOTE: Order one kit for each stainless steel tube. Features • Can be retrofitted onto existing installations without disturbing cables • Only a standard flat-blade screwdriver required for installation Features • 72 or 96 fiber splice capacity • Manifolds are easily removed for lower fiber counts • Clear cover for easy fiber identification Features • Primary transition tubing leads fiber from stainless steel tube to splice tray • Heat Shrink tubing guides fibers as they exit the stainless steel tube • Cable ties provided to secure tubing to the tray and the end of the stainless steel tube Opti-Guard Splice Tray
