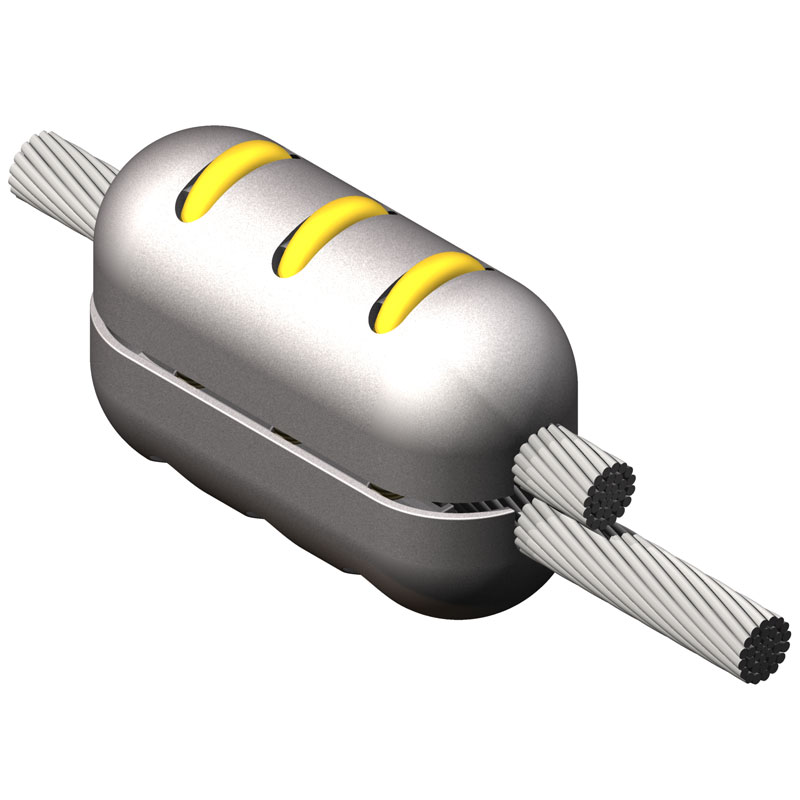

581 345/500 kV Aluminum Parallel Camps © 2011, AFL, all rights reserved. PP-3-00393, Revision 6, 3.24.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 345/500 kV Aluminum Parallel Clamps Ordering Information CATALOG NUMBER CONDUCTOR TYPE CABLE RANGE RUN CABLE RANGE TAP DIMENSIONS IN INCHES BOLT SIZE NO. OF BOLTS MIN MAX MIN MAX L H W PC80-80-V-AA AAC 795 MCM 800 MCM 795 MCM 800 MCM 7 1/4 3 1/4 3 3/4 1/2 3 ACSR 715.5 (24/7) 795 (36/1) 715.5 (24/7) 795 (36/1) PC103-103-V-AA AAC 900 MCM 1033.5 MCM 900 MCM 1033.5 MCM 7 1/4 3 1/4 4 1/2 3 ACSR 795 (36,1) 954 (54,7) 795 (36,1) 954 (54,7) PC127-103-V-AA AAC 1113 MCM 1113 MCM 1000 MCM 1033.5 MCM 7 1/4 3 1/4 4 1/4 1/2 3 ACSR 1113 (54/19) 1113 (54/19) 954 (54,7) 954 (54,7) PC127-127-V-AA AAC 1113 MCM 1272 MCM 1113 MCM 1272 MCM 7 1/4 3 1/4 4 3/8 1/2 3 ACSR 1113 (45/7) 1113 (54/19) 1113 (45/7) 1113 (54/19) PC130-80-V-AA AAC 1272 MCM 1351.5 MCM 795 MCM 800 MCM 7 1/4 3 1/4 4 1/8 1/2 3 PC130-130-V-AA AAC 1272 MCM 1351.5 MCM 1272 MCM 1351.5 MCM 7 1/4 3 1/4 4 3/8 1/2 3 PC160-160-V-AA AAC 1590 MCM 1600 MCM 1590 MCM 1600 MCM 8 3/4 3 1/2 4 3/4 5/8 3 ACSR 1431 (54/19) 1510.5 (45/7) 1431 (54/19) 1510.5 (45/7) PC180-103-V-AA AAC 1700 MCM 1800 MCM 900 MCM 1033.5 MCM 7 1/4 3 1/4 4 7/16 1/2 3 ACSR 1590 (45/7) 1590 (54/19) 795 (36/1) 954 (54/7) PC180-127-V-AA AAC 1700 MCM 1800 MCM 1113 MCM 1272 MCM 7 1/4 3 1/4 4 19/32 1/2 3 ACSR 1590 (45/7) 1590 (54/19) 1113 (45/7) 1113 (54/19) PC205-65-V-AA AAC — 2000 MCM 600 MCM 650 MCM 7 1/4 3 3/8 4 3/8 1/2 3 ACSR 1780 (84/19) 2034.5 (72/7) 477 (26/7) 556.5 (27/7) PC205-205-V-AA AAC — 2000 MCM — 2000 MCM 8 3/4 3 1/2 5 5/8 3 ACSR 1780 (84/19) 2034.5 (72/7) 1780 (84/19) 2034.5 (72/7) PC216A-216A-V-AA AAC 2250 MCM 2500 MCM 2250 MCM 2500 MCM 11 4 5 1/2 5/8 4 ACSR 2156 (84/19) 2167 (72/7) 2156 (84/19) 2167 (72/7) Bolted parallel groove clamp is designed to have better corona characteristics than the conductors on which it is installed. Designed for 500 kV service. TYPE PC-V-AA Parallel Groove Clamp Material Aluminum Alloy Hardware Aluminum nuts, bolts and lockwashers. W H L RUN TAP © 2011, AFL, all rights reserved. PP-3-00393, Revision 6, 3.24.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 582 345/500 kV Aluminum Parallel Clamps 345/500 kV Aluminum Parallel Camps Ordering Information (cont.) CATALOG NUMBER CONDUCTOR TYPE CABLE RANGE RUN CABLE RANGE TAP DIMENSIONS IN INCHES BOLT SIZE NO. OF BOLTS MIN MAX MIN MAX L H W PC275-275-V-AA AAC — 2750 MCM — 2750 MCM 11 4 1/8 5 5/8 5/8 4 ACSR — 2515 (76/19) — 2515 (76/19) PC350-80-V-AA AAC — 3500 MCM 795 MCM 800 MCM 7 1/4 3 13/16 4 11/16 5/8 3 ACSR — — 715.5 (24/7) 795 (36/1) PC350-127-V-AA AAC — 3500 MCM 1113 MCM 1272 MCM 11 4 1/2 4 1/8 5/8 4 ACSR — — 1113 (45/7) 1113 (54/19) TYPE PC-V-AA Parallel Groove Clamp 583 © 2011, AFL, all rights reserved. PP-3-00195, Revision 0, 3.4.11 Specications are subject to change without notice. 345/500 kV Parallel Clamps www.AFLglobal.com or 800-890-8878 345/500 kV Parallel Clamps Ordering Information CATALOG NUMBER CONDUCTOR DIAMETER DIMENSIONS IN INCHES NO. OF BOLTS NOMINAL WEIGHT LBS L W H 35626 EHV 1.162 9.75 4.00 6.38 3 9.4 35627 EHV 1.569 11.75 5.00 6.94 3 14.5 35628 EHV 1.757 14.75 5.00 7.16 4 17.4 Bolted parallel groove clamp designed to have better corona characteristics than the conductors on which it is installed. TYPE 35600-EHV Parallel Groove Clamp Material Aluminum Alloy Hardware Yellow anodized aluminum nuts, U-bolts and lockwashers. W H L
