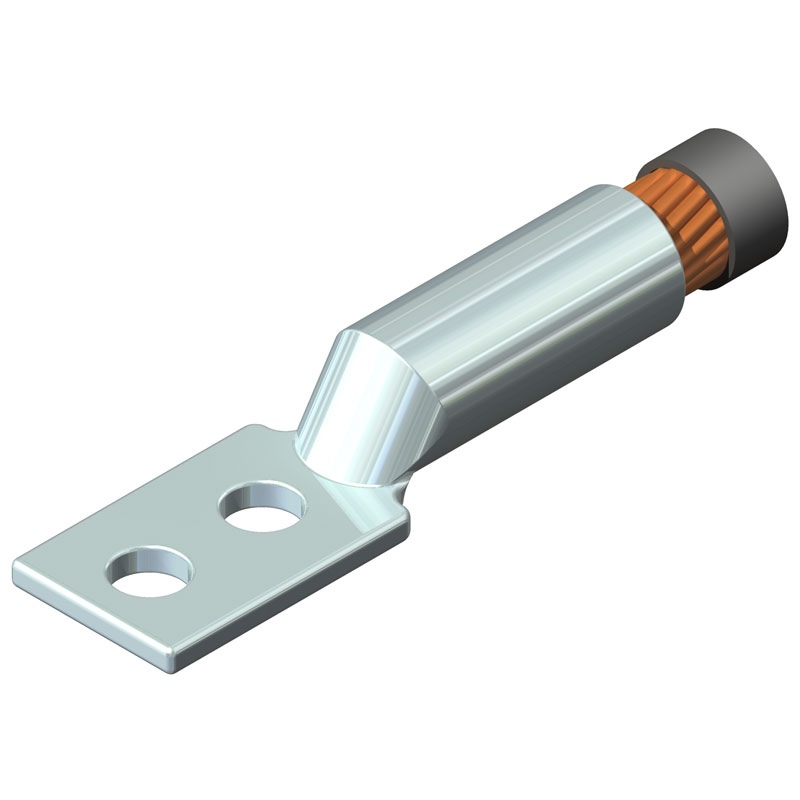

Une cosse à compression de précision pour une gamme complète de tailles de conducteurs avec des cosses à 1, 2 et 4 trous dans les grandes tailles.
e520e1308f3c4559a79cbdf2a1f5869f
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00084, Revision 2, 11.26.2025 Specifications are subject to change without notice. 1 Network Underground A precision made compression terminal lug for a full range of conductor sizes with 1, 2, and 4 hole pads in the larger sizes. Made of tin coated pure copper with a minimum conductivity of 98% I.A.C.S. Conductor is secured by identifying the barrel with any standard compression tool made for electrical lugs. Type DPL Compression Terminal Lug Ordering Information Catalog Number Cable Size D Screw Size No. of Holes in Pad No. of Indents B/B1 Dimensions in inches A B C L T X Y & Z DPL1-1 #8 STR #10 1 1 11/32 7/16 1/2 1 1/8 5/64 7/32 - DPL2-1 #6 STR 1/4 1 1 11/32 1 1/8 1/2 1 13/16 3/32 1/4 - DPL2-2 #6 STR 1/4 2 1 11/32 1 1/8 1 3/16 2 1/2 3/32 1/4 5/8 DPL4-1 #4 STR 1/4 1 1 1/2 1 1/8 1/2 1 13/16 3/32 1/4 - DPL4-2 #4 STR 1/4 2 1 1/2 1 1/8 1 3/16 2 1/2 3/32 1/4 5/8 DPL5-1 #3 STR 5/16 1 1 17/32 1 1/4 3/4 2 1/4 3/32 3/8 - DPL5-2 #3 STR 5/16 2 1 17/32 1 1/4 1 1/2 2 15/16 3/32 11/32 3/4 DPL6-1 #2 STR 5/16 1 1 19/32 1 1/4 3/4 2 1/4 7/64 3/8 - DPL6-2 #2 STR 5/16 2 1 19/32 1 1/4 1 1/2 2 15/16 7/64 11/32 3/4 DPL8-1 #1 STR 5/16 1 1 11/16 1 3/8 3/4 2 3/8 7/64 3/8 - DPL8-2 #1 STR 5/16 2 1 11/16 1 3/8 1 5/8 3 1/4 7/64 11/32 7/8 DPL10-1 1/0 STR 5/16 1 1 3/4 1 3/8 3/4 2 11/16 1/8 3/8 - DPL10-2 1/0 STR 5/16 2 1 3/4 1 3/8 1 5/8 3 7/16 1/8 11/32 7/8 DPL13-1 2/0 STR 3/8 1 1 13/16 1 1/2 7/8 2 13/16 1/8 7/16 - DPL13-2 2/0 STR 5/16 2 1 13/16 1 1/2 1 5/8 3 5/8 1/8 11/32 7/8 DPL17-1 3/0 STR 1/2 1 1 29/32 1 1/2 1 3 1/8 1/2 - DPL17-2 3/0 STR 3/8 2 1 29/32 1 1/2 1 13/16 3 13/16 1/8 3/8 1 DPL21-1 4/0 STR 1/2 1 1 1 1 5/8 1 3 3/16 9/64 1/2 - DPL21-2 4/0 STR 3/8 2 1 1 1 5/8 1 13/16 3 15/16 9/64 3/8 1 DPL25-1 250 MCM 1/2 1 1 1 3/32 1 5/8 1 1/8 3 9/16 5/32 9/16 - DPL25-2 250 MCM 3/8 2 1 1 3/32 1 5/8 1 7/8 4 5/16 5/32 3/8 1 1/16 DPL30-1 300 MCM 1/2 1 2 1 3/16 2 1 1/8 3 9/16 5/32 9/16 - DPL30-2 300 MCM 3/8 2 2 1 3/16 2 1 7/8 4 5/16 5/32 3/8 1 1/16 DPL35-1 350 MCM 1/2 1 2 1 9/32 2 1 1/8 3 9/16 3/16 9/16 - DPL35-2 350 MCM 3/8 2 2 1 9/32 2 1 7/8 4 5/16 3/16 3/8 1 1/16 C L Y X A B T Y X A Z A AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
2 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00084, Revision 2, 11.26.2025 Specifications are subject to change without notice. 2 Network Underground Type DPL Compression Terminal Lug Catalog Number Cable Size D Screw Size No. of Holes in Pad No. of Indents B/B1 Dimensions in inches A B C L T X Y & Z DPL40-1 400 MCM 5/8 1 2 1 13/32 2 1/8 1 1/2 4 1/4 3/16 3/4 - DPL40-2 400 MCM 3/8 2 2 1 13/32 2 1/8 2 4 3/4 3/16 7/16 1 1/16 DPL 50-1 500 MCM 5/8 1 2 1 17/32 2 1/4 1 1/2 4 3/8 1/4 3/4 - DPL 50-2 500 MCM 3/8 2 2 1 17/32 2 1/4 2 4 7/8 1/4 7/16 1 1/16 DPL 55-1 550 MCM 5/8 1 2 1 5/8 2 5/8 1 5/8 4 15/16 1/4 13/16 - DPL 55-2 550 MCM 3/8 2 2 1 5/8 2 5/8 2 1/16 5 3/8 1/4 7/16 1 1/8 DPL 60-1 600 MCM 5/8 1 2 1 3/4 2 11/16 1 3/4 5 1/8 9/32 7/8 - DPL 60-2 600 MCM 3/8 2 2 1 3/4 2 11/16 2 1/16 5 7/16 9/32 7/16 1 1/8 DPL 65-1 650 MCM 5/8 1 2 1 25/32 2 13/16 1 3/4 5 5/16 9/32 7/8 - DPL 65-2 650 MCM 3/8 2 2 1 25/32 2 13/16 2 3/16 5 3/4 9/32 1/2 1 1/8 DPL 75-1 750 MCM 5/8 1 2 1 29/32 2 7/8 1 15/16 5 5/8 9/32 7/8 - DPL 75-2 750 MCM 3/8 2 2 1 29/32 2 7/8 2 3/16 5 7/8 9/32 1/2 1 1/8 DPL 80-1 800 MCM 5/8 1 2 1 31/32 2 15/16 1 15/16 5 11/16 5/16 15/16 - DPL 80-2 800 MCM 3/8 2 2 1 31/32 2 15/16 2 3/16 5 15/16 5/16 1/2 1 1/8 DPL 85-1 850 MCM 5/8 1 2 2 2 15/16 1 15/16 5 11/16 5/16 15/16 - DPL 85-2 850 MCM 3/8 2 2 2 2 15/16 2 3/16 5 15/16 5/16 1/2 1 1/8 DPL 85-2-S50 850 MCM 1/2 2 2 2 2 15/16 3 6 3/4 5/16 5/8 1 3/4 DPL 100-1 1000 MCM 5/8 1 2 2 3/16 3 2 1/8 6 11/32 15/16 - DPL 100-2 1000 MCM 1/2 2 2 2 3/16 3 2 7/16 6 5/16 11/32 9/16 1 1/4 DPL 100-2-S50 1000 MCM 1/2 2 2 2 3/16 3 3 6 7/8 11/32 5/8 1 3/4 DPL 100-4 1000 MCM 3/8 4 2 2 3/16 3 2 3/16 6 1/16 11/32 1/2 1 1/8 DPL 125-1 1250 MCM 3/4 1 2 2 13/32 3 3/16 2 1/8 6 3/8 3/8 1 1/16 - DPL 125-2 1250 MCM 1/2 2 2 2 13/32 3 3/16 2 5/8 6 7/8 3/8 9/16 1 3/8 DPL 125-2-S50 1250 MCM 1/2 2 2 2 13/32 3 3/16 3 7 1/4 3/8 5/8 1 3/4 DPL 125-4 1250 MCM 1/2 4 2 2 13/32 3 3/16 2 5/8 6 7/8 3/8 9/16 1 3/8 DPL 130-1 1300 MCM 3/4 1 2 2 17/32 3 3/16 2 1/8 6 1/2 13/32 1 1/16 - DPL 130-2 1300 MCM 1/2 2 2 2 17/32 3 3/16 2 5/8 7 13/32 9/16 1 3/8 DPL 130-2-S50 1300 MCM 1/2 2 2 2 17/32 3 3/16 3 7 3/8 13/32 5/8 1 3/4 DPL 150-1 1500 MCM 3/4 1 2 2 11/16 3 3/16 2 5/8 6 11/16 13/32 1 1/8 - DPL 150-2 1500 MCM 1/2 2 2 2 11/16 3 3/16 2 1/4 7 1/16 13/32 9/16 1 3/8 DPL 150-2-S50 1500 MCM 1/2 2 2 2 11/16 3 3/16 3 7 1/16 13/32 5/8 1 3/4 DPL 150-4 1500 MCM 1/2 4 2 2 11/16 3 3/16 2 5/8 7 1/16 13/32 9/16 1 3/8 DPL 175-1 1750 MCM 3/4 1 2 2 7/8 3 7/16 2 1/4 7 1/4 7/16 1 1/8 - DPL 175-2 1750 MCM 1/2 2 2 2 7/8 3 7/16 2 3/4 7 3/4 7/16 9/16 1 1/2 DPL 175-2-S50 1750 MCM 1/2 2 2 2 7/8 3 7/16 3 8 7/16 5/8 1 3/4 DPL 175-4 1750 MCM 1/2 4 2 2 7/8 3 7/16 2 3/4 7 3/4 7/16 9/16 1 1/2 DPL 200-1 2000 MCM 3/4 1 2 3 3/32 3 7/16 2 3/8 7 7/16 15/32 13/16 - DPL 200-2 2000 MCM 1/2 2 2 3 3/32 3 7/16 2 3/4 7 13/16 15/32 9/16 1 1/2 DPL 200-2-S50 2000 MCM 1/2 2 2 3 3/32 3 7/16 3 8 1/16 15/32 5/8 1 3/4 DPL 200-4 2000 MCM 1/2 4 2 3 3/32 3 7/16 2 3/4 7 13/16 15/32 9/16 1 1/2
Une cosse à compression de précision pour une gamme complète de tailles de conducteurs avec des cosses à 1, 2 et 4 trous dans les grandes tailles. Fabriqué en cuivre pur étamé avec une conductivité minimale de 98% I.A.C.S. Le conducteur est fixé en identifiant le barillet avec n'importe quel outil de compression standard conçu pour les cosses électriques.
