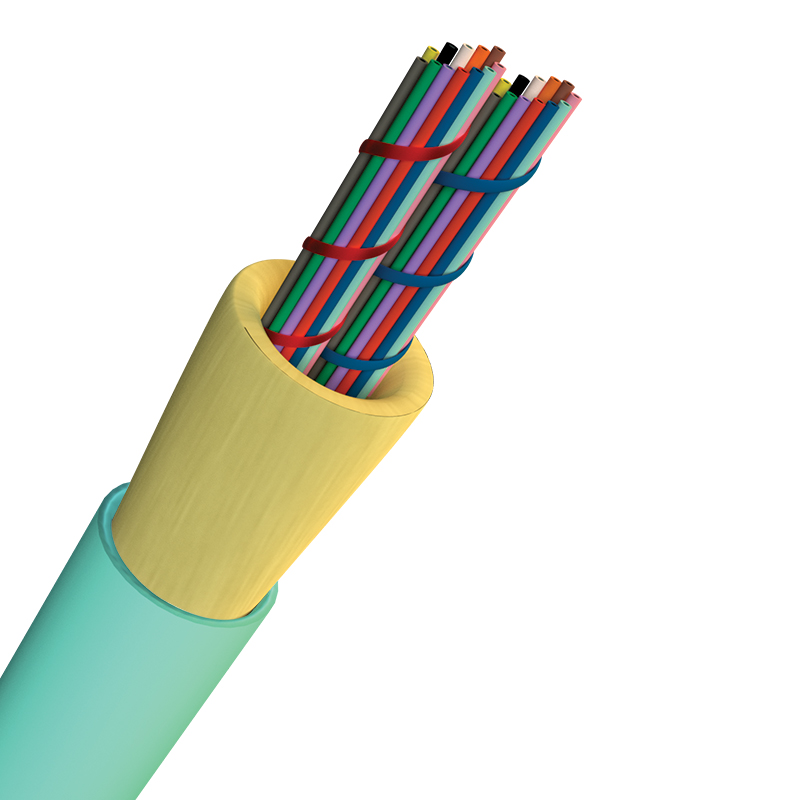

Les câbles Interconnect Premise MicroCore sont conçus pour les terminaisons MTP et répondent aux normes d'interconnexion de Telcordia® GR-409.
c154802f01ef4a4bac5d674b31340fc8,d0ee23e16b6a4bb588c767aff4766515
1 FIBER OPTIC CABLE © 2017, AFL, all rights reserved. PP-1-00140, Revision 3, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Applications • Building Interconnections • Data Centers and Central Offices • Anywhere MTP connections can be used • High-density Interconnects • 40 Gbit and 100 Gbit Ethernet Architecture Features • 8 to 72 fibers • 2.0 mm or 3.0 mm Outer Diameter for Round Boot 12-fiber MTP Cables • 3.0 mm or 3.8 mm Outer Diameter for Round Boot 24-fiber MTP Cables • 4.0 mm Outer Diameter for Round Boot 48-count MTP Cables Fiber Optic Cable continued Interconnect Premise MicroCore ® Cable Interconnect Premise MicroCore cables are designed for MTP terminations and meet the interconnect standards of Telcordia ® GR-409. To minimize the cable’s diameter, multiple colored 250 μm fibers and aramid strands are packaged in a PVC or LSZH jacket. Simplex and Zipcord designs are available in a variety of fiber counts. coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket 12 Fiber Simplex 24 Fiber Zipcord (3.0 mm only) coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket 24 Fiber Simplex coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket Cable Components 48 Fiber Simplex coated fiber aramid yarn outer jacket aramid yarn coated fiber outer jacket string binder aramid yarn SWR bundles outer jacket Fiber Specifications CORE SIZE/FIBER TYPE ISO/IEC MAXIMUM ATTENUATION ( dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) EMB c (MHz•km) GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 *Other fiber types available (All ITU G.657 grade SMF available)
© 2017, AFL, all rights reserved. PP-1-00140, Revision 3, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Contact AFL for cable designs. Qualifications GOVERNING BODY STANDARD CODE NFPA 262 IEC 60332 IEC 60754 IEC 61034 Telcordia GR-409-CORE RoHS Compliant to 2002/95/EC Temperature Specifications TEMPERATURE RANGE OPERATION 0°C to +70°C STORAGE -40°C to +75°C INSTALLATION 0°C to +70°C Interconnect Premise MicroCore ® Cable Mechanical Data CABLE TYPE PLENUM LSZH FIBER COUNT NOMINAL DIAMETER WEIGHT TENSION lbs (N) BENDING RADIUS inches (cm) AFL NO. inches (mm) lbs/1000 ft (kg/km ) INSTALLATION LONG TERM INSTALLATION LONG TERM SP/ZP SE/ZE SINGLE SMALL FORM SP008 201 # 0B SE008 201 # 0B 8 0.08 (2.0) 2.6 (4.0) 22 (98) 7 (30) 1.2 (3.0) 0.8 (2.0) SP012 201 # 0B SE012 201 # 0B 12 0.08 (2.0) 2.6 (4.0) 22 (98) 7 (30) 1.2 (3.0) 0.8 (2.0) SP016 301 # 0B SE016 301 # 0B 16 0.12 (3.0) 5.3 (7.9) 22 (98) 7 (30) 1.8 (4.5) 1.2 (3.0) SP024 301 # 0B SE024 301 # 0B 24 0.12 (3.0) 5.3 (7.9) 22 (98) 7 (30) 1.8 (4.5) 1.2 (3.0) SP032 381 # 0B SE032 381 # 0B 32 0.15 (3.8) 9.4 (14.0) 22 (98) 7 (30) 2.2 (5.7) 1.5 (3.8) SP048 381 # 0B SE048 381 # 0B 48 0.15 (3.8) 9.4 (14.0) 22 (98) 7 (30) 2.2 (5.7) 1.5 (3.8) SIMPLEX SP008 301 # 0B SE008 301 # 0B 8 0.12 (3.0) 5.3 (7.9) 50 (220) 17 (75) 1.8 (4.5) 1.2 (3.0) SP012 301 # 0B SE012 301 # 0B 12 0.12 (3.0) 5.3 (7.9) 50 (220) 17 (75) 1.8 (4.5) 1.2 (3.0) SP024 381 # 0B SE024 381 # 0B 24 0.15 (3.8) 10.1 (15.0) 75 (330) 25 (110) 2.2 (5.7) 1.5 (3.8) SP048 401 # 0B SE048 401 # 0B 48 0.16 (4.0) 9.4 (14.0) 50 (220) 17 (75) 2.4 (6.0) 1.6 (4.0) SP048 481 # 0B SE048 481 # 0B 48 0.19 (4.8) 14.1 (21.0) 75 (330) 25 (110) 2.8 (7.2) 1.9 (4.8) SP064 451 # 0B SE064 451 # 0B 64 0.18 (4.5) 13.4 (20.0) 50 (220) 17 (75) 2.7 (6.8) 1.8 (4.5) SP072 481 # 0B SE072 481 # 0B 72 0.19 (4.8) 16.1 (24.0) 50 (220) 17 (75) 2.8 (7.2) 1.9 (4.8) ZIPCORD ZP024 301 # 0B ZE024 301 # 0B 24 0.12 (3.0) 12.4 (18.4) 100 (445) 33 (147) 1.8 (4.5) 1.2 (3.0) Fiber Types – Replace diamond ( ) in AFL No. with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag ( # ) in AFL No. with number in the Cable Jacket Color table below. 16 unique colors available for fibers in 16 fiber subunit: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Olive, Magenta, Tan, Lime. Cable Jacket Color Options 1 - Blue 8 - Black 2 - Orange (OM1 and OM2) 9 - Yellow (SM) 3 - Green A- Violet 4 - Brown B - Rose 5 - Slate C - Aqua (OM3 and OM4) 6 - White K - Erika Violet (OM4) 7 - Red L - Lime (Pending for OM5)
Caractéristiques :
- 8 à 72 fibres
- Diamètre extérieur de 2,0 mm ou 3,0 mm pour les câbles MTP 12 fibres à patte ronde
- Diamètre extérieur de 3,0 mm ou 3,8 mm pour les câbles MTP à 24 fibres à patte ronde
- Diamètre extérieur de 4,0 mm pour les câbles MTP à 48 fibres à embout rond
- LSZH,PLENUM, RISER
- SE, SP, SR
Les applications:
- Construction d'interconnexions
- Centres de données et bureaux centraux
- Partout où des connexions MTP peuvent être utilisées
- Interconnexions à haute densité
- Architecture Ethernet 40 Gbit et 100 Gbit
Les câbles Interconnect Premise MicroCore sont conçus pour les terminaisons MTP et répondent aux normes d'interconnexion de Telcordia® GR-409. Pour minimiser le diamètre du câble’, des fibres et des brins d'aramide multicolores de 250 μm sont emballés dans une gaine en PVC ou en LSZH haute performance. Des nombres de fibres allant de 8 à 72 fibres sont disponibles. Les modèles Simplex et Zipcord sont tous deux disponibles.
