Le Ultra HD MicroCore est le dernier développement de la famille de câbles MicroCore d'AFL qui utilise la technologie SpiderWeb Ribbon® (SWR®).
c154802f01ef4a4bac5d674b31340fc8,d0ee23e16b6a4bb588c767aff4766515

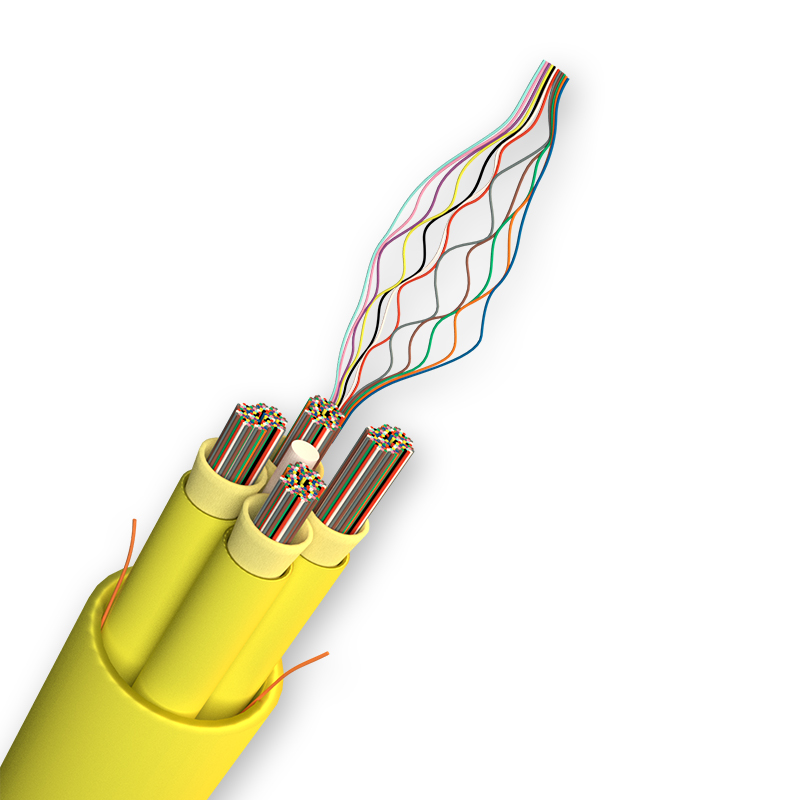

© 2023, AFL, all rights reserved. PP-1-00203, Revision 0, 8.1.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 FIBER OPTIC CABLE Fiber Optic Cable The Ultra HD MicroCore is the latest development in AFL’s sub-unitized MicroCore cable family that uses SpiderWeb Ribbon ® (SWR ® ) technology. Designed to support high fiber density deployments in data center and central office installation environments, the ultra HD sub-unit designs optimize splicing efficiency when interconnected with AFL’s Wrapping Tube Cable (WTC). With continued requirements for higher bandwidth, higher fiber density cabling products are critical to support that demand. Ultra HD MicroCore cable designs feature 72-fiber and 144-fiber sub-units that result in maximum fiber counts up to 864 and 1,728 respectively. The cable consists of an OFNR/ST1 flame-rated outer jacket with an installation tension rating of 150 lbs., qualified to meet and exceed the requirements of the latest Telcordia GR-409-CORE inside plant cabling requirements. Ultra HD MicroCore ® – CPR Certified Features • SpiderWeb Ribbon Collapsible ribbon reduces size of cable compared to other encapsulated or pliable ribbon technologies • LSZH OFNR Rating Can be routed within designated riser spaces within build structures • Small Diameter Because of the smaller diameter, more optical fibers can be placed into crowded or limited-space pathways SWR Technology 12F SWR Multiple 12F SWR subunits 72F OR 144F subunits depending on cable fiber count 432F (72F Subunits) 576F (144F Subunits) SWR bundle unit Strength member (FRP) Outer Sheath (FR-PVC) Ripcord SWR bundle unit Strength member (FRP) Outer Sheath (FR-PVC) Ripcord Cable Components continued A
© 2023, AFL, all rights reserved. PP-1-00203, Revision 0, 8.1.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Premise Cable Contact AFL for your Ultra HD MicroCore CPR Certified cable solution. Qualifications GOVERNING BODY STANDARD CODE COMPONENT UL 1666 Listed Riser ANSI/ICEA S-83-596 Fiber Telcordia GR-409-CORE Issue 2 Indoor Fiber Optic Cable CE CPR (see table above) Cable Temperature Specifications TEMPERATURE RANGE OPERATION 0ºC to +70ºC STORAGE -40ºC to +70ºC INSTALLATION 0ºC to +60ºC Ultra HD MicroCore ® – CPR Certified Fiber Specifications CORE SIZE/FIBER TYPE ISO/IEC MAXIMUM ATTENUATION (dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) EMBC (MHz•km) GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (P) AFL Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 Mechanical Data SINGLE-MODE CABLE TYPE AFL NO. FIBER COUNT NO. OF SUBS NO. OF FILLERS NOMINAL DIAMETER WEIGHT MAXIMUM TENSILE LOAD MINIMUM BEND RADIUS inches (mm) lbs/1,000 ft (kg/km) INSTALL lbs (N) LONG TERM lbs (N) INSTALL inches (mm) LONG TERM inches (mm) 72F Subunits GE144P50199R:T4C 144 2 2 0.591 (15.0) 125 (185) 150 (660) 45 (200) 8.86 (225) 5.91 (150) GE216P50199R:T4C 216 3 1 0.591 (15.0) 130 (195) 150 (660) 45 (200) 8.86 (225) 5.91 (150) GE288P50199R:T4C 288 4 0 0.591 (15.0) 135 (200) 150 (660) 45 (200) 8.86 (225) 5.91 (150) GE432P50199R:T6C 432 6 0 0.717 (18.2) 210 (300) 150 (660) 45 (200) 10.75 (273) 7.17 (182) GE864P50199R:TCC 864 12 0 0.925 (23.5) 320 (465) 150 (660) 45 (200) 13.88 (353) 9.25 (235) 144F Subunits GE288P60199R:U4C 288 2 2 0.689 (17.5) 165 (240) 150 (660) 45 (200) 10.33 (263) 6.89 (175) GE432P60199R:U4C 432 3 1 0.689 (17.5) 170 (250) 150 (660) 45 (200) 10.33 (263) 6.89 (175) GE576P60199R:U4C 576 4 0 0.689 (17.5) 175 (260) 150 (660) 45 (200) 10.33 (263) 6.89 (175) GE864P60199R:U6C 864 6 0 0.827 (21.0) 270 (395) 150 (660) 45 (200) 12.40 (315) 8.27 (210) GE1728P60199R:UCC 1728 12 0 1.094 (27.8) 430 (630) 150 (660) 45 (200) 16.42 (417) 10.94 (278) CPR Classifications CABLE TYPE AFL NO. CPR CLASSIFICATION 72F Subunits GE144P50199R:T4C-B2CA B2ca-s1b,d0,a1 GE216P50199R:T4C-B2CA B2ca-s1b,d0,a1 GE288P50199R:T4C-B2CA B2ca-s1b,d0,a1 GE432P50199R:T6C-B2CA B2ca-s1b,d0,a1 GE864P50199R:TCC-B2CA B2ca-s1b,d0,a1 144F Subunits GE288P60199R:U4C-B2CA B2ca-s1b,d1,a1 GE432P60199R:U4C-CCA Cca-s1,d1,a1 GE576P60199R:U4C-CCA Cca-s1,d1,a1 GE864P60199R:U6C-CCA Cca-s1,d1,a1 GE1728P60199R:UCC-B2CA B2ca-s1,d0,a1
Caractéristiques :
- Ruban SpiderWeb® (SWR®)
Le ruban pliable réduit la taille du câble par rapport aux autres technologies de ruban encapsulé ou pliable. - Cote OFNR pour les colonnes montantes
Peut être acheminé dans les colonnes montantes désignées dans les structures de construction. - Petit diamètre
En raison du plus petit diamètre, un plus grand nombre de fibres optiques peuvent être placées dans des voies de passage encombrées ou à espace limité.
