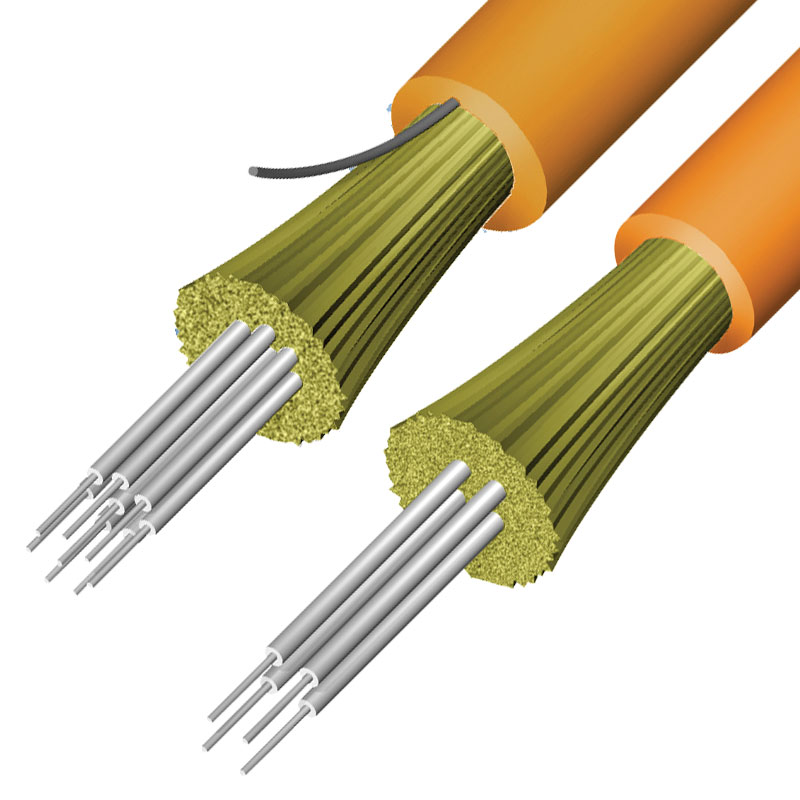

Les conceptions de câbles de locaux circulaires QUAD-Link et à une seule unité permettent une excellente densité d'emballage, une flexibilité et une facilité de routage.
7e10b7be9bcf46a6bf26e5cceac17524
1 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-1-00061, Revision 12, 2.19.2025 Specifications are subject to change without notice. Fiber Optic Cable 1 continued A Applications • Connectorized communications cables with both send-and-receive and send- and-receive backup in a single unit • Routing between communications closets and equipment rooms • Intrabuilding backbones Features • Fiber counts 4-24 • Buffered to 900 μm • Mixed fiber designs available Fiber Specifications Core Size/Fiber Type ISO/ IEC Maximum Attenuation (dB/km) Overfill Launch Min. Bandwidth (MHz•km) EMB c (MHz•km) Gigabit Ethernet Max. Link Distance (meters) 10 Gigabit Ethernet Max. Link Distance (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 QUAD-link and Circular Premise Cable QUAD-Link and single unit Circular Premise Cable designs allow for excellent packaging density, flexibility, and ease of routing. Buffered to 900 μm, these cables can be directly terminated into connectors in loaded panels or in communications closets. Cable Components
2 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-1-00061, Revision 12, 2.19.2025 Specifications are subject to change without notice. Fiber Optic Cable 2 Premise Cable Contact AFL for further details. Temperature Specifications Plenum Riser INSTALLATION 0ºC to +70ºC -20ºC to +70ºC OPERATING 0ºC to +70ºC -20ºC to +70ºC STORAGE -40ºC to +75ºC -40ºC to +75ºC Qualifications Governing Body Standard Code Telcordia GR-409-CORE EIA/TIA 568-A ICEA RoHS 2002/95/EC QUAD-link and Circular Premise Cable Mechanical Data Cable TYpe AFL NO. Fiber Count Nominal Diameter Weight Tension Bending Radius Riser Plenum lbs (N) inches (cm) Riser Plenum inches (mm) lbs/1000 ft (kg/km) lbs/1000 ft (kg/km) Installation Long Term Installation Long Term QUAD-Link UA004 481#01 UP004 481#01 4 0.19 (4.8) 17 (25) 20 (30) 100 (440) 30 (132) 3.0 (7.2) 2.0 (5.0) CPC CR006 441#01 CP006 441#01 6 0.17 (4.4) 12 (17) 13 (20) 100 (440) 30 (132) 3.0 (7.2) 2.0 (5.0) CR008 481#01 CP008 481#01 8 0.19 (4.8) 13 (19) 17 (25) 100 (440) 30 (132) 3.0 (7.2) 2.0 (5.0) CR012 551#01 CP012 551#01 12 0.22 (5.5) 17 (25) 20 (30) 100 (440) 30 (132) 3.5 (8.3) 2.5 (5.5) CR018 801#01 CP018 761#01 18 0.32 (8.0) 34 (50) 38 (56) 100 (440) 30 (132) 5.0 (12.0) 3.2 (8.0) CR024 841#01 CP024 841#01 24 0.33 (8.4) 41 (61) 46 (69) 150 (660) 45 (198) 5.5 (12.9) 3.5 (8.6) Fiber Types – Replace asterisk ( ) in AFL number with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Cable Jacket Color Options 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Rose 5 - Slate C - Aqua 6 - White K - Erika Violet (RAL 4003) 7 - Red
Caractéristiques :
- Nombre de fibres 4-24
- Tampon à 900 µm
- Conceptions de fibres mixtes disponibles
- Prefix: CE, CP, CR
Les applications:
- Câbles de communications connectées avec émission et réception et émission et réception de secours dans une seule unité.
- Acheminement entre les armoires de communication et les salles d'équipement
- Backbones intra-bâtiment
Les conceptions de câbles de locaux circulaires QUAD-Link et à une seule unité permettent une excellente densité d'emballage, une flexibilité et une facilité de routage.
Tamponnés à 900 µm, ces câbles peuvent être directement terminés par des connecteurs dans des panneaux chargés ou dans des armoires de communication.
