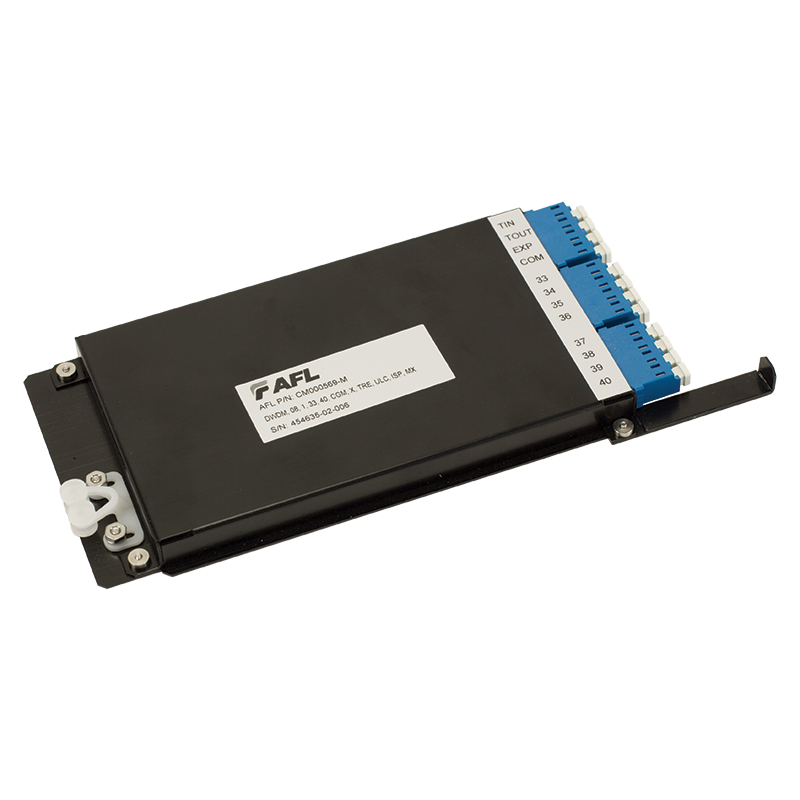

Les Card Guide Modules (CGM) sont des dispositifs WDM montés sur panneau pour les applications à haute densité.
b9b01cbb66a84adb9326d811f4e634fc
© 2022, AFL, all rights reserved. PP-2-00372, Revision 0, 8.30.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Couplers/Splitters & Multiplexers Dense Wave Division Multiplexing (DWDM) Card Guide Modules (CGM ® ) AFL’s DWDM CGM modules provide scalable wavelength management for new deployments and network upgrades, providing increased bandwidth over a single common fiber. Passive circuit design utilizes proven thin-film filter technology featuring low insertion loss, high isolation, and superior environmental stability. Modules can be installed in AFL’s CGM Plus chassis and are available with LC bulkheads in select configurations from 4 to 40 channels. The CGM module space efficient design allows for installation quantity of 24 modules in a single 4RU CGM Plus chassis. Applications • CATV Systems • Carrier Infrastructure • Access Networks • Small Cell Features • 50 GHz and 100 GHz ITU-T channel spacing • Low insertion loss/high isolation • Epoxy-free optical path • Express, upgrade and Tx/Rx test ports Ordering Information C01 = Single Wide CGM C02 = Double Wide CGM C03 = Triple Wide CGM C04 = Quad Wide CGM ALC0 = LC/APC Bulkhead ULC0 = LC/UPC Bulkhead Cxx 1 C F S08 C02 ALC0 S04 = Single Circuit, 4 Channels S08 = Single Circuit, 8 Channels S12 = Single Circuit, 12 Channels S16 = Single Circuit, 16 Channels S20 = Single Circuit, 20 Channels S40 = Single Circuit, 40 Channels C = Commercial A = AFL Standard Replace xx with Channel Number listed in DWDM ITU Channels table on last page of spec sheet. C19 = Channel 19 with 191, 900 GHz and 1562.23 nm center wavelength 0 = No Options 1 = Express 2 = Upgrade 3 = Express & Upgrade D = Express & Dual Test F = Express, Upgrade, & Dual Test D D = Dense WDM * Additional options available, contact AFL for details. 5 = 50 GHz 1 = 100 GHz 2x2 Coupler C-band Filter DWDM Filter Cascade Common TX Test RX Test Express DWDM (first) Channel DWDM (next) Channel DWDM (last) Channel Upgrade Diagram continued ITU Channel Plan Specification Package Size Connectors Network & Test Options * Channel Channel Count Model
© 2022, AFL, all rights reserved. PP-2-00372, Revision 0, 8.30.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Couplers/Splitters & Multiplexers Dense Wave Division Multiplexing (DWDM) Card Guide Modules (CGM ® ) Optical Specifications * ITU-T G.694.1 Configuration F (Express, Upgrade and Dual Test Ports) PARAMETER REQUIREMENT COMMENT/COMMERCIAL SPEC VARIATION 100 GHz 50 GHz Temperature and Input Power OT/H – Inside Plant -10°C to 65°C; 5 to 95% RH -20°C to 65°C; 5 to 95% RH OT/H – Outside Plant -40°C to 85°C; 5 to 95% RH Storage Temperature/Humidity -40°C to 85°C; 5 to 95% RH Max. Input Power Rating 300 mW Optical Passband DWDM Channel Center Wavelength per ITU 100 GHz Grid per ITU 50 GHz Grid DWDM Channel Passband @ 0.5 dB ± 0.125 nm (ITU Channel Center Wavelength) ± 0.06 nm (ITU Channel Center Wavelength) DWDM Channel Passband Ripple < 0.5 Upgrade Port Optical Passband 1528.65 nm to 1566.44 nm Express Port Optical Passband 1260 nm to 1520 nm and 1570 nm to 1635 nm RX Test Optical Passband 1260 nm to 1635 nm TX Test Optical Passband ± 0.125 nm (ITU Channel Center Wavelength) ± 0.06 nm (ITU Channel Center Wavelength) Insertion Loss (New Product, 20°C to 25°C) *** Max IL (dB) – Common to DWDM Ch. 4 Ch 8 Ch 16 Ch 20 Ch 40 Ch 4 Ch 8 Ch 12 Ch 16 Ch 20 Ch 40 Ch 2.0 3.0 4.0 4.0 4.0 2.0 3.0 4.0 4.0 4.0 4.0 Max DWDM Channel Uniformity 2.0 dB Max IL (dB) – Common to Upgrade 1.5 2.5 3.5 3.5 3.5 1.5 2.5 3.5 3.5 3.5 3.5 3.0 dB ** Max IL – Common to Express 1.0 dB Common to RX Test ≤21.0 dB Express to TX Test ≤22.0 dB Isolation Min DWDM Adjacent Channel Isolation 30 dB 25 dB Min DWDM Non-Adjacent Ch. Isolation 45 dB 35 dB Min Express Isolation 12 dB Max Polarization Dependent Loss (PDL) 0.3 dB 0.25 dB Max Polarization Mode Dispersion (PMD) 0.3 dB 0.15 dB Directivity DWDM Port Min Directivity 50 dB 55 dB Express Port Min Directivity 45 dB Test Port Min Directivity 50 dB Min Return Loss (all ports) 45 dB Insertion Loss Thermal Stability Insertion Loss Thermal Stability – New Prod. ≤0.005 dB/C Insertion Loss Thermal Stability – Service Life ≤0.010 dB/C < 0.005 dB/C Wavelength Thermal Stability ≤0.001 mm/C NOTES: * Unless otherwise noted, optical specification applies across operating temperature and optical bandpass. ** Includes connector loss. *** Unless noted, 0.40 dB per mated connector loss is EXCLUDED. continued LGX 118 Package (Slot Width) 4 Ch 8 Ch 12 Ch 16 Ch 20 Ch 40 Ch CGM Package Width Single Slot Dual Slot Dual Slot Dual Slot Triple Slot Quad Slot
© 2022, AFL, all rights reserved. PP-2-00372, Revision 0, 8.30.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 3 Optical Connectivity Couplers/Splitters & Multiplexers Dense Wave Division Multiplexing (DWDM) Card Guide Modules (CGM ® ) DWDM ITU Channels CHANNEL NO. FREQUENCY (GHz) CENTER WAVELENGTH (nm) CHANNEL NO. FREQUENCY (GHz) CENTER WAVELENGTH (nm) CHANNEL NO. FREQUENCY (GHz) CENTER WAVELENGTH (nm) CHANNEL NO. FREQUENCY (GHz) CENTER WAVELENGTH (nm) C1 190,100 1577.03 C19 191,900 1562.23 C37 193,700 1547.72 C55 195,500 1533.47 H1 190,150 1576.61 H19 191,950 1561.83 H37 193,750 1547.32 H55 195,550 1533.07 C2 190,200 1576.20 C20 192,000 1561.42 C38 193,800 1546.92 C56 195,600 1532.68 H2 190,250 1575.78 H20 192,050 1561.01 H38 193,850 1546.52 H56 195,650 1532.29 C3 190,300 1575.37 C21 192,100 1560.61 C39 193,900 1546.12 C57 195,700 1531.90 H3 190,350 1574.95 H21 192,150 1560.20 H39 193,950 1545.72 H57 195,750 1531.51 C4 190,400 1574.54 C22 192,200 1559.79 C40 194,000 1545.32 C58 195,800 1531.12 H4 190,450 1574.13 H22 192,250 1559.39 H40 194,050 1544.92 H58 195,850 1530.72 C5 190,500 1573.71 C23 192,300 1558.98 C41 194,100 1544.53 C59 195,900 1530.33 H5 190,550 1573.30 H23 192,350 1558.58 H41 194,150 1544.13 H59 195,950 1529.94 C6 190,600 1572.89 C24 192,400 1558.17 C42 194,200 1543.73 C60 196,000 1529.55 H6 190,650 1572.48 H24 192,450 1557.77 H42 194,250 1543.33 H60 196,050 1529.16 C7 190,700 1572.06 C25 192,500 1557.36 C43 194,300 1542.94 C61 196,100 1528.77 H7 190,750 1571.65 H25 192,550 1556.96 H43 194,350 1542.54 H61 196,150 1528.38 C8 190,800 1571.24 C26 192,600 1556.56 C44 194,400 1542.14 C62 196,200 1527.99 H8 190,850 1570.83 H26 192,650 1556.15 H44 194,450 1541.75 H62 196,250 1527.60 C9 190,900 1570.42 C27 192,700 1555.75 C45 194,500 1541.35 C63 196,300 1527.22 H9 190,950 1570.01 H27 192,750 1555.34 H45 194,550 1540.95 H63 196,350 1526.83 C10 191,000 1569.59 C28 192,800 1554.94 C46 194,600 1540.56 C64 196,400 1526.44 H10 191,050 1569.18 H28 192,850 1554.54 H46 194,650 1540.16 H64 196,450 1526.05 C11 191,100 1568.11 C29 192,900 1554.13 C47 194,700 1539.77 C65 196,500 1525.66 H11 191,150 1568.36 H29 192,950 1553.73 H47 194,750 1539.37 H65 196,550 1525.27 C12 191,200 1567.95 C30 193,000 1553.33 C48 194,800 1538.98 C66 196,600 1524.89 H12 191,250 1567.54 H30 193,050 1552.93 H48 194,850 1538.58 H66 196,650 1524.50 C13 191,300 1567.13 C31 193,100 1552.52 C49 194,900 1538.19 C67 196,700 1524.11 H13 191,350 1566.72 H31 193,150 1552.12 H49 194,950 1537.79 H67 196,750 1523.72 C14 191,400 1566.31 C32 193,200 1551.72 C50 195,000 1537.40 C68 196,800 1523.34 H14 191,450 1565.90 H32 193,250 1551.32 H50 195,050 1537.00 H68 196,850 1522.95 C15 191,500 1565.50 C33 193,300 1550.92 C51 195,100 1536.61 C69 196,900 1522.56 H15 191,550 1565.09 H33 193,350 1550.52 H51 195,150 1536.22 H69 196,950 1522.18 C16 191,600 1564.68 C34 193,400 1550.12 C52 195,200 1535.82 C70 197,000 1521.79 H16 191,650 1564.27 H34 193,450 1549.72 H52 195,250 1535.43 H70 197,050 1521.40 C17 191,700 1563.86 C35 193,500 1549.32 C53 195,300 1535.04 C71 197,100 1521.02 H17 191,750 1563.45 H35 193,550 1548.91 H53 195,350 1534.64 H71 197,150 1520.63 C18 191,800 1563.05 C36 193,600 1548.52 C54 195,400 1534.25 C72 197,200 1520.25 H18 191,850 1562.64 H36 193,650 1548.11 H54 195,450 1533.86 H72 197,250 1519.86 Contact AFL for further details. NOTES: 1. See Channel column to determine frequency and center wavelength values. 2. 100 GHz channels begin Cxx and 50 GHz channels begin with Cxx or Hxx. 3. Channels C16 (1564.68 nm) through C63 (1527.22 nm) reference C-BAND filter passband. Temperature Specifications * 50 GHz & 100 GHz DWDM COMMERCIAL SPEC VARIATION Operation Temperature, Relative Humidity Inside Plant Outside Plant -10°C to +65°C, 5 to 95% RH -40°C to 85°C; 5 to 95% RH -20°C to 65°C; 5 to 95% RH Storage Temperature, Relative Humidity -40°C to 85°C; 5 to 95% RH * Unless otherwise noted, optical specification applies across operating temperature and optical bandpass.
Caractéristiques :
- Conception à faible encombrement
- Options de mux/demux
- Adaptateurs LC/UPC ou LC/APC
- Jusqu'à 40 canaux DWDM
- Espacement des canaux 50/100/200 GHz ITU
- Ports Express, Upgrade ou Test en option
Les applications:
- Multiplexage par répartition en longueur d'onde (WDM)
- Têtes de réseau/bureaux centraux
- Fournisseur de services
- Télécommunications
- Centres de données
Les Card Guide Modules (CGM) sont des dispositifs WDM montés sur panneau pour les applications à haute densité. Ces modules sont des produits prêts à l'emploi préterminés dans un design peu encombrant.
Utilisant la technologie éprouvée des filtres à couches minces, les modules Card Guide se caractérisent par une faible perte d'insertion, une isolation élevée et une stabilité environnementale supérieure.
Disponibles avec un maximum de 40 canaux DWDM, les modules Card Guide peuvent également être configurés avec des ports optionnels Express, Upgrade ou Test.
