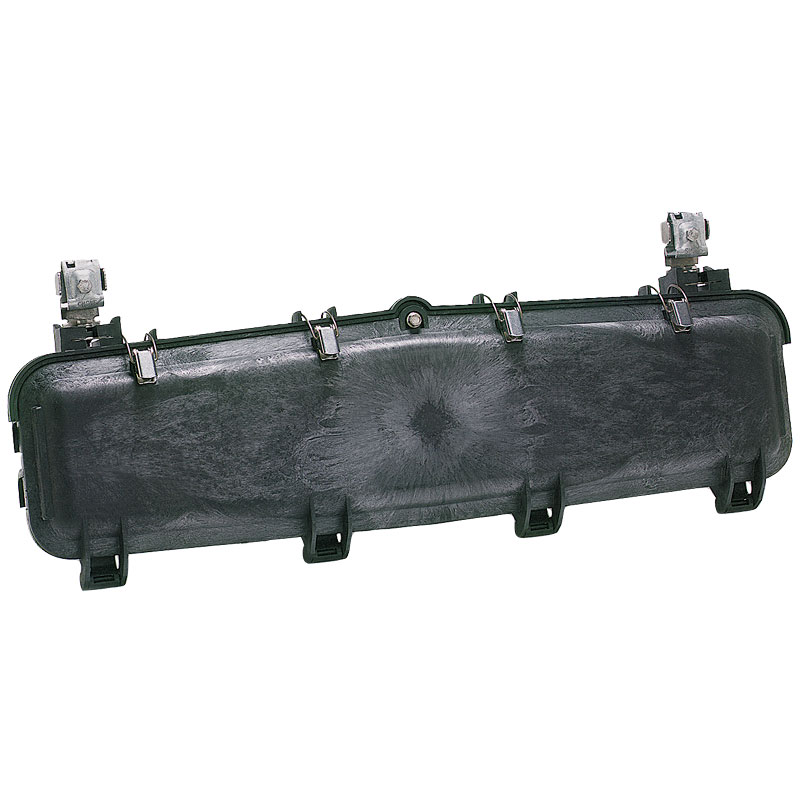

La fermeture d'épissure de fibre optique étanche aux intempéries AFL LightGuard® (LG) 500 Aerial est conçue pour les épissures de fibre de petite à moyenne taille dans les applications aériennes.
316733ef03f8446f9d83d2e014231fae
© 2002, AFL, all rights reserved. PP-2-00138, Revision 7, 7.17.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity continued Specifications PARAMETER VALUE Splice Capacity (Max.) – Single, Mass, Mechanical 144, 432, 36 Number of Splice Trays (Max.) – Single, Mass, Mechanical* 4, 3, 4 Cable Entrance Configuration Butt or in-line Cables 4 to 8 Cable Sizes (Min. O.D. - Max. O.D.) Included Grommets Single in. (mm) Additional Grommets Dual Grommet in. (mm) 6-port Multi-Drop Grommet in. (mm) (4) Cable Ports 4 @ 0.38" - 0.82" (7.6 - 20.8) Sm: 0.27" - 0.53" (6.9 - 13.5) Lg: 0.38" - 0.70" (9.5 - 17.8) 0.20" - 0.37" (5.1 - 9.4) Dimensions – (L x D) in. (mm) 27.0" x 8.3" x 4.0" (686.0 x 210.0 x 102.0) Weight – lbs. (kg) 6.4 (2.90) LightGuard ® 500 Aerial Weathertight Fiber Optic Splice Closure The LightGuard (LG) 500 Aerial Weathertight Fiber Optic Splice Closure is designed for medium count fiber splicing (up to 144 single or 432 mass) in a butt or in-line configuration. Utilized in aerial applications, the LG-500 is ideal for congested aerial construction due to its compact design and requires only a common can wrench for installation. Features • Four individual, self-sizing grommeted cable ports (expandable up to eight cable entrances) • Patented tongue-in-groove cover seal system • Installation and re-entry only require a common can wrench • Cable retention clamps provide pullout • UV resistant engineered thermoplastic
© 2002, AFL, all rights reserved. PP-2-00138, Revision 7, 7.17.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Optical Connectivity LightGuard ® 500 Aerial Weathertight Fiber Optic Splice Closure Ordering Information DESCRIPTION MODEL NO. AFL NO. LG-500 Aerial Weathertight Fiber Optic Splice Closure – Stores 144 single fusion or 432 mass fusion, includes (4) cable kits for sealing/retention and (2) ground terminals with removable bond, and hanger brackets. Not included: Splice Trays or Cable Grounding Kits LG-500-U-0 FC000026 LL-2400 Single Splice Tray – Stores (24) single fusion splices. Maximum of 4 trays in the LG-500. LL-2400 91710-06 LL-2448 Universal Splice Tray – Stores (24) single fusion or (4) mass fusion splices (48 F) , *Mechanical. Maximum of 3 trays in the LG-500. LL-2448 911289-00-02 LL-4848 Mass Splice Tray – Stores (12) mass fusion splices (144 F). Maximum of 3 trays in the LG-500. LL-4848 911437-00-02 LL-2448-48S Single Splice Tray – Stores (48) single fusion splices. Maximum of 3 trays in the LG-500. LL-2448-48S FA000045 Small Single Grommet Kit (10 pc grommet only) – (Min 0.38"- Max 0.82") Small Single Grommet Kit (10) 911496-00-00 Small Dual Grommet Kit – Includes: (2) small dual grommets and hardware (Min 0.27"- Max 0.53" and Min 0.38" - Max 0.70") Small Dual Grommet Kit 911386-00-01 Small 6-Port Drop Cable Kit – 2 grommets with tie wrap and foam. Allows six cable entries. (Min 0.20"- Max 0.365" and flat drop) Small 6 Port Drop Kit FC000573 Adjustable Aerial Hanger Kit Bracket Kit (included with closure) Adjustable Hanger LG-400/500/600 911497-00-00 Extended Offset Aerial Hanger Kit for LG-400/500/600 Offset Hanger LG-400/500/600 91990-00 Retention hardware for additional cables or replacement hardware – LG-400/500/600 (no grommets) Cable Retention Kit LG 400/500/600 FC000356 Closure Extension Kit – Used to join multiple closures for extended sheath openings required to repair cable sheath and damaged fibers Closure Extension Kit LG-400/500/600 911499-00-00 1x6 Fiber Router Kit with furcation tubes. 1x6 Fiber Router FC000070 Cable Grounding Kit (pack of 5) – Clamp -On Ground Cable Only CGK-5 FC001091 *Mechanical Splice Kit. Includes 10 pieces of VHB tape. Used in all splice trays. Each piece holds 12 splices. VHB Tape FA000089 Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE Telcordia GR-771 Rural Utilities Service (RUS) Listed * See Accessory Specifications. See Splice Tray Specifications.
Caractéristiques :
- Quatre orifices de passage de câbles individuels et autodimensionnés (extensible jusqu'à huit entrées de câbles)
- Système breveté d'étanchéité du couvercle par languette et rainure
- L'installation et la réinsertion ne nécessitent qu'une simple clé à douille.
- Les pinces de rétention des câbles permettent de les retirer
- Thermoplastique d'ingénierie résistant aux UV
Les applications:
- Épissures montées sur antenne
La fermeture d'épissure de fibre optique étanche aux intempéries LightGuard (LG) 500 Aerial est conçue pour l'épissure de fibres de nombre moyen (jusqu'à 144 simples ou 432 massifs) dans une configuration en bout ou en ligne. Utilisé dans les applications aériennes, le LG-500 est idéal pour les constructions aériennes encombrées en raison de sa conception compacte et ne nécessite qu'une clé à canette commune pour l'installation.
