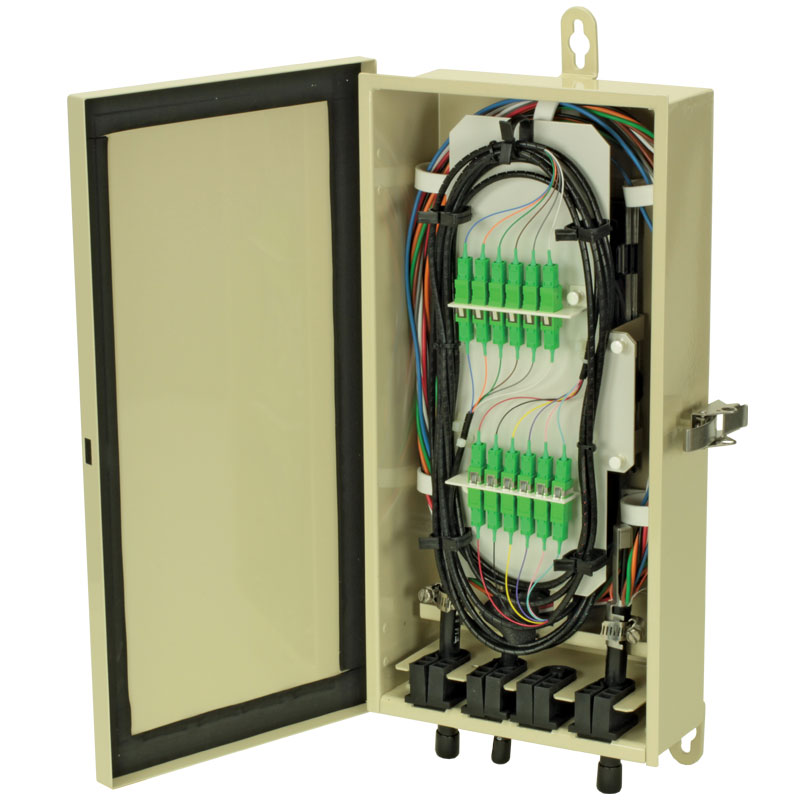

Le boîtier d'épissurage et de distribution optique LightLink (LL) 500 permet d'organiser, d'épisser et d'interconnecter les fibres dans les applications à large bande, de distribution et d'entrée de bâtiment.
074c3cc1494e414babc6c80a739a99f0
© 2002, AFL, all rights reserved. PP-2-00153, Revision 4, 6.22.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity Specifications PARAMETER VALUE Material Steel Coatings Electrostatically applied, powder coat Color Antique white Cable Ports 4-8 Cable Sizes (Max. O.D. – Min. O.D.) 4 @ 0.3-0.77" Up to 8 with Dual Grommet Kits 4 @ 0.3-0.65" 4 @ 0.3-0.5" Dimensions (H x W x D) in. (cm) 17.5 x 9.0 x 4.0 (44.45 x 22.86 x 10.16) Weight lbs. (kg) 6.5 (2.95) The LightLink (LL) 500 Optic Splicing and Distribution Enclosure provides for organizing, splicing and interconnecting fibers in broadband, distribution and building entrance applications. The enclosure features a scratch and corrosion resistant powder paint coating base and a fully gasketed hinged cover. A unique self-sizing grommet design allows for express and pre-terminated cable installation. The LL-500 supports up to five LL-2450 splice trays for up to 60 single fusion splices or three LL-4850 splice trays (not included in base unit) and an optional 12 fiber, hinged Interconnect Module. LightLink 500 Optical Splicing and Distribution Enclosure Features • Independent cable strain relief system • Cable entry/exit grommet seals • Fiber routing system • Splice tray support system • Hinged cover • Supports optional Interconnect Modules Ordering Information DESCRIPTION AFL NO. LL-500-U-0 FM000326 LL-500 Interconnect Kit with SC UPC adapters FM000385 LL-500 Interconnect Kit with SC APC adapters FM000407 LL-500 Interconnect Kit without adapters FM000408 LL-500 with Multi-port Grommets FM000659 LL-2450 Single Fusion Splice Tray (stores 12 single fusion splices) 91957-00 LL-4850 Mass Fusion Splice Tray (stores 8 mass fusion sleeves - 96 fibers) 91958-00 LL-500 Multi-port Grommet Kit, 6 drop cable entry up to 0.37” OD FC000573 LL-500 with LL-2450 splice tray installed • Interconnect Module supports up to 12 SC bulkhead adapters • Secured with a standard padlock • 4 cable ports with standard grommets • 8 cable ports with optional expansion kits LL-500 with interconnect kit installed Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE NEMA Type 3
Caractéristiques :
- Système indépendant de décharge de traction du câble
- Joints d'entrée et de sortie de câble
- Système de routage des fibres
- Système de support de plateau d'épissure
- Couvercle à charnière
- Prise en charge des modules d'interconnexion en option
- Le module d'interconnexion prend en charge jusqu'à 12 adaptateurs de cloison SC.
- Sécurisé par un cadenas standard
- 4 ports de câbles avec passe-fils standard
- 8 ports de câble avec kits d'extension en option
