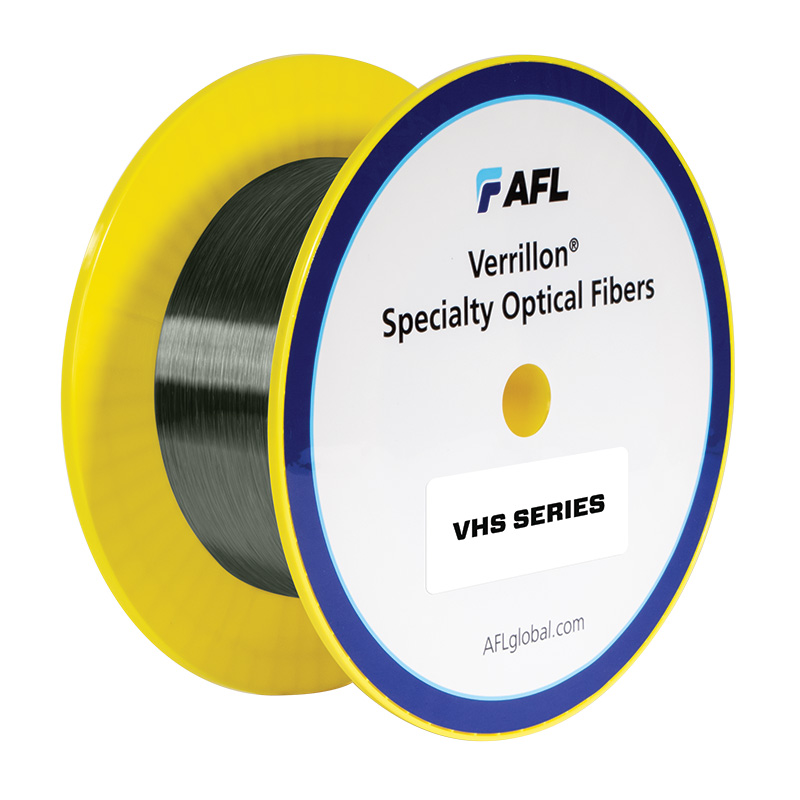

Les fibres monomodes Verrillon® VHS100 Series, combinées à notre revêtement hermétique en carbone, conviennent aux applications à température moyenne où l'hydrogène libre, l'eau et les produits chimiques corrosifs sont présents. Ces fibres sont compatibles avec la fibre monomode standard et fonctionnent à la fois à 1310 et 1550 nm.
adfa2a922fb9478cb55f3a318744bea3
21 Specialty Optical Fiber © 2014, AFL, all rights reserved. PP-6-00005, Revision 2, 4.28.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Features • Highly compatible with standard single-mode fibers for ease of spliceability • Combined with carbon coating, VHS100 exhibits very high resistance to hydrogen and moisture in the mid-range of temperatures • Available with all Verrillon ® Harsh Environments coatings • VHS100 is designed to operate at both 1310 and 1550 nm wavelengths • Typically used with single-mode DTS and DAS sensing interrogators VHS100 Series Harsh Environment Fibers Verrillon VHS100 Series of single-mode fibers are suitable for low to mid-temperature harsh environment applications. VHS100 has the best performance in hydrogen when coated with our hermetic coating. Depending on the specific application, VHS100 is available with a diverse range of coatings including Carbon Mid-temp Dual Acrylates (CMTDA), Carbon Silicone Mid-temp Acrylates (CSMTA), Carbon Silicone-PFA and Carbon Polyimide. Specifications PART NO. SMF-1-P-125-2 SMF-1-P-125-3 SMF-1-CP-125-3 Description 125/155 μm Polyimide, Single-mode fiber, 0.12NA, 150 kpsi 125/155 μm Polyimide, Single-mode fiber, 0.12NA, 100 kpsi 125/155 μm Carbon/Polyimide, Single-mode fiber, 0.12NA, 100 kpsi PARAMETER VALUE Material Hermetic Coating — — Carbon Coating Polyimide Polyimide Polyimide Geometry Clad Diameter (μm) 125 ± 2 125 ± 2 125 ± 2 Core/Clad Offset (μm) ≤ 0.5 ≤ 0.5 ≤ 0.5 Coating Diameter (μm) 155 ± 5 155 ± 5 155 ± 5 Polyimide Coating Concentricity 1 (%) ≥ 80 ≥ 80 ≥ 80 Optical NA (nominal) 0.12 0.12 0.12 Attenuation 2 @ 1310 nm (dB/km) ≤ 0.7 ≤ 0.7 ≤ 0.7 Attenuation 2 @ 1550 nm (dB/km) ≤ 0.6 ≤ 0.6 ≤ 0.6 Cutoff Wavelength (nm) 1250 ± 50 1250 ± 50 1250 ±50 Mode Field Diameter 3 @ 1310 nm (μm) 9.2 ± 0.6 9.2 ± 0.6 9.2 ± 0.6 Mode Field Diameter 3 @ 1550 nm (μm) 10.4 ± 0.8 10.4 ± 0.8 10.4 ± 0.8 Mechanical Proof Test (kpsi) ≥ 150 ≥ 100 ≥ 100 Operating Temperature (°C) -65 to +300 -65 to +300 -65 to +300 1 Measured as (Min. Wall/Max. Wall) x 100 2 Measured on Zero Tension spool 3 Petermann II Definition
© 2014, AFL, all rights reserved. PP-6-00005, Revision 2, 4.28.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 22 Specialty Optical Fiber VHS100 Series Harsh Environment Fibers Specifications PART NO. SMF-1-CMTDA-125-1 Description 125/245 μm Carbon/ Mid-Temp Dual Acrylate coated, Single-mode fiber 0.12NA, 100 kpsi PARAMETER VALUE Material Hermetic Coating Carbon Coating Mid-Temp Dual Acrylate Geometry Clad Diameter (μm) 125 ± 2 Core/Clad Offset (μm) ≤ 0.5 Coating Diameter (μm) 245 ± 15 Optical NA (nominal) 0.12 Attenuation 1 @ 1310 nm (dB/km) @ 1550 nm (dB/km) ≤ 0.5 ≤ 0.3 Cutoff Wavelength (nm) ≤ 1250 ±50 Mode Field Diameter 2 @ 1310 nm (μm) @ 1550 nm (μm) 9.2 ± 0.6 10.4 ± 0.8 Mechanical Proof Test (kpsi) ≥ 100 Operating Temperature (°C) -40 to +150 1 Measured on loose coil 2 Petermann II Definition Specifications PART NO. SMF-1-MTDA-125-1 Description 125/245 μm Mid-Temp Dual Acrylate coated, Single-mode fiber, 0.12NA, 100 kpsi PARAMETER VALUE Material Coating Mid-Temp Dual Acrylate Geometry Clad Diameter (μm) 125 ± 2 Core/Clad Offset (μm) ≤ 0.5 Coating Diameter (μm) 245 ± 5 Optical NA (nominal) 0.12 Attenuation @ 1310 nm (dB/km) @ 1550 nm (dB/km) ≤ 0.40 ≤ 0.25 Cutoff Wavelength (nm) 1250 ± 50 Mode Field Diameter 1 @ 1310 nm (μm) @ 1550 nm (μm) 9.2 ± 0.6 10.4 ± 0.8 Mechanical Proof Test (kpsi) ≥ 100 Operating Temperature (°C) -40 to +150 1 Petermann II Definition
23 Specialty Optical Fiber © 2014, AFL, all rights reserved. PP-6-00005, Revision 2, 4.28.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 VHS100 Series Harsh Environment Fibers Specifications PART NO. SMF-1-CA-125-2 SMF-1-CA-125-3 Description 125/245 μm Carbon/Acrylate coated, Single-mode Fiber, 0.12 NA, 200 kpsi 125/245 μm Carbon/Acrylate coated, Single-mode Fiber, 0.12 NA, 100 kpsi PARAMETER VALUE Material Hermetic Coating Carbon Carbon Coating UV Acrylate UV Acrylate Geometry Clad Diameter (μm) 125 ± 2 125 ± 2 Core/Clad Offset (μm) ≤ 0.5 ≤ 0.5 Coating Diameter (μm) 245 ± 15 245 ± 15 Optical NA (nominal) 0.12 0.12 Attenuation 1 @ 1310 nm (dB/km) @ 1550 nm (dB/km) ≤ 0.6 ≤ 0.5 ≤ 0.6 ≤ 0.5 Cutoff Wavelength (nm) ≤ 1250 ±50 ≤ 1250 ±50 Mode Field Diameter 2 @ 1310 nm (μm) @ 1550 nm (μm) 9.2 ± 0.6 10.4 ± 1.0 9.2 ± 0.6 10.4 ± 1.0 Mechanical Proof Test (kpsi) ≥ 200 ≥ 100 Operating Temperature (°C) -40 to +85 -40 to +85 1 Measured on loose coil 2 Petermann II Definition
Caractéristiques :
- Hautement compatible avec les fibres monomodes standard pour faciliter l'épissurage.
- Associé à un revêtement en carbone, le VHS100 présente une très haute résistance à l'hydrogène et à l'humidité dans la gamme moyenne des températures.
- Disponible avec tous les revêtements Verrillon®
Harsh Environments - Le VHS100 est conçu pour fonctionner à des longueurs d'onde de 1310 et 1550 nm.
- Généralement utilisé avec les interrogateurs de détection monomodes DTS et DAS.
