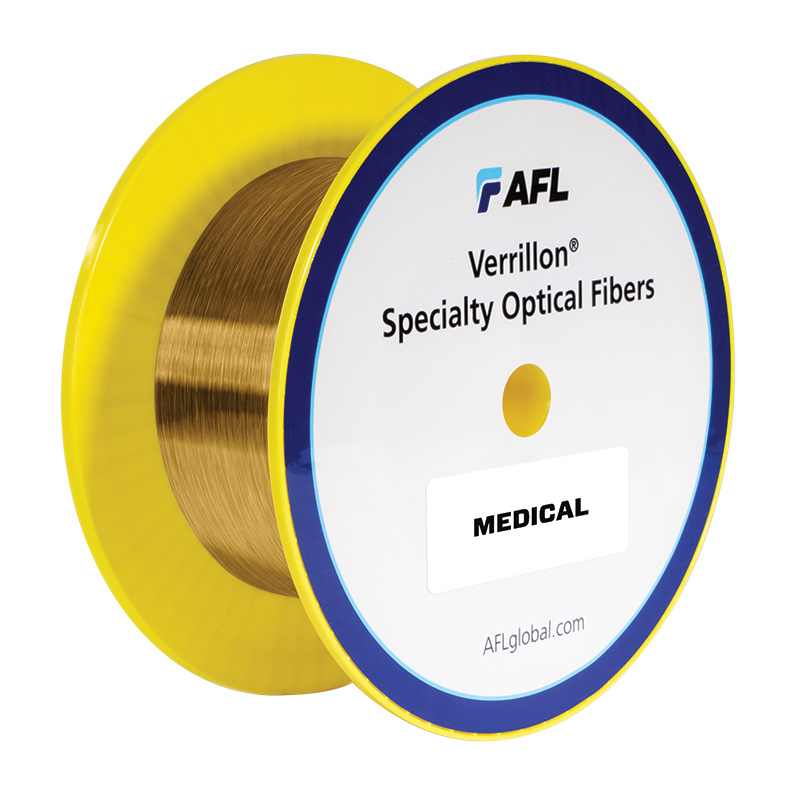

Les fibres d'émission de laser médical UV-Vis sont conçues avec des guides d'ondes multimodes à cœur en silice pure à haute teneur en oxygène pour les applications nécessitant la transmission d'énergie laser dans les régions spectrales de l'ultraviolet et du visible.
da68871b594545af910234240c34c2c1
1 Specialty Optical Fiber © 2020, AFL, all rights reserved. PP-6-00031, Revision 1, 5.7.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Features • Step-Index multimode high-OH pure silica core designs • Core diameters from 50 μm to 2000 μm available • Biocompatible coating make these fibers suitable for laser surgery and other medical procedures • Available for typical UV-Visible lasers as well as DUV applications UV-Visible (UV-Vis) Medical Laser Delivery Fibers Verrillon ® UV-Vis Medical Laser Delivery Fibers are designed with high-OH pure-silica core multimode waveguides for applications requiring the transmission of laser energy in the Ultra-Violet and Visible spectral regions. This family of fibers is suitable for coupling with typical medical lasers operating in the 300 to 1150 nm, such as KTP, Argon and Excimer lasers. In addition to the typical UV lasers, Verrillon also offers a suite of Solarization-Resistant Fibers (SRF) with high transmission in the Deep UV (DUV) spectrum for applications requiring low optical absorption in the 190 to 300 nm. The optical attenuation chart below shows that Verrillon’s SRF is completely immune to DUV radiation even at the ArF laser wavelength of 193 nm. Specifications LARGE DIAMETER MEDICAL LASER DELIVERY OPTICAL FIBERS - POLYIMIDE - UV-VIS MEDICAL (HOH) PART NO. MMF-100-110-P-135-22 MMF-200-5-P-220-22 M400440P470H22-1 Description 100/110/135 High OH, Pure Silica Core, Polyimide coated, Multimode Fiber, 0.22 NA, 100 kpsi Proof Test 200/220/245 High OH, Pure Silica Core, Polyimide coated, Multimode Fiber, 0.22 NA, 100 kpsi Proof Test 400/440/470 High OH, Pure Silica Core, Polyimide coated, Multimode Fiber, 0.22 NA, 100 kpsi Proof Test PARAMETER Material Core High-OH Pure Silica High-OH Pure Silica High-OH Pure Silica Cladding F-doped Silica F-doped Silica F-doped Silica Coating Polyimide Polyimide Polyimide Geometry Core Diameter (μm) 100 ± 4 200 ± 4 400 ± 10 Clad Diameter (μm) 110 ± 3 220 ± 5 440 ± 10 Core/Clad Offset (μm) ≤ 3.0 ≤ 3.0 ≤ 3.0 Coat Diameter (μm) 135 ± 5 245 ± 5 470 ± 10 Coating Concentricity (%) ≥ 80 ≥ 75 - Optical NA (nominal) 0.22 0.22 0.22 Attenuation See High-OH full preform spectrum below Mechanical Prooftest (kpsi) ≥ 100 ≥ 100 ≥ 100 Operating Temperature (oC) -65 to +300 -65 to +300 -65 to +300
© 2020, AFL, all rights reserved. PP-6-00031, Revision 1, 5.7.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Specialty Optical Fiber UV-Visible (UV-Vis) Medical Laser Delivery Fibers Specifications DEEP UV (DUV) LASER DELIVERY OPTICAL FIBERS PART NO. M100110CP140SR22-1 M400440CP465SR22-1 Description 100/110 Ultra-High Solarization-Resistant Step-Index Multimode, Carbon-Polyimide coated fiber designed for Low-Loss Deep UV (DUV) applications. 400/440 Ultra-High Solarization-Resistant Step-Index Multimode, Carbon-Polyimide coated fiber designed for Low-Loss Deep UV (DUV) applications. PARAMETER Material Core Pure Silica Pure Silica Cladding F-doped Silica F-doped Silica Coating Carbon / Polyimide Carbon / Polyimide Geometry Core Diameter (μm) 100 ± 3 400 ± 8 Clad Diameter (μm) 110 ± 3 440 ± 9 Core/Clad Offset (μm) ≤ 3.0 ≤ 3.0 Coat Diameter (μm) 140 ± 5 465 ± 7 Polyimide Coating Concentricity (%) ≥ 80% ≥ 80% Optical NA (nominal) 0.22 0.22 Operating Wavelength (nm) 180nm - 850 nm 180nm - 850 nm Mechanical Prooftest (kpsi) ≥ 100 ≥ 100 Operating Temperature (oC) -65 to +300 -65 to +300
Caractéristiques :
- Noyaux multimodes Step-Index en silice pure à haute teneur en oxygène.
- Diamètres de noyau disponibles de 50 µm à 2000 µm
- Le revêtement biocompatible rend ces fibres adaptées à la chirurgie laser et à d'autres procédures médicales.
- Disponibles pour les lasers UV-Visible typiques ainsi que pour les applications DUV.
