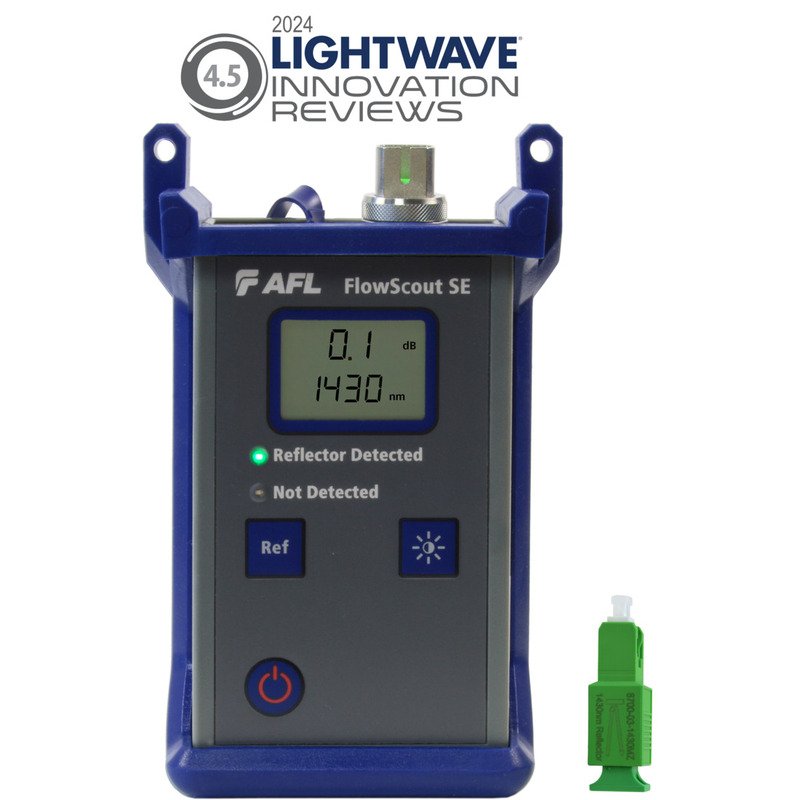

AFL’s FlowScout SE100 is designed to verify fiber continuity and measure insertion loss to the end of fibers terminated with AFL’s 1430 nm Wavelength Optical Reflectors. When a reflector is detected, the FlowScout SE100 immediately measures insertion loss to the reflector at 1430 nm wavelength. The reflector is near-transparent to PON and other wavelengths, allowing it to remain installed during network operation.
4d07f194fd8b4666a9aac10352a9ea49
1 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing FlowScout ® SE100 Single-Ended Test Set FlowScout ® SE100 Single-Ended Test Set Quickly and Easily Verify Continuity and Insertion Loss From One End ©2024, AFL, all rights reserved. FSSE-100-2000 Revision AB 2024-03-13 Specifications are subject to change without notice . AFL’s FlowScout SE100 is designed to verify fiber continuity and measure insertion loss to the end of fibers terminated with AFL’s 1430 nm Wavelength Optical Reflectors. When a reflector is detected, the FlowScout SE100 immediately reports its presence (confirming continuity to the reflector) and measures insertion loss to the reflector at 1430 nm wavelength. The reflector is near-transparent to PON and other wavelengths, allowing it to remain installed during network operation. Reduce cost: Combining an optical light source and power meter into one low-cost test set, the FlowScout SE100 enables a single technician to verify continuity and measure insertion loss, reducing equipment costs by over 38% and labor costs by over 50%. Shorten test time and eliminate setup errors: Traditional two-ended testing requires equipment configuration and test coordination. FlowScout SE100 eliminates time-consuming setup and technician coordination time. It also speeds up testing by reducing visits to subscriber premises, demarcation points, and cell tower climbs. Enhance customer experience: The FlowScout SE100 eliminates the need for onsite troubleshooting of FTTH drop issues. All testing can be completed from a distribution panel or splitter, eliminating technician time at the subscriber premises and overcoming scheduling and access challenges for both subscribers and service providers. Increase technician safety: Repeated tower climbs for troubleshooting FTTA fibers are eliminated by using the FlowScout SE100 to test from the ground to optical reflectors installed at the Radio Unit. Ensure integrity of test results: FlowScout SE100 alerts the user when excess reflection or a live signal is present on the tested network. Reflection issues from damaged, open, mismatched, or dirty connectors often result in poor network performance. FlowScout SE100 immediately alerts the user and displays ORL when excess reflection is present. Complements subscriber-installed ONT initiatives: Reducing the need for FTTH premises visits, the FlowScout SE100 solution supports service provider goals to reduce costs by adopting a subscriber self-install ONT methodology. Features • Verifies fiber continuity and insertion loss at 1430 nm from a single end • Excess reflection (low ORL) detection at 1550 nm • Live fiber detection and reporting • Built-in optical continuous wave (CW) reflectometer • Combines light source and power meter into a single unit Applications Used to verify: • FTTH continuity and insertion loss during service activation or troubleshooting • FTTA continuity and insertion loss between Distribution Unit (DU) and Radio Unit (RU) • Fiber backhaul continuity and insertion loss to demarcation point US Patent Pending FlowScout SE100 with 1430 nm Wavelength Optical Reflector
2 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing FlowScout ® SE100 Single-Ended Test Set ©2024, AFL, all rights reserved. FSSE-100-2000 Revision AB 2024-03-13 Specifications are subject to change without notice . FIBER-TO-THE-ANTENNA FIBER BACKHAUL Service Provider Fiber Customer Fiber CO | HEAD END Demarcation Point R e f e c t o r Example Applications CUSTOMER PREMISES Distribution Unit Radio Unit F l o w S c o u t S E 1 0 0 O p t i c a l R e f e c t o r F l o w S c o u t S E 1 0 0 FIBER-TO-THE-HOME CO | HEAD END F1 Feeder Access Points SFU MDU F1 Feeder F2 Distribution F3 Drop 1 x N Splitter 1 x N Splitter F2/F3 F l o w S c o u t S E 1 0 0 F l o w S c o u t S E 1 0 0 O p t i c a l R e f e c t o r O p t i c a l R e f e c t o r Access Point Telco/Cable Operator
3 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing FlowScout ® SE100 Single-Ended Test Set ©2024, AFL, all rights reserved. FSSE-100-2000 Revision AB 2024-03-13 Specifications are subject to change without notice . Specifications a OPTICAL Emitter Type Laser Safety Class b Class I Fiber Type Single-mode; compatible with all G.652, G.655, and G.657 SMF Calibrated Wavelengths 1430 and 1550 nm Center Wavelength 1430 ±5 nm; 1550 ±20 nm Spectral Width (FWHM) ≤5 nm Output Power Level -1 to -4 dBm CW Output Power Stability ±0.1 dB over 1 hour (after 1 minute warmup) Detector Type InGaAs PIN Detection Range Reflector detected / not detected up to 20 km (18 mi) with optical loss ≤9 dB at 1430 & 1550 nm and 1550 nm ORL ≥25 dB Insertion Loss Measurement Range At least 10 dB when ORL ≥25 dB @1550 nm | At least 6 dB when ORL in range 14 – 20 dB @ 1550 nm Loss Accuracy ±1.0 dB for loss in range 0 to 6 dB Loss Resolution 0.1 dB Measurement Units Loss in dB; ORL in dB GENERAL Size (in boot) 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) Weight ≤0.3 kg (≤0.7 lb) Operating Temperature -10 °C to +50 °C, 0 to 95% RH (non-condensing) Storage Temperature -30 °C to +60 °C, 0 to 95% RH (non-condensing, batteries installed) Battery Power 2 x AA alkaline batteries; user-replaceable AC Power Optional external AC power supply (100-240 VAC, 50-60 Hz; 5VDC @2A) Battery life Typical 120 hrs, minimum 75 hrs (continuous operation, backlight off) Display Backlit monochrome LCD Shock and vibration Drop test, 1 m, 6 planes Optical port Fiber-coupled, 2.5 mm ceramic ferrule plus SC/APC connector adapter Dust Cap Captive dust cap mounts over SC/APC connector adapter Notes: a. All specifications valid at 25°C unless otherwise specified. b. FDA 21 CFR 1040.10 and 1040.11; IEC 60825-1:2014 Single SC/APC Connection Simply plug In the fiber connector and get readings in >5 sec! Large LCD display Multi-function screen clearly shows all measurements and prompts Clear color-coded readings LED indicators allow you to view if reflec - tor is detected in seconds Easy, one-handed operation Easily one hand operation. Large but - tons for easy operation Durable design for field use Protective rubber boot for in-field durabil - ity and reliability Easy to Use Handheld Brightness Control Battery Operated USB Power Port / Software upgrades PRODUCT HIGHLIGHTS
4 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing FlowScout ® SE100 Single-Ended Test Set ©2024, AFL, all rights reserved. FSSE-100-2000 Revision AB 2024-03-13 Specifications are subject to change without notice . DESCRIPTION AFL NO. ACCESSORIES INCLUDED WITH SE100-00-0901PR KIT 1430 nm Wavelength Optical Reflector, SC/APC, female-to-male, plug type 8700-03-1430MZ Universal flip-top dust cap for UCI outputs 8800-00-0072PR Single-mode test jumper, SC/APC to SC/APC, 2 m, 3 mm jacketed 8700-00-0218MR Wrist atrap 1400-05-0230PZ Soft carry case with strap 1400-01-0107MZ ADDITIONAL OPTIONAL ACCESSORIES SC/APC adapter for optical port 2900-50-0011MR DESCRIPTION AFL NO. USB – Micro-B cable, 5 pin, 6 ft 6000-00-0031MR AC Adapter (shipped with one power plug of customer choice; select one from plugs listed below)! • 4050-00-0030EUMR EU Power Plug for AC charger • 4050-00-0030USMR US power plug for AC charger • 4050-00-0030SAAMR CN/AUS power plug for AC charger • 4050-00-0030UKMR UK power plug for AC charger 4050-00-0034MR FlowScout SE100-facing APC female to APC male field-replaceable Port Saver SMF 2900-58-0001MR One-Click Cleaner Mini 500 SC, ST, FC; 500+ Cleans 8500-05-0009MZ Ordering Information FlowScout SE100 kits include the FlowScout SE100 test set, SC/APC to SC/APC patch cord to connect to network under test, reference 1430 nm Wavelength Optical Reflector, wrist strap, and Quick Reference Guide in a convenient soft carry case. DESCRIPTION AFL NO. FlowScout SE100 Single-Ended Test Set SE100-00-0901PR Accessories Recommended Products One-Click ® Cleaners • Patented single-action • Variety of sizes and types • Low cost per clean Qualificati ons CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking UKCA Marking UK Compliant to relevant UK Directives on health, safety, and environmental protection, and certified with the UKCA marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fibre-optic power meters Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about complementary AFL fiber optic test and inspection products. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts VFI4 Visual Fault Identifier • Eye-safe Class 3R visible red laser source, 650 nm • Output power of ≤ 5.0 μW with 10 km range • Universal connector interface for quick connection FOCIS Flex Connector Inspection • Self-contained, tether-free, hand-held inspection solution • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis
Features:
-
Verifies fiber continuity and insertion loss at 1430 nm from a single end
-
Excess reflection (low ORL) detection at 1550 nm
-
Live fiber detection and reporting
-
Built-in optical continuous wave (CW) reflectometer
-
Combines light source and power meter into a single unit
Applications:
Used to verify:
- FTTH continuity and insertion loss during service activation or troubleshooting
- FTTA continuity and insertion loss between Distribution Unit (DU) and Radio Unit (RU)
- Fiber backhaul continuity and insertion loss to demarcation point
AFL’s FlowScout SE100 is designed to verify fiber continuity and measure insertion loss to the end of fibers terminated with AFL’s 1430 nm Wavelength Optical Reflectors. When a reflector is detected, the FlowScout SE100 immediately measures insertion loss to the reflector at 1430 nm wavelength. The reflector is near-transparent to PON and other wavelengths, allowing it to remain installed during network operation.
Reduce cost: Combining an optical light source and power meter into one low-cost test set, the FlowScout SE100 enables a single technician to perform testing an FlowScout SE100 d reduces equipment and labor costs by over 50%
Shorten test time and eliminate setup errors: Traditional double-ended testing requires equipment configuration and test coordination. FlowScout SE100 eliminates time-consuming setup and technician coordination time. It also speeds up testing by reducing visits to subscriber premises, demarcation points, and cell tower climbs.
Enhance customer experience: The FlowScout SE100 eliminates the need for onsite troubleshooting of FTTH drop issues. All testing can be completed from a distribution panel or splitter, eliminating technician time at the subscriber premises, and overcoming scheduling and access challenges for both subscribers and service providers.
Increase technician safety: Repeated tower climbs for troubleshooting are eliminated when using the FlowScout SE100 at the Distribution Unit and Optical Reflectors installed at the Radio Unit.
Ensure integrity of test results: FlowScout SE100 features excess reflection and live fiber detection and notification. Reflection issues from damaged, open, mismatched, or dirty connectors can result in unacceptable loss. FlowScout SE100 immediately alerts the user and displays ORL when excess reflection is present.
Complements subscriber-installed ONT initiatives: Reducing the need for subscriber premises visits, the FlowScout SE100 solution supports goals to reduce costs by adopting a subscriber self-install ONT methodology.
For details and ordering information, see the FlowScout SE100 Specification Sheet or our Buyers Guide!
