Sources lumineuses optiques et wattmètres de la série Contractor : outils de la taille d'une paume conçus pour tester les liaisons réseau en fibre monomode et multimode. Ne pesant que 0,4 lb, les unités de la série Contractor sont idéales pour une utilisation sur le terrain.
da86d2f7a1b8412082179962debd95bf,2d6219b67b3b4ccfbd4cb3226f97b3ea

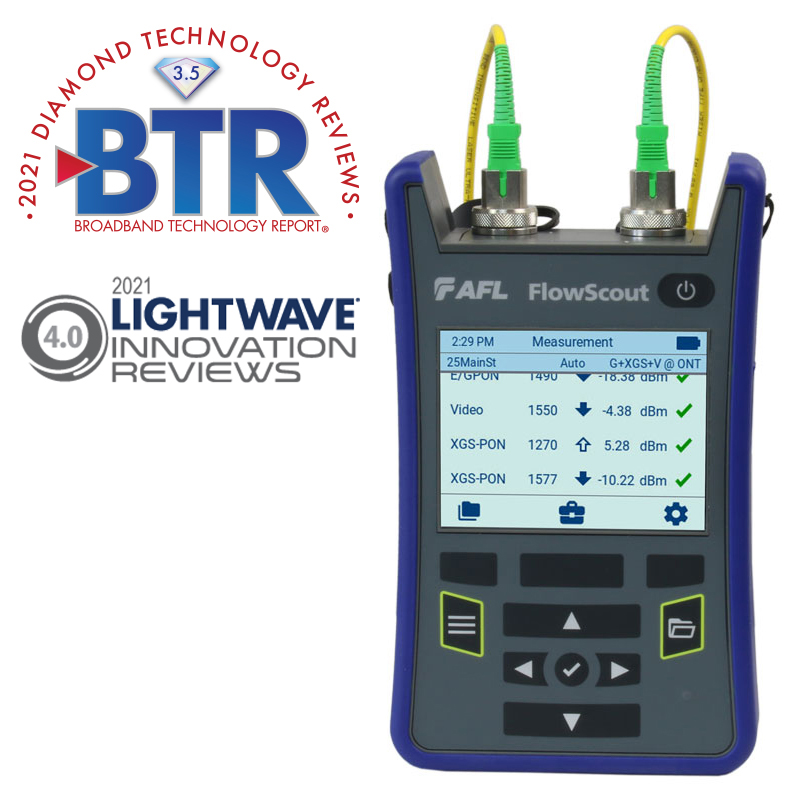

1 Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing FlowScout ® Through-Mode PON Optical Power Meter ©2021-2024, AFL, all rights reserved. TPPM-00-2000 Revision AC 2024-01-18 Specifications are subject to change without notice . AFL is a trusted supplier of optical testing equipment with more than 30 years of experience and tens of thousands of units in the field. AFL’s full range of N.I.S.T. traceable power meters are used for testing single-mode and/or multimode fiber networks. Designed for all: AFL’s power meters are designed to meet the demands in an outside plant environment. The FlowScout Through-Mode PON Power Meter (TPPM) easily withstands a one-meter drop and has splash resistant controls that are easy to use, even with gloves on. Flexible and efficient: A range of field-swappable output adapters support multiple connector styles and enables access for easy cleaning. The efficient design ensures a long run time from its rechargeable Li-Polymer battery and includes an auto-off feature to save power. Stores test results: The built-in File Management system allows technicians to organize test results into multiple files and transfer them via USB to a PC for analyzing, generating reports, and printing. The FlowScout’s QR code feature can easily collect and transfer test data via any smart devices. Features • Detect multiple wavelengths automatically - NO setup required! • Detects GPON, XGS-PON, and Video signals all at once • Rugged and water resistant, IP54 rating • Field-swappable connector adapters • Large color touchscreen display daylight viewable • Rechargeable Li-Polymer battery Applications • Detects and measures PON upstream and downstream signals • PON network activation • BPON, EPON, GPON, 10G-EPON, XG-PON, XGS-PON, Video network verification and troubleshooting • Evaluate PON power level Pass/Fail based on limits US Patent 9,602,200 and US Patent 10,771,153
2 3 Test & Inspection Test & Inspection AFLglobal.com | 800.235.3423 AFLglobal.com | 800.235.3423 Optical Loss Testing Optical Loss Testing FlowScout ® Through-Mode PON Optical Power Meter FlowScout ® Through-Mode PON Optical Power Meter ©2021-2024, AFL, all rights reserved. TPPM-00-2000 Revision AC 2024-01-18 Specifications are subject to change without notice . © 2021-2024, AFL, all rights reserved. TPPM-00-2000 Revision AC 2024-01-18 Specifications are subject to change without notice . GENERAL Power Rechargeable Li-Polymer battery Adapter Caps SC APC standard, LC APC available Battery Life >8 hours Recharge time ~4 hours Operating Temperature -10 °C to 50 °C, 95 % RH (non-condensing) Storage Temperature -20 °C to 60 °C, 95 % RH (non-condensing) Size (H x W x D) 17.1 x 10.4 x 4.6 cm (6.75 x 4.1 x 1.8 in) Weight 0.59 kg (1.3 lb) Notes: a. All specifications valid at 25°C unless otherwise specified. b. Accuracy was measured at 25 ºC and -10 dBm per N.I.S.T. standards. Ordering Information All models include PON optical power meter, rechargeable batteries, SC/APC adapter cap, two SC/APC-SC/APC jumpers, USB-A to USB-C cable for charging and data transfer, AC plug, and carry case. Quick reference quide is available at www.AFLglobal.com. DESCRIPTION AFL NO. FlowScout PON optical power meter XGPON/XGSPON TPPM-XG INCLUDED ACCESSORIES (2) SC/APC to SC/APC Test Jumpers, 2 m 8700-00-0090MR USB-A to USB-C Charge and Data Transfer Cable 6000-00-0036MR AC Adapter 4050-00-0034MR One-Click ® Cleaner Mini-500 SC, ST, FC (500+ cleans) 8500-05-0009MZ AFL ships one power plug (of customer choice) along with the order. Please select one out of the four plugs listed below. EU Power Plug for AC charger 4050-00-0034EUMR US power plug for AC charger 4050-00-0034USMR CN/AUS power plug for AC charger 4050-00-0034SAAMR UK power plug for AC charger 4050-00-0034UKMR Specifications a OPTICAL MODEL TPPM-XG Upstream Wavelength 1270 nm 1310 nm Measurement Range -28 to +13 dBm -28 to +13 dBm Downstream Wavelength 1490 nm 1550 nm 1577 nm Measurement Range -50 to +13 dBm -35 to +26 dBm -50 to +17 dBm Accuracy b ±0.50 dB @0 dBm Resolution 0.01 dB Insertion Loss 1.7 dB Typical Inline ORL 55 dB typical Measurement Units dBm, μW Recommended Products Optical Light Sources • Encircled Flux Compliant • 5-Year Product Warranty • Integrated LED and Laser light sources One-Click ® Cleaners • Patented single-action • Variety of sizes and types • Low cost per clean VFI4 Visual Fault Identifier • Eye-safe Class 3R visible red laser source, 650 nm • Output power of <= 5.0 mW with 10 km range • Universal connector interface for quick connection Qualifications CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking UKCA Marking UK Compliant to relevant UK Directives on health, safety, and environmental protection, and certified with the UKCA marking Safety/EMC/EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Generic Requirement IEC Compliant to IEC 61315 for requirements on calibration of fibre-optic power meters Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about FlowScout PON optical power meters. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts
Caractéristiques :
- Des outils robustes et fiables de la taille d'une poche
- Garantie de 5 ans à la pointe de l'industrie
- Economique et facile à utiliser
- Arrêt automatique pour optimiser la durée de vie de la batterie du Power Meter.
Les applications:
- Mesures de perte de liaison
- Certifier les liaisons SM &
MM aux normes industrielles - Contrôle de la continuité et identification des fibres avant l'épissure par fusion.
Les sources lumineuses et les wattmètres de la série Contractor sont des instruments de test robustes conçus avec une interface utilisateur simple et bénéficiant d'une garantie de 5 ans, la meilleure du secteur. Les options du kit monomode et multimode fournissent des outils pour mesurer la perte d'insertion du réseau, les contrôles de continuité et l'identification des fibres.
Mesureur de puissance CSM1
- Quatre modèles offrant de larges gammes de longueurs d'onde et de niveaux de puissance
- Mémorisation des références optiques pour chaque longueur d'onde étalonnée
- Détection automatique des tonalités de test pour l'identification des fibres.
- Le port d'entrée optique accepte une variété de capuchons adaptateurs filetés.
Source laser CSS1-SM
- Sortie LASER 1310 nm et 1550 nm à partir d'un port de test unique
- Le port de sortie accepte les adaptateurs filetés UCI (FC, SC, ST, LC) pour la flexibilité et l'accès à la fibre de lancement pour le nettoyage et l'inspection.
Source LED CSS1-MM
- Sortie LED 850 nm et 1300 nm à partir d'un port de test unique
- Mandrins de 50 μm et 62,5 μm inclus
- Tonalités de test (2000, 1000, 330, 270 Hz) pour l'identification des fibres.
- Utilisez des wattmètres lorsque le technicien a accès à l'extrémité de la fibre
Sources CSS1 Transmit
- Sortie onde continue CW (DC)
- Tonalités de test (2000, 1000, 330, 270 Hz) pour l'identification des fibres.
- Utiliser des wattmètres lorsque le technicien a accès à l'extrémité de la fibre
- Utilisez l'OFI (identificateur de fibre optique) pour les tests à mi-portée.
Voir la fiche technique pour la liste complète des modèles et des accessoires en option.
