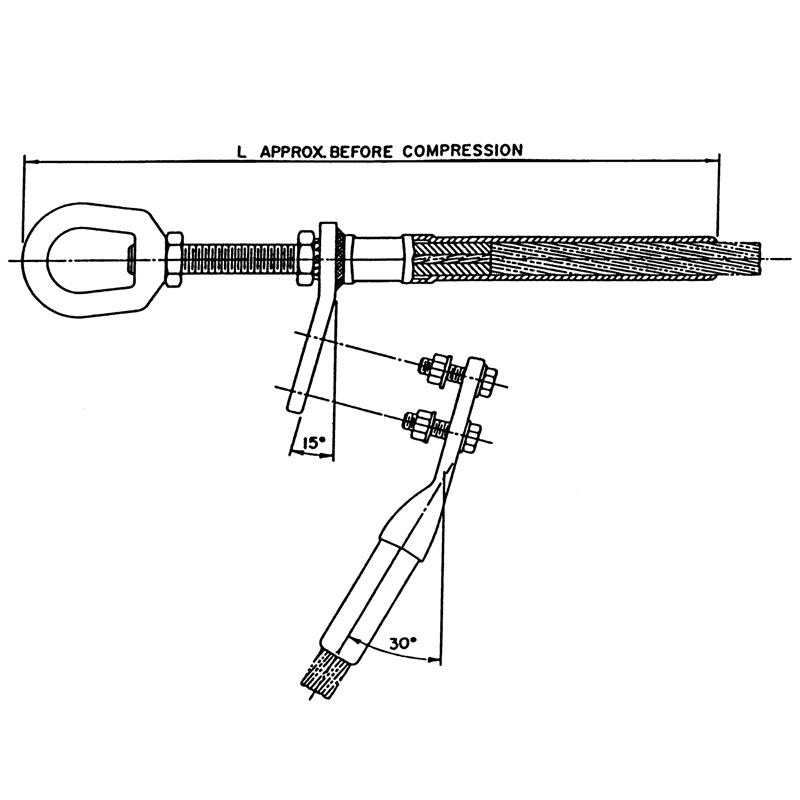

197 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy install-ation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The steel eye is pre-compressed and the dead end pre-filled, eliminat - ing installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For a vertical eye dead end with no terminal and EHV finish for 795 Arbutus, the complete catalog number is: VESE110NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Assembly Catalog Number includes dead end, terminal connector and aluminum hardware 2 Eye Dimensions are on page 257 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAC Conductor, Eye Type, Single Tongue, VESE/HESE Series HESE Style VESE Style © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 198 Quick Compress ® QuickCompress ® – AAC ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE VERTICAL EYE HORIZONTAL EYE CODE WORD SIZE STRANDING DIAMETER KCMIL IN LBS KG IN MM VESE070 HESE070 Peony 300 6 19 0 629 07CD 1 6 0 73 8 9 226 B VESE070 HESE070 Tulip 336 4 19 0 666 07CD 1 6 0 73 8 9 226 B VESE070 HESE070 Daffodil 350 0 19 0 679 07CD 1 6 0 73 8 9 226 B VESE080 HESE080 Canna 397 5 19 0 724 08CD 2 0 0 91 9 3 236 B VESE090 HESE090 Goldentuft 450 0 19 0 770 09CD 2 8 1 27 10 4 265 B VESE090 HESE090 Cosmos 477 0 19 0 793 09CD 2 8 1 27 10 4 265 B VESE090 HESE090 Zinnia 500 0 19 0 811 09CD 2 8 1 27 10 4 265 B VESE100 HESE100 Dahlia 556 5 19 0 856 10CD 3 2 1 45 10 9 278 B VESE100 HESE100 Meadowsweet 600 0 37 0 891 10CD 3 2 1 45 10 9 278 B VESE100 HESE100 Orchid 636 0 37 0 918 10CD 3 2 1 45 10 9 278 B VESE100 HESE100 Heuchera 650 0 37 0 928 10CD 3 2 1 45 10 9 278 B VESE110 HESE110 Verbena 700 0 37 0 963 11CD 5 1 2 31 11 8 298 D VESE110 HESE110 Violet 715 5 37 0 974 11CD 5 1 2 31 11 8 298 D VESE110 HESE110 Petunia 750 0 37 0 997 11CD 5 1 2 31 11 8 298 D VESE110 HESE110 Arbutus 795 0 37 1 026 11CD 5 1 2 31 11 8 298 D VESE110 HESE110 — 800 0 61 1 031 11CD 5 1 2 31 11 8 298 D VESE120 HESE120 Cockscomb 900 0 37 1 092 12CD 5 6 2 54 12 2 310 D VESE120 HESE120 Magnolia 954 0 37 1 124 12CD 5 6 2 54 12 2 310 D VESE130 HESE130 Hawkweed 1000 0 37 1 151 13CD 7 5 3 40 14 1 359 D VESE130 HESE130 Bluebell 1033 5 37 1 170 13CD 7 5 3 40 14 1 359 D VESE130 HESE130 Marigold 1113 0 61 1 216 13CD 7 5 3 40 14 1 359 D VESE140 HESE140 Hawthorn 1192 5 61 1 258 14CD 8 4 3 81 14 6 370 D VESE140 HESE140 — 1250 0 91 1 289 14CD 8 4 3 81 14 6 370 D VESE140 HESE140 Narcissus 1272 0 61 1 300 14CD 8 4 3 81 14 6 370 D VESE140 HESE140 — 1300 0 91 1 315 14CD 8 4 3 81 14 6 370 D VESE150 HESE150 Columbine 1351 5 61 1 340 15CD 9 3 4 22 15 0 381 D VESE150 HESE150 Carnation 1431 0 61 1 379 15CD 9 3 4 22 15 0 381 D VESE150 HESE150 — 1500 0 91 1 412 15CD 9 3 4 22 15 0 381 D VESE150 HESE150 Gladiolus 1510 5 61 1 417 15CD 9 3 4 22 15 0 381 D VESE160 HESE160 Coreopsis 1590 0 61 1 454 16CD 11 8 5 35 16 3 414 D VESE170 HESE170 Jessamine 1750 0 61 1 525 17CD 14 5 6 58 16 7 424 E VESE180 HESE180 Cowslip 2000 0 91 1 630 18CD 15 7 7 12 17 1 435 E VESE190 HESE190 Sagebrush 2250 0 91 1 729 19CD 20 0 9 07 19 1 484 E VESE190 HESE190 — 2300 0 1 750 19CD 20 0 9 07 19 1 484 E VESE200 HESE200 Lupine 2500 0 91 1 823 20CD 21 3 9 66 19 5 495 E Quick Compress Dead Ends for AAC Conductor, Eye Type, Single Tongue, VESE/HESE Series (cont.) 199 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The steel eye is pre-compressed and the dead end pre-filled, eliminat - ing installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For a vertical eye dead end with no terminal and EHV finish for 795 Arbutus, the complete catalog number is: VEDE110NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Assembly Catalog Number includes dead end, two terminal connectors and aluminum hardware 2 Eye Dimensions are on page 257 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAC Conductor, Eye Type, Double Tongue, VEDE/HEDE Series HEDE Style VEDE Style © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 200 Quick Compress ® QuickCompress ® – AAC Quick Compress Dead Ends for AAC Conductor, Eye Type, Double Tongue, VEDE/HEDE Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER VERTICAL EYE HORIZONTAL EYE KCMIL AL IN LBS KG IN MM VEDE070 HEDE070 Peony 300 0 19 0 629 07CD 2 5 1 13 8 9 226 B VEDE070 HEDE070 Tulip 336 4 19 0 666 07CD 2 5 1 13 8 9 226 B VEDE070 HEDE070 Daffodil 350 0 19 0 679 07CD 2 5 1 13 8 9 226 B VEDE080 HEDE080 Canna 397 5 19 0 724 08CD 3 0 1 36 9 3 236 B VEDE090 HEDE090 Goldentuft 450 0 19 0 770 09CD 4 1 1 86 10 4 265 B VEDE090 HEDE090 Cosmos 477 0 19 0 793 09CD 4 1 1 86 10 4 265 B VEDE090 HEDE090 Zinnia 500 0 19 0 811 09CD 4 1 1 86 10 4 265 B VEDE100 HEDE100 Dahlia 556 5 19 0 856 10CD 4 8 2 18 10 9 278 B VEDE100 HEDE100 Meadowsweet 600 0 37 0 891 10CD 4 8 2 18 10 9 278 B VEDE100 HEDE100 Orchid 636 0 37 0 918 10CD 4 8 2 18 10 9 278 B VEDE100 HEDE100 Heuchera 650 0 37 0 928 10CD 4 8 2 18 10 9 278 B VEDE110 HEDE110 Verbena 700 0 37 0 963 11CD 7 3 3 31 11 8 298 D VEDE110 HEDE110 Violet 715 5 37 0 974 11CD 7 3 3 31 11 8 298 D VEDE110 HEDE110 Petunia 750 0 37 0 997 11CD 7 3 3 31 11 8 298 D VEDE110 HEDE110 Arbutus 795 0 37 1 026 11CD 7 3 3 31 11 8 298 D VEDE110 HEDE110 — 800 0 61 1 031 11CD 7 3 3 31 11 8 298 D VEDE120 HEDE120 Cockscomb 900 0 37 1 092 12CD 8 3 3 76 12 2 310 D VEDE120 HEDE120 Magnolia 954 0 37 1 124 12CD 8 3 3 76 12 2 310 D VEDE130 HEDE130 Hawkweed 1000 0 37 1 151 13CD 10 6 4 80 14 1 359 D VEDE130 HEDE130 Bluebell 1033 5 37 1 170 13CD 10 6 4 80 14 1 359 D VEDE130 HEDE130 Marigold 1113 0 61 1 216 13CD 10 6 4 80 14 1 359 D VEDE140 HEDE140 Hawthorn 1192 5 61 1 258 14CD 12 0 5 44 14 6 370 D VEDE140 HEDE140 — 1250 0 91 1 289 14CD 12 0 5 44 14 6 370 D VEDE140 HEDE140 Narcissus 1272 0 61 1 300 14CD 12 0 5 44 14 6 370 D VEDE140 HEDE140 — 1300 0 91 1 315 14CD 12 0 5 44 14 6 370 D VEDE150 HEDE150 Columbine 1351 5 61 1 340 15CD 13 3 6 03 15 0 381 D VEDE150 HEDE150 Carnation 1431 0 61 1 379 15CD 13 3 6 03 15 0 381 D VEDE150 HEDE150 — 1500 0 91 1 412 15CD 13 3 6 03 15 0 381 D VEDE150 HEDE150 Gladiolus 1510 5 61 1 417 15CD 13 3 6 03 15 0 381 D VEDE160 HEDE160 Coreopsis 1590 0 61 1 454 16CD 16 4 7 44 16 3 414 D VEDE170 HEDE170 Jessamine 1750 0 61 1 525 17CD 20 2 9 16 16 7 424 E VEDE180 HEDE180 Cowslip 2000 0 91 1 630 18CD 22 0 9 98 17 1 435 E VEDE190 HEDE190 Sagebrush 2250 0 91 1 729 19CD 27 4 12 43 19 1 484 E VEDE190 HEDE190 — 2300 0 91 1 750 19CD 27 4 12 43 19 1 484 E VEDE200 HEDE200 Lupine 2500 0 91 1 823 20CD 29 2 13 24 19 5 495 E 201 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The adjustable steel clevis is pre-compressed and the dead end pre- filled, eliminating installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For an adjustable clevis dead end with no terminal and EHV finish for 795 Arbutus, the complete catalog number is: ACSE110NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Assembly Catalog Number includes dead end, terminal connector and aluminum hardware 2 Clevis Dimensions are on page 258 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAC Conductor, Adjustable Clevis Type, Single Tongue, ACSE Series © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 202 Quick Compress ® QuickCompress ® – AAC Quick Compress Dead Ends for AAC Conductor, Adjustable Clevis Type, Single Tongue, ACSE Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER KCMIL IN LBS KG IN MM ACSE070 Peony 300 0 19 0 629 07CD 4 1 1 86 16 6 442 B ACSE070 Tulip 336 4 19 0 666 07CD 4 1 1 86 16 6 442 B ACSE070 Daffodil 350 0 19 0 679 07CD 4 1 1 86 16 6 442 B ACSE080 Canna 397 5 19 0 724 08CD 4 8 2 18 17 2 437 B ACSE090 Goldentuft 450 0 19 0 770 09CD 5 8 2 63 18 3 465 B ACSE090 Cosmos 477 0 19 0 793 09CD 5 8 2 63 18 3 465 B ACSE090 Zinnia 500 0 19 0 811 09CD 5 8 2 63 18 3 465 B ACSE100 Dahlia 556 5 19 0 856 10CD 6 2 2 81 18 8 476 B ACSE100 Meadowsweet 600 0 37 0 891 10CD 6 2 2 81 18 8 476 B ACSE100 Orchid 636 0 37 0 918 10CD 6 2 2 81 18 8 476 B ACSE100 Heuchera 650 0 37 0 928 10CD 6 2 2 81 18 8 476 B ACSE110 Verbena 700 0 37 0 963 11CD 10 7 4 85 21 8 554 D ACSE110 Violet 715 5 37 0 974 11CD 10 7 4 85 21 8 554 D ACSE110 Petunia 750 0 37 0 997 11CD 10 7 4 85 21 8 554 D ACSE110 Arbutus 795 0 37 1 026 11CD 10 7 4 85 21 8 554 D ACSE110 — 800 0 61 1 031 11CD 10 7 4 85 21 8 554 D ACSE120 Cockscomb 900 0 37 1 092 12CD 11 2 5 08 22 3 565 D ACSE120 Magnolia 954 0 37 1 124 12CD 11 2 5 08 22 3 565 D ACSE130 Hawkweed 1000 0 37 1 151 13CD 13 9 6 30 23 8 605 D ACSE130 Bluebell 1033 5 37 1 170 13CD 13 9 6 30 23 8 605 D ACSE130 Marigold 1113 0 61 1 216 13CD 13 9 6 30 23 8 605 D ACSE140 Hawthorn 1192 5 61 1 258 14CD 14 8 6 71 24 3 616 D ACSE140 — 1250 0 91 1 289 14CD 14 8 6 71 24 3 616 D ACSE140 Narcissus 1272 0 61 1 300 14CD 14 8 6 71 24 3 616 D ACSE140 — 1300 0 91 1 315 14CD 14 8 6 71 24 3 616 D ACSE150 Columbine 1351 5 61 1 340 15CD 15 7 7 12 24 7 627 D ACSE150 Carnation 1431 0 61 1 379 15CD 15 7 7 12 24 7 627 D ACSE150 — 1500 0 91 1 412 15CD 15 7 7 12 24 7 627 D ACSE150 Gladiolus 1510 5 61 1 417 15CD 15 7 7 12 24 7 627 D ACSE160 Coreopsis 1590 0 61 1 454 16CD 21 9 9 93 28 4 721 D ACSE170 Jessamine 1750 0 61 1 525 17CD 24 6 11 16 28 9 734 E ACSE180 Cowslip 2000 0 91 1 630 18CD 25 8 11 70 29 3 743 E ACSE190 Sagebrush 2250 0 91 1 729 19CD 33 9 15 38 31 1 789 E ACSE190 — 2300 0 91 1 750 19CD 33 9 15 38 31 1 789 E ACSE200 Lupine 2500 0 91 1 823 20CD 35 2 15 97 31 5 800 E 203 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The adjustable steel eye is pre-compressed and the dead end pre- filled, eliminating installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For an adjustable eye dead end with no terminal and EHV finish for 795 Arbutus, the complete catalog number is: AESE110NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Assembly Catalog Number includes dead end, terminal connector and aluminum hardware 2 Eye Dimensions are on page 258 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAC Conductor, Adjustable Eye Type, Single Tongue, AESE Series © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 204 Quick Compress ® QuickCompress ® – AAC Quick Compress Dead Ends for AAC Conductor, Adjustable Eye Type, Single Tongue, AESE Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIAMETER KCMIL IN LBS KG IN MM AESE070 Peony 300 6 19 0 629 07CD 2 6 1 18 13 8 351 B AESE070 Tulip 336 4 19 0 666 07CD 2 6 1 18 13 8 351 B AESE070 Daffodil 350 0 19 0 679 07CD 2 6 1 18 13 8 351 B AESE080 Canna 397 5 19 0 724 08CD 3 7 1 68 14 8 377 B AESE090 Goldentuft 450 0 19 0 770 09CD 5 3 2 40 16 4 415 B AESE090 Cosmos 477 0 19 0 793 09CD 5 3 2 40 16 4 415 B AESE090 Zinnia 500 0 19 0 811 09CD 5 3 2 40 16 4 415 B AESE100 Dahlia 556 5 19 0 856 10CD 5 7 2 59 16 8 427 B AESE100 Meadowsweet 600 0 37 0 891 10CD 5 7 2 59 16 8 427 B AESE100 Orchid 636 0 37 0 918 10CD 5 7 2 59 16 8 427 B AESE100 Heuchera 650 0 37 0 928 10CD 5 7 2 59 16 8 427 B AESE110 Verbena 700 0 37 0 963 11CD 8 7 3 95 19 1 485 D AESE110 Violet 715 5 37 0 974 11CD 8 7 3 95 19 1 485 D AESE110 Petunia 750 0 37 0 997 11CD 8 7 3 95 19 1 485 D AESE110 Arbutus 795 0 37 1 026 11CD 8 7 3 95 19 1 485 D AESE110 — 800 0 61 1 031 11CD 8 7 3 95 19 1 485 D AESE120 Cockscomb 900 0 37 1 092 12CD 9 3 4 22 19 6 497 D AESE120 Magnolia 954 0 37 1 124 12CD 9 3 4 22 19 6 497 D AESE130 Hawkweed 1000 0 37 1 151 13CD 13 1 5 94 21 6 549 D AESE130 Bluebell 1033 5 37 1 170 13CD 13 1 5 94 21 6 549 D AESE130 Marigold 1113 0 61 1 216 13CD 13 1 5 94 21 6 549 D AESE140 Hawthorn 1192 5 61 1 258 14CD 14 0 6 35 22 1 561 D AESE140 — 1250 0 91 1 289 14CD 14 0 6 35 22 1 561 D AESE140 Narcissus 1272 0 61 1 300 14CD 14 0 6 35 22 1 561 D AESE140 — 1300 0 91 1 315 14CD 14 0 6 35 22 1 561 D AESE150 Columbine 1351 5 61 1 340 15CD 14 9 6 76 22 5 571 D AESE150 Carnation 1431 0 61 1 379 15CD 14 9 6 76 22 5 571 D AESE150 — 1500 0 91 1 412 15CD 14 9 6 76 22 5 571 D AESE150 Gladiolus 1510 5 61 1 417 15CD 14 9 6 76 22 5 571 D AESE160 Coreopsis 1590 0 61 1 454 16CD 21 8 9 89 25 7 653 D AESE170 Jessamine 1750 0 61 1 525 17CD 24 6 11 16 26 2 664 E AESE180 Cowslip 2000 0 91 1 630 18CD 25 8 11 70 26 5 674 E AESE190 Sagebrush 2250 0 91 1 729 19CD 31 0 14 60 28 1 713 E AESE190 — 2300 0 91 1 750 19CD 31 0 14 60 28 1 713 E AESE200 Lupine 2500 0 91 1 823 20CD 32 3 14 65 28 5 724 E
