El manguito de reparación de compresión rápida de AFL para conductores AAAC y ACAR funciona a temperaturas de hasta 100°C (212°F).

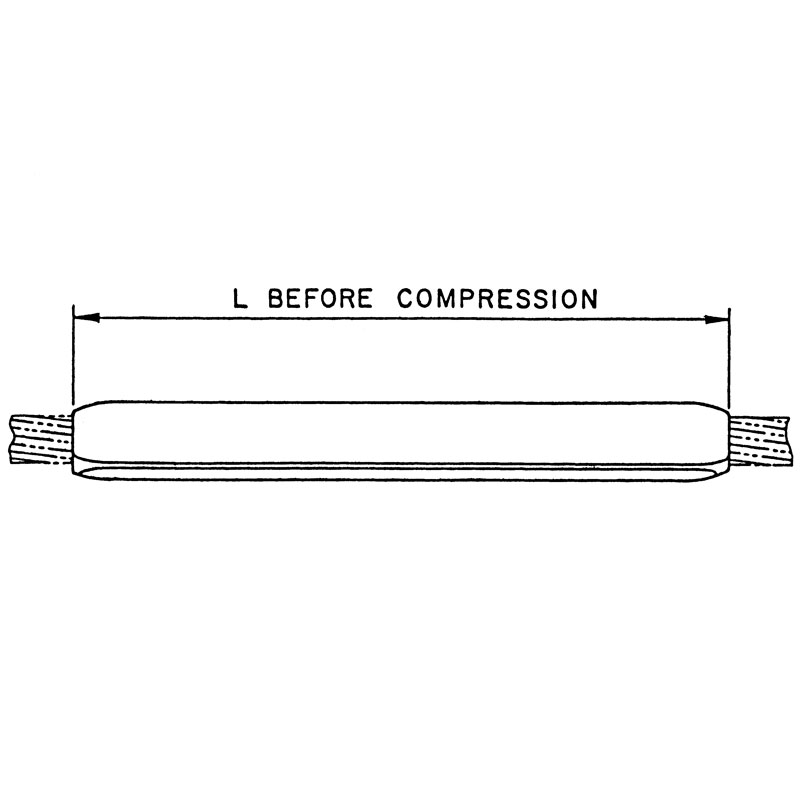

237 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Repair Sleeve is designed for ACSR, AAC, AAAC and ACAR conductors The repair sleeve incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed The repair sleeve will restore the conductor to 95% of its ASTM rated strength where up to one-third of the aluminum strands are damaged Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: A repair sleeve for 927 7 Greeley conductor, the complete cata - log number is: RS11 Notes: 1 Installation Instructions for Compression Joints are on page 270 2 For more information on die selection and ordering instructions, see the AFL Tool Catalog Quick Compress Repair Sleeve for AAAC and ACAR Conductor, RS Series CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM RS07 — 281 4 0 609 07CD 0 4 0 17 8 4 213 RS07 Butte 312 8 0 642 07CD 0 4 0 17 8 4 213 RS08 — 355 1 0 684 08CD 0 6 0 26 9 6 244 RS08 Canton 394 5 0 721 08CD 0 6 0 26 9 6 244 RS08 — 419 6 0 743 08CD 0 6 0 26 9 6 244 RS09 Cairo 465 4 0 783 09CD 0 8 0 38 10 8 274 RS09 — 503 6 0 814 09CD 0 8 0 38 10 8 274 RS10 Darien 559 5 0 858 10CD 1 1 0 50 12 0 305 RS10 — 587 2 0 879 10CD 1 1 0 50 12 0 305 RS10 — 634 9 0 914 10CD 1 1 0 50 12 0 305 RS10 — 649 5 0 928 10CD 1 1 0 50 12 0 305 RS10 Elgin 652 4 0 927 10CD 1 1 0 50 12 0 305 RS10 — 657 3 0 930 10CD 1 1 0 50 12 0 305 RS11 Flint 740 8 0 991 11CD 1 5 0 68 13 2 335 RS12 — 853 7 1 063 12CD 1 9 0 86 14 4 366 RS12 Greeley 927 2 1 108 12CD 1 9 0 86 14 4 366 RS13 — 1024 5 1 165 13CD 2 4 1 09 15 6 396
© 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 238 Quick Compress ® QuickCompress ® – AAAC & ACAR CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM RS13 — 1080 6 1 196 13CD 2 4 1 09 15 6 396 RS13 — 1108 6 1 212 13CD 2 4 1 09 15 6 396 RS14 — 1172 3 1 246 14CD 3 1 1 41 16 8 427 RS16 — 1534 0 1 427 16CD 4 6 2 09 19 2 488 RS16 — 1700 0 1 502 16CD 4 6 2 09 19 2 488 RS19 — 2303 5 1 750 19CD 7 8 3 54 22 8 579 RS19 — 2338 0 1 762 19CD 7 8 3 54 22 8 579 RS20 — 2493 0 1 821 20CD 9 1 4 13 24 0 610 Quick Compress Repair Sleeve for AAAC and ACAR Conductor, RS Series (cont.)
Características:
- 40% menos de tiempo de instalación
- Agarre de núcleo de una pieza
- Conectores de compresión rápida prellenados en fábrica con compuesto de relleno AFL (AFC)
