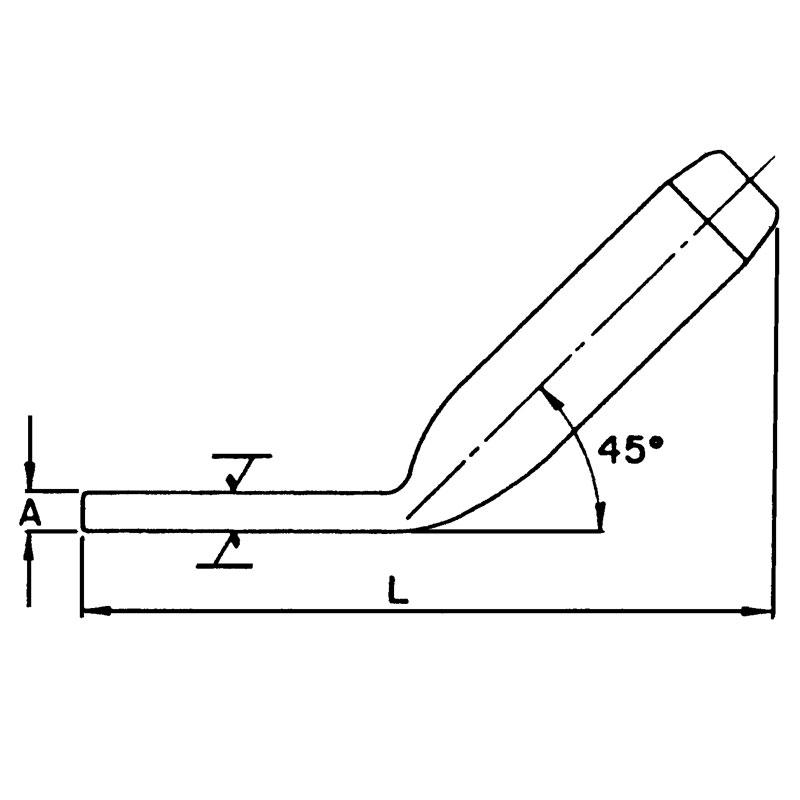

213 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The TS Series Straight Terminal Connector is designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites The terminal connector is pre-filled, eliminating an installation step All TS Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 3: Assemble Catalog Number. Example: A straight terminal for 795 Arbutus with an EHV finish, the complete catalog number is: TS11EHV Catalog Number EHV Finish + Notes: 1 Pad Dimensions are on page 257 2 Installation Instructions for Terminals are on page 272 3 Bolts, nuts and washers are not supplied with TS Series Terminal Connectors 4 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Terminal for AAC Conductor, Straight, TS Series © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 214 Quick Compress ® QuickCompress ® – AAC Quick Compress Terminal for AAC Conductor, Straight, TS Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL IN LBS KG IN MM IN MM TS07 Peony 300 0 19 0 629 07CD 0 5 0 20 0 3 8 9 0 229 B TS07 Tulip 336 4 19 0 666 07CD 0 5 0 20 0 3 8 9 0 229 B TS07 Daffodil 350 0 19 0 679 07CD 0 5 0 20 0 3 8 9 0 229 B TS08 Canna 397 5 19 0 724 08CD 0 6 0 28 0 4 10 9 6 244 B TS09 Goldentuft 450 0 19 0 770 09CD 0 8 0 38 0 4 11 10 0 254 B TS09 Cosmos 477 0 19 0 793 09CD 0 8 0 38 0 4 11 10 0 254 B TS09 Zinnia 500 0 19 0 811 09CD 0 8 0 38 0 4 11 10 0 254 B TS10 Dahlia 556 5 19 0 856 10CD 1 1 0 50 0 5 12 10 6 269 B TS10 Meadowsweet 600 0 37 0 891 10CD 1 1 0 50 0 5 12 10 6 269 B TS10 Orchid 636 0 37 0 918 10CD 1 1 0 50 0 5 12 10 6 269 B TS10 Heuchera 650 0 37 0 928 10CD 1 1 0 50 0 5 12 10 6 269 B TS11 Verbena 700 0 37 0 963 11CD 1 5 0 68 0 4 9 11 7 297 D TS11 Violet 715 5 37 0 974 11CD 1 5 0 68 0 4 9 11 7 297 D TS11 Petunia 750 0 37 0 997 11CD 1 5 0 68 0 4 9 11 7 297 D TS11 Arbutus 795 0 37 1 026 11CD 1 5 0 68 0 4 9 11 7 297 D TS11 — 800 0 61 1 031 11CD 1 5 0 68 0 4 9 11 7 297 D TS12 Cockscomb 900 0 37 1 092 12CD 1 8 0 82 0 4 11 12 1 307 D TS12 Magnolia 954 0 37 1 124 12CD 1 8 0 82 0 4 11 12 1 307 D TS13 Hawkweed 1000 0 37 1 151 13CD 2 1 0 95 0 5 13 12 8 325 D TS13 Bluebell 1033 5 37 1 170 13CD 2 1 0 95 0 5 13 12 8 325 D TS13 Marigold 1113 0 61 1 216 13CD 2 1 0 95 0 5 13 12 8 325 D TS14 Hawthorn 1192 5 61 1 258 14CD 2 7 1 22 0 6 16 13 8 351 D TS14 — 1250 0 91 1 289 14CD 2 7 1 22 0 6 16 13 8 351 D TS14 Narcissus 1272 0 61 1 300 14CD 2 7 1 22 0 6 16 13 8 351 D TS14 — 1300 0 91 1 315 14CD 2 7 1 22 0 6 16 13 8 351 D TS15 Columbine 1351 5 61 1 340 15CD 3 3 1 50 0 7 17 14 3 363 D TS15 Carnation 1431 0 61 1 379 15CD 3 3 1 50 0 7 17 14 3 363 D TS15 — 1500 0 91 1 412 15CD 3 3 1 50 0 7 17 14 3 363 D TS15 Gladiolus 1510 5 61 1 417 15CD 3 3 1 50 0 7 17 14 3 363 D TS16 Coreopsis 1590 0 61 1 454 16CD 3 8 1 72 0 7 17 14 6 371 D TS17 Jessamine 1750 0 61 1 525 17CD 0 5 2 13 0 7 17 16 3 414 E TS18 Cowslip 2000 0 91 1 630 18CD 5 5 2 49 0 7 19 16 8 427 E TS19 Sagebrush 2250 0 91 1 729 19CD 6 5 2 95 0 9 22 17 5 445 E TS19 — 2300 0 91 1 750 19CD 6 5 2 95 0 9 22 17 5 445 E TS20 Lupine 2500 0 91 1 823 20CD 7 3 3 31 0 9 22 12 9 455 E 215 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The TF Series 15º Terminal Connector is designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites The termi - nal connector is pre-filled, eliminating an installation step When used with the Quick Compress dead end, the TF Series connectors can be bolted in either straight or 30º position All TF Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 3: Assemble Catalog Number. Example: A 15º terminal for 795 Arbutus with an EHV finish, the complete catalog number is: TF11EHV Catalog Number EHV Finish + Notes: 1 Pad Dimensions are on page 257 2 Installation Instructions for Terminals are on page 272 3 Bolts, nuts and washers are supplied with TF Series Terminal Connectors 4 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Terminal for AAC Conductor, 15º, TF Series © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 216 Quick Compress ® QuickCompress ® – AAC Quick Compress Terminal for AAC Conductor, 15º, TF Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TF07 Peony 300 6 19 0 629 07CD 0 5 0 24 0 3 8 7 8 196 B TF07 Tulip 336 4 19 0 666 07CD 0 5 0 24 0 3 8 7 8 196 B TF07 Daffodil 350 0 19 0 679 07CD 0 5 0 24 0 3 8 7 8 196 B TF08 Canna 397 5 19 0 724 08CD 0 7 0 31 0 4 10 8 3 211 B TF09 Goldentuft 450 0 19 0 770 09CD 0 9 0 40 0 4 11 8 9 226 B TF09 Cosmos 477 0 19 0 793 09CD 0 9 0 40 0 4 11 8 9 226 B TF09 Zinnia 500 0 19 0 811 09CD 0 9 0 40 0 4 11 8 9 226 B TF10 Dahlia 556 5 19 0 856 10CD 1 1 0 50 0 5 12 9 4 239 B TF10 Meadowsweet 600 0 37 0 891 10CD 1 1 0 50 0 5 12 9 4 239 B TF10 Orchid 636 0 37 0 918 10CD 1 1 0 50 0 5 12 9 4 239 B TF10 Heuchera 650 0 37 0 928 10CD 1 1 0 50 0 5 12 9 4 239 B TF11 Verbena 700 0 37 0 963 11CD 1 5 0 68 0 4 9 10 4 264 D TF11 Violet 715 5 37 0 974 11CD 1 5 0 68 0 4 9 10 4 264 D TF11 Petunia 750 0 37 0 997 11CD 1 5 0 68 0 4 9 10 4 264 D TF11 Arbutus 795 0 37 1 026 11CD 1 5 0 68 0 4 9 10 4 264 D TF11 — 800 0 61 1 031 11CD 1 5 0 68 0 4 9 10 4 264 D TF12 Cockscomb 900 0 37 1 092 12CD 1 9 0 86 0 4 11 11 0 279 D TF12 Magnolia 954 0 37 1 124 12CD 1 9 0 86 0 4 11 11 0 279 D TF13 Hawkweed 1000 0 37 1 151 13CD 2 2 1 00 0 5 13 11 2 284 D TF13 Bluebell 1033 5 37 1 170 13CD 2 2 1 00 0 5 13 11 2 284 D TF13 Marigold 1113 0 61 1 216 13CD 2 2 1 00 0 5 13 11 2 284 D TF14 Hawthorn 1192 5 61 1 258 14CD 2 8 1 27 0 6 16 12 0 305 D TF14 — 1250 0 91 1 289 14CD 2 8 1 27 0 6 16 12 0 305 D TF14 Narcissus 1272 0 61 1 300 14CD 2 8 1 27 0 6 16 12 0 305 D TF14 — 1300 0 91 1 315 14CD 2 8 1 27 0 6 16 12 0 305 D TF15 Columbine 1351 5 61 1 340 15CD 3 2 1 45 0 7 17 12 5 318 D TF15 Carnation 1431 0 61 1 379 15CD 3 2 1 45 0 7 17 12 5 318 D TF15 — 1500 0 91 1 412 15CD 3 2 1 45 0 7 17 12 5 318 D TF15 Gladiolus 1510 5 61 1 417 15CD 3 2 1 45 0 7 17 12 5 318 D TF16 Coreopsis 1590 0 61 1 454 16CD 3 7 1 69 0 9 17 13 3 338 D TF17 Jessamine 1750 0 61 1 525 17CD 4 6 2 09 0 7 17 14 4 366 E TF18 Cowslip 2000 0 91 1 630 18CD 5 2 2 36 0 7 19 15 0 381 E TF19 Sagebrush 2250 0 91 1 729 19CD 6 3 2 86 0 9 22 15 7 399 E TF19 — 2300 0 91 1 750 19CD 6 3 2 86 0 9 22 15 7 399 E TF20 Lupine 2500 0 91 1 823 20CD 6 8 3 08 0 9 22 16 0 406 E 217 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The T45 Series 45º Terminal Connector is designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites The terminal connector is pre-filled, eliminating an installation step All T45 Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 3: Assemble Catalog Number. Example: A 45º terminal for 795 Arbutus with an EHV finish, the complete catalog number is: T4511EHV Catalog Number EHV Finish + Notes: 1 Pad Dimensions are on page 257 2 Installation Instructions for Terminals are on page 272 3 Bolts, nuts and washers are not supplied with T45 Series Terminal Connectors 4 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Terminal for AAC Conductor, 45º, T45 Series © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 218 Quick Compress ® QuickCompress ® – AAC Quick Compress Terminal for AAC Conductor, 45º, T45 Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM T4507 Peony 300 6 19 0 629 07CD 0 4 0 19 0 3 8 7 3 185 B T4507 Tulip 336 4 19 0 666 07CD 0 4 0 19 0 3 8 7 3 185 B T4507 Daffodil 350 0 19 0 679 07CD 0 4 0 19 0 3 8 7 3 185 B T4508 Canna 397 5 19 0 724 08CD 0 6 0 25 0 4 10 7 8 198 B T4509 Goldentuft 450 0 19 0 770 09CD 0 8 0 34 0 4 11 8 2 208 B T4509 Cosmos 477 0 19 0 793 09CD 0 8 0 34 0 4 11 8 2 208 B T4509 Zinnia 500 0 19 0 811 09CD 0 8 0 34 0 4 11 8 2 208 B T4510 Dahlia 556 5 19 0 856 10CD 1 0 0 45 0 5 12 8 6 218 B T4510 Meadowsweet 600 0 37 0 891 10CD 1 0 0 45 0 5 12 8 6 218 B T4510 Orchid 636 0 37 0 918 10CD 1 0 0 45 0 5 12 8 6 218 B T4510 Heuchera 650 0 37 0 928 10CD 1 0 0 45 0 5 12 8 6 218 B T4511 Verbena 700 0 37 0 963 11CD 1 3 0 59 0 4 9 9 4 239 D T4511 Violet 715 5 37 0 974 11CD 1 3 0 59 0 4 9 9 4 239 D T4511 Petunia 750 0 37 0 997 11CD 1 3 0 59 0 4 9 9 4 239 D T4511 Arbutus 795 0 37 1 026 11CD 1 3 0 59 0 4 9 9 4 239 D T4511 — 800 0 61 1 031 11CD 1 3 0 59 0 4 9 9 4 239 D T4512 Cockscomb 900 0 37 1 092 12CD 1 6 0 73 0 4 11 9 7 246 D T4512 Magnolia 954 0 37 1 124 12CD 1 6 0 73 0 4 11 9 7 246 D T4513 Hawkweed 1000 0 37 1 151 13CD 2 0 0 91 0 5 13 10 2 259 D T4513 Bluebell 1033 5 37 1 170 13CD 2 0 0 91 0 5 13 10 2 259 D T4513 Marigold 1113 0 61 1 216 13CD 2 0 0 91 0 5 13 10 2 259 D T4514 Hawthorn 1192 5 61 1 258 14CD 2 3 1 04 0 6 16 10 6 269 D T4514 — 1250 0 91 1 289 14CD 2 3 1 04 0 6 16 10 6 269 D T4514 Narcissus 1272 0 61 1 300 14CD 2 3 1 04 0 6 16 10 6 269 D T4514 — 1300 0 91 1 315 14CD 2 3 1 04 0 6 16 10 6 269 D T4515 Columbine 1351 5 61 1 340 15CD 2 8 1 27 0 7 17 11 8 300 D T4515 Carnation 1431 0 61 1 379 15CD 2 8 1 27 0 7 17 11 8 300 D T4515 — 1500 0 91 1 412 15CD 2 8 1 27 0 7 17 11 8 300 D T4515 Gladiolus 1510 5 61 1 417 15CD 2 8 1 27 0 7 17 11 8 300 D T4516 Coreopsis 1590 0 61 1 454 16CD 3 4 1 54 0 7 17 11 0 279 D T4517 Jessamine 1750 0 61 1 525 17CD 4 2 1 91 0 7 17 12 6 320 E T4518 Cowslip 2000 0 91 1 630 18CD 4 9 2 22 0 7 19 13 0 330 E T4519 Sagebrush 2250 0 91 1 729 19CD 5 7 2 59 0 9 22 13 7 348 E T4519 — 2300 0 91 1 750 19CD 5 7 2 59 0 9 22 13 7 348 E T4520 Lupine 2500 0 91 1 823 20CD 6 5 2 95 0 9 22 14 2 361 E 219 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The TN Series 90º Terminal Connector is designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites The termi - nal connector is pre-filled, eliminating an installation step All TN Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 3: Assemble Catalog Number. Example: A 90º terminal for 795 Arbutus with an EHV finish, the complete catalog number is: TN11EHV Catalog Number EHV Finish + Notes: 1 Pad Dimensions are on page 257 2 Installation Instructions for Terminals are on page 272 3 Bolts, nuts and washers are not supplied with TN Series Terminal Connectors 4 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Terminal for AAC Conductor, 90º, TN Series © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 220 Quick Compress ® QuickCompress ® – AAC Quick Compress Terminal for AAC Conductor, 90º, TN Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL IN LBS KG IN MM IN MM TN07 Peony 300 6 19 0 629 07CD 0 5 0 20 0 3 8 5 2 132 B TN07 Tulip 336 4 19 0 666 07CD 0 5 0 20 0 3 8 5 2 132 B TN07 Daffodil 350 0 19 0 679 07CD 0 5 0 20 0 3 8 5 2 132 B TN08 Canna 397 5 19 0 724 08CD 0 6 0 29 0 4 10 5 7 145 B TN09 Goldentuft 450 0 19 0 770 09CD 0 8 0 38 0 4 11 6 2 157 B TN09 Cosmos 477 0 19 0 793 09CD 0 8 0 38 0 4 11 6 2 157 B TN09 Zinnia 500 0 19 0 811 09CD 0 8 0 38 0 4 11 6 2 157 B TN10 Dahlia 556 5 19 0 856 10CD 1 1 0 50 0 5 12 6 7 170 B TN10 Meadowsweet 600 0 37 0 891 10CD 1 1 0 50 0 5 12 6 7 170 B TN10 Orchid 636 0 37 0 918 10CD 1 1 0 50 0 5 12 6 7 170 B TN10 Heuchera 650 0 37 0 928 10CD 1 1 0 50 0 5 12 6 7 170 B TN11 Verbena 700 0 37 0 963 11CD 1 4 0 64 0 4 9 7 5 191 D TN11 Violet 715 5 37 0 974 11CD 1 4 0 64 0 4 9 7 5 191 D TN11 Petunia 750 0 37 0 997 11CD 1 4 0 64 0 4 9 7 5 191 D TN11 Arbutus 795 0 37 1 026 11CD 1 4 0 64 0 4 9 7 5 191 D TN11 — 800 0 61 1 031 11CD 1 4 0 64 0 4 9 7 5 191 D TN12 Cockscomb 900 0 37 1 092 12CD 1 8 0 82 0 4 11 7 9 202 D TN12 Magnolia 954 0 37 1 124 12CD 1 8 0 82 0 4 11 7 9 202 D TN13 Hawkweed 1000 0 37 1 151 13CD 2 2 1 00 0 5 13 8 5 216 D TN13 Bluebell 1033 5 37 1 170 13CD 2 2 1 00 0 5 13 8 5 216 D TN13 Marigold 1113 0 61 1 216 13CD 2 2 1 00 0 5 13 8 5 216 D TN14 Hawthorn 1192 5 61 1 258 14CD 2 6 1 18 0 6 16 9 2 233 D TN14 — 1250 0 91 1 289 14CD 2 6 1 18 0 6 16 9 2 233 D TN14 Narcissus 1272 0 61 1 300 14CD 2 6 1 18 0 6 16 9 2 233 D TN14 — 1300 0 91 1 315 14CD 2 6 1 18 0 6 16 9 2 233 D TN15 Columbine 1351 5 61 1 340 15CD 3 1 1 41 0 7 17 9 8 248 D TN15 Carnation 1431 0 61 1 379 15CD 3 1 1 41 0 7 17 9 8 248 D TN15 — 1500 0 91 1 412 15CD 3 1 1 41 0 7 17 9 8 248 D TN15 Gladiolus 1510 5 61 1 417 15CD 3 1 1 41 0 7 17 9 8 248 D TN16 Coreopsis 1590 0 61 1 454 16CD 3 7 1 68 0 7 17 10 2 259 D TN17 Jessamine 1750 0 61 1 525 17CD 4 6 2 09 0 7 17 11 2 264 E TN18 Cowslip 2000 0 91 1 630 18CD 5 3 2 40 0 7 19 11 4 289 E TN19 Sagebrush 2250 0 91 1 729 19CD 6 1 2 77 0 9 22 11 9 303 E TN19 — 2300 0 91 1 750 19CD 6 1 2 77 0 9 22 11 9 303 E TN20 Lupine 2500 0 91 1 823 20CD 6 9 3 13 0 9 22 12 6 321 E
