Los terminales de compresión rápida de AFL para conductores ACSR funcionan a temperaturas de hasta 100°C (212°F).
179 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The TS Series Straight Terminal Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The terminal connector is pre-filled, eliminating an installation step. All TS Series connectors are designed for limited tension use, maintain - ing a minimum of 40% of the ASTM rated strength of the conductor. The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above. The square edges of bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 3: Assemble Catalog Number. Example: A straight terminal for 795 Drake with an EHV finish, the complete catalog number is: TS12EHV Catalog Number EHV Finish + Notes: 1. Pad Dimensions are on page 257. 2. Installation Instructions for Terminals are on page 272. 3. Bolts, nuts and washers are not supplied with TS Series Terminal Connectors. 4. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Terminal for ACSR Conductor, Straight, TS Series
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 180 Quick Compress ® QuickCompress ® – ACSR Quick Compress Terminal for ACSR Conductor, Straight, TS Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TS07 Owl 266.8 6/7 0.633 07CD 0.5 0.20 0.3 8 9.0 229 B TS07 Waxwing 266.8 18/1 0.609 07CD 0.5 0.20 0.3 8 9.0 229 B TS07 Partridge 266.8 26/7 0.642 07CD 0.5 0.20 0.3 8 9.0 229 B TS08 Ostrich 300.0 26/7 0.680 08CD 0.6 0.28 0.4 10 9.6 244 B TS08 Merlin 336.4 18/1 0.684 08CD 0.6 0.28 0.4 10 9.6 244 B TS08 Linnet 336.4 26/7 0.720 08CD 0.6 0.28 0.4 10 9.6 244 B TS09 Oriole 336.4 30/7 0.741 09CD 0.8 0.38 0.4 11 10.0 254 B TS08 Chickadee 397.5 18/1 0.743 08CD 0.6 0.28 0.4 10 9.6 244 B TS09 Brant 397.5 24/7 0.772 09CD 0.8 0.38 0.4 11 10.0 254 B TS09 Ibis 397.5 26/7 0.783 09CD 0.8 0.38 0.4 11 10.0 254 B TS10 Lark 397.5 30/7 0.806 10CD 1.1 0.50 0.5 12 10.6 269 B TS09 Pelican 477.0 18/1 0.814 09CD 0.8 0.38 0.4 11 10.0 254 B TS09 Flicker 477.0 24/7 0.846 09CD 0.8 0.38 0.4 11 10.0 254 B TS10 Hawk 477.0 26/7 0.858 10CD 1.1 0.50 0.5 12 10.6 269 B TS11 Hen 477.0 30/7 0.883 11CD 1.5 0.68 0.4 9 11.7 297 D TS10 Osprey 556.5 18/1 0.879 10CD 1.1 0.50 0.5 12 10.6 269 B TS10 Parakeet 556.5 24/7 0.914 10CD 1.1 0.50 0.5 12 10.6 269 B TS10 Dove 556.5 26/7 0.927 10CD 1.1 0.50 0.5 12 10.6 269 B TS11 Eagle 556.5 30/7 0.953 11CD 1.5 0.68 0.4 9 11.7 297 D TS11 Peacock 605.0 24/7 0.953 11CD 1.5 0.68 0.4 9 11.7 297 D TS11 Squab 605.0 26/7 0.966 11CD 1.5 0.68 0.4 9 11.7 297 D TS12 Teal 605.0 30/19 0.994 12CD 1.8 0.82 0.4 11 12.1 307 D TS10 Kingbird 636.0 18/1 0.940 10CD 1.1 0.50 0.5 12 10.6 269 B TS11 Rook 636.0 24/7 0.977 11CD 1.5 0.68 0.4 9 11.7 297 D TS11 Grosbeak 636.0 26/7 0.990 11CD 1.5 0.68 0.4 9 11.7 297 D TS12 Egret 636.0 30/19 1.019 12CD 1.8 0.82 0.4 11 12.1 307 D TS10 Swift 636.0 36/1 0.930 10CD 1.1 0.50 0.5 12 10.6 269 B TS11 Flamingo 666.6 24/7 1.000 11CD 1.5 0.68 0.4 9 11.7 297 D TS11 Stilt 715.5 24/7 1.036 11CD 1.5 0.68 0.4 9 11.7 297 D TS12 Starling 715.5 26/7 1.051 12CD 1.8 0.82 0.4 11 12.1 307 D TS13 Redwing 715.5 30/19 1.081 13CD 2.1 0.95 0.5 13 12.8 325 D TS12 Cuckoo 795.0 24/7 1.092 12CD 1.8 0.82 0.4 11 12.1 307 D TS12 Drake 795.0 26/7 1.108 12CD 1.8 0.82 0.4 11 12.1 307 D TS14 Mallard 795.0 30/19 1.140 14CD 2.7 1.22 0.6 16 13.8 351 D TS11 Coot 795.0 36/1 1.040 11CD 1.5 0.68 0.4 9 11.7 297 D TS12 Tern 795.0 45/7 1.063 12CD 1.8 0.82 0.4 11 12.1 307 D TS12 Condor 795.0 54/7 1.093 12CD 1.8 0.82 0.4 11 12.1 307 D TS12 Ruddy 900.0 45/7 1.131 12CD 1.8 0.82 0.4 11 12.1 307 D
181 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Terminal for ACSR Conductor, Straight, TS Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TS13 Canary 900.0 54/7 1.162 13CD 2.1 0.95 0.5 13 12.8 325 D TS12 Catbird 954.0 36/1 1.140 12CD 1.8 0.82 0.4 11 12.1 307 D TS13 Rail 954.0 45/7 1.165 13CD 2.1 0.95 0.5 13 12.8 325 D TS13 Cardinal 954.0 54/7 1.196 13CD 2.1 0.95 0.5 13 12.8 325 D TS13 Tanger 1033.5 36/1 1.186 13CD 2.1 0.95 0.5 13 12.8 325 D TS13 Ortolan 1033.5 45/7 1.212 13CD 2.1 0.95 0.5 13 12.8 325 D TS14 Curlew 1033.5 54/7 1.244 14CD 2.7 1.22 0.6 16 13.8 351 D TS14 Bluejay 1113.0 45/7 1.259 14CD 2.7 1.22 0.6 16 13.8 351 D TS14 Finch 1113.0 54/19 1.293 14CD 2.7 1.22 0.6 16 13.8 351 D TS14 Bunting 1192.5 45/7 1.302 14CD 2.7 1.22 0.6 16 13.8 351 D TS15 Grackle 1192.5 54/19 1.333 15CD 3.3 1.50 0.7 17 14.3 363 D TS15 Bittern 1272.0 45/7 1.345 15CD 3.3 1.50 0.7 17 14.3 363 D TS15 Pheasant 1272.0 54/19 1.382 15CD 3.3 1.50 0.7 17 14.3 363 D TS15 Dipper 1351.5 45/7 1.385 15CD 3.3 1.50 0.7 17 14.3 363 D TS15 Martin 1351.5 54/19 1.424 15CD 3.3 1.50 0.7 17 14.3 363 D TS16 Bobolink 1431.0 45/7 1.427 16CD 3.8 1.72 0.7 17 14.6 371 D TS16 Plover 1431.0 54/19 1.465 16CD 3.8 1.72 0.7 17 14.6 371 D TS16 Nuthatch 1510.5 45/7 1.466 16CD 3.8 1.72 0.7 17 14.6 371 D TS16 Parrot 1510.5 54/19 1.506 16CD 3.8 1.72 0.7 17 14.6 371 D TS16 Lapwing 1590.0 45/7 1.504 16CD 3.8 1.72 0.7 17 14.6 371 D TS17 Falcon 1590.0 54/19 1.545 17CD 4.7 2.13 0.7 17 16.3 414 E TS17 Chukar 1780.0 84/19 1.602 17CD 4.7 2.13 0.7 17 16.3 414 E TS18 — 2034.0 72/7 1.681 18CD 5.5 2.49 0.7 19 16.8 427 E TS19 Bluebird 2156.0 84/19 1.762 19CD 6.5 2.95 0.9 22 17.5 445 E TS19 Kiwi 2167.0 72/7 1.737 19CD 6.5 2.95 0.9 22 17.5 445 E TS19 Thrasher 2312.0 76/19 1.802 19CD 6.5 2.95 0.9 22 17.5 445 E TS20 Joree 2515.0 76/19 1.880 20CD 7.3 3.31 0.9 22 17.9 455 E
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 182 Quick Compress ® QuickCompress ® – ACSR The TF Series 15º Terminal Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The terminal con - nector is pre-filled, eliminating an installation step. When used with the Quick Compress dead end, the TF Series connectors can be bolted in either straight or 30º position. All TF Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor. The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above. The square edges of bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 3: Assemble Catalog Number. Example: A 15º terminal for 795 Drake with an EHV finish, the complete catalog number is: TF12EHV Catalog Number EHV Finish + Notes: 1. Pad Dimensions are on page 257. 2. Installation Instructions for Terminals are on page 272. 3. Bolts, nuts and washers are supplied with TF Series Terminal Connectors. 4. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Terminal for ACSR Conductor, 15º, TF Series
183 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Terminal for ACSR Conductor, 15º, TF Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TF07 Owl 266.8 6/7 0.633 07CD 0.5 0.24 0.3 8 7.8 196 B TF07 Waxwing 266.8 18/1 0.609 07CD 0.5 0.24 0.3 8 7.8 196 B TF07 Partridge 266.8 26/7 0.642 07CD 0.5 0.24 0.3 8 7.8 196 B TF08 Ostrich 300 26/7 0.680 08CD 0.7 0.31 0.4 10 8.3 211 B TF08 Merlin 336.4 18/1 0.684 08CD 0.7 0.31 0.4 10 8.3 211 B TF08 Linnet 336.4 26/7 0.720 08CD 0.7 0.31 0.4 10 8.3 211 B TF09 Oriole 336.4 30/7 0.741 09CD 0.9 0.40 0.4 11 8.9 226 B TF08 Chickadee 397.5 18/1 0.743 08CD 0.7 0.31 0.4 10 8.3 211 B TF09 Brant 397.5 24/7 0.772 09CD 0.9 0.40 0.4 11 8.9 226 B TF09 Ibis 397.5 26/7 0.783 09CD 0.9 0.40 0.4 11 8.9 226 B TF10 Lark 397.5 30/7 0.806 10CD 1.1 0.50 0.5 12 9.4 239 B TF09 Pelican 477 18/1 0.814 09CD 0.9 0.40 0.4 11 8.9 226 B TF09 Flicker 477 24/7 0.846 09CD 0.9 0.40 0.4 11 8.9 226 B TF10 Hawk 477 26/7 0.858 10CD 1.1 0.50 0.5 12 9.4 239 B TF11 Hen 477 30/7 0.883 11CD 1.5 0.68 0.4 9 10.4 264 D TF10 Osprey 556.5 18/1 0.879 10CD 1.1 0.50 0.5 12 9.4 239 B TF10 Parakeet 556.5 24/7 0.914 10CD 1.1 0.50 0.5 12 9.4 239 B TF10 Dove 556.5 26/7 0.927 10CD 1.1 0.50 0.5 12 9.4 239 B TF11 Eagle 556.5 30/7 0.953 11CD 1.5 0.68 0.4 9 10.4 264 D TF11 Peacock 605 24/7 0.953 11CD 1.5 0.68 0.4 9 10.4 264 D TF11 Squab 605 26/7 0.966 11CD 1.5 0.68 0.4 9 10.4 264 D TF12 Teal 605 30/19 0.994 12CD 1.9 0.86 0.4 11 11.0 279 D TF10 Kingbird 636 18/1 0.940 10CD 1.1 0.50 0.5 12 9.4 239 B TF11 Rook 636 24/7 0.977 11CD 1.5 0.68 0.4 9 10.4 264 D TF11 Grosbeak 636 26/7 0.990 11CD 1.5 0.68 0.4 9 10.4 264 D TF12 Egret 636 30/19 1.019 12CD 1.9 0.86 0.4 11 11.0 279 D TF10 Swift 636 36/1 0.930 10CD 1.1 0.50 0.5 12 9.4 239 B TF11 Flamingo 666.6 24/7 1.000 11CD 1.5 0.68 0.4 9 10.4 264 D TF11 Stilt 715.5 24/7 1.036 11CD 1.5 0.68 0.4 9 10.4 264 D TF12 Starling 715.5 26/7 1.051 12CD 1.9 0.86 0.4 11 11.0 279 D TF13 Redwing 715.5 30/19 1.081 13CD 2.2 1.00 0.5 13 11.2 284 D TF12 Cuckoo 795 24/7 1.092 12CD 1.9 0.86 0.4 11 11.0 279 D TF12 Drake 795 26/7 1.108 12CD 1.9 0.86 0.4 11 11.0 279 D TF14 Mallard 795 30/19 1.140 14CD 2.8 1.27 0.6 16 12.0 305 D TF11 Coot 795 36/1 1.040 11CD 1.5 0.68 0.4 9 10.4 264 D TF12 Tern 795 45/7 1.063 12CD 1.9 0.86 0.4 11 11.0 279 D
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 184 Quick Compress ® QuickCompress ® – ACSR Quick Compress Terminal for ACSR Conductor, 15º, TF Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TF12 Condor 795 54/7 1.093 12CD 1.9 0.86 0.4 11 11.0 279 D TF12 Ruddy 900 45/7 1.131 12CD 1.9 0.86 0.4 11 11.0 279 D TF13 Canary 900 54/7 1.162 13CD 2.2 1.00 0.5 13 11.2 284 D TF12 Catbird 954 36/1 1.140 12CD 1.9 0.86 0.4 11 11.0 279 D TF13 Rail 954 45/7 1.165 13CD 2.2 1.00 0.5 13 11.2 284 D TF13 Cardinal 954 54/7 1.196 13CD 2.2 1.00 0.5 13 11.2 284 D TF13 Tanger 1033.5 36/1 1.186 13CD 2.2 1.00 0.5 13 11.2 284 D TF13 Ortolan 1033.5 45/7 1.212 13CD 2.2 1.00 0.5 13 11.2 284 D TF14 Curlew 1033.5 54/7 1.244 14CD 2.8 1.27 0.6 16 12.0 305 D TF14 Bluejay 1113 45/7 1.259 14CD 2.8 1.27 0.6 16 12.0 305 D TF14 Finch 1113 54/19 1.293 14CD 2.8 1.27 0.6 16 12.0 305 D TF14 Bunting 1192.5 45/7 1.302 14CD 2.8 1.27 0.6 16 12.0 305 D TF15 Grackle 1192.5 54/19 1.333 15CD 3.2 1.45 0.7 17 12.5 318 D TF15 Bittern 1272 45/7 1.345 15CD 3.2 1.45 0.7 17 12.5 318 D TF15 Pheasant 1272 54/19 1.382 15CD 3.2 1.45 0.7 17 12.5 318 D TF15 Dipper 1351.5 45/7 1.385 15CD 3.2 1.45 0.7 17 12.5 318 D TF15 Martin 1351.5 54/19 1.424 15CD 3.2 1.45 0.7 17 12.5 318 D TF16 Bobolink 1431 45/7 1.427 16CD 3.7 1.69 0.7 17 13.3 338 D TF16 Plover 1431 54/19 1.465 16CD 3.7 1.69 0.7 17 13.3 338 D TF16 Nuthatch 1510.5 45/7 1.466 16CD 3.7 1.69 0.7 17 13.3 338 D TF16 Parrot 1510.5 54/19 1.506 16CD 3.7 1.69 0.7 17 13.3 338 D TF16 Lapwing 1590 45/7 1.504 16CD 3.7 1.69 0.7 17 13.3 338 D TF17 Falcon 1590 54/19 1.545 17CD 4.6 2.09 0.7 17 14.4 366 E TF17 Chukar 1780 84/19 1.602 17CD 4.6 2.09 0.7 17 14.4 366 E TF18 — 2034 72/7 1.681 18CD 5.2 2.36 0.7 19 15.0 381 E TF19 Bluebird 2156 84/19 1.762 19CD 6.3 2.86 0.9 22 15.7 399 E TF19 Kiwi 2167 72/7 1.737 19CD 6.3 2.86 0.9 22 15.7 399 E TF19 Thrasher 2312 74/19 1.802 19CD 6.3 2.86 0.9 22 15.7 399 E TF20 Joree 2515 74/19 1.880 20CD 6.8 3.08 0.9 22 16.0 406 E

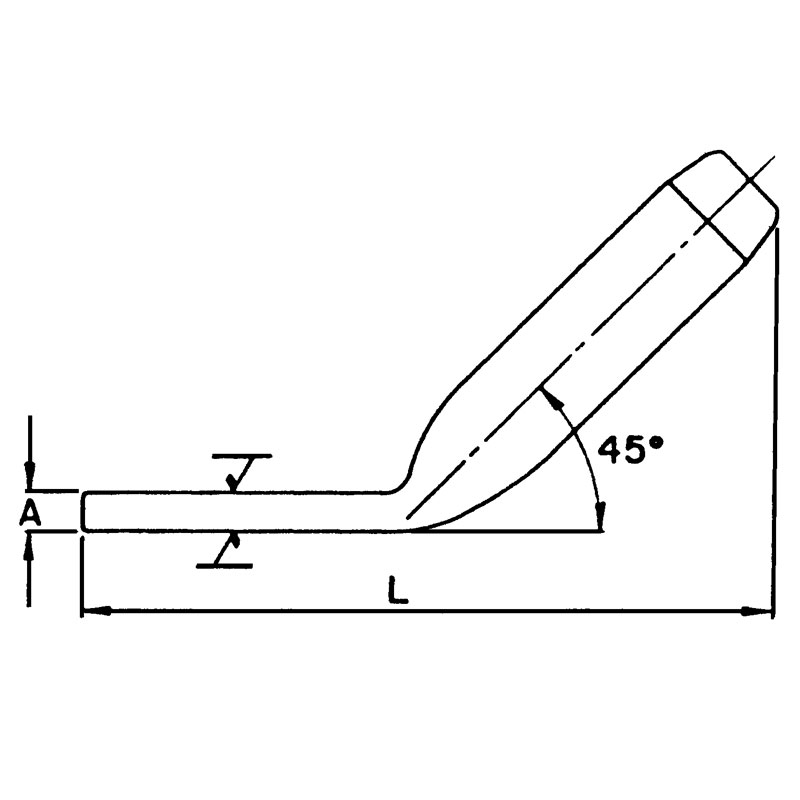

185 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The T45 Series 45º Terminal Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The termi - nal connector is pre-filled, eliminating an installation step. All T45 Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor. The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above. The square edges of bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 3: Assemble Catalog Number. Example: A 45º terminal for 795 Drake with an EHV finish, the complete catalog number is: T4512EHV Catalog Number EHV Finish + Notes: 1. Pad Dimensions are on page 257. 2. Installation Instructions for Terminals are on page 272. 3. Bolts, nuts and washers are not supplied with T45 Series Terminal Connectors. 4. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Terminal for ACSR Conductor, 45º, T45 Series
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 186 Quick Compress ® QuickCompress ® – ACSR Quick Compress Terminal for ACSR Conductor, 45º, T45 Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM T4507 Owl 266.8 6/7 0.633 07CD 0.4 0.19 0.3 8 7.3 185 B T4507 Waxwing 266.8 18/1 0.609 07CD 0.4 0.19 0.3 8 7.3 185 B T4507 Partridge 266.8 26/7 0.642 07CD 0.4 0.19 0.3 8 7.3 185 B T4508 Ostrich 300.0 26/7 0.680 08CD 0.6 0.25 0.4 10 7.8 198 B T4508 Merlin 336.4 18/1 0.684 08CD 0.6 0.25 0.4 10 7.8 198 B T4508 Linnet 336.4 26/7 0.720 08CD 0.6 0.25 0.4 10 7.8 198 B T4509 Oriole 336.4 30/7 0.741 09CD 0.8 0.34 0.4 11 8.2 208 B T4508 Chickadee 397.5 18/1 0.743 08CD 0.6 0.25 0.4 10 7.8 198 B T4509 Brant 397.5 24/7 0.772 09CD 0.8 0.34 0.4 11 8.2 208 B T4509 Ibis 397.5 26/7 0.783 09CD 0.8 0.34 0.4 11 8.2 208 B T4510 Lark 397.5 30/7 0.806 10CD 1.0 0.45 0.5 12 8.6 218 B T4509 Pelican 477.0 18/1 0.814 09CD 0.8 0.34 0.4 11 8.2 208 B T4509 Flicker 477.0 24/7 0.846 09CD 0.8 0.34 0.4 11 8.2 208 B T4510 Hawk 477.0 26/7 0.858 10CD 1.0 0.45 0.5 12 8.6 218 B T4511 Hen 477.0 30/7 0.883 11CD 1.3 0.59 0.4 9 9.4 239 D T4510 Osprey 556.5 18/1 0.879 10CD 1.0 0.45 0.5 12 8.6 218 B T4510 Parakeet 556.5 24/7 0.914 10CD 1.0 0.45 0.5 12 8.6 218 B T4510 Dove 556.5 26/7 0.927 10CD 1.0 0.45 0.5 12 8.6 218 B T4511 Eagle 556.5 30/7 0.953 11CD 1.3 0.59 0.4 9 9.4 239 D T4511 Peacock 605.0 24/7 0.953 11CD 1.3 0.59 0.4 9 9.4 239 D T4511 Squab 605.0 26/7 0.966 11CD 1.3 0.59 0.4 9 9.4 239 D T4512 Teal 605.0 30/19 0.994 12CD 1.6 0.73 0.4 11 9.7 246 D T4510 Kingbird 636.0 18/1 0.940 10CD 1.0 0.45 0.5 12 8.6 218 B T4511 Rook 636.0 24/7 0.977 11CD 1.3 0.59 0.4 9 9.4 239 D T4511 Grosbeak 636.0 26/7 0.990 11CD 1.3 0.59 0.4 9 9.4 239 D T4512 Egret 636.0 30/19 1.019 12CD 1.6 0.73 0.4 11 9.7 246 D T4510 Swift 636.0 36/1 0.930 10CD 1.0 0.45 0.5 12 8.6 218 B T4511 Flamingo 666.6 24/7 1.000 11CD 1.3 0.59 0.4 9 9.4 239 D T4511 Stilt 715.5 24/7 1.036 11CD 1.3 0.59 0.4 9 9.4 239 D T4512 Starling 715.5 26/7 1.051 12CD 1.6 0.73 0.4 11 9.7 246 D T4513 Redwing 715.5 30/19 1.081 13CD 2.0 0.91 0.5 13 10.2 259 D T4512 Cuckoo 795.0 24/7 1.092 12CD 1.6 0.73 0.4 11 9.7 246 D T4512 Drake 795.0 26/7 1.108 12CD 1.6 0.73 0.4 11 9.7 246 D T4514 Mallard 795.0 30/19 1.140 14CD 2.3 1.04 0.6 16 10.6 269 D T4511 Coot 795.0 36/1 1.040 11CD 1.3 0.59 0.4 9 9.4 239 D T4512 Tern 795.0 45/7 1.063 12CD 1.6 0.73 0.4 11 9.7 246 D T4512 Condor 795.0 54/7 1.093 12CD 1.6 0.73 0.4 11 9.7 246 D T4512 Ruddy 900.0 45/7 1.131 12CD 1.6 0.73 0.4 11 9.7 246 D
187 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Terminal for ACSR Conductor, 45º, T45 Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM T4513 Canary 900.0 54/7 1.162 13CD 2.0 0.91 0.5 13 10.2 259 D T4512 Catbird 954.0 36/1 1.140 12CD 1.6 0.73 0.4 11 9.7 246 D T4513 Rail 954.0 45/7 1.165 13CD 2.0 0.91 0.5 13 10.2 259 D T4513 Cardinal 954.0 54/7 1.196 13CD 2.0 0.91 0.5 13 10.2 259 D T4513 Tanger 1033.5 36/1 1.186 13CD 2.0 0.91 0.5 13 10.2 259 D T4513 Ortolan 1033.5 45/7 1.212 13CD 2.0 0.91 0.5 13 10.2 259 D T4514 Curlew 1033.5 54/7 1.244 14CD 2.3 1.04 0.6 16 10.6 269 D T4514 Bluejay 1113.0 45/7 1.259 14CD 2.3 1.04 0.6 16 10.6 269 D T4514 Finch 1113.0 54/19 1.293 14CD 2.3 1.04 0.6 16 10.6 269 D T4514 Bunting 1192.5 45/7 1.302 14CD 2.3 1.04 0.6 16 10.6 269 D T4515 Grackle 1192.5 54/19 1.333 15CD 2.8 1.27 0.7 17 11.8 300 D T4515 Bittern 1272.0 45/7 1.345 15CD 2.8 1.27 0.7 17 11.8 300 D T4515 Pheasant 1272.0 54/19 1.382 15CD 2.8 1.27 0.7 17 11.8 300 D T4515 Dipper 1351.5 45/7 1.385 15CD 2.8 1.27 0.7 17 11.8 300 D T4515 Martin 1351.5 54/19 1.424 15CD 2.8 1.27 0.7 17 11.8 300 D T4516 Bobolink 1431.0 45/7 1.427 16CD 3.4 1.54 0.7 17 11.0 279 D T4516 Plover 1431.0 54/19 1.465 16CD 3.4 1.54 0.7 17 11.0 279 D T4516 Nuthatch 1510.5 45/7 1.466 16CD 3.4 1.54 0.7 17 11.0 279 D T4516 Parrot 1510.5 54/19 1.506 16CD 3.4 1.54 0.7 17 11.0 279 D T4516 Lapwing 1590.0 45/7 1.504 16CD 3.4 1.54 0.7 17 11.0 279 D T4517 Falcon 1590.0 54/19 1.545 17CD 4.2 1.91 0.7 17 12.6 320 E T4517 Chukar 1780.0 84/19 1.602 17CD 4.2 1.91 0.7 17 12.6 320 E T4518 — 2034.0 72/7 1.681 18CD 4.9 2.22 0.7 19 13.0 330 E T4519 Bluebird 2156.0 84/19 1.762 19CD 5.7 2.59 0.9 22 13.7 348 E T4519 Kiwi 2167.0 72/7 1.737 19CD 5.7 2.59 0.9 22 13.7 348 E T4519 Thrasher 2312.0 76/19 1.802 19CD 5.7 2.59 0.9 22 13.7 348 E T4520 Joree 2515.0 76/19 1.880 20CD 6.5 2.95 0.9 22 14.2 361 E
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 188 Quick Compress ® QuickCompress ® – ACSR The TN Series 90º Terminal Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The termi - nal connector is pre-filled, eliminating an installation step. All TN Series connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor. The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above. The square edges of bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV'. Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 3: Assemble Catalog Number. Example: A 90º terminal for 795 Drake with an EHV finish, the complete catalog number is: TN12EHV Catalog Number EHV Finish + Notes: 1. Pad Dimensions are on page 257. 2. Installation Instructions for Terminals are on page 272. 3. Bolts, nuts and washers are not supplied with TN Series Terminal Connectors. 4. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Terminal for ACSR Conductor, 90º, TN Series
189 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Terminal for ACSR Conductor, 90º, TN Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TN07 Owl 266.8 6/7 0.633 07CD 0.5 0.20 0.3 8 5.2 132 B TN07 Waxwing 266.8 18/1 0.609 07CD 0.5 0.20 0.3 8 5.2 132 B TN07 Partridge 266.8 26/7 0.642 07CD 0.5 0.20 0.3 8 5.2 132 B TN08 Ostrich 300.0 26/7 0.680 08CD 0.6 0.29 0.4 10 5.7 145 B TN08 Merlin 336.4 18/1 0.684 08CD 0.6 0.29 0.4 10 5.7 145 B TN08 Linnet 336.4 26/7 0.720 08CD 0.6 0.29 0.4 10 5.7 145 B TN09 Oriole 336.4 30/7 0.741 09CD 0.8 0.38 0.4 11 6.2 157 B TN08 Chickadee 397.5 18/1 0.743 08CD 0.6 0.29 0.4 10 5.7 145 B TN09 Brant 397.5 24/7 0.772 09CD 0.8 0.38 0.4 11 6.2 157 B TN09 Ibis 397.5 26/7 0.783 09CD 0.8 0.38 0.4 11 6.2 157 B TN10 Lark 397.5 30/7 0.806 10CD 1.1 0.50 0.5 12 6.7 170 B TN09 Pelican 477.0 18/1 0.814 09CD 0.8 0.38 0.4 11 6.2 157 B TN09 Flicker 477.0 24/7 0.846 09CD 0.8 0.38 0.4 11 6.2 157 B TN10 Hawk 477.0 26/7 0.858 10CD 1.1 0.50 0.5 12 6.7 170 B TN11 Hen 477.0 30/7 0.883 11CD 1.4 0.64 0.4 9 7.5 191 D TN10 Osprey 556.5 18/1 0.879 10CD 1.1 0.50 0.5 12 6.7 170 B TN10 Parakeet 556.5 24/7 0.914 10CD 1.1 0.50 0.5 12 6.7 170 B TN10 Dove 556.5 26/7 0.927 10CD 1.1 0.50 0.5 12 6.7 170 B TN11 Eagle 556.5 30/7 0.953 11CD 1.4 0.64 0.4 9 7.5 191 D TN11 Peacock 605.0 24/7 0.953 11CD 1.4 0.64 0.4 9 7.5 191 D TN11 Squab 605.0 26/7 0.966 11CD 1.4 0.64 0.4 9 7.5 191 D TN12 Teal 605.0 30/19 0.994 12CD 1.8 0.82 0.4 11 7.9 202 D TN10 Kingbird 636.0 18/1 0.940 10CD 1.1 0.50 0.5 12 6.7 170 B TN11 Rook 636.0 24/7 0.977 11CD 1.4 0.64 0.4 9 7.5 191 D TN11 Grosbeak 636.0 26/7 0.990 11CD 1.4 0.64 0.4 9 7.5 191 D TN12 Egret 636.0 30/19 1.019 12CD 1.8 0.82 0.4 11 7.9 202 D TN10 Swift 636.0 36/1 0.930 10CD 1.1 0.50 0.5 12 6.7 170 B TN11 Flamingo 666.6 24/7 1.000 11CD 1.4 0.64 0.4 9 7.5 191 D TN11 Stilt 715.5 24/7 1.036 11CD 1.4 0.64 0.4 9 7.5 191 D TN12 Starling 715.5 26/7 1.051 12CD 1.8 0.82 0.4 11 7.9 202 D TN13 Redwing 715.5 30/19 1.081 13CD 2.2 1.00 0.5 13 8.5 216 D TN12 Cuckoo 795.0 24/7 1.092 12CD 1.8 0.82 0.4 11 7.9 202 D TN12 Drake 795.0 26/7 1.108 12CD 1.8 0.82 0.4 11 7.9 202 D TN14 Mallard 795.0 30/19 1.140 14CD 2.6 1.18 0.6 16 9.2 233 D TN11 Coot 795.0 36/1 1.040 11CD 1.4 0.64 0.4 9 7.5 191 D TN12 Tern 795.0 45/7 1.063 12CD 1.8 0.82 0.4 11 7.9 202 D TN12 Condor 795.0 54/7 1.093 12CD 1.8 0.82 0.4 11 7.9 202 D TN12 Ruddy 900.0 45/7 1.131 12CD 1.8 0.82 0.4 11 7.9 202 D
© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 190 Quick Compress ® QuickCompress ® – ACSR Quick Compress Terminal for ACSR Conductor, 90º, TN Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER A L KCMIL AL/ST IN LBS KG IN MM IN MM TN13 Canary 900.0 54/7 1.162 13CD 2.2 1.00 0.5 13 8.5 216 D TN12 Catbird 954.0 36/1 1.140 12CD 1.8 0.82 0.4 11 7.9 202 D TN13 Rail 954.0 45/7 1.165 13CD 2.2 1.00 0.5 13 8.5 216 D TN13 Cardinal 954.0 54/7 1.196 13CD 2.2 1.00 0.5 13 8.5 216 D TN13 Tanger 1033.5 36/1 1.186 13CD 2.2 1.00 0.5 13 8.5 216 D TN13 Ortolan 1033.5 45/7 1.212 13CD 2.2 1.00 0.5 13 8.5 216 D TN14 Curlew 1033.5 54/7 1.244 14CD 2.6 1.18 0.6 16 9.2 233 D TN14 Bluejay 1113.0 45/7 1.259 14CD 2.6 1.18 0.6 16 9.2 233 D TN14 Finch 1113.0 54/19 1.293 14CD 2.6 1.18 0.6 16 9.2 233 D TN14 Bunting 1192.5 45/7 1.302 14CD 2.6 1.18 0.6 16 9.2 233 D TN15 Grackle 1192.5 54/19 1.333 15CD 3.1 1.41 0.7 17 9.8 248 D TN15 Bittern 1272.0 45/7 1.345 15CD 3.1 1.41 0.7 17 9.8 248 D TN15 Pheasant 1272.0 54/19 1.382 15CD 3.1 1.41 0.7 17 9.8 248 D TN15 Dipper 1351.5 45/7 1.385 15CD 3.1 1.41 0.7 17 9.8 248 D TN15 Martin 1351.5 54/19 1.424 15CD 3.1 1.41 0.7 17 9.8 248 D TN16 Bobolink 1431.0 45/7 1.427 16CD 3.7 1.68 0.7 17 10.2 259 D TN16 Plover 1431.0 54/19 1.465 16CD 3.7 1.68 0.7 17 10.2 259 D TN16 Nuthatch 1510.5 45/7 1.466 16CD 3.7 1.68 0.7 17 10.2 259 D TN16 Parrot 1510.5 54/19 1.506 16CD 3.7 1.68 0.7 17 10.2 259 D TN16 Lapwing 1590.0 45/7 1.504 16CD 3.7 1.68 0.7 17 10.2 259 D TN17 Falcon 1590.0 54/19 1.545 17CD 4.6 2.09 0.7 17 11.2 264 E TN17 Chukar 1780.0 84/19 1.602 17CD 4.6 2.09 0.7 17 11.2 264 E TN18 — 2034.0 72/7 1.681 18CD 5.3 2.40 0.7 19 11.4 289 E TN19 Bluebird 2156.0 84/19 1.762 19CD 6.1 2.77 0.9 22 11.9 303 E TN19 Kiwi 2167.0 72/7 1.737 19CD 6.1 2.77 0.9 22 11.9 303 E TN19 Thrasher 2312.0 76/19 1.802 19CD 6.1 2.77 0.9 22 11.9 303 E TN20 Joree 2515.0 76/19 1.880 20CD 6.9 3.13 0.9 22 12.6 321 E
Características:
- Se instala en un 40% menos de tiempo
- Agarre del núcleo en una pieza
- Los conectores de compresión rápida precargados en fábrica están precargados con el compuesto de relleno AFL (AFC)
Aplicaciones:
- Terminal de compresión para conductores ACSR
Al utilizar una aleación de alta resistencia, la longitud de compresión se ha acortado para que haya menos mordeduras de compresión. El conector del terminal está pre-fijado, lo que elimina un paso de instalación.
Todos los conectores de la serie están diseñados para un uso de tensión limitada, manteniendo un mínimo del 40% de la resistencia clasificada por ASTM del conductor.
Las conteras de todos los accesorios de compresión se suministran con un acabado de alta tensión para las secciones de tamaño de matriz 12CD y superiores.
Los bordes cuadrados de las almohadillas atornilladas de los accesorios de compresión podrían causar el efecto corona. Las almohadillas con bordes y esquinas redondeadas pueden suministrarse añadiendo el sufijo de catálogo ‘
EHV’.
