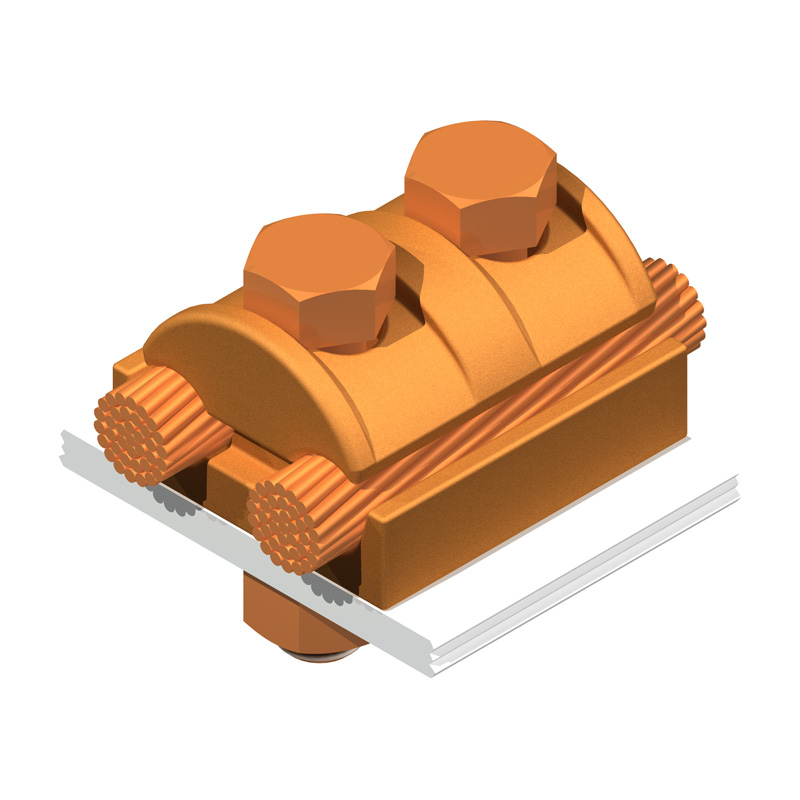

133 Bronze Grounding Connectors and Everdur Hardware © 2011, AFL, all rights reserved. PP-3-00334, Revision 2, 11.9.18 Specifications are subject to change without notice. Bronze Grounding Connectors and Everdur Hardware www.AFLglobal.com or 800-890-8878 A single or double bolt ground clamp for clamping two wires or cables to a flat bar,plate, or structural memeber. Permits a slight range of variablility in accomadating different size conductors. Bolts are retained by body to enable assembling with only one wrench. Bolts are supplied to clamp a 1/4 inch bar. GAA is similar to GA except that it is designed for heavier service. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Notes • Bolt length supplied to clamp a 1/4 inch bar with maximum conductor in place. • For thicker bars, longer bolts will be furnished upon request. • For tin plating, add suffix "-SN" to catalog number EX: GA13-SN • For galvanized steel hardware, add suffix "-GS" to catalog number EX: GA13-GS • For stainless steel hardware, add suffix "-SS" to catalog number EX: GA13-SS TYPE GA, GAA Two Conductor Flat Bar Ground Clamp Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES BOLT SIZE GA GAA MIN MAX A B C H W Y GA4 GAA4 8 SOL 4 STR 0.75 2.00 1.38 1.38 1.25 0.94 3/8 GA13 GAA13 4 SOL 2/0 STR 1.00 2.00 1.53 1.70 1.72 1.00 3/8 GA25 GAA25 2/0 SOL 250 MCM 1.31 2.50 1.63 2.25 2.25 1.25 1/2 GA25-S GAA25-S 2/0 SOL 250 MCM 1.25 2.94 1.75 2.25 2.25 1.75 1/2 GA50 GAA50 300 MCM 500 MCM 1.50 2.50 2.00 2.86 2.63 1.38 1/2 GA50-N GAA50-N 300 MCM 500 MCM 1.50 2.50 2.00 2.86 2.63 1.38 1/2 GA75 GAA75 550 MCM 750 MCM 1.75 3.00 2.38 3.00 3.25 1.56 5/8 GA80-1/2 GAA80-1/2 500 MCM 800 MCM 1.88 3.00 2.38 3.00 3.31 1.56 1/2 GA100 GAA100 800 MCM 1000 MCM 2.00 3.00 2.50 3.25 3.63 1.56 5/8 GA GAA B Y GA C GAA W H A 0.25 134 Bronze Grounding Connectors and Everdur Hardware © 2011, AFL, all rights reserved. PP-3-00336, Revision 0, 3.8.11 Specifications are subject to change without notice. Bronze Grounding Connectors and Everdur Hardware www.AFLglobal.com or 800-890-8878 A single bolt, one piece ground clamp for clamping two wires or cables to a flat bar, plate, or structural member. Permits a slight range of variability in accommodating different size conductors. Bolts are retained by body to enable assembling with only one wrench. Bolts are supplied to clamp a 1/4 Inch bar. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Note • Bolt length supplied to clamp a 1/4 inch bar with maximum conductor in place. For thicker bars, longer bolts will be furnished upon request. • For tin plating add suffix "-SN" to end of catalog number. Example: GAM13-SN • For a galvanized steel bolt add suffix "-GS" to end of catalog number. Example: GAM13-GS TYPE GAM Copper Grounding Connector For Two Cables To A Flat Surface Ordering Information CATALOG NUMBER GROUNDING DIMENSIONS IN INCHES BOLT SIZE MIN MAX A B C GAM4 8 Solid 4 Stranded 3/4 1 1/4 1 1/8 3/8 GAM13 4 Solid 2/0 Stranded 1 1 1/2 1 1/2 3/8 GAM25 2/0 Solid 250 MCM 1 1/4 1 3/4 2 1/8 1/2 GAM50 300 MCM 500 MCM 1 1/2 2 2 5/8 1/2 GAM75 550 MCM 750 MCM 1 3/4 2 1/4 3 1/8 5/8 GAM100 800 MCM 1000 MCM 1 7/8 2 1/2 3 1/2 5/8 B A C 1/4 1 Bronze Grounding Conn./Everdur Hardware © 2011, AFL, all rights reserved. PP-3-00337, Revision 1, 1.25.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 Bronze Grounding Connectors and Everdur Hardware GB style is a two bolt design and GBB is a four bolt design. These clamps are used for clamping three cables of equal size to a flat bar, plate, or structural member. Bolts are retained by body to enable assembling with only one wrench. Bolts are supplied to clamp a 1/4 inch bar. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Note • Bolt length supplied to clamp a 1/4 inch bar with maximum conductor in place. • For thickerbars, longer bolts will be furnished upon request.For tin plating add suffix (SN) to catalog number. Example: For a 4 solid conductor, 2 bolt clamp, and tin plating, order: GB13-SN • For a galvanized steel bolt add suffix (GS) to catalog number. Example: For a 4 solid conductor, 4 bolt clam, and galvanized steel bolts, order: GBB13-GS TYPE GB, GBB Copper Grounding Connector for Three Cables to a Flat Surface. Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES BOLT SIZE GB GBB MIN MAX A B C H W X Y GB4 GBB4 8 Solid 4 Stranded 7/8 1 1/2 2 1 5/8 2 1/8 7/8 7/8 3/8 GB13 GBB13 4 Solid 2/0 Str 1 1 3/4 2 1/8 1 3/4 1 3/4 1 1 3/8 GB25 GBB25 2/0 Solid 250 MCM 1 1/4 1 5/8 2 5/8 2 1/2 3 1/2 1 1/4 1 1/4 1/2 GB50 GBB50 300 MCM 500 MCM 1 1/2 2 1/4 2 5/8 2 1/2 4 1/4 1 1/2 1 1/4 1/2 GB75 GBB75 550 MCM 750 MCM 1 13/16 2 1/2 3 1/4 2 3/4 5 1 13/16 1 1/2 5/8 GB100 GBB100 800 MCM 1000 MCM 2 2 3/4 3 1/4 3 5 1/2 2 1 1/2 5/8 GB GBB B W Y GB C GBB H A X A A A X 138 Bronze Grounding Connectors and Everdur Hardware © 2011, AFL, all rights reserved. PP-3-00343, Revision 3, 11.9.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Bronze Grounding Connectors and Everdur Hardware A ground clamp for grounding a cable or wire to a flat bar, plate or flat structural steel member. The bolt is retained by the body to enable assembly with only one wrench. GFM comes without the base. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Notes • Bolt length supplied to clamp a 1/4" bar with maximum conductor in place. For thicker bars, longer bolts will be furnished upon request. • For tin plating add suffix "-SN" to end of catalog number. Example: GF13-SN • For a 300 mcm conductor and one piece assembly, order GFM50. • For Galvanized Steel Hardware, add "-GS" to catalog number. EX: GF13-GS • For Stainless Steel Hardware, add "-SS" to catalog number. EX: GF13-SS TYPE GF, GFM Copper Grounding Connector for Cable to a Flat Surface Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES BOLT SIZE GF GFM MIN MAX B L M W GF4 GFM4 8 Solid 4 Stranded 1 1 15/16 1 7/16 1 7/16 3/8 GF13 GFM13 4 Solid 2/0 Stranded 1 1/8 1 15/16 1 11/16 1 9/16 3/8 GF25 GFM25 2/0 Solid 250 MCM 1 3/8 2 1/4 2 2 1/2 GF30 GFM30 4 Solid 300 MCM 1 3/8 2 5/8 2 1/8 2 1/2 GF50 GFM50 300 MCM 500 MCM 1 1/2 2 7/8 2 1/4 2 7/16 1/2 GF75 GFM75 550 MCM 750 MCM 1 5/8 3 1/4 2 3/4 2 7/8 5/8 GF100 GFM100 800 MCM 1000 MCM 1 3/4 3 1/2 3 1/4 3 3/16 5/8 GF GFM B W M GFM L GF 143 Bronze Grounding Connectors and Everdur Hardware © 2011, AFL, all rights reserved. PP-3-00348, Revision 1, 11.9.18 Specifications are subject to change without notice. Bronze Grounding Connectors and Everdur Hardware www.AFLglobal.com or 800-890-8878 A connector for grounding a cable or wire to flat bar, plate or structural frame. The looping of the conductor about the clamping bolt insures a secure electrical contact and a high pull out strength. Standard bolt length is provided to mount the connector on a 1/4 inch thick member. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Note • Longer bolts can be furnished on request. • For tin plating add suffix "-SN" to end of catalog number. Example: GL13-38-SN TYPE GL Ground Clamp for Cable to Flat Bar Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES BOLT SIZE MIN MAX H L W GL4-38 8 Stranded 4 Stranded 1 1/2 1 7/16 1 1/4 3/8 GL4-50 8 Stranded 4 Stranded 1 7/8 1 15/16 1 3/4 1/2 GL4-63 8 Stranded 4 Stranded 2 1 15/16 1 3/4 5/8 GL13-38 3 Stranded 2/0 Stranded 2 1 7/8 1 11/16 3/8 GL13-50 3 Stranded 2/0 Stranded 2 1/8 1 15/16 1 13/16 1/2 GL13-63 3 Stranded 2/0 Stranded 2 1/4 1 15/16 1 13/16 5/8 GL25-38 3/0 Stranded 250 MCM 2 1/4 2 7/16 2 1/8 3/8 GL25-50 3/0 Stranded 250 MCM 2 3/8 2 7/16 2 1/4 1/2 GL25-63 3/0 Stranded 250 MCM 2 1/2 2 7/16 2 1/4 5/8 H 1/4 W L CUSTOMER CABLE
