Un connecteur en T utilisé pour raccorder un bus plat à un câble. Le raccord à pince permet d'installer le connecteur n'importe où sur le bus sans avoir à percer de trous pour les boulons de serrage. La grande variété des raccords HERCULON™ permet d'utiliser un seul connecteur.
0404a973ff1249859851295871ad551c
127 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00366, Revision 0, 3.3.11 Specifications are subject to change without notice. Bronze Connectors for Flat Bar www.AFLglobal.com or 800-890-8878 TYPE HAF, H2AF, H3AF, H4AF Tee Connector For Tapping Flat Bar With Cable HAF connects one cable to flat bus bars, H2AF connects two cables to flat bus bars, H3AF connects three cables and H4AF connects four cables to flat bus bars. A tee connector for tapping a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without the necessity for drilling holes for clamping bolts. The wide variation of the HERCULON ™ fitting enables one connector. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Note • Above 500 MCM connectors have thicker pads and are mounted outside buses. See catalog number for spacer information. Unless otherwise specified spacer will not be supplied with connectors. • For 4in wide bus bars and two 350kcmil cables order: H2AF35-4. • For 4in wide bus bars and three 350kcmil cables order: H3AF35-4. • For 4in wide bus bars and four 350kcmil cables order: H4AF35-4. HAF � B A HAF H2AF H3AF H4AF W E L 1/4 1/4
128 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00366, Revision 0, 3.3.11 Specifications are subject to change without notice. Bronze Connectors for Flat Bar www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER CABLE RANGE WIDTH OF BARS (W) DIMENSIONS IN INCHES BOLT SIZE MIN MAX A B E L HAF4-2 8 Solid 4 Solid 2 3 5/16 3 5/16 1 4 1/4 3/8 HAF8-2 4 Solid 1 Stranded 2 3 5/16 3 5/16 1 4 1/4 3/8 HAF13-2 1 Stranded 2/0 Stranded 2 3 5/16 3 5/16 1 4 3/8 3/8 HAF13-3 1 Stranded 2/0 Stranded 3 3 5/16 4 5/16 1 5 3/8 3/8 HAF21-2 2/0 Stranded 4/0 Stranded 2 3 5/16 3 5/16 1 4 7/16 3/8 HAF21-3 2/0 Stranded 4/0 Stranded 3 3 5/16 4 5/16 1 5 7/16 3/8 HAF30-2 4/0 Stranded 300 kcmil 2 3 5/16 3 5/16 2 4 5/8 3/8 HAF30-3 4/0 Stranded 300 kcmil 3 3 5/16 4 5/16 2 5 5/8 3/8 HAF35-2 250 kcmil 350 kcmil 2 3 5/16 3 5/16 2 4 5/8 3/8 HAF35-3 250 kcmil 350 kcmil 3 3 5/16 4 5/16 2 5 5/8 3/8 HAF35-4 250 kcmil 350 kcmil 2 3 5/16 5 5/16 2 6 5/8 3/8 HAF50-2 300 kcmil 500 kcmil 4 3 5/16 3 5/16 2 4 3/4 3/8 HAF50-3 300 kcmil 500 kcmil 3 3 5/16 4 5/16 2 5 3/4 3/8 HAF50-4 300 kcmil 500 kcmil 4 3 5/16 5 5/16 2 6 3/4 3/8 HAF75-2 500 kcmil 750 kcmil 2 3 5/16 3 5/16 2 4 7/8 3/8 HAF75-3 500 kcmil 750 kcmil 3 3 5/16 4 5/16 2 5 7/8 3/8 HAF75-4 500 kcmil 750 kcmil 4 3 5/16 5 5/16 2 7 1/4 3/8 HAF100-2 750 kcmil 1000 kcmil 2 3 5/16 3 5/16 2 5 5/16 3/8 HAF100-3 750 kcmil 1000 kcmil 3 4 5/16 4 5/16 3 6 5/16 3/8 HAF100-4 750 kcmil 1000 kcmil 4 4 3/4 5 3/4 3 7 11/16 1/2 HAF100-5 750 kcmil 1000 kcmil 5 4 3/4 6 3/4 3 8 11/16 1/2 TYPE HAF, H2AF, H3AF, H4AF Tee Connector For Tapping Flat Bar With Cable HAF connects one cable to flat bus bars, H2AF connects two cables to flat bus bars, H3AF connects three cables and H4AF connects four cables to flat bus bars.
www.AFLglobal.com or 800-890-8878 129 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00368, Revision 3, 5.24.18 Specifications are subject to change without notice. Bronze Connectors for Flat Bar TYPE HHF, H2HF, H3HF, H4HF Tee Connector For Tapping Flat Bar With Cable HHF connects one cable to flat bus bars, H2HF connects two cables to flat bus bars, H3HF connects three cables and H4HF connects four cables to flat bus bars. A tee connector for tapping a flat bus with a cable. The clamp fitting enables the connector to be installed anywhere on the bus without the necessity for drilling holes for clamping bolts. The wide variation of the Herculon fitting enables one connector to accommodate a number of cable sizes. Connectors listed have 1/4 inch thick pads for 1/4 inch buses spaced 1/4 inch apart up to 600 MCM. Material Copper Alloy Hardware Everdur bolts, nuts and lockwashers Notes • For 4 in. wide bus bars and two 350 kcmil cables, order: H2HF35-4. • For 4 in. wide bus bars and three 350 kcmil cables, order: H3HF35-4. • For 4 in. wide bus bars and four 350 kcmil cables, order: H4HF35-4. HHF B A HHF H2HF H3HF H4HF W E L 1/4 1/4
www.AFLglobal.com or 800-890-8878 130 Bronze Connectors for Flat Bar © 2011, AFL, all rights reserved. PP-3-00368, Revision 3, 5.24.18 Specifications are subject to change without notice. Bronze Connectors for Flat Bar Ordering Information CATALOG NUMBER CABLE RANGE WIDTH OF BARS (W) CABLE RANGE (DIA.) DIMENSIONS IN INCHES BOLT SIZE MIN MAX FROM TO A B E L HHF4-2 8 Soild 4 Solid 2 0.128 0.204 3 5/16 3 5/16 1 4 1/4 3/8 HHF4-3 8 Soild 4 Solid 3 0.128 0.204 4 5/16 4 5/16 3 5 3/16 3/8 HHF8-2 4 Solid 1 Stranded 2 0.204 0.332 3 5/16 3 5/16 1 4 1/4 3/8 HHF13-2 1 Stranded 2/0 Stranded 2 0.332 0.419 3 5/16 3 5/16 1 4 3/8 3/8 HHF13-3 1 Stranded 2/0 Stranded 3 0.332 0.419 3 5/16 4 5/16 1 5 3/8 3/8 HHF21-2 2/0 Stranded 4/0 Stranded 2 0.419 0.528 3 5/16 3 5/16 1 4 7/16 3/8 HHF21-3 2/0 Stranded 4/0 Stranded 3 0.419 0.628 3 5/16 4 5/16 1 5 7/16 3/8 HHF30-2 4/0 Stranded 300 kcmil 2 0.528 0.628 3 5/16 3 5/16 2 4 5/8 3/8 HHF30-3 4/0 Stranded 300 kcmil 3 0.528 0.628 3 5/16 4 5/16 2 5 5/8 3/8 HHF35-2 250 kcmil 350 kcmil 2 0.575 0.681 3 5/16 3 5/16 2 4 5/8 3/8 HHF35-3 250 kcmil 350 kcmil 3 0.575 0.681 3 5/16 4 5/16 2 5 5/8 3/8 HHF35-4 250 kcmil 350 kcmil 4 0.575 0.681 3 5/16 5 5/16 2 6 5/8 1/2 HHF50-2 300 kcmil 500 kcmil 2 0.63 0.814 3 5/16 3 5/16 2 4 3/4 3/8 HHF50-3 300 kcmil 500 kcmil 3 0.63 0.814 3 5/16 4 5/16 2 5 3/4 3/8 HHF50-4 300 kcmil 500 kcmil 4 0.63 0.814 3 5/16 5 5/16 2 6 3/4 1/2 HHF50-5 300 kcmil 500 kcmil 5 0.63 0.814 3 3/4 6 3/4 2 8 1/8 1/2 HHF75-2 500 kcmil 750 kcmil 2 0.814 0.998 3 5/16 3 5/16 2 4 7/8 3/8 HHF75-3 500 kcmil 750 kcmil 3 0.814 0.998 3 5/16 4 5/16 2 5 7/8 3/8 HHF75-4 500 kcmil 750 kcmil 4 0.814 0.998 3 5/16 5 5/16 2 7 1/4 1/2 HHF100-2 750 kcmil 1000 kcmil 2 0.998 1.152 3 5/16 3 5/16 2 5 5/16 3/8 HHF100-3 750 kcmil 1000 kcmil 3 0.998 1.152 4 5/16 4 5/16 3 6 5/16 3/8 HHF100-4 750 kcmil 1000 kcmil 4 0.998 1.152 4 3/4 5 3/4 3 7 11/16 1/2 HHF100-5 750 kcmil 1000 kcmil 5 0.998 1.152 4 3/4 6 3/4 3 8 11/16 1/2 TYPE HHF, H2HF, H3HF, H4HF Tee Connector For Tapping Flat Bar With Cable HHF connects one cable to flat bus bars, H2HF connects two cables to flat bus bars, H3HF connects three cables and H4HF connects four cables to flat bus bars.
Caractéristiques :
- Alliage de bronze
- Le raccord HERCULON™ permet d'avoir un seul connecteur
- Matériel Everdur
Les applications:
- Conçu pour 230 kV
- Sous-station
- Barre omnibus en cuivre vers câble en cuivre
Un connecteur en T pour raccorder un bus plat à un câble. Le raccord à pince permet d'installer le connecteur n'importe où sur le bus sans avoir à percer des trous pour les boulons de serrage . La grande variété du raccord HERCULON™
permet de réaliser un seul connecteur.Coupleurs de compression en aluminium 230 kV,Connecteurs en T à compression en aluminium 230 kV,Connecteurs terminaux à Té de compression en aluminium 230 kV,Connecteurs à compression en aluminium de 230 kV,Coupleurs de tube de bus soudés en aluminium de 230 kV,Coudes de tubes bus soudés en aluminium 230 kV,Supports de tubes bus soudés en aluminium de 230 kV,Connecteurs en té et en V en aluminium soudé pour barres de 230 kV,Connecteurs de barres d'alimentation soudées en aluminium de 230 kV,Coupleurs soudés en aluminium pour bus de 230 kV entre tuyaux et câbles,Té soudé en aluminium pour tube de bus de 230 kV vers câble,Terminal de câble soudé en aluminium 230 kV,Bouchons d'extrémité soudés en aluminium de 230 kV,Tige de mise à la terre soudée en aluminium de 230 kV,Robinets à tube soudé en aluminium de 230 kV
310

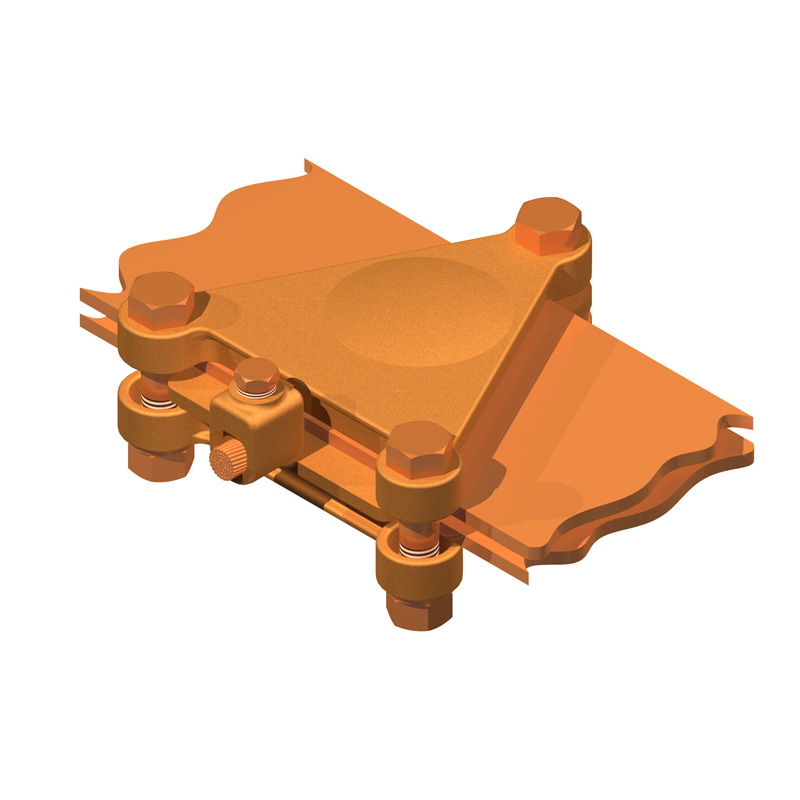

Raccordement d'une barre omnibus boulonnée en bronze de 230 kV à un té de câble
Close
Raccordement d'une barre omnibus boulonnée en bronze de 230 kV à un té de câble
Caractéristiques :
- Alliage de bronze
- Le raccord HERCULON™ permet d'avoir un seul connecteur
- Matériel Everdur
Les applications:
- Conçu pour 230 kV
- Sous-station
- Barre omnibus en cuivre vers câble en cuivre
PRODUCT DESCRIPTION
Un connecteur en T pour raccorder un bus plat à un câble. Le raccord à pince permet d'installer le connecteur n'importe où sur le bus sans avoir à percer des trous pour les boulons de serrage . La grande variété du raccord HERCULON™
permet de réaliser un seul connecteur.
