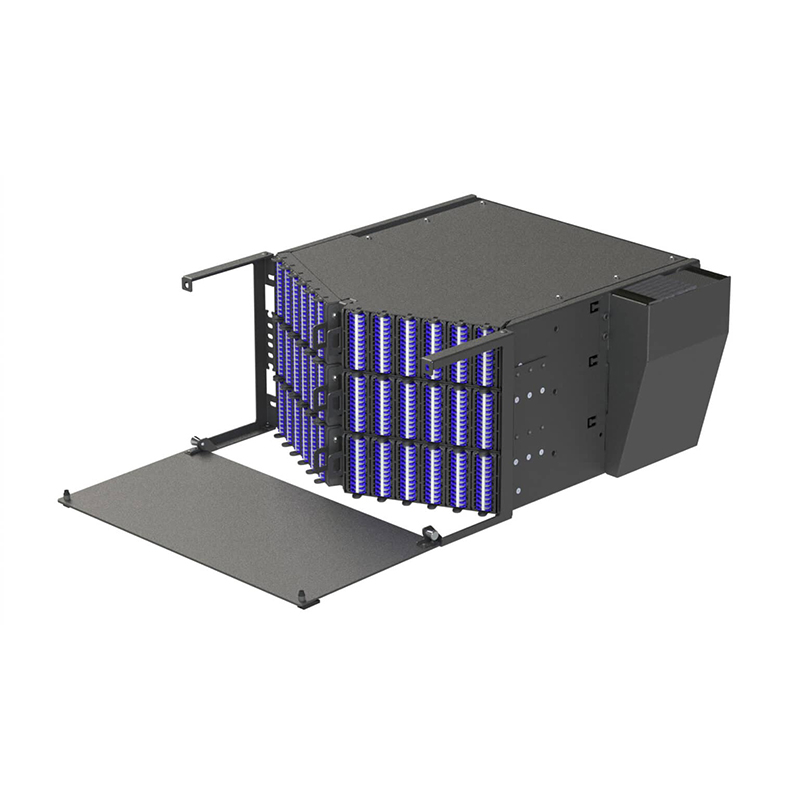

1 AFLglobal.com 1 (800) 866-7385 © 2021, AFL, all rights reserved. PP-2-00341, Revision 2, 10.30.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 6RU Front-Access V-Panel (FVP) The 6RU Front-Access V-Panel (FVP) facilitates ergonomic, modular and simultaneous cold aisle front-access splicing and patching of up to 864 fibers utilizing SpiderWeb Ribbon ® (SWR ® ) Technology. The 19” rack-mountable unit is lightweight and sturdy and easy for one person to install. Three slide-out modular drawers are dismounted from the panel and spliced-in while providing a fast, efficient and more comfortable cold aisle installation. Slack allows for simultaneous splicing to take place on a workbench at a safe working height. A V-shaped design provides easy finger access and LC quad shuttered adapters help prevent the ingress of dust or debris while additionally providing laser eye safety. Features · State-of-the-art V-shaped design with three slide-out drawers which allows for simultaneous splicing in an ergonomic, modular, sleek interface • 6RU 19" rack-mount panels are stackable for high-fiber count SWR cables to feed cable from the top or bottom • Ample slack in drawers enables splicing on a workbench at a safe working height as well as multiple re-splices • Each slide-out drawer comes pre-loaded with 12 x 24F FVP LC Cassettes with 200 μm SWR LC Pigtails • Integrated mounting points for cable transitions ensure appropriate management of breakout from cable to splicing area • LC quad shuttered adapters help prevent the ingress of dust or debris while also providing laser eye safety • Accommodates 864F over three slide-out drawers, each containing 12 x 24F LC Cassettes • Pivoting front and back door can be removed during installation • 864F or 1728F SWR cable can be mounted from the left or right side Applications • Hyperscale • Colocation • Data Halls • Main Distribution Areas (MDAs) • Fiber entrance facilities 2 AFLglobal.com 1 (800) 866-7385 © 2021, AFL, all rights reserved. PP-2-00341, Revision 2, 10.30.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 6RU Front-Access V-Panel (FVP) Ordering Information Technical Drawings Specifications Parameter Value Dimensions 513 mm (W) x 255 mm (H) x 565 mm (D) Maximum Fiber Count (Ribbon Cable) 864 Cable Entry Left, right, top, and bottom Material CR4 Steel, Aluminum Material Thickness 1 mm to 2 mm Material Coating Powder Weight 23 kg Color Black Operating Temperature -20°C to +50°C Description Application AFL No. 6RU Front Access V Panel Splice Patch BK Premium LC G.657A1 864F (250 μm-pitch Pigtail) 250 μm-pitch version work with SR15E-200 fiber cable F7HAAFBPAX-09AM FVP Splice Cassette BK Premium LC SM G.657A1 24F Stub OFNP SWR 250 μm-Pitch MC 4M 250 μm-pitch version work with SR15E-200 fiber cable A7UD24BPAX-14JF-M4 6RU Front Access V Panel Splice Patch BK Premium LC G.657A1 864F (200 μm-pitch Pigtail) 200 μm-pitch version work with SR15E-P200 fiber cable F7HAAFBPAX-14AM FVP Splice Cassette BK Premium LC SM G.657A1 24F Stub OFNP SWR ® 200 μm-Pitch MC 4M 200 μm-pitch version work with SR15E-P200 fiber cable A7UD24BPAX-14JW-M4 FVP Breakout Box for 3456F cable FXSEXXBXXX-13ZZ FVP Breakout Box for 6912F cable FXSEXXBXXX-14ZZ Qualifications Governing Body Standard Code RoHS Compliant Reach Compliant SVHC Compliant 266 mm (6RU) 167 mm 400 mm 179 mm 72 mm 441 mm
