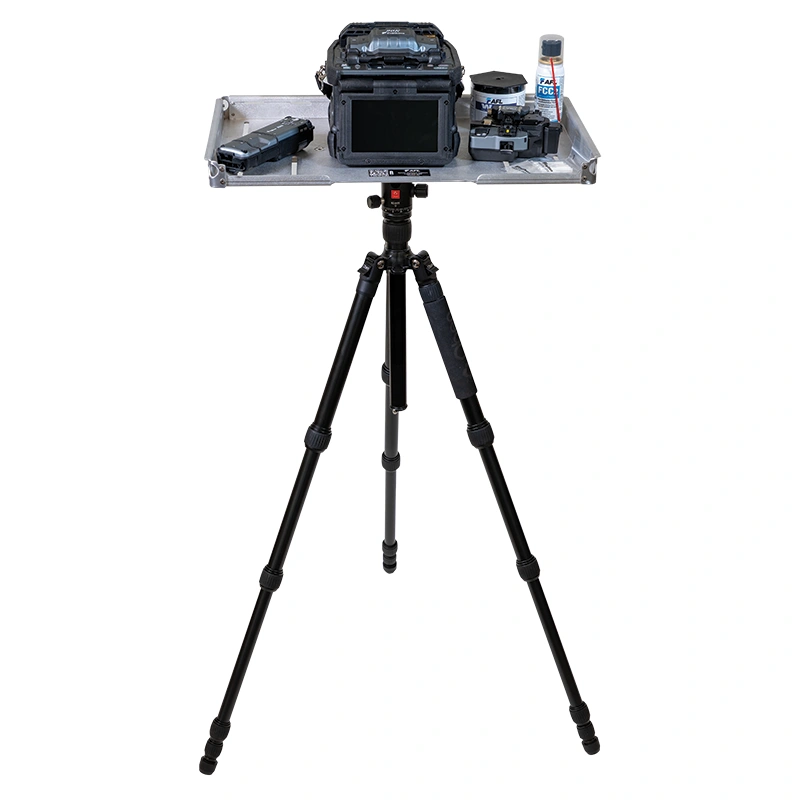

Le poste de travail portable sur trépied offre à la fois un plateau de travail robuste pour supporter l'épissoir, le coupe-coupe et les accessoires, et un trépied pour soutenir le plateau de travail. Les deux peuvent être achetés ensemble en tant que kit ou séparément pour les utilisateurs qui préfèrent utiliser leur propre trépied ou mécanisme de montage.
f067ccc7d6234b818a03ffe4c984fbff,2d6219b67b3b4ccfbd4cb3226f97b3ea
300 AFLglobal.com 1 (800) 235-3423 © 2020, A F L , all rights reserved. PP-4-00047, Revision 7, 11.26.2024 Speci cations are subject to change without notice. Fusion Splicing Systems 300 Portable Splicing Worktray As splicing requirements have migrated from aerial to ground-level locations, a sturdy, versatile splicing workstation with the ability to adjust for uneven surfaces has been missing from the splicing marketplace. That problem is solved with AFL’s Portable Splicing Worktray– the critical missing link in splicing productivity. The new Portable Splicing Worktray offers a larger, more accessible work surface than before for supporting the splicer, cleaver, and accessories as well as a sturdy tripod for mounting the work tray. The two can be purchased together as a kit or separately for those users who prefer to use their own tripod or mounting system. The new Worktray uses a dovetail-style mounting rail under the tray, allowing quick, secure attachment to any Arca-type camera tripod head. The rail enables an improved range of adjustment while also allowing the Worktray to be quickly attached, adjusted, or detached. The Worktray is also equipped with positioning slots on the bottom and around the side walls. The tripod is sturdy yet lightweight, weighing under four pounds. It collapses to just sixteen inches in length. The telescoping legs offer flexible height adjustments from nine inches to sixty-one inches, with the leg angle being adjustable to suit unusual terrain. Ordering Information Description AFL NO. Portable Tripod Worktray Kit – Includes: Tripod with pan head and quick release plat- form (make and model of tripod may change without notice), Portable Worktray and Thumb screw S014773 Portable Worktray – Includes: Portable Worktray, Thumb screw S014753 Tripod – Includes: Tripod with pan head and quick release platform (make and model of tripod may change without notice) S014751 Features • Large, sturdy work tray supports the splicer, cleaver and accessories with plenty of working room • Tripod supports a load capacity of up to twenty pounds • Independent telescoping tripod legs support uneven work surfaces • Dovetail rail quickly and securely locks work tray into position • Perimeter slots support temporary attachment of pigtails or custom accessories • Versatile cleaver mounting positions to accommodate user preference • Compatible with all FSM-17, FSM-18, FSM-50, FSM-60, 12/19/70 Series Models, 31/41/90 Series Models and 35/45 Series Models. Optional Accessories DESCRIPTION AFL NO. TS-01 TRIPOD SCREW (required for 12S & 12R models) S015895 Portable Tripod Worktray Kit (splicer equipment not included) Dovetail rail allows for quick installation and release of Worktray Worktray conveiently holds all necessary splice equipment
Caractéristiques :
- Le plateau de travail robuste supporte l'épissoir, le couperet et les accessoires.
- Le trépied peut supporter une charge de 11 livres.
- Les pieds télescopiques indépendants du trépied supportent les surfaces de travail inégales.
- Les poignées à levier verrouillent le plateau de travail en position.
- L'ensemble de montage du couperet fait pivoter le couperet dans et hors de l'espace de travail.
- Les positions de montage du couperet en option s'adaptent aux préférences de l'utilisateur
- Compatible avec tous les modèles d'épissurateurs FSM-17, FSM-18, FSM-50 et FSM-60.
