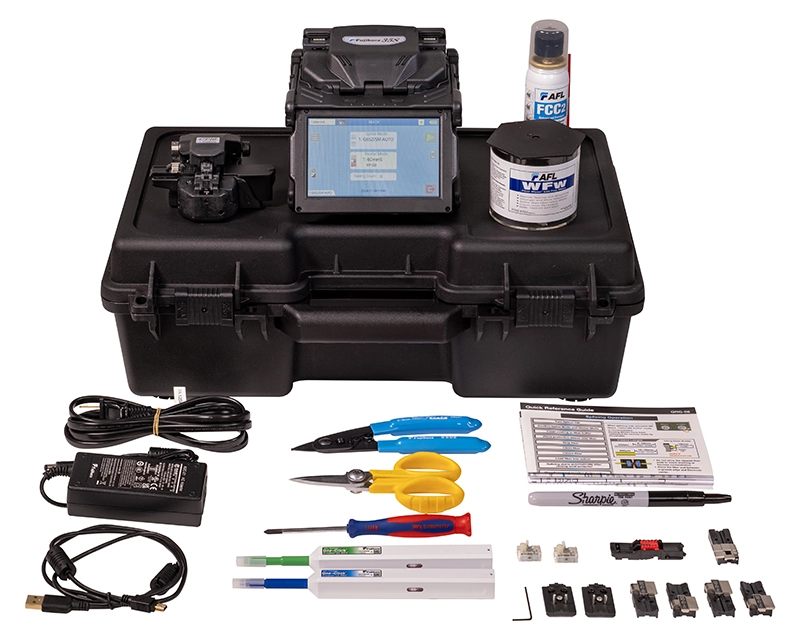

The 900µm Splice-on-Connector Tool-Kit from AFL is the solution for those looking for 900µm fiber splicing using splice on connectors. This Tool-Kit contains the light weight, cost-effective, time saving and strong cladding alignment Fujikura 35S Fusion Splicer, the CT-16 Cleaver, best in line one-click cleaners and preparation accessories such as Kevlar sheers, wipes, cleaning solution and many more. AFL’s Tool-Kit is exclusively used for 900µm coating diameter, splice-on-connector applications but can be utilized for splicing of fiber-to-fiber of coating diameters ranging from 160µm to 3mm. The simultaneous fiber preparation capability is targeted to 250µm coating diameters.

AFL’s Fujikura 35S cladding alignment fusion splicer is a proven machine in fiber world with small to mid-fiber count applications with its novel simultaneous fiber prep capability, sheath clamp automation, automated wind protector functionality and faster tube oven heating which overall reduces fusion splicing cycle time by ~30% or more. The hand-held fiber coating stripper is capable of stripping two 250µm coated fibers in one pass. AFL’s CT-16 cleaver is best known for its durable construction, lightweight formfactor, easily replaceable cleaver blades and one-click cleaver action. The cleaning supplies provided in this kit are Lint-free cleaning wipes, top of the line Fujikura One-Click cleaners for both LC and SC style needs and easy clean solution spray bottle.

Keeping users in mind, AFL’s Fujikura splicer has been designed ergonomically to give best user experience with adjustable touchscreen mirror to work in abnormal positions, compact size to use in small tight fit places, automatic fiber placement error adjustments where machine adjusts the fiber automatically without manual intervention when fiber is over the v-grooves, easy access battery with ability to swap battery when needed.

Backed by the best service team in the industry, the Fujikura 35S is the ideal splicer to use when portability, ruggedness, speed, and reliability are needed. If you’d like to see the AFL Splice-on-Connector Tool-Kit capabilities first-hand, please contact us at 1-800-235-3423 to arrange a product demonstration at your earliest convenience.
